VTX A6

Sub-compact Dual 6.5-Inch Line Array Element

VTX A6

Sub-compact Dual 6.5-Inch Line Array Element
The A6, JBL’s smallest VTX line array product to date, brings flagship VTX A Series performance to a subcompact form factor. The fully passive, two-way line array element is a versatile solution for small to mid-size rental houses, corporate events, theaters, clubs, houses of worship or anyone who demands superior sound reinforcement.

Like every VTX A Series speaker, the A6 is engineered for outstanding sonic performance and ease of integration and deployment. Custom-engineered dual 6.5” Differential Drive® woofers and a new 3-inch compression driver join the acoustic innovations that are hallmarks of the VTX Series. Coupled with a clean and modern industrial design and a robust IP55 rating, the A6 is a significant advancement to its predecessor, the VT4886.

The A6 also shares the A12 and A8 auto-locking rigging mechanism and suspension system. The simple to use suite of accessories and best-in-class software suite (Performance Manager, LAC3, and Array Link) expand the flown, ground-stacked, and installation capabilities of the series when paired with the new VTX B15G or VTX B15 subwoofer.

With the addition of the A6, the JBL VTX A Series provides a complete ecosystem for delivering unrivaled sound reinforcement at any scale, in any venue, anywhere in the world.

Características

  • High-frequency section features a custom 3-inch polymer annular-diaphragm compression driver and integrated waveguide for crisp, distortion-free highs
  • Custom 6.5-inch woofers are based on JBL’s Differential Drive dual-voicecoil, dual-gap design for superior low-frequency performance in a compact footprint
  • Radiation Boundary Integrator (RBI) horn design provides 120° horizontal dispersion in a reduced cabinet size
  • Efficient passive crossover network allows 16 speakers to be connected to a single Crown I-Tech 4x3500HD amplifier
  • Industry-leading auto-locking rigging and suspension features allow fast, accurate deployment in flown and ground-stacked configurations
  • A6 and B15 have the same cabinet width and suspension hardware, allowing the two products to be combined in flown and ground-stacked configurations
  • Fully compatible with JBL LAC-3, Array Link and Performance Manager software
  • Neutrik speakON NL4 connectors
  • Rugged, exterior-grade birch enclosure with black Duraflex finish and recessed handholds
  • Powder-coated, hex-perforated steel grilles with acoustically transparent cloth backing
  • Available accessories include mini frame, suspension bar, base plate, ceiling mount, cover, ground stack accessory, pole adapter and transport cover and accessories

Descargas

Specifications
  Versión Idioma Tamaño Subido
file type icon VTX A6 Spec Sheet
en versión A, actualizado: ene 2023
en  511 KB ene 2023
file type icon VTX A6 Spec Sheet
zh actualizado: feb 2023
  zh  272 KB feb 2023
Manuals
  Versión Idioma Tamaño Subido
file type icon VTX A6 User Manual
en versión B, actualizado: jul 2023
en  9,91 MB jul 2023
file type icon VTX A6 Rigging Manual
en versión B, actualizado: jul 2023
en  49,2 MB jul 2023
CAD Drawings
  Versión Tamaño Subido
file type icon VTX A6 Customer Drawings
versión B, actualizado: jul 2022
3,6 MB jul 2022
file type icon VTX A6/B15 Sketchup Files
versión 1.0, actualizado: jul 2022
1.0  2,44 MB jul 2022
file type icon VTX A6/B15 Revit/BIM Files
versión 1.0, actualizado: jul 2024
1.0  34,9 MB jul 2024
Software
  Tamaño Subido
download icon for Venue Synthesis Venue Synthesis
publicado: ene 2025
ene 2025
download icon for Performance Manager 3 Performance Manager 3
publicado: jul 2024
jul 2024
Declaration of Conformity
  Versión Idioma Tamaño Subido
file type icon VTX A6/B15 UK Declaration of Conformity
en versión A, actualizado: oct 2022
en  112 KB oct 2022
file type icon VTX A6/B15 EU Declaration of Conformity
en versión A, actualizado: oct 2022
en  125 KB oct 2022
Ease Data
  Versión Tamaño Subido
file type icon VTX A6/B15 EASE GLL
versión 1.1, actualizado: dic 2022
1.1  13 MB dic 2022
Preset Libraries
  Versión Tamaño Subido
file type icon VTX A6 iTech HD Preset Library
versión 1.2.0, actualizado: ago 2022
1.2.0  1,92 MB ago 2022
Service Notes
  Versión Idioma Tamaño Subido
file type icon VTX A6 Spare Parts
en versión A, actualizado: abr 2026
en  65,3 KB abr 2026

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Frequency Range (-10dB) 67 Hz-20 kHz
Coverage Pattern 110 degrees nominal (500 Hz-16 kHz)
SPL MÁXIMO 134 dB
System Processing Crown I-Tech HD
Crown iTech 4x3500HD
Impedancia nominal 10 ohms
LF Driver (2) JBL 2186J, 6.5 in diameter, dual 2.5 in diameter voice coil, neodymium Differential Drive®
HF Driver (1) JBL 2433H, 3 in diameter annular diaphragm, 3 in diameter voice coil, neodymium compression driver
Enclosure 12 mm 9-ply exterior grade birch plywood, black DuraFlexTM finish, four integral recessed handholds
Inter-enclosure Angle 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 12, 15
Dimensions (H x W x D) 190 mm x 536 mm x 301 mm
7.5 in x 21.1 in x 11.8 in
PESO NETO 18.4 kg (40.3 lbs)

Accesorios

VTX A6 MF | Mini Frame for A6 and B15
VTX A6 MF Main photo
Imágenes más grandes
VTX A6 MF detail thumbnail #1 VTX A6 MF detail thumbnail #2 VTX A6 MF detail thumbnail #3 VTX A6 MF detail thumbnail #4

Highlights:

  • Compact and lightweight design
  • Compatible with VTX A6 and VTX B15
  • Maximum Limit: (24) VTX A6/(12) VTX B15
  • Single-point and side-by-side pick-point options
  • 0.5° pick-point resolution
  • Three-part collapsible design
  • Compatible shackle size: 1/2 in

Included:

  • (2) Side arms
  • (1) Spreader bar
  • (1) 1/2-inch Shackle

Documentación
VTX A6 SB | Suspension Bar for A6 and B15
VTX A6 SB Main photo
Imágenes más grandes
VTX A6 SB detail thumbnail #1 VTX A6 SB detail thumbnail #2 VTX A6 SB detail thumbnail #3 VTX A6 SB detail thumbnail #4

Highlights:

  • Versatile suspension bar accessory
  • Compatible with VTX A6 and VTX B15
  • Used for suspension or pull-back applications
  • Maximum Limit: (24) VTX A6/(15) VTX B15
  • Lightweight design
  • Shackle Size: 1/2 in

Included:

  • (1) Suspension bar
  • (1) 1/2-inch Shackle #5118578

Documentación

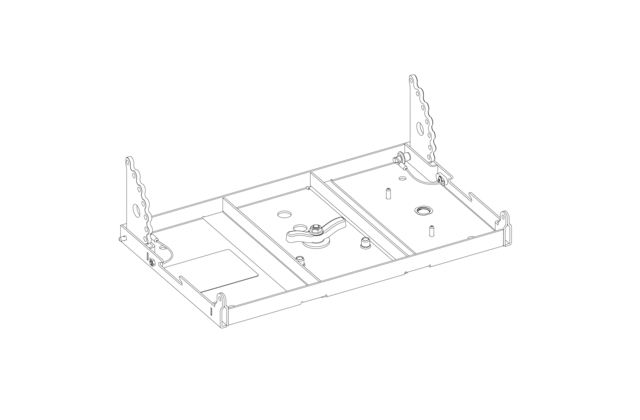

VTX A6 BP | Base Plate for A6
VTX A6 BP Main photo
Imágenes más grandes
VTX A6 BP detail thumbnail #1 VTX A6 BP detail thumbnail #2 VTX A6 BP detail thumbnail #3 VTX A6 BP detail thumbnail #4

Highlights:

  • Enables ground stacking VTX A6 arrays
  • Allows attaching VTX A6 cabinets to subwoofers
  • Universal M20 threaded pole mount
  • Angle range: -15 degrees and +5 degrees
  • Compatible with VTX PM pole mount adapter
  • Support for up to (8) VTX A6

Included:

  • (1) Base Plate
  • (2) Angle Plates
  • (1) M20 Knob

Documentación
VTX A6 CM | Ceiling Mount Accessory for A6 and B15
VTX A6 CM Main photo
Imágenes más grandes
VTX A6 CM detail thumbnail #1 VTX A6 CM detail thumbnail #2 VTX A6 CM detail thumbnail #3 VTX A6 CM detail thumbnail #4

Highlights:

  • Compact array mounting solution
  • Compatible with VTX A6 and VTX B15
  • Low profile

Included:

  • (2) Mounting Plates
  • (1) Drilling Template

Documentación

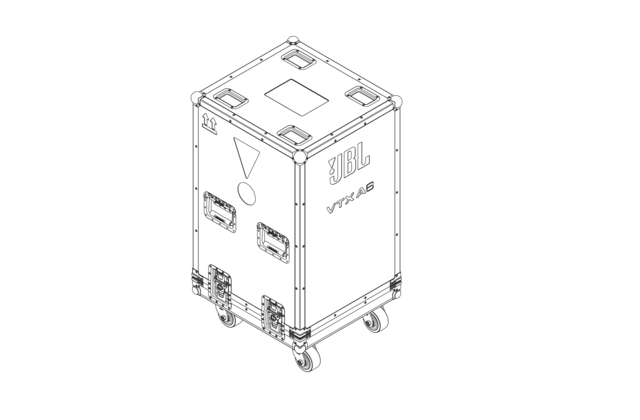

VTX A6 CASE | Road Case for (4) VTX A6
VTX A6 CASE Main photo
Imágenes más grandes
VTX A6 CASE detail thumbnail #1 VTX A6 CASE detail thumbnail #2 VTX A6 CASE detail thumbnail #3 VTX A6 CASE detail thumbnail #4

Highlights:

  • Road case for (4) VTX A6 speakers
  • Truck-friendly dimensions
  • Includes storage for accessories and cables
  • Built-in stacking features for easy storage
  • Durable DuraFlexTM finish
  • Heavy duty casters

Included:

  • JBL-P3256MX | (1) VTX A6 CASE
  • JBL-P3319MX | (1) VTX A6 CASE, (4) VTX A6

Documentación
VTX PM | Adaptador universal de montaje en poste de 35 mm, estilo T-Bar
VTX PM Main photo
Imágenes más grandes
VTX PM detail thumbnail #1 VTX PM detail thumbnail #2 VTX PM detail thumbnail #3 VTX PM detail thumbnail #4 VTX PM detail thumbnail #5

Características destacadas:

  • Adaptador universal para montaje en poste
  • Compatible con postes de 35 mm
  • Incluye pernos de agarre cómodo M10

Incluido:

  • (1) Adaptador para montaje en poste
  • (1) Perno de agarre cómodo M8 x 1.25
  • (2) Arandelas M10
  • (2) Pernos de agarre cómodo M10 x 1.5

Documentación
RC500 | Abrazadera Giratoria
RC500 Main photo
Imágenes más grandes
RC500 detail thumbnail #1 RC500 detail thumbnail #2 RC500 detail thumbnail #3 RC500 detail thumbnail #4

Destacados:

  • Adaptador universal para abrazadera de armadura/tubería
  • Soporte de hasta 500 kg (1100 lbs)
  • Mecanismo de sujeción ajustable
  • Rango de tubería: 0,5 in – 2 in
  • Incluye rodamiento para rotación suave de 360°
  • Marcas de rotación de 10 grados para alineación de arreglos horizontales

Incluido:

  • (1) VTX RC500 Rotating Clamp

Compatibilidad:

  • VTX A6 MF
  • VTX A8 MF
  • SRX906LA AF
  • SRX910LA AF
  • SRX922 AF

Documentación
