PRX815XLF
Descontinuado

Subwoofer autoalimentado de 15" con frecuencia baja extendida y Wi-Fi

PRX815XLF
Imágenes más grandes

15” Self-Powered Extended Low Frequency Subwoofer System with Wi-Fi

The JBL PRX815XLF is a self-powered extended low-frequency subwoofer system. Featuring a JBL 15-inch woofer powered by a 1500-watt class-D amplifier, PRX815XLF delivers incredible output in a lightweight and compact form factor.



Características

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Next-generation JBL neodymium compression drivers
  • Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications

  • The PRX815XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/ sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX815XLF performs with exceptional efficiency and control. The subs are stackable and light-weight, ensuring quick set-ups and tear-downs. Due to their rugged construction, they are perfect for AV rental inventories. With the integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization. PRX800 subwoofers feature a standard M20 threaded pole cup that can accept most modern subwoofer-mounted speaker poles.
  • The PRX815XLF is a high performance self-powered subwoofer system with remote Wi-Fi control of onboard DSP EQ parameters. The PRX815XLF is comprised of a powerful 2275H Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
  • All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
  • The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.


Descargas

Data Sheets
  Versión Tamaño Subido
file type icon PRX815XLF Sell Sheet
actualizado: oct 2020
  766 KB oct 2020
file type icon PRX815XLF Spec Sheet
versión 12_16_19, actualizado: dic 2019
12_16_19  924 KB dic 2019
Manuals
  Tamaño Subido
file type icon PRX800 Quick Start Guide
actualizado: oct 2020
1,3 MB oct 2020
Compliances
  Tamaño Subido
file type icon PRX800 Compliance
actualizado: oct 2020
143 KB oct 2020
Software
  Tamaño Subido
iOS download icon PRX Connect - iOS
publicado: dic 2023
dic 2023
Android download icon PRX Connect - Android
publicado: nov 2020
nov 2020
User Guides
  Tamaño Subido
file type icon PRX800 User Guide
actualizado: oct 2020
1,79 MB oct 2020
HI-RES IMAGEs
  Tamaño Subido

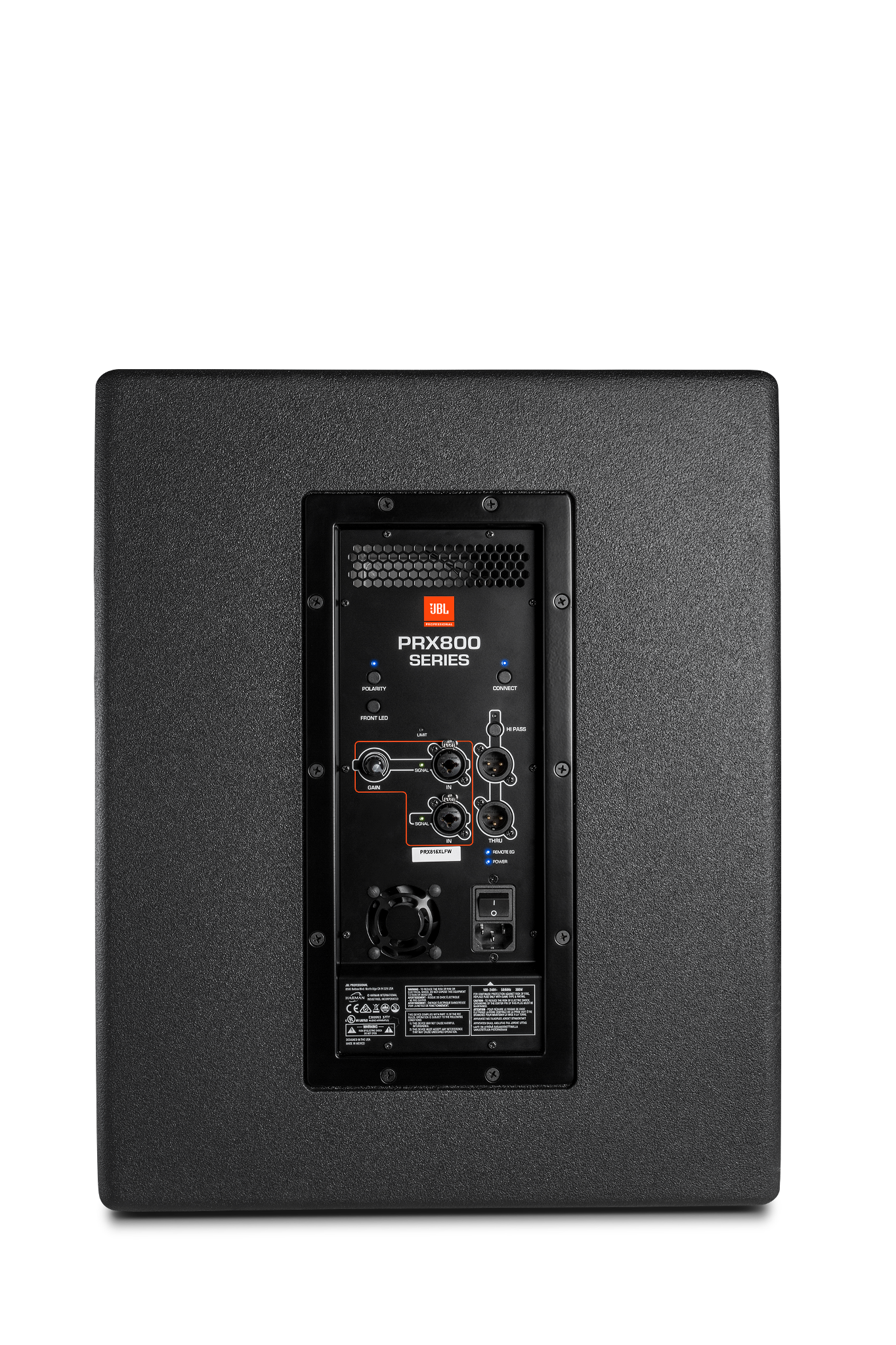

file type icon PRX815XLF Back
actualizado: oct 2020
3,34 MB oct 2020

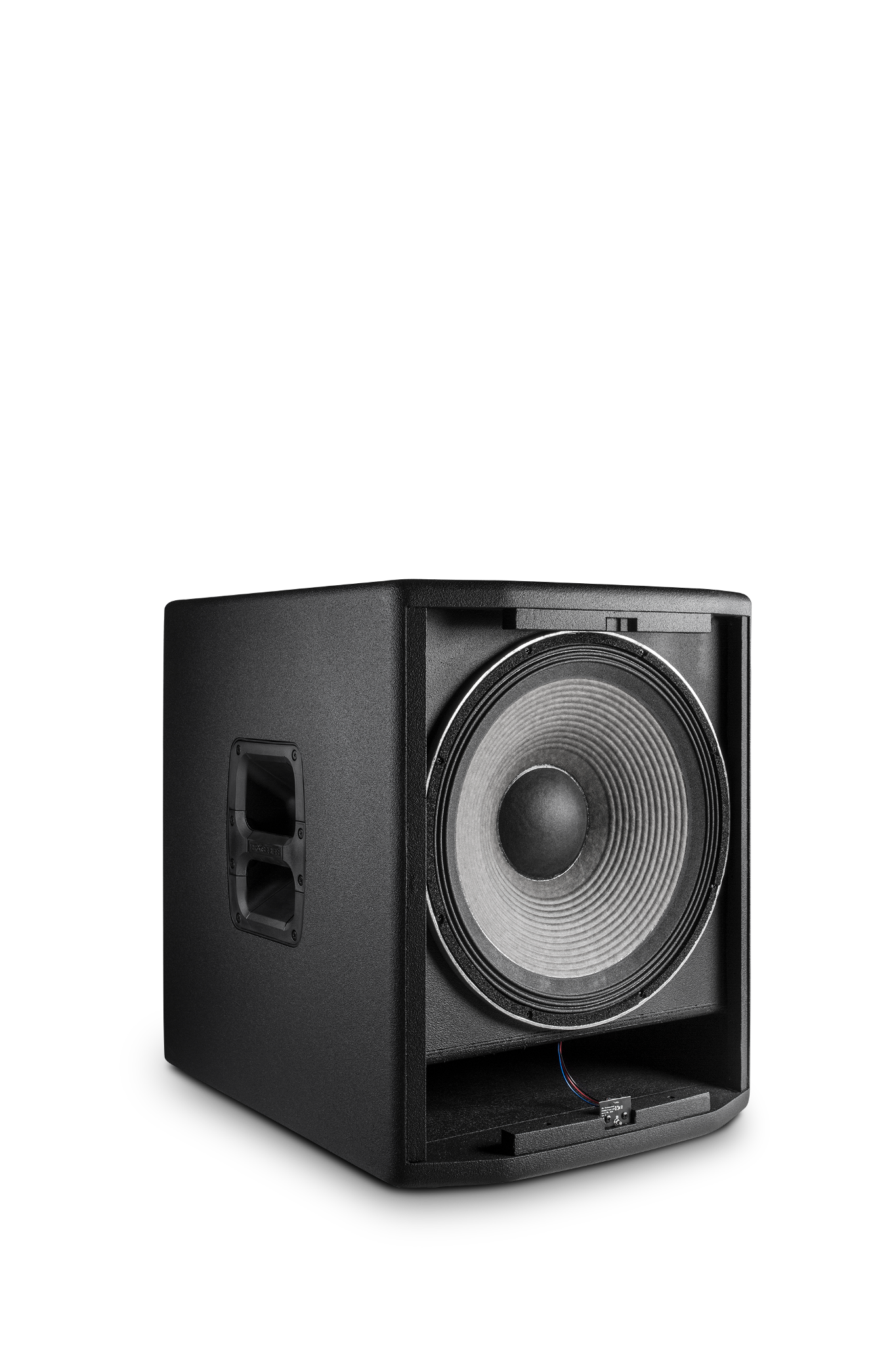

file type icon PRX815XLF Front No Grille
actualizado: oct 2020
1,59 MB oct 2020

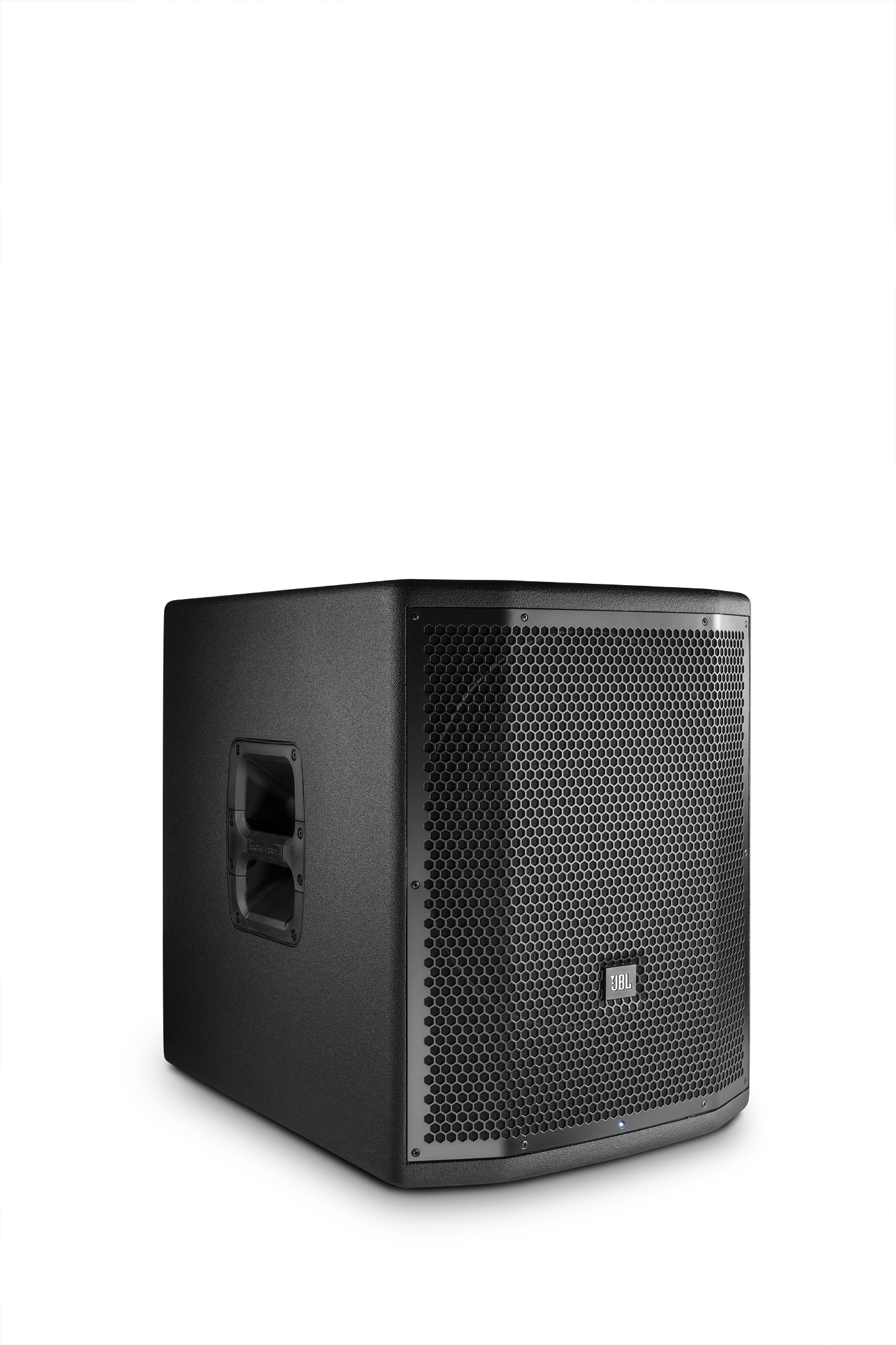

file type icon PRX815XLF Front
actualizado: oct 2020
1,69 MB oct 2020
Install Guides
  Tamaño Subido
file type icon PRX800 WiFi Setup Guide
actualizado: oct 2020
445 KB oct 2020

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

TIPO DE SISTEMA Self Powered 15” subwoofer
Maximum SPL Output 131 dB peak
Frequency Range (-10dB) 36 Hz - 98 Hz
RESPUESTA DE FRECUENCIA (±3 dB) 40 Hz – 87 Hz
Inputs Two Balanced female XLR/ 1/4” combo connectors
Input Impedance 20K Ohms (balanced)
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal presentPower: Blue indicates system has power and ready to pass audio.
Dynamic Control (Input) dbx Type IV™ limiter circuit
System Low Pass 80 Hz DSP
Loop out Crossover Frequency 80 Hz Digital 24db/octave Linkwitz-Riley Filter
Design Highly efficient Class-D amplifier
Power Rating 1500W
AC power input 100V - 240V ~ 50/60 Hz
LF Driver 1 x JBL 2275H 15 in woofer
Enclosure Rectangular, 18 mm, birch-poplar mix
Transport 2 x injection molded handles with backing cup
Acabado Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D) 548 mm x 446 mm x 572 mm (21.6 in x 17.5 in x 22.5 in)
PESO NETO 26.3 kg (58.0 lb)
PESO BRUTO 30.3 kg (66.8 lb)
Mic Inputs 2
Phantom Power No
EQ 8-band parametric EQ
Effects 25 parametric EQ's and speaker delay
Outputs 1 x XLR (mix out)
