PD5322/43 /64 /95 (discontinued)

Precision DirectivityFull Range Three-Way Loudspeakers

PD5322/43 /64 /95
Larger Images

Precision Directivity Full Range Three-Way Loudspeakers

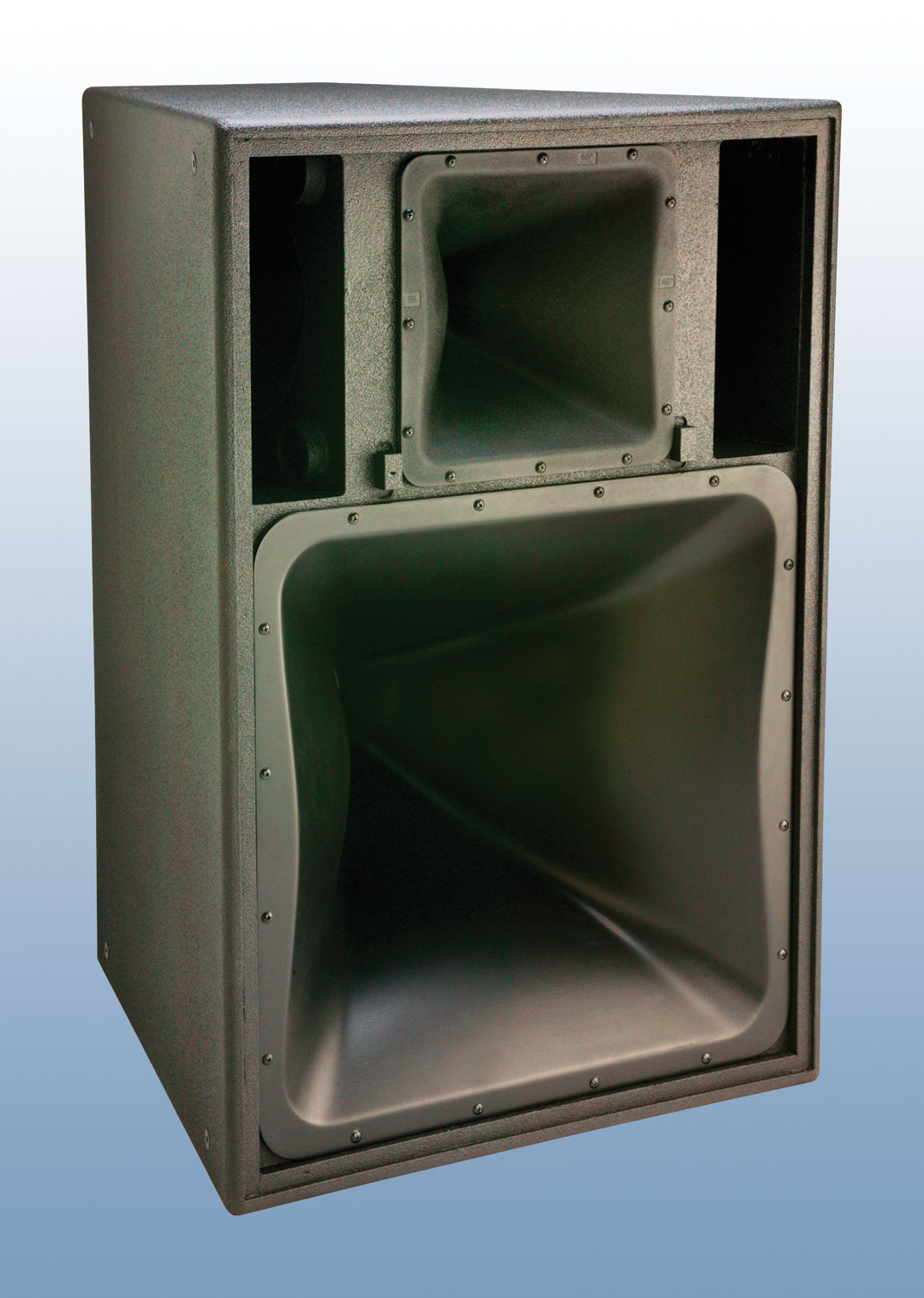

The PD5322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where low frequency extension to 40 Hz is required.


  • Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz.
  • High power CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
  • Large format neodymium HF driver provides clear, intelligible high frequency projection.
  • Large PT™ Progressive Transition™ waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response.
  • Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation.


  Version Language Size Uploaded
file type icon PD5322/43 Spec Sheet
updated: jul 2019
    139 KB jul 2019
file type icon PD5322/95 Spec Sheet
updated: jul 2019
    99,9 KB jul 2019
file type icon PD5322/64 Spec Sheet
updated: jul 2019
    98,4 KB jul 2019
file type icon PD5000 Product Range
updated: oct 2019
    290 KB oct 2019
CAD Drawings
file type icon PD5000 Series 2D DXF Files
updated: oct 2019
    2,93 MB oct 2019
file type icon PD5000 2D CAD
updated: oct 2020
    4,94 MB oct 2020
file type icon PD5000 3D CAD
updated: oct 2020
    170 KB oct 2020
file type icon PD5000 2D PDF
updated: oct 2020
    662 KB oct 2020
file type icon PD5000 Series Declaration of Conformity
updated: oct 2019
    91,7 KB oct 2019
Tech Notes
file type icon Tech Note: Basic PD5322 and PD5122 Array Applications
updated: oct 2020
    3,97 MB oct 2020
file type icon PD5322-95.jpg
updated: oct 2020
    204 KB oct 2020
file type icon PD5322-64.jpg
updated: oct 2020
    201 KB oct 2020
file type icon PD5322-43 Photo
updated: oct 2020
    14,3 MB oct 2020
Speaker Tunings
file type icon PD5000 Tunings
updated: may 2023
    2,35 MB may 2023
Information documents
file type icon Line Array or Point-and-Shoot Speakers?
updated: oct 2019
    1,01 MB oct 2019
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: may 2023
12-10-21    24 MB may 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Range 41 Hz to 17 kHz (-10 dB)
Frequency Response 49 Hz to 15 kHz ( ± 3 dB)
Coverage Pattern /43: 40° x 30°/64: 60° x 40°/95: 90° x 50°
Crossover Modes Tri-amp / Bi-amp (passive mid-high) switchable
Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz
Transducer Power Rating (AES) LF: 1600 W (6400 W peak), 2 hrs. 1200 W (4800 W peak), 100 hrs MF: 350 W (1400 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
System Power Rating LF: 1200 W (4800 W peak) MF/HF: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) LF: 128 dB SPL (134 dB peak)MF: 137 dB SPL (143 dB peak)HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak)
System Sensitivity (1w @ 1m) Passive Mode: 111 dB-SPL (mid/high section only)
LF Driver 2 x 2206H 300 mm (12 in) driver with 100 mm (4 in) voice coil
Mid Frequency Driver CMCD-82H cone midrange compression driver with integral 200 mm (8 in) Differential Drive® dual 75 mm (3 in) voice coil driver
HF Driver 2431H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories)
Finish Black DuraFlex™ finish. White (-WH) available upon request
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
Input Connectors Neutrik Speakon® NL8, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 991 x 673 x 706 mm (39.0 x 26.5 x 27.8 in)
Net Weight 87.3 kg (192 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
