LSR305
Descontinuado

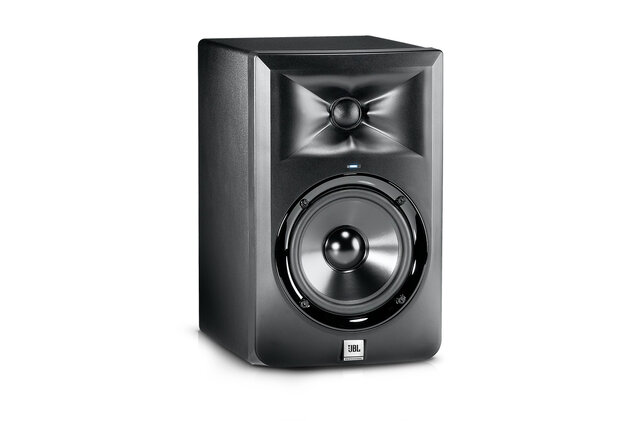

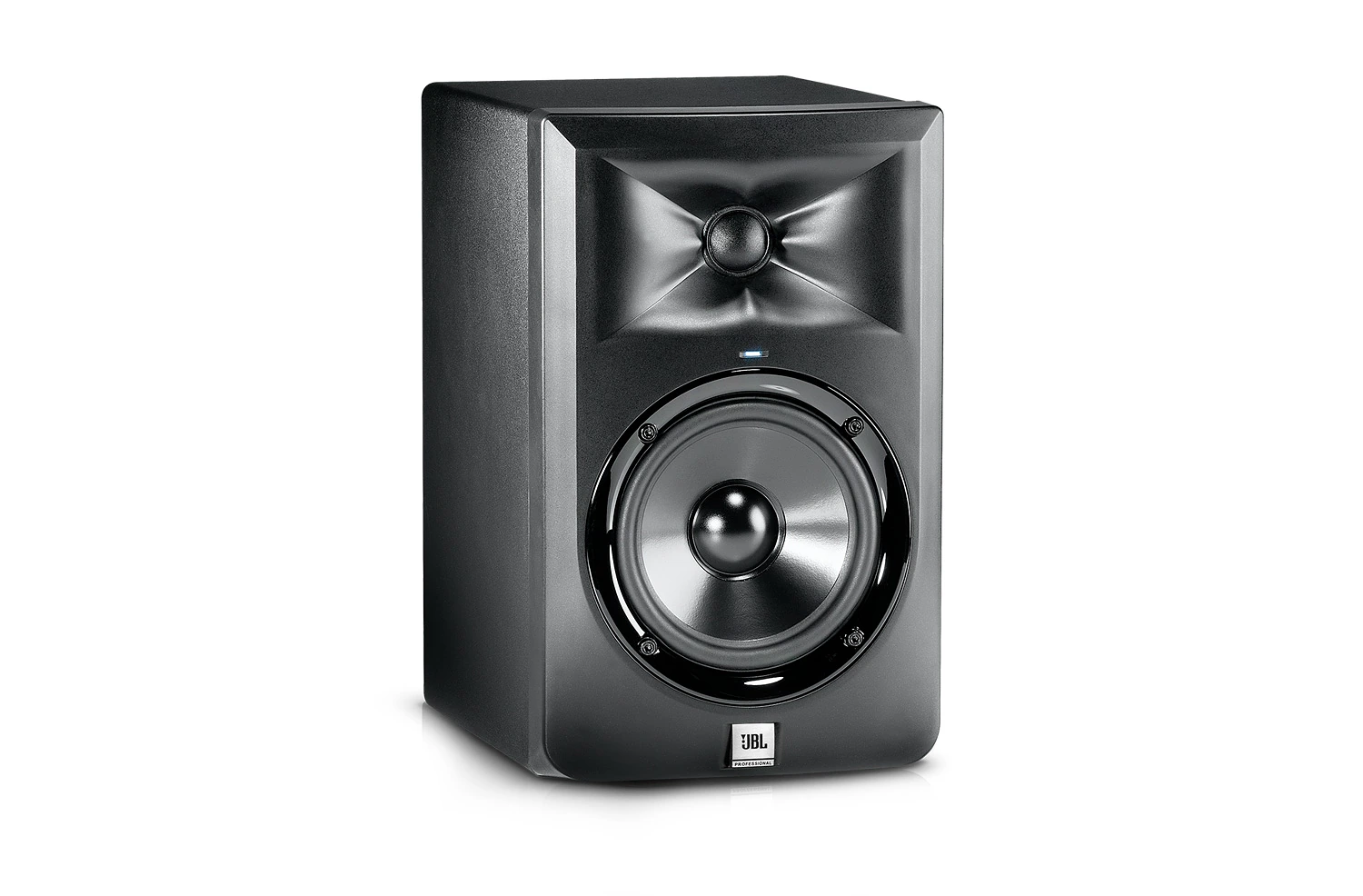

Monitor de Estudio Amplificado de Dos Vías de 5"

LSR305
Imágenes más grandes

Monitor de Estudio Amplificado de 5" de Dos Vías

Monitor de Estudio Biamplificado con Transductor de Baja Frecuencia de 5" Magnéticamente Blindado y Transductor de Alta Frecuencia de 1" Soft-Dome e Image Control Wave Guide. Amplificador Clase-D de 41 Vatios RMS para LF y Amplificador de 41 Vatios RMS para HF. Entradas XLR Balanceadas y TRS de ¼" con Control de Nivel Dentellado, Controles HF y LF Trim. LSR305 Incluye Cable de Alimentación de EE.UU. LSR305/230 Incluye Cable de Alimentación Internacional.



Características

  • Image Control Waveguide:
    • The Image Control Waveguide was developed for JBL’s new flagship M2 Master Reference Monitor and
      with the introduction of the JBL 3 Series, is now included for the first time in an affordable, compact
      reference monitor.
    • The patent-pending design of the Image Control Waveguide precisely controls the sound emanating from
      the speaker in the vertical and horizontal planes ensuring the presentation at the listening position is neutral
      and accurate.
  • JBL Transducers are legendary for their performance. The 3 Series long-throw woofer and its damped woven composite Neodymium tweeter are designed from the ground up to reproduce the powerful transients and micro dynamics of your mix. These drivers deliver impressive deep bass and smooth high frequency response beyond the range of human hearing.
  • JBL’s Patented Slip Stream™ low frequency port design works in concert with the woofer to produce deep bass response at all playback levels. The double-flared shape of the port is precisely engineered for greater low-frequency extension and reduced turbulence.
  • Big Power, Big Sound - 3 Series efficient Class D Amplifiers provide abundant power to deliver the output and dynamic headroom needed for the most demanding production styles
  • Professional Balanced Inputs - Balanced XLR and 6 mm TRS inputs give you the options you need to connect your 3 Series to any signal source while maintaining professional signal quality.
  • Selectable Input Sensitivity - The -10 dB/+4 dB sensitivity switch ensures compatibility with a broad range of signal sources, allowing you to connect the 3 Series to high output professional gear without any danger of input overload.
  • LF Trim and HF Trim “TRIM” switches for both the Low and High Frequencies give you excellent control over the 3 Series sound in “your” room. Use these to fine-tune the amount of bass and treble you hear to compensate for room acoustics, program material and your personal taste.
  • JBL Professional Reliability - Prior to becoming a production-ready design, each 3 Series model is subjected to JBL’s tough 100 hour power test, in which the speaker is required to play continually at full output for 100 hours without failure. This demanding test ensures your 3 Series speakers will deliver years of reliable performance.
  • JBL LSR Design - Your Music Needs a Point of Reference - While most manufacturers take only a single on axis measurement of the speaker’s performance, this doesn’t tell how it will sound in your room. JBL’s LSR Linear Spatial Reference design criteria requires seventy-two measurements yielding more than 1,200 times more data, enabling JBL to engineer a speaker that “sounds right” in any working space. With LSR design, 3 Series Studio Monitors deliver superior accuracy regardless of the size and shape of your room, so your mixes “hit their mark” when heard on any playback system.
  • Deep Pedigree - The impressive performance of the 3 Series Reference Monitors is the result of JBL’s development of its flagship M2 Master Reference Monitor. Learn more about the M2 at www.jblpro.com/M2


Reseñas

Descargas

Brochures
  Tamaño Subido
file type icon Recording & Broadcast Full Line Catalog
actualizado: oct 2020
1,81 MB oct 2020
Compliances
  Tamaño Subido
file type icon LSR300 Series
actualizado: oct 2019
155 KB oct 2019
file type icon 3 Series Declaration of Conformity
actualizado: oct 2019
154 KB oct 2019
Owner's Manuals
  Idioma Tamaño Subido
file type icon 3 Series Owner's Manual
actualizado: oct 2020
  5,05 MB oct 2020
file type icon 3 Series Owners Manual German
de actualizado: oct 2020
de  1,9 MB oct 2020
file type icon 3 Series Owners Manual French
fr actualizado: oct 2020
fr  1,91 MB oct 2020
file type icon 3 Series Owners Manual Spanish
es actualizado: oct 2020
es  1,91 MB oct 2020
Images
  Tamaño Subido

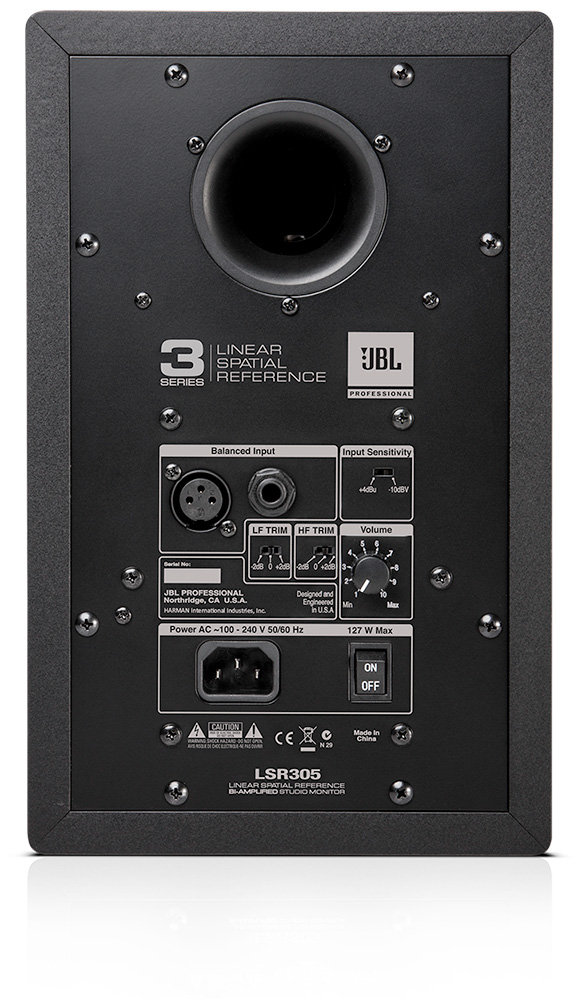

file type icon LSR305 Back
actualizado: abr 2019
171 KB abr 2019

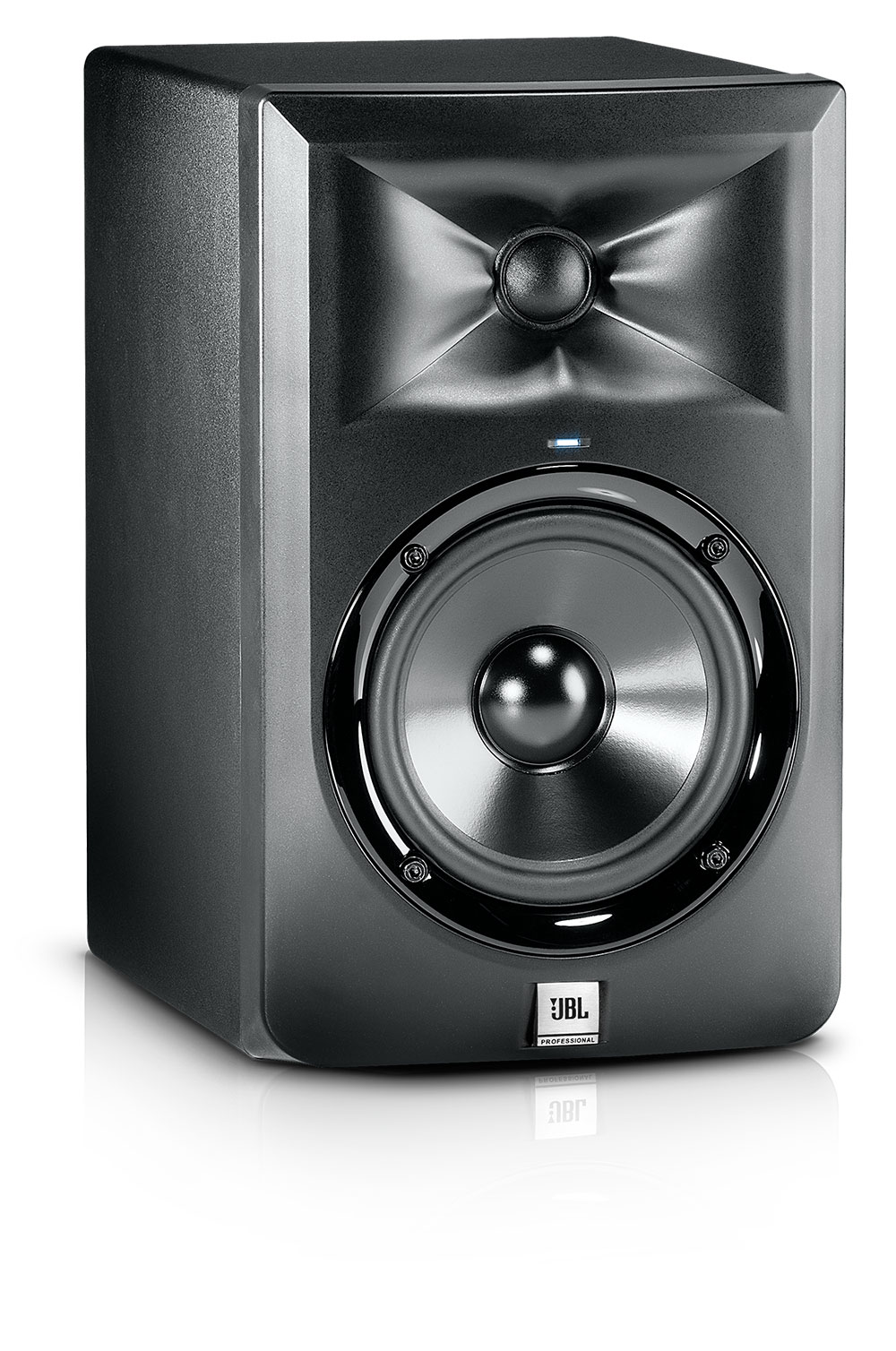

file type icon LSR305 Right Angle
actualizado: abr 2019
250 KB abr 2019

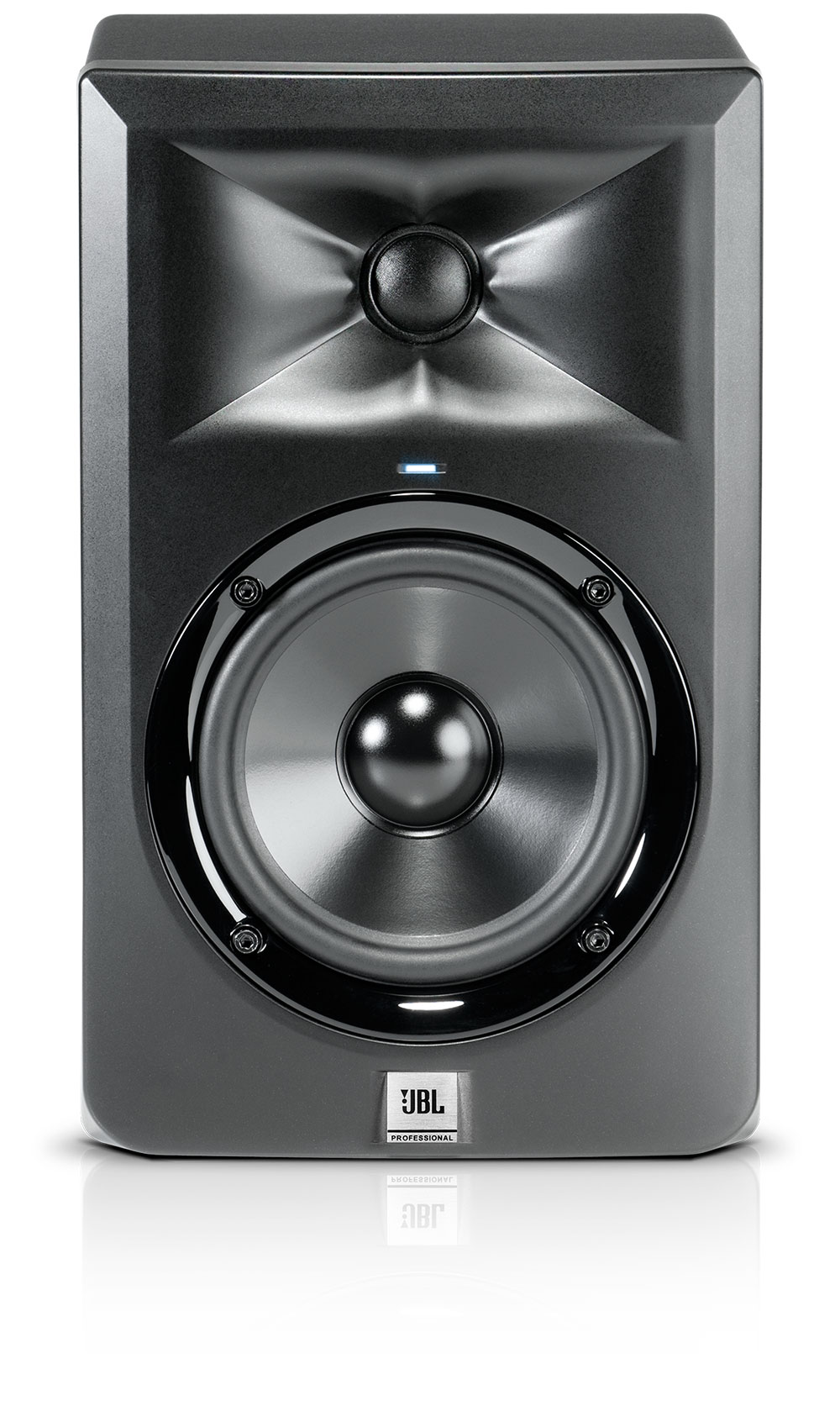

file type icon LSR305 Front
actualizado: abr 2019
220 KB abr 2019

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Frequency Range 43 Hz-24 kHz
Max Peak SPL 108 dB SPL C-Weighted
Max Peak Input +23 dBu
LF DRIVER SIZE 127 mm (5")
HF DRIVER SIZE 25 mm (1")
LF DRIVER POWER AMP 41 W Class D
HF DRIVER POWER AMP 41 W Class D
LF Trim Control +2 dB, 0, -2 dB
HF TRIM CONTROL +2 dB, 0, -2 dB
Input Types 1 x XLR, 1 x TRS Balanced
AC INPUT VOLTAGE 100-240 VAC +/- 10% 50/60 Hz
Dimensions (H x W x D) 298 mm x 185 mm x 251 mm (11.75 in x 7.28 in x 9.88 in)
PESO 4.6 kg (10.12 lbs)
