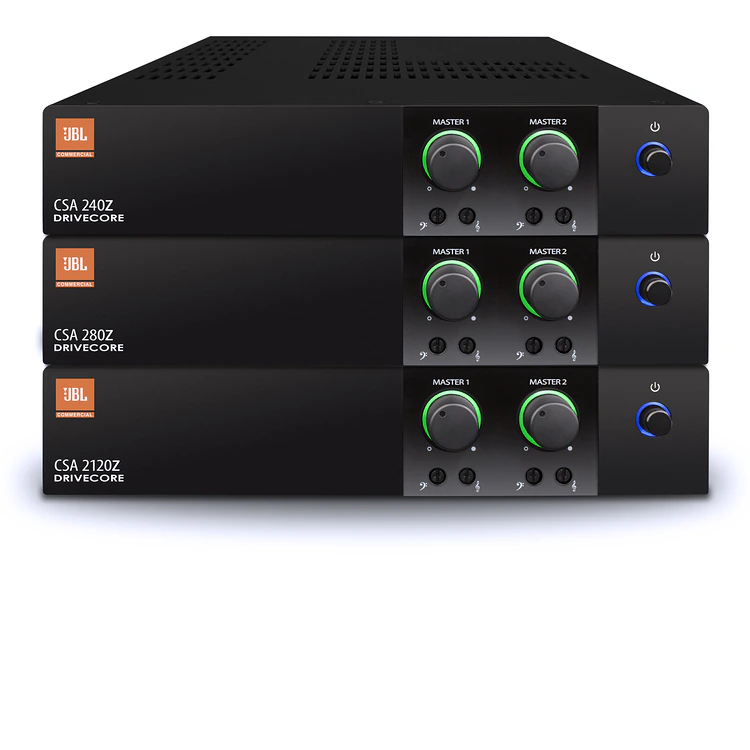

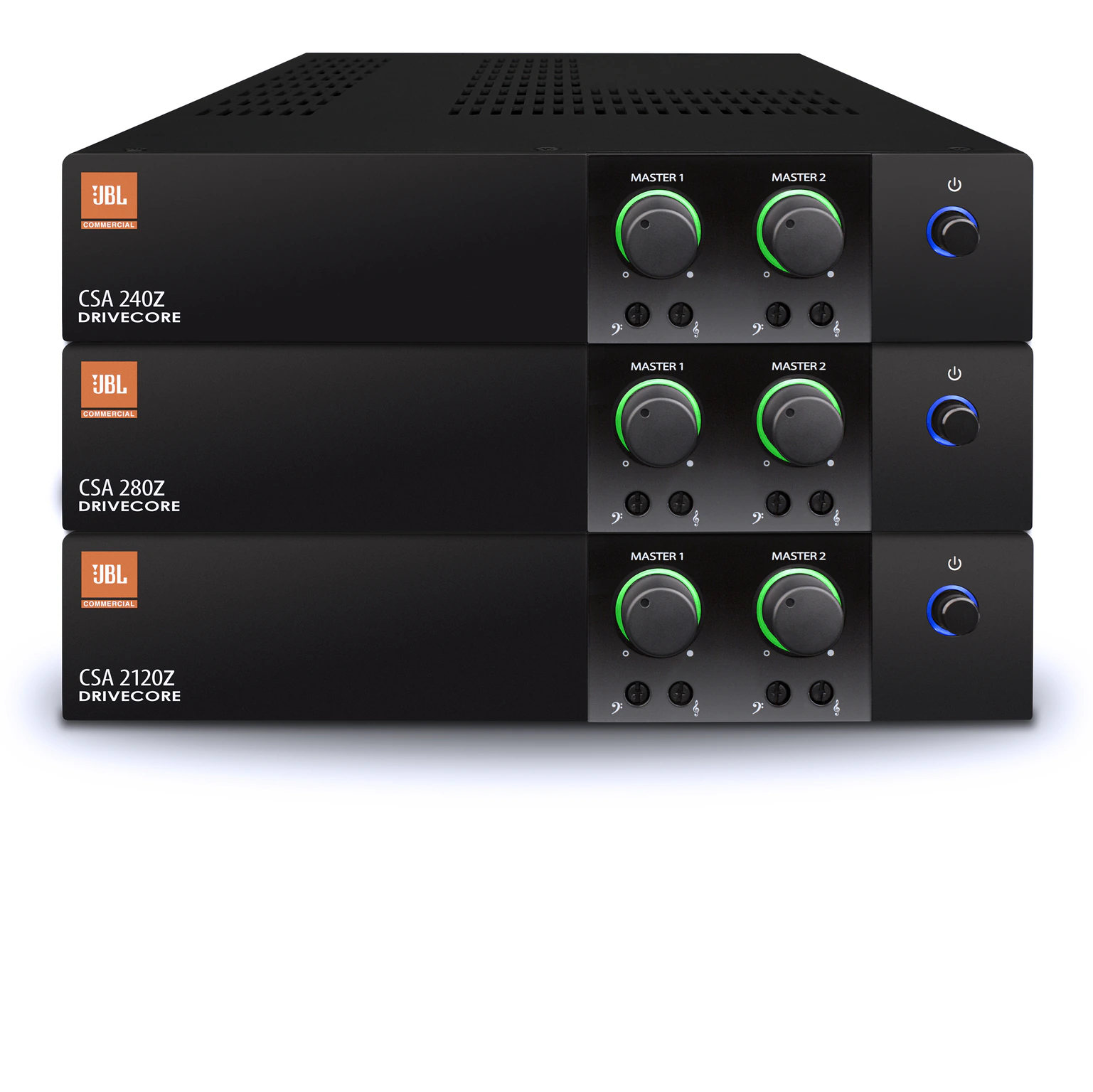

CSA 240Z/280Z/2120Z

2 x 40/80/120W Audio Amplifiers

CSA 240Z/280Z/2120Z
Imágenes más grandes

By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.

From the switch-mode universal power supply to the efficient performance of Crown’s DriveCore™ Technology, we continue to set new standards in commercial power amplifier technology.

Simple to configure, the Commercial Series amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.

Supporting 70V and 100V installations out of the box, Commercial Series amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every Commercial Series amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz.

And with HARMAN’s GreenEdge™ environmental initiative, Commercial Series amps quickly pay for themselves in energy savings.

Energy Star Certified

Características

  • 1 or 2 output channels with 40W, 80W, 120W per channel
  • Built-in 70V and 100V
  • Fanless, space-saving 1U design
  • Sleep mode disable function
  • Energy-efficient amplifier
  • Sleek industrial look with illuminated rings making knobs easy to see and use
  • Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
  • Universal power supply
  • Energy Star® Certified

Descargas

Documentos
  Idioma Tamaño Subido
file type icon CSA 240Z/280Z/2120Z Manual del propietario-Inglés
en actualizado: abr 2026
en  1,64 MB abr 2026
file type icon CSA 240Z/280Z/2120Z Manual del propietario-Chino
zh actualizado: abr 2026
zh  2,08 MB abr 2026
Brochures
  Tamaño Subido
file type icon JBL Commercial Series Gatefold
actualizado: abr 2020
1,31 MB abr 2020
file type icon JBL Commercial Brochure
actualizado: abr 2020
1,64 MB abr 2020
Application Guides
  Tamaño Subido
file type icon CSA Application Guide - Home
actualizado: abr 2020
808 KB abr 2020
file type icon CSA Application Guide - Retail Store
actualizado: abr 2020
784 KB abr 2020
Quick Reference Guides
  Tamaño Subido
file type icon GreenEdge QRG
actualizado: ago 2015
1,1 MB ago 2015
Power Draw & Thermal Dissipation Specs
  Tamaño Subido
file type icon CSA Series Power Draw & Thermal
actualizado: ago 2015
51,2 KB ago 2015

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Power Output 40W/80W/120W
Output Channels 2
Input Sensitivity 1.4Vrms for 8-ohms
Phantom Power 27VDC
AC Line Voltage 100 - 240V, 50/60 Hz
Input Impedance 20K ohms/50K ohms
Dimensions 1.75” x 8.5” x 12” (44.45mm x 215.9mm x 304.8mm)
Included Accessories Rack mounting kit
