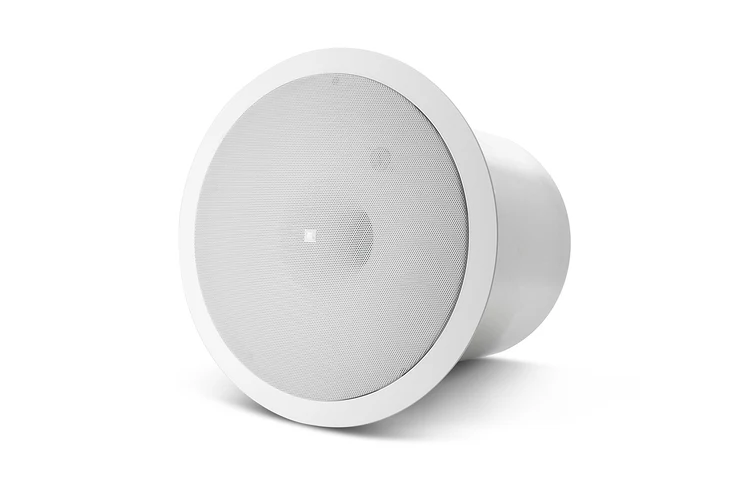

JBL Professional Control 19CST

Imágenes más grandes

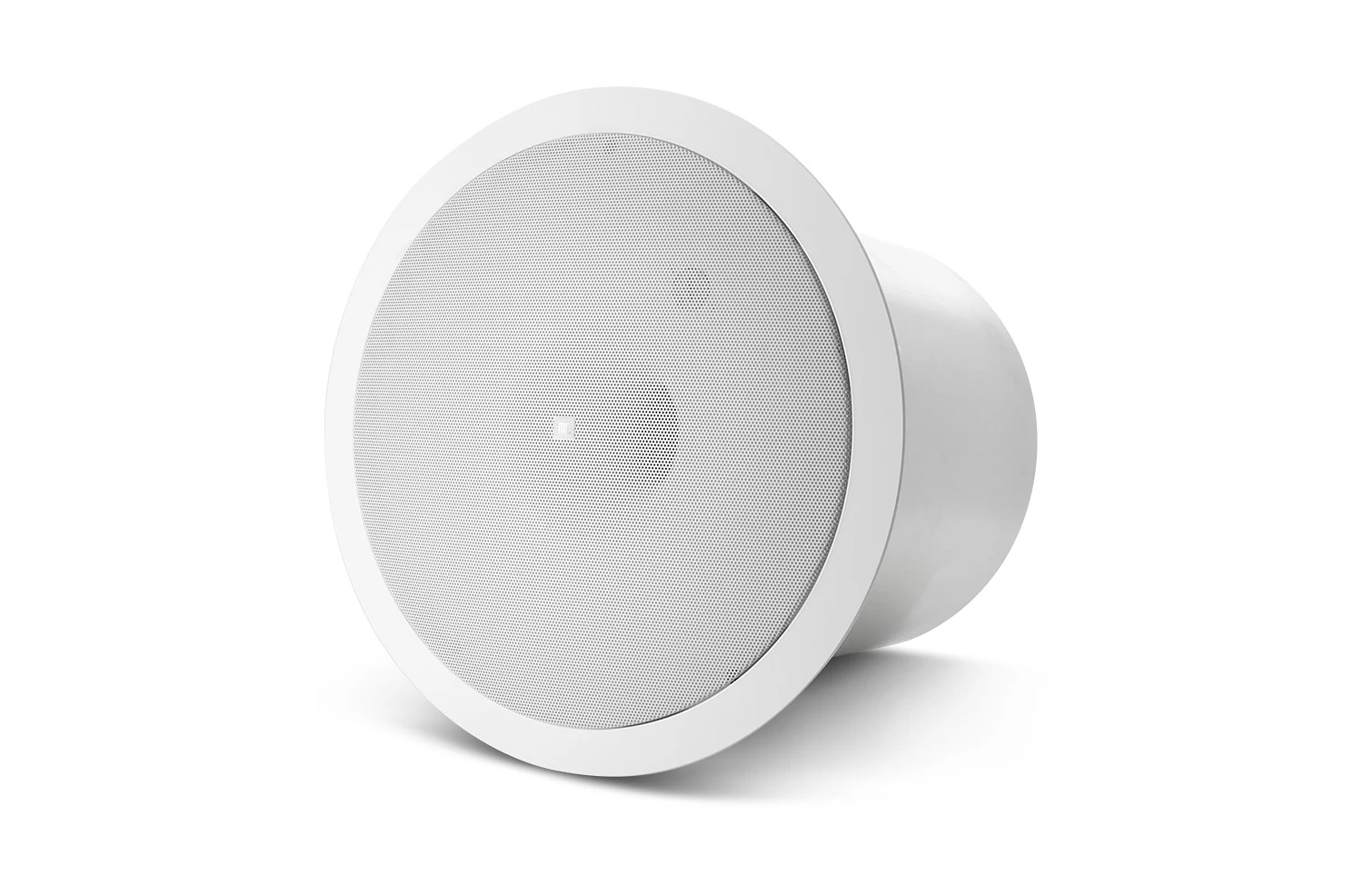

The Control 19CST uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.

Unique Nested Chamber™ design and Linear
Component: Long excursion 200 mm (8 in) driver.
Packaged with grille, backcan and tile rails for fast
Simple installation and wire connection method.

Descargas

Data Sheets

	Versión	Tamaño	Subido
Control 19CS/CST Spec Sheet versión B, actualizado: oct 2020	B	512 KB	oct 2020

Manuals

	Versión	Tamaño	Subido
MTC-TCD Thick-Ceiling Dogear actualizado: oct 2019		41,7 KB	oct 2019
Ceiling Speaker Application Guide actualizado: oct 2019		493 KB	oct 2019
Ceiling Speaker Accessory Guide versión A, actualizado: may 2026	A	127 KB	may 2026

Brochures

	Versión	Idioma	Tamaño	Subido
Control Contractor Brochure (2025) versión A, actualizado: mar 2026	A		23 MB	mar 2026
Control Contractor Brochure (2026) actualizado: mar 2026			21 MB	mar 2026

BIM Objects

	Tamaño	Subido
CONTROL 19CS BIM Object actualizado: ago 2019		ago 2019

Compliances

	Tamaño	Subido
JBL Control Series Passive Speakers DoC actualizado: dic 2019	179 KB	dic 2019
Control 19CS/CST Declaration of Conformity actualizado: oct 2019	145 KB	oct 2019

Software

	Tamaño	Subido
Ceiling Subwoofer Worksheet publicado: nov 2020	13,4 KB	nov 2020

Owner's Manuals

	Tamaño	Subido
Control 19CS/CST Manual actualizado: oct 2020	386 KB	oct 2020

Accessories

	Tamaño	Subido
MTC-CS-Teth1 Press-In Grille Safety Tether actualizado: sep 2021	204 KB	sep 2021

Speaker Tunings

	Versión	Tamaño	Subido
Commercial, CBT, and AWC Tunings 220616 versión A, actualizado: may 2023	A	557 KB	may 2023

Install Guides

	Tamaño	Subido
Guide to Business Music actualizado: oct 2020	52,4 KB	oct 2020
CC Ceiling Speakers: Myth versus Reality actualizado: oct 2020	23,9 KB	oct 2020

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Frequency Range	42 Hz - 200 Hz
Power Rating	See transformer taps
Transformer Taps	75W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle	180° conical
Maximum SPL (1m)	108 dB (70V/100V, center of ceiling) 114 dB (70V/100V, near corner)
Impedancia nominal	8 ohms
Drivers	200 mm (8.0 in) subwoofer
Enclosure Material	Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
CONEXIONES DE ENTRADA	Removable locking connector with screw-down terminals.
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Outside Dimensions (H x Dia)	345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
Ceiling Cutout Size	305 mm (12.0 in) diameter (cardboard cutout template included)
Net Weight (each)	6.3 kg (14 lb)
Shipping Weight (pair)	14.3 kg (32 lb)
Included Accessories	C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
Sensitivity	95 dB SPL in ceiling near corner, 89 dB in center of ceiling
Color	White
Backcan	formed steel (included "blind-mount")
Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
Plenum Usage	Yes, backcan included

Accesorios

MTC-48TRx12 | Carril para Baldosas de Techo de 4' x 4'

Imágenes más grandes

Tile Rail for 4' x 4' Ceiling Tiles

MTC-48TRx12 is an accessory tile rail for installing many of JBL’s ceiling loudspeakers into 4 ft by 4 ft
(1200 x 1200 mm; 48 x 48 inch) ceiling tiles in suspended ceiling applications.

Can be used with any JBL ceiling speakers having the C-ring/tile-rail mounting system.
Includes (at product release):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list.
Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
Multiple C-ring mounting holes. Additional hole locations drillable by installer.
One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
