The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
| Tamaño | |
|
|
704 KB |
| Tamaño | |
|
|
3,64 MB |
| Tamaño | |
|
|
8,45 MB |
|
|
630 KB |
|
|
2 MB |
| Tamaño | |
|
|
6,73 MB |
|
|
| Tamaño | |
|
|
93,2 KB |
| Tamaño | |
|
|
|
|
|
11,2 MB |
| Tamaño | |
|
|
968 KB |
Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.
| Power Rating | 1750 Watts Peak875 Watts Continuous |
| Frequency Range (-10dB) | 57 Hz - 20 kHz |
| Dimensions (H x W x D) | 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in) |
| Respuesta de frecuencia | 75 Hz - 20 kHz (+/-3db) |
| Maximum SPL (1m) | 136 dB SPL |
| Coverage Pattern | 100 x 15 nominal |
| DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) | LF: 750 Watts, HF: 125 Watts |
| DPC-2 Output Section | LF: Dual-Bridged Technology™, Class D |
| Inputs | XLR with loop through |
| LF Driver | 1 x JBL 2262FF 305 mm (12 in) neodymium magnet |
| HF Driver | 3 x JBL 2408J, 38 mm (1.5 in) |
| User Controls | Input Attenuator (0-16 dB) |
| Signal Processings | DSP based, resident in Input Module |
| AC Power Operating Range | 90-132 VAC or 216-264 VAC, 50/60 Hz |
| AC Input Connector | Neutrik PowerCon (NAC 3MPA) |
| AC Loop Through Connector | Neutrik PowerCon (NAC 3MPB) |
| AC Current Requirements | 6A per system at 120V, 3A per system at 240V |
| Enclosure | 25/15 mm, 11-ply birch plywood |
| Suspension / Mounting | Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting |
| Acabado | Black DuraFlex™ finish |
| Grille | Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam |
| Net Weight (each) | 24 kg (52 lb) |
| Optional Accessories | VRX-AF: Suspension array frame |
| Outputs | 1 x XLR |
| TIPO DE SISTEMA | Constant Curvature 12" Two-Way Powered Line Array System |
| Impedancia nominal | NA - amplification is integrated |
Padded carry bag for VRX932LAP. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Provision for Fastening (2x) VRX928LAP-BAG to VRX918S-STR.
Padded cover for VRX932LAP. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Handle Access, (4) Rubber Feet, Full Coverage 360-degree Protection.
Stacking Flight Case with 1/2" Plywood construction, removable lid and 4 casters designed to hold two JBL VRX932LAP loudspeakers
JBLTRIPOD-GA Data Sheet
[231 KB]
JBL Tripod Gas Assist Closed
[36,2 KB]
JBL Tripod Gas Assist Closed Extended
[30,5 KB]
JBL Tripod Gas Assist Open
[41,7 KB]
JBL Tripod Manual Adjust Open
[39,5 KB]
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
JBLTRIPOD-MA Data Sheet
[228 KB]
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
JBL pole Gas Assist
[41,6 KB]
JBL pole Gas Assist detail
[70,2 KB]
JBLPOLE-GA Data Sheet
[314 KB]
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
JBLPOLE-MA Data Sheet
[258 KB]

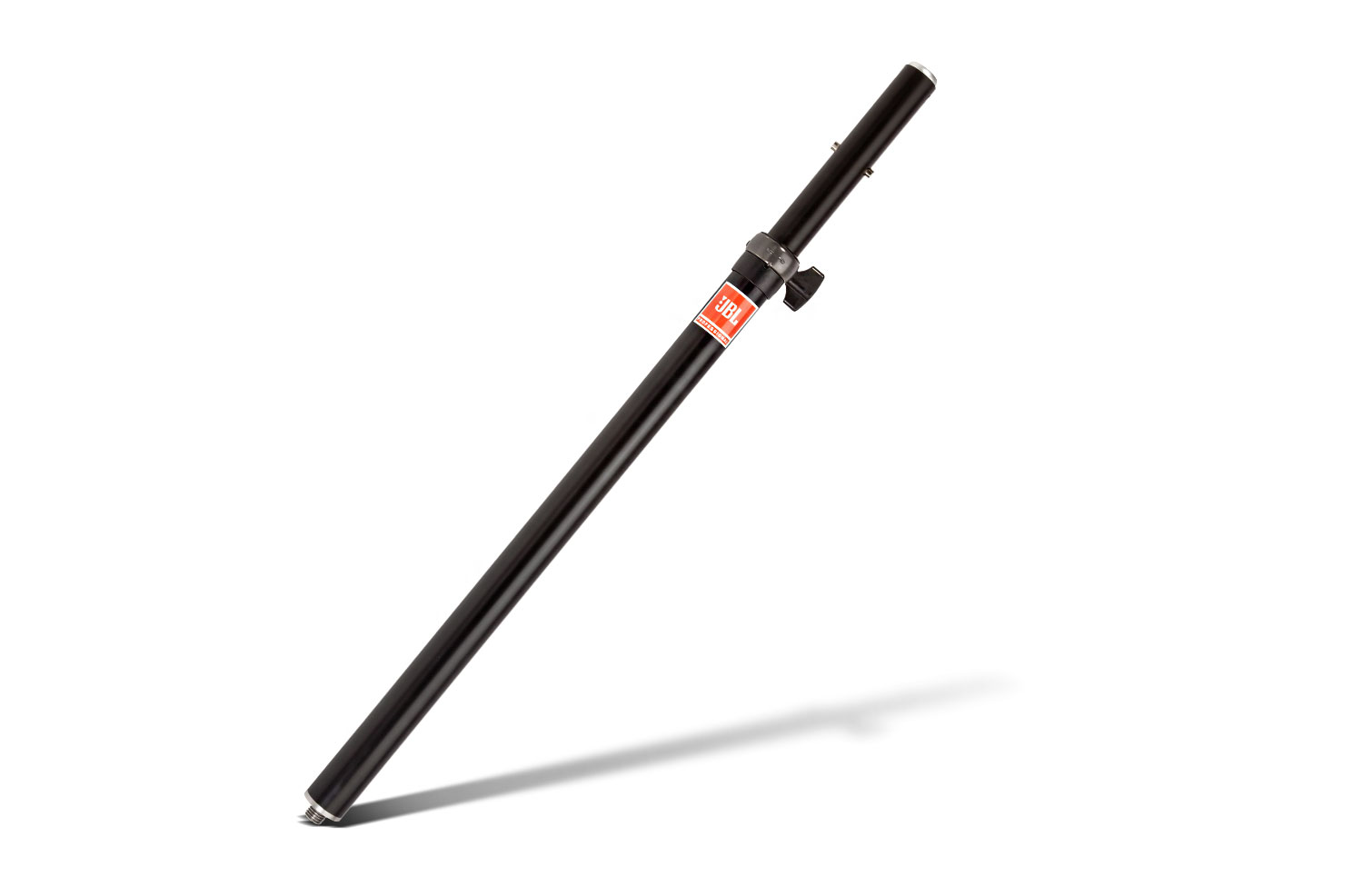

JBL pole Manual Adjust
[40,7 KB]
JBL pole Manual Adjust Detail
[87,7 KB]
versión B,
actualizado: ago 2025
