SRX818S

18-inch Passive Subwoofer

Comprar ahora
SRX818S
Imágenes más grandes

18-inch Passive Subwoofer

SRX818S is a single 18” subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.



Características

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 2400W Peak, 1200W Program, 600W Continuous
  • Frequency Range: 28Hz-150Hz
  • Frequency Response: 45Hz-150Hz
  • Max SPL: 129dB (Peak)
  • Amplification options: Passive
  • 2279 LF 8 Ohm 18” Woofer

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Más detalles

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Descargas

Specifications
  Versión Tamaño Subido
file type icon SRX818S Spec Sheet
versión 11_11_19, actualizado: dic 2019
11_11_19  627 KB dic 2019
Brochures
  Versión Idioma Tamaño Subido
file type icon JBL 2025 PPA Brochure
en versión B, actualizado: ago 2025
B  en  8,45 MB ago 2025
Compliances
  Tamaño Subido
file type icon SRX800 Passive Series Compliance
actualizado: oct 2020
139 KB oct 2020
Software
  Tamaño Subido
file type icon Audio Architect
actualizado: abr 2019
9,96 KB abr 2019
Android download icon SRX Connect
publicado: ago 2023
ago 2023
Windows download icon HiQnet Audio Architect
publicado: nov 2020
nov 2020
iOS download icon SRX Connect
publicado: ago 2023
ago 2023
Speaker Tunings
  Tamaño Subido
file type icon SRX800 Passive I-Tech HD Tunings
actualizado: oct 2020
23,7 KB oct 2020
file type icon SRX800 Passive I-Tech 4x3500HD Tunings
actualizado: oct 2020
41,3 KB oct 2020
file type icon SRX Passive Bi-amp tunings Table
actualizado: oct 2020
2,69 MB oct 2020
Images
  Tamaño Subido
file type icon SRX800 Driver
actualizado: abr 2019
158 KB abr 2019
file type icon SRX800 Handle
actualizado: abr 2019
208 KB abr 2019

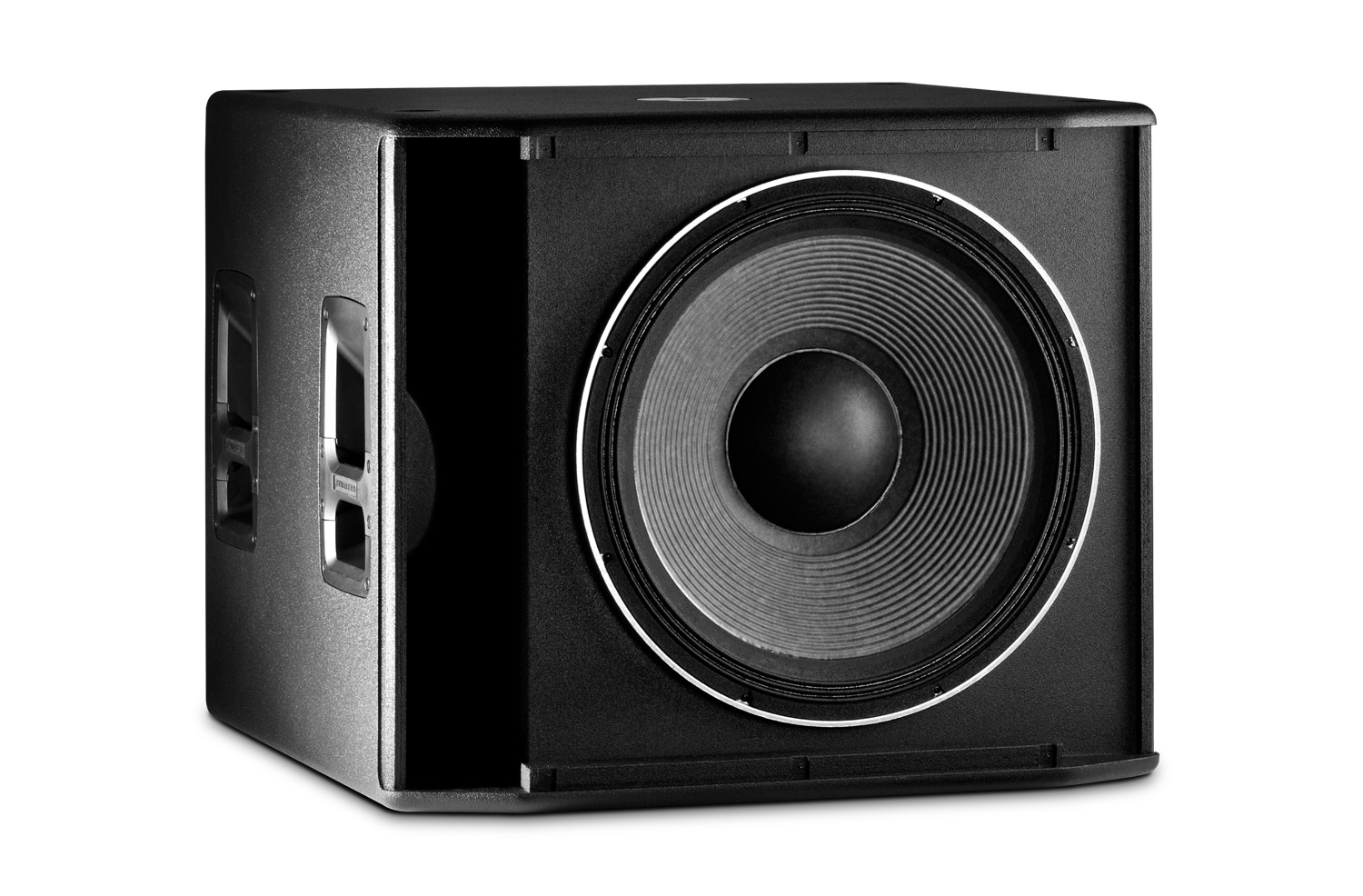

file type icon SRX818S Angle No-Grill
actualizado: jul 2019
314 KB jul 2019

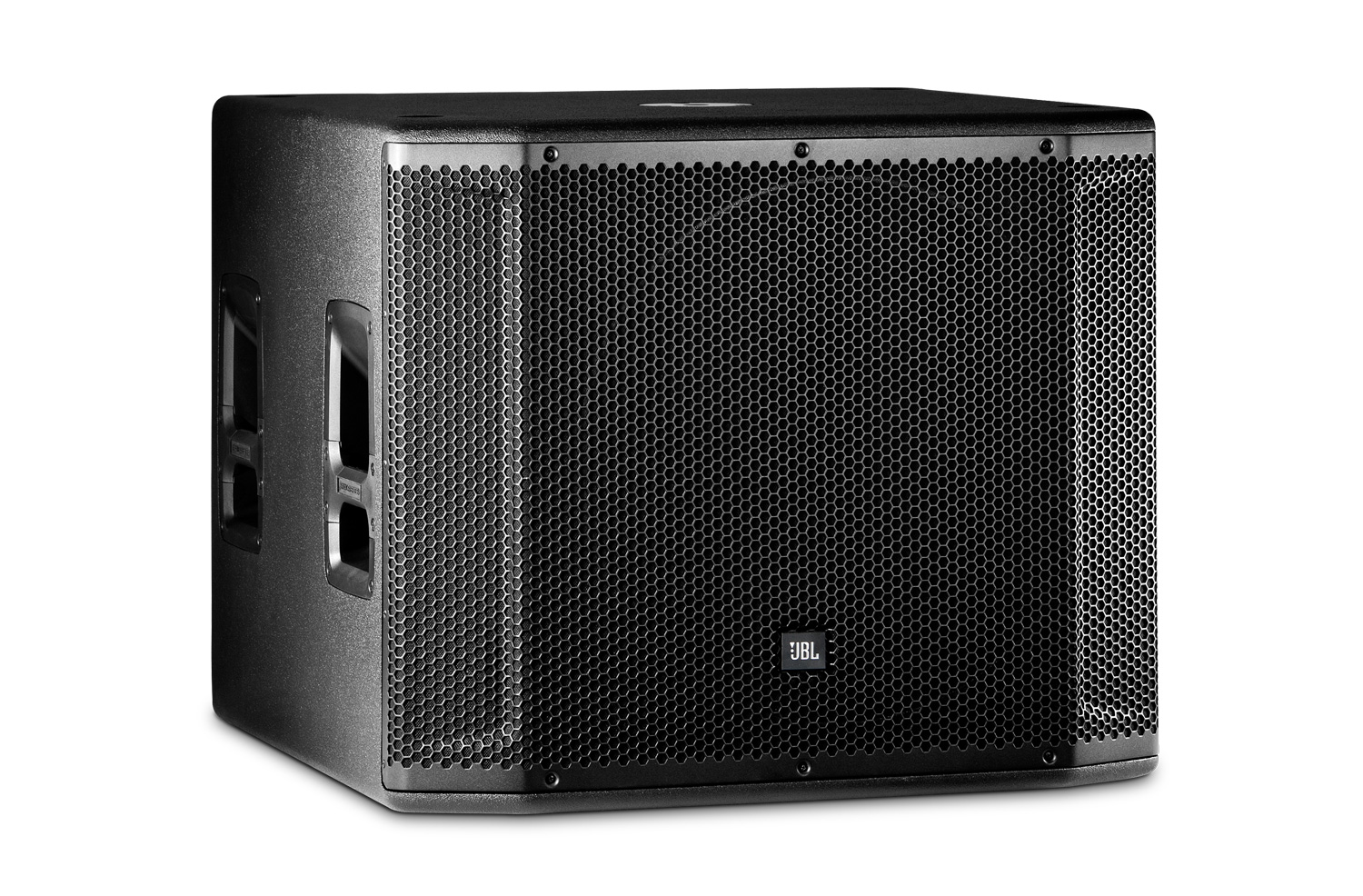

file type icon SRX818S Angle
actualizado: jul 2019
498 KB jul 2019

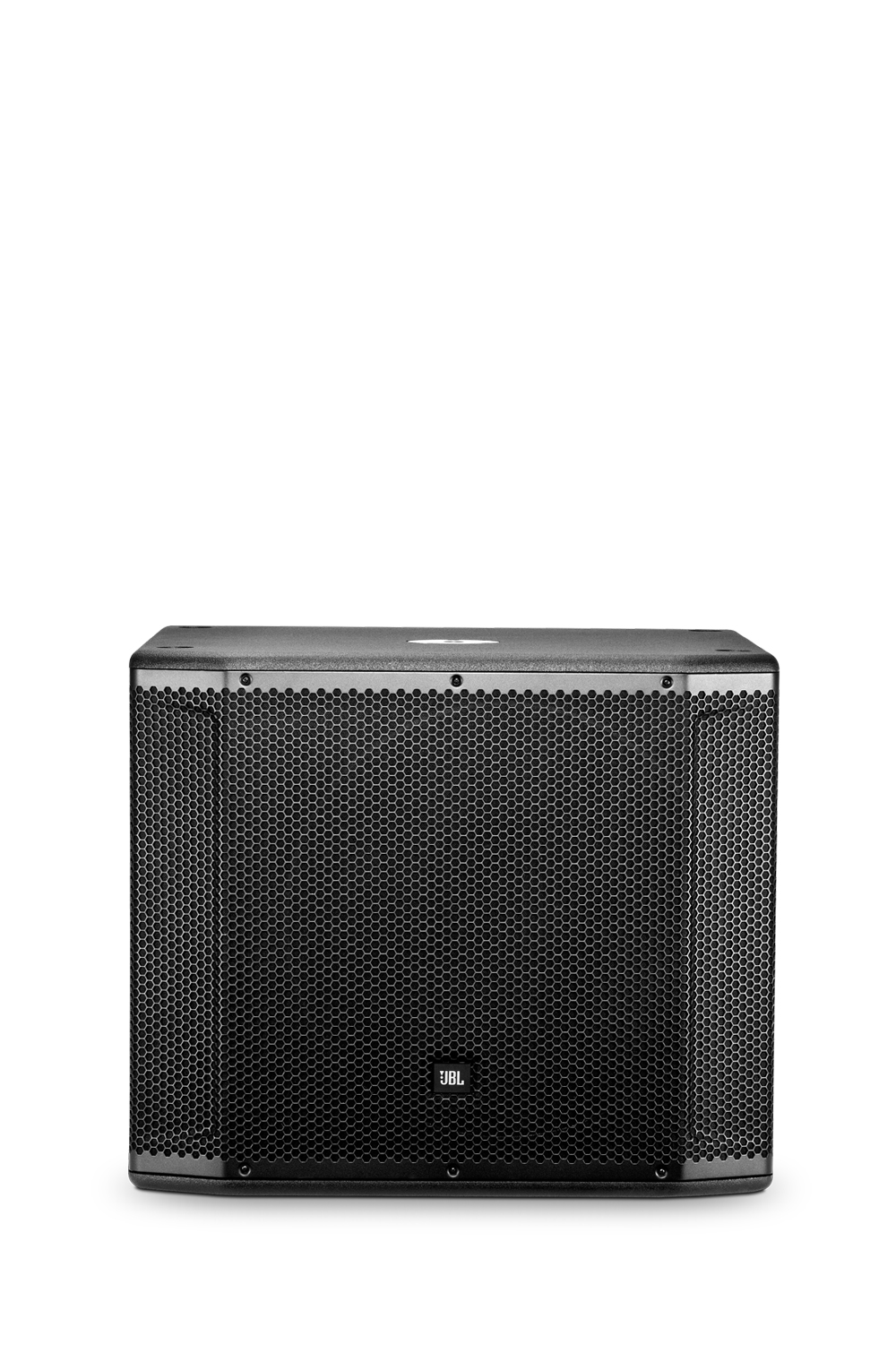

file type icon SRX818S Front
actualizado: jul 2019
429 KB jul 2019

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

TIPO DE SISTEMA Passive 18”, subwoofer system
Maximum SPL Output 123dB (Continuous), 129dB (Peak)
Frequency Range (-10dB) 28hz - 150hz
Resposta de frequência (-3dB) 45hz - 150hz
Sensitivity 95dB
System Power Rating 2400W Peak , 1200W Program, 600W Continuous
Impedancia nominal 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive
LF Driver JBL 2279H
Frecuencia de crossover 80hz
Enclosure 18mm Duraflex coated plywood
Suspension/Mounting M20 Threaded Pole Mount
Casters Accepts JBL WK-4S Kit
Handles 4
Acabado Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in)
PESO 78.0 lbs (35.4kg)
Shipping Weight 88 lbs (40.2kg)
