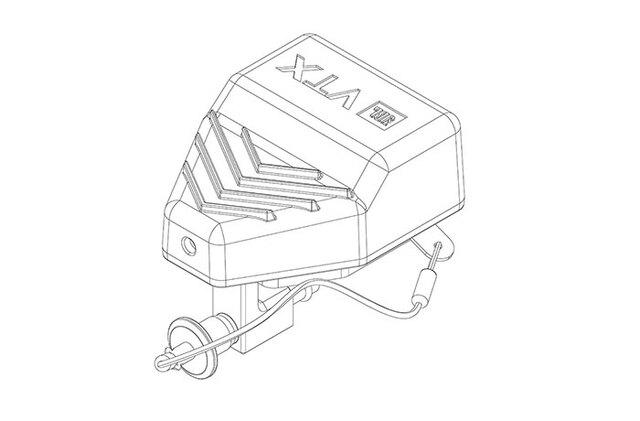

VTX LZ V20 MB (discontinued)

Mount Bracket

Larger Images
The VTX-LZ-V20-MB mount bracket has been designed to securely attach VTX-LZ units to VTX V20 line array systems. When properly mounted on a VTX line array system, the VTX-LZ laser provides a visual reference to confirm on-axis vertical site angle aiming (focus) of the array. Coverage simulations based on JBL Line Array Calculator II software (LAC-II) indicate the desired location where the laser should aim and the VTX-LZ laser provides visual confirmation to assist with actual installation in the field. The VTX-LZ-V20-MB can be attached to either the left or right side of a V20 enclosure.
  • Mount Bracket to attach VTX-LZ to VTX V20
  • Spring-loaded, self-leveling attachment feature for accurate aiming
  • All captive part design
  • VTX-LZ and VTX-LZ-PS sold separately
  • 1 x VTX-LZ-V20-MB
  • 1 x Quick Release Pin with lanyard


  Version Language Size Uploaded
file type icon Spec Sheet
updated: Sep 14, 2022
    428 KB Sep 14, 2022
