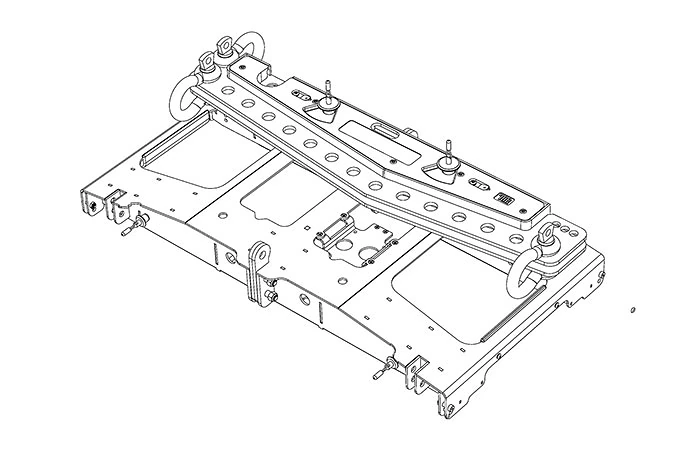

VTX A8 AF

Array Frame

VTX A8 AF
Larger Images

Highlights:

  • Support for up to (24) VTX A8 enclosures
  • Compatible with VTX A8 and VTX B18
  • Several pick-point options
  • 0.5-degree pick-point resolution
  • Built-in storage position for extension bar
  • Support for 3rd-party laser inclinometers
  • Compatible shackle size: 5/8 in

Included:

  • (1) VTX A8 AF
  • (1) Extension Bar
  • (1) Laser Bracket
  • (3) 5/8 in Shackles

Downloads

  Version Language Size Uploaded
Data Sheets
file type icon VTX A8 AF Spec Sheet
updated: Jan 2021
    586 KB Jan 2021
CAD Drawings
file type icon VTX A8 AF Customer Drawings
updated: Oct 2019
    799 KB Oct 2019
file type icon VTX A8/B18 Revit Files
version 2.0, updated: Oct 2022
2.0    33.9 MB Oct 2022
file type icon VTX A8/B18 Sketchup Files
version 2.0, updated: Oct 2022
2.0    2.08 MB Oct 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
