PRX712 (discontinued)

12" Two-Way Full-Range Main System/Floor Monitor

Larger Images

12" Two-Way Full-Range Main System/Floor Monitor

PRX712 is a compact and versatile speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA.



Features

  • 135 dB peak SPL
  • 12" Differential Drive® low-frequency driver for low-distortion and higher SPL
  • 1.5" diameter next generation JBL neodymium compression driver
  • JBL designed waveguide for accurate coverage
  • Efficient Class-D amplifier technology
  • Optimized EQ for monitor or front-of-house applications
  • DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
  • Line level and direct microphone input capability
  • Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
  • Multi-angle enclosure for main PA or floor monitor applications
  • Integrated 36 mm pole mount socket with angle down tilt
  • Injection molded handle with backing cup for easy transport
  • Integrated M10 suspension points for easy setup
  • Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
  • Cloth backed, dent-resistant 16 gauge steel grilles

  • PRX712 is a compact and versatile speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX712 is a perfect match with a PRX718XLF subwoofer, offering a high performance self-powered sub/sat system.
  • The PRX712 is comprised of a 12" Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
    1000 lbs. each.
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.


Downloads

  Version Language Size Uploaded
PRX712 Data Sheet
en updated: Jun 17, 2015
  en  5.12 MB Jun 17, 2015
PRX712 Spec Sheet
en updated: Jun 17, 2015
  en  889 KB Jun 17, 2015
PRX712 User's Guide - English
en updated: Jun 17, 2015
  en  1.95 MB Jun 17, 2015
PRX712 User's Guide - French
fr updated: Jun 17, 2015
  fr  898 KB Jun 17, 2015
PRX712 User's Guide - German
de updated: Jun 17, 2015
  de  906 KB Jun 17, 2015
PRX712 User's Guide - Spanish
es updated: Jun 17, 2015
  es  780 KB Jun 17, 2015
Data Sheets
PRX712 Datasheet
updated: Jul 08, 2019
    5.12 MB Jul 08, 2019
Specifications
PRX712 Spec Sheet
updated: Jul 08, 2019
    889 KB Jul 08, 2019
Brochures
Portable Sound Full Line 2015 Catalog
updated: Aug 20, 2020
    2.54 MB Aug 20, 2020
CAD Drawings
PRX700 2D Drawings PDF
updated: Oct 18, 2019
    704 KB Oct 18, 2019
PRX700 2D Drawings CAD
updated: Oct 18, 2019
    6.41 MB Oct 18, 2019
Bim Objects
BIM (Revit) Files
updated: Oct 03, 2019
    12.4 MB Oct 03, 2019
Compliances
PRX700 Declaration of Conformity
updated: Oct 18, 2019
    133 KB Oct 18, 2019
User Guides
PRX700 Users Guide
updated: Jul 08, 2019
    1.95 MB Jul 08, 2019
PRX700 Users Guide Spanish
updated: Jul 08, 2019
    780 KB Jul 08, 2019
PRX700 Users Guide French
updated: Jul 08, 2019
    898 KB Jul 08, 2019
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
Images

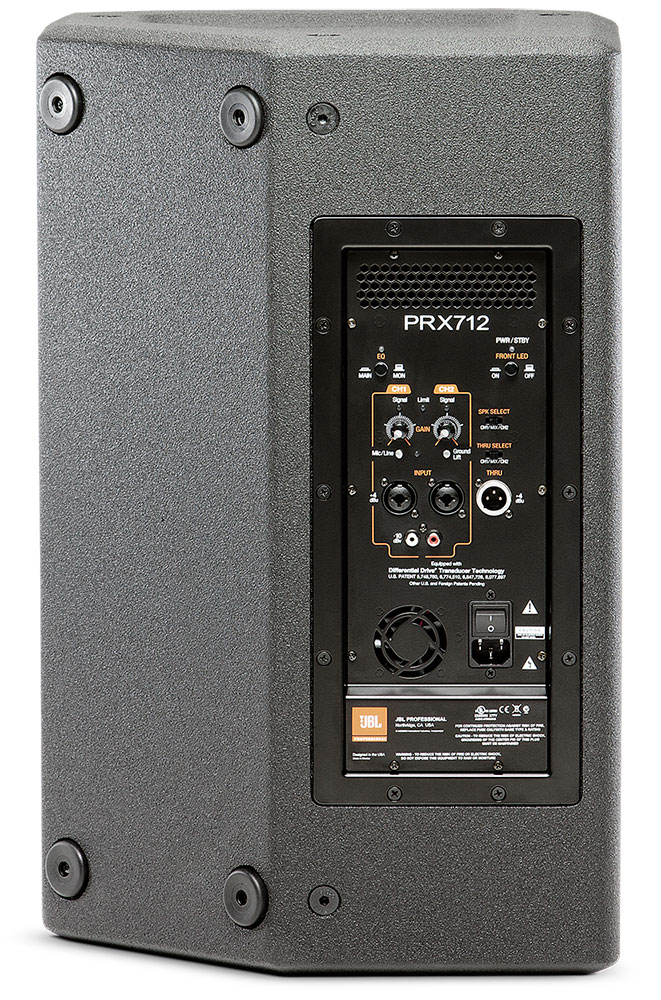

PRX712 Back
updated: Jul 08, 2019
    245 KB Jul 08, 2019

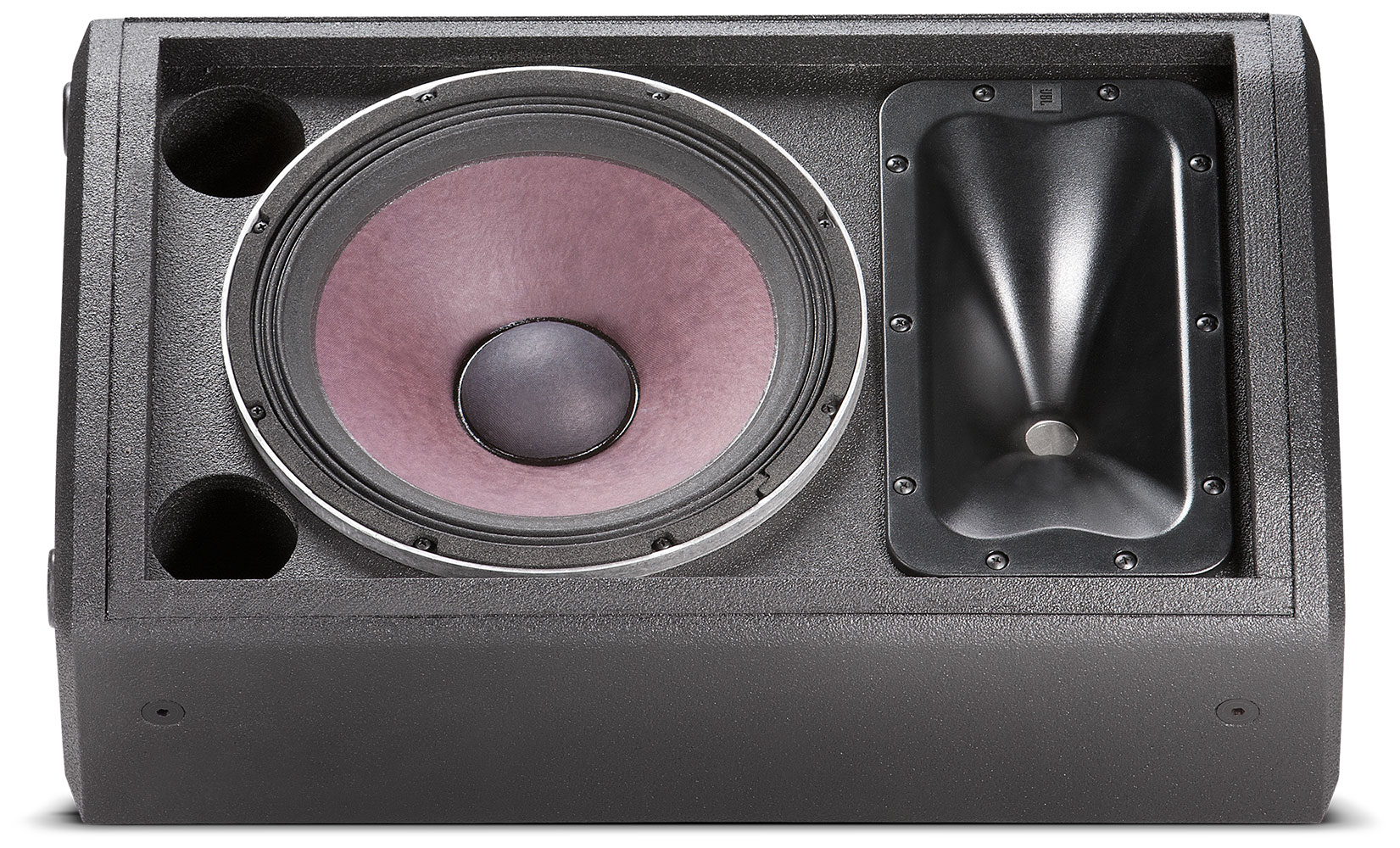

PRX712 Monitor No Grill
updated: Jul 08, 2019
    508 KB Jul 08, 2019

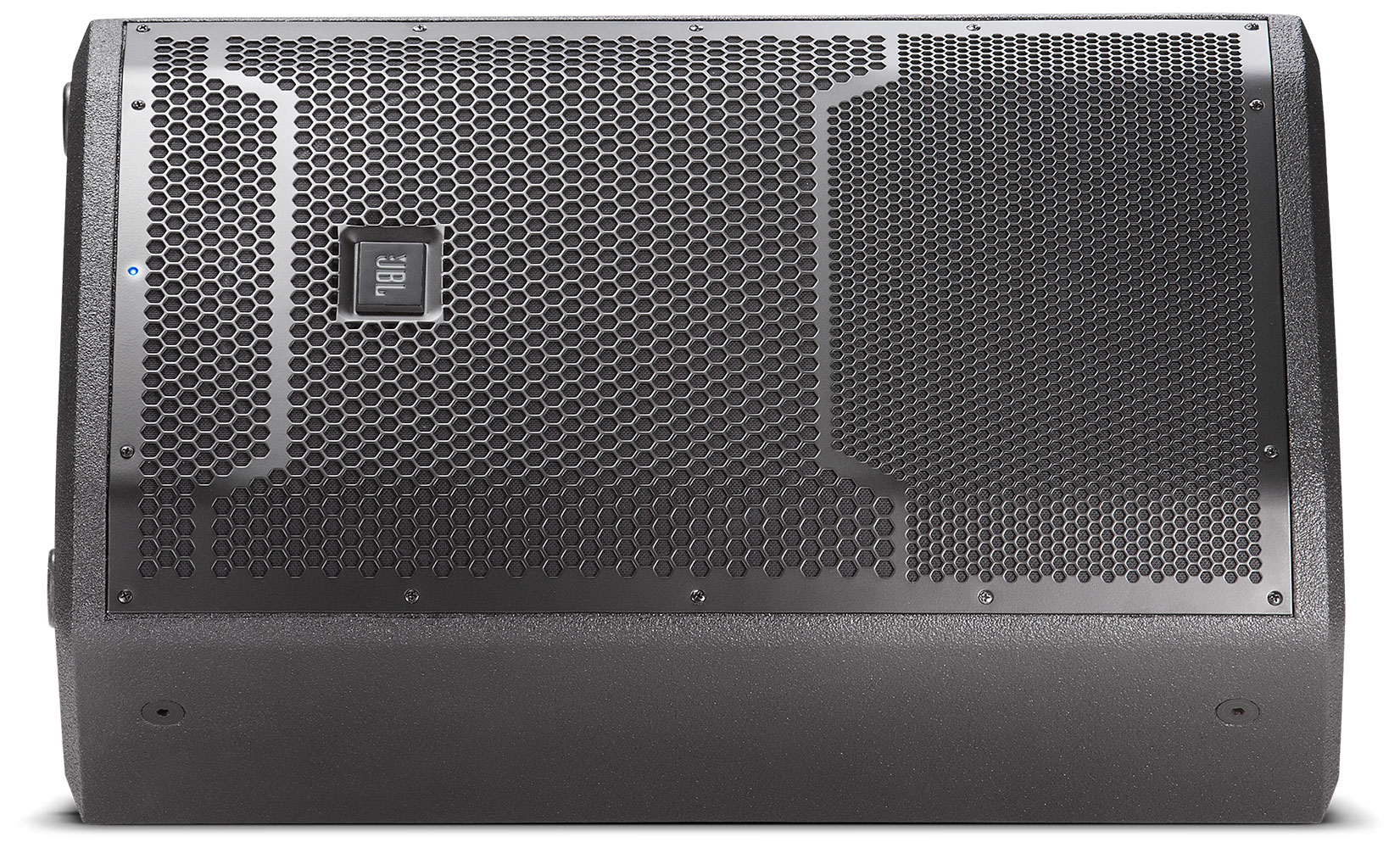

PRX712 Monitor
updated: Jul 08, 2019
    583 KB Jul 08, 2019
Accessories
PRX700 Users Guide German
updated: Jul 08, 2019
    906 KB Jul 08, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Power Rating 1500 W
AC power input 100V - 240V~ 50/60 Hz
Frequency Response (-10dB) Main: 44.8 Hz – 19.6 kHzMonitor: 44.8 Hz – 19.5 kHz
Frequency Response (±3 dB) Main: 55.7 Hz – 18.2 kHzMonitor: 56.5 Hz – 17.7 kHz
Coverage Pattern 90° x 50° nominal
Directivity Index (DI) 10.2 dB
Directivity Factor (Q) 10.4
Crossover Frequency 1.8 kHz
Maximum SPL (1m) Normal: 135 dBBoost: 135 dB
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input) dbx Type IV™ limiter circuit
Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
LF Driver 1 x JBL 272G 305mm (12 in) woofer
HF Driver 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Enclosure Asymmetrical, 18 mm, plywood
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 Suspension Points
Transport 1 x injection molded handles with backing cup
Finish Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Output Connectors 1 male XLR balanced output
Dimensions (H x W x D) 612.394 mm x 384.556 mm x 341.376 mm(24.11 in x 15.14 in x 13.44 in)
Net Weight 19.4 kg (42.5 lb.)
