PRX415M

15" Two-Way Stage Monitor and Loudspeaker System

$549.99
Buy It Now
Larger Images

15" Two-Way Stage Monitor and Loudspeaker System

PRX415M is a portable, fifteen-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.



Features

  • 90° x 50° coverage
  • Dual-angle pole socket for applications requiring tripod mounting
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Tough DuraFlex™ enclosure finish
  • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.

Applications

  • Reinforcement of music and speech in entertainment, live or pre-recorded applications
  • High-performance satellite speaker for use with subwoofers


Downloads

  Version Language Size Uploaded
Specifications
PRX415M Spec Sheet
updated: Apr 29, 2019
    1.26 MB Apr 29, 2019
Brochures
PRX400 Brochure
updated: Apr 29, 2019
    991 KB Apr 29, 2019
Full Line 2015 Catalog
updated: Jan 11, 2020
    11.7 MB Jan 11, 2020
Portable Sound Full Line 2015 Catalog
updated: Oct 23, 2019
    2.54 MB Oct 23, 2019
Compliances
PRX400 Series Declaration of Conformity
updated: Oct 18, 2019
    144 KB Oct 18, 2019
Images

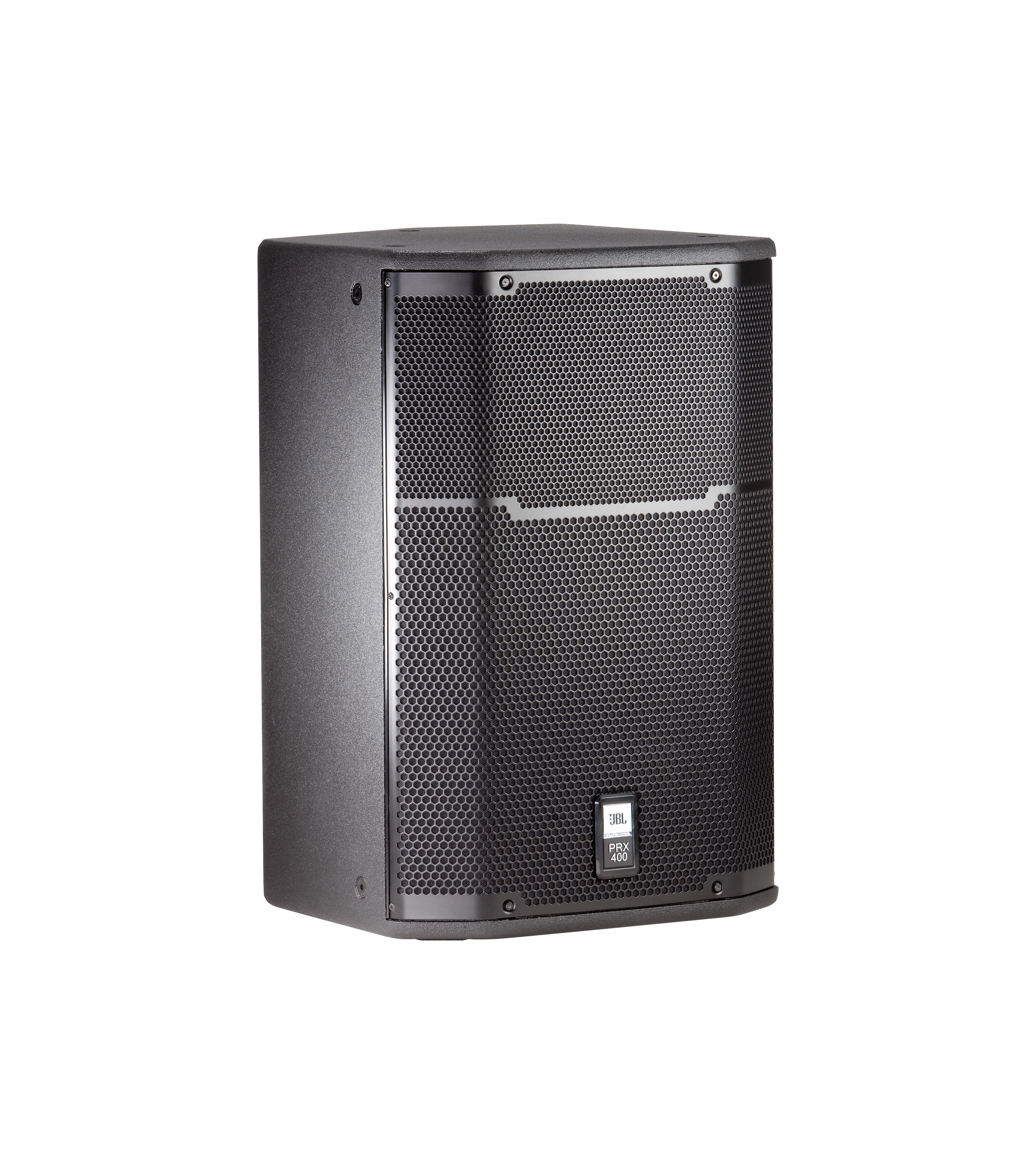

PRX415 Front Angle
updated: Apr 29, 2019
    2.94 MB Apr 29, 2019

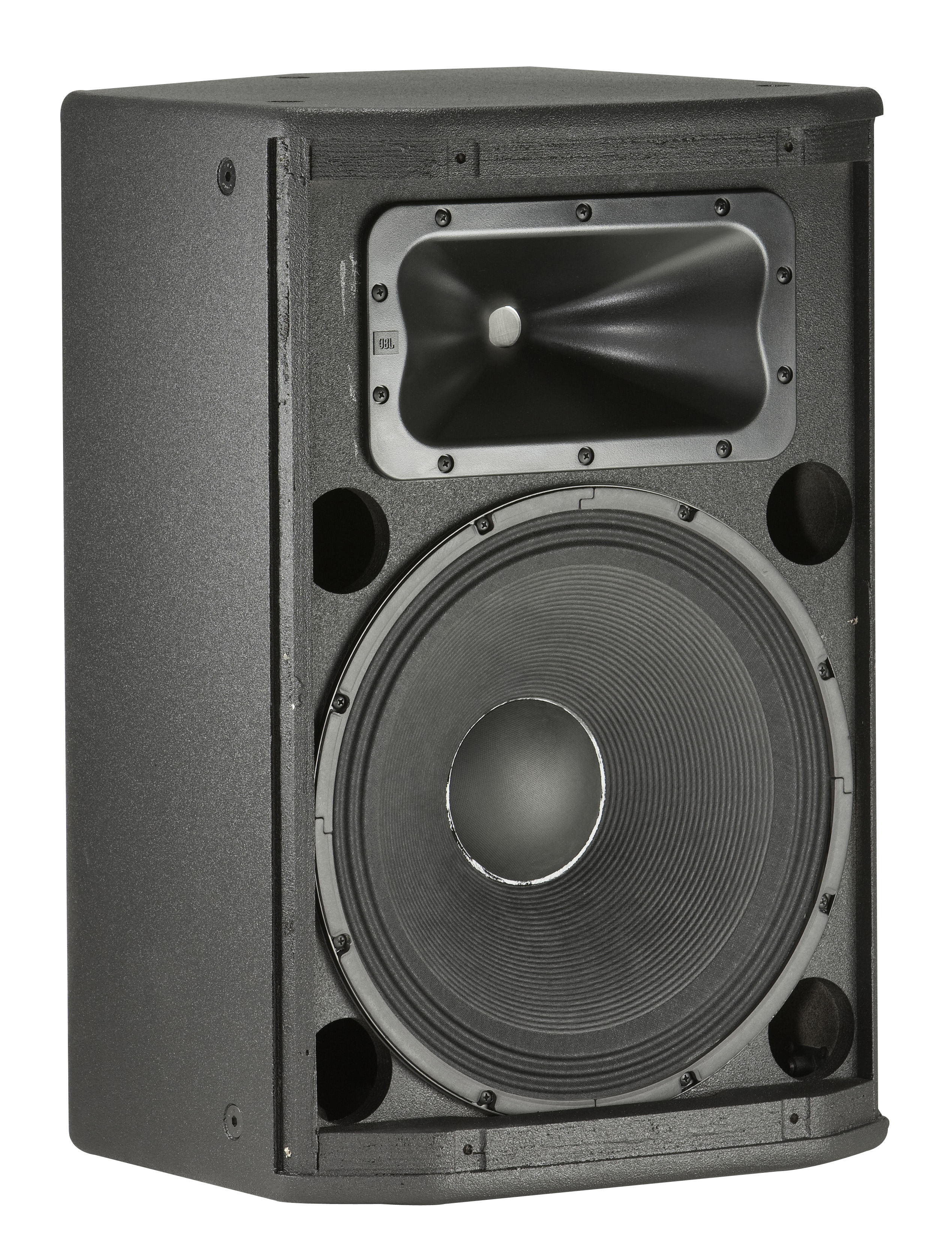

PRX415 fr Angle No Grill
updated: Apr 29, 2019
    2.5 MB Apr 29, 2019
Speaker Tunings
PRX400 Series Tunings
updated: Oct 02, 2019
    41.2 KB Oct 02, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range (-10 dB) 55 Hz – 19 kHz
Frequency Response (+3 dB) 66 Hz – 16 kHz
Coverage Pattern 90° x 50° nominal
System Sensitivity 98 dB SPL (1w@1m)
Power Rating, Pink Noise 300 W / 600 W / 1200 W(Continuous/Program/Peak)
Rated Maximum SPL 122 dB SPL cont. (129 dB SPL peak)
Nominal Impedance 8 ohms
Dimensions (H x W x D) 650 mm x 429 mm x 457 mm(25.6" x 16.9" x 18")
Net Weight 21 kg (46 lbs.)

Accessories

PRX415M-CVR | Padded Cover for PRX415M
PRX415M-CVR Main photo
Larger Images

Padded Cover for PRX415M. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.


JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Larger Images

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Larger Images
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Larger Images

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Larger Images

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
