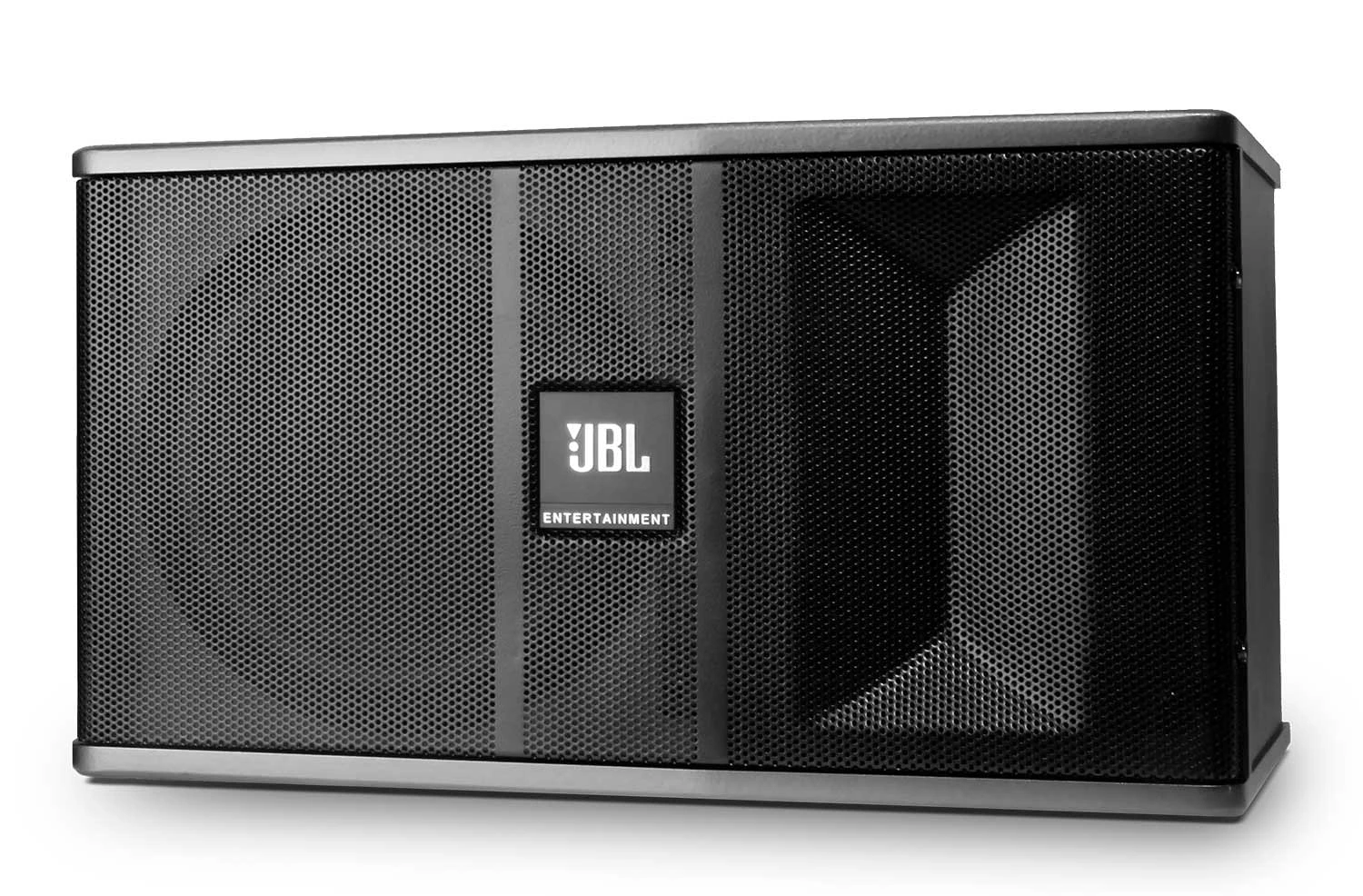

8 Inch Full Range Loudspeaker System
The Ki08 is a 2-way full range speaker designed for the karaoke market. The Ki82 utilizes a single 8” woofer and dual 3” cone tweeters.
Larger Images
Features
- Specially designed 8” woofer with high power handling and low distortion and power compression
- Dual 3” cone tweeters provide excellent high frequency response
- Unique acoustic lens optimizes high frequency directivity
- Precision crossover with protection circuitry built in
- Durable MDF enclosure
Downloads
Spec Sheets
| Size | |
|
|
360 KB |
|
|
411 KB |
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| System Type | 8′′, 2-way, bass-reflex |
| Frequency Range (-10dB) | 53 Hz - 17 KHz |
| Frequency Response (±3 dB) | 70 Hz - 14 KHz |
| System Sensitivity (1w @ 1m) | 88 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL *2 | 110 dB (116 dB peak) |
| Power Rating *3(Continuous/Program/Peak) | 150W/300W/600W |
| Coverage Pattern | 110° x 100° (H x V) |
| Dimensions (H x W x D) | 245 mm x 435 mm x 285 mm(9.6 in x 17.1 in x 11.2 in ) |
| Net Weight | 8.8 kg (19.4 lbs) |
| LF Driver | 1 x 8” Woofer |
| HF Driver | 2 x 3” Tweeter |
| Input Connectors | Binding post |
| Enclosure | Vinyl covered 12 mm MDF |
