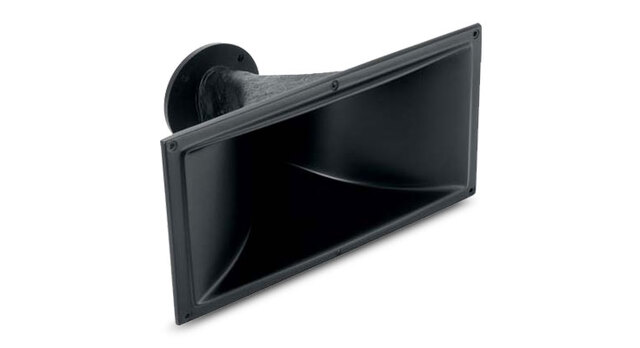

HM3950-SLF

Horn

Larger Images

HM3950-SLF

Ideal for sound reproduction in small, medium and large-size environments. Several models available with different sound dispersion designed to fit almost any application.

Downloads

  Version Language Size Uploaded
Data Sheets
HM3950-SLF Spec Sheet
updated: Oct 03, 2019
    104 KB Oct 03, 2019
Brochures
Components Full Line 2015 Catalog
updated: Oct 21, 2019
    1.32 MB Oct 21, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Throat 2”
Material Fiberglass
Sound Dispersion HxV 60° x 30°
Low Frequency Limit (Hz) 400
Driver Connection Bolt on
Width in (mm) 15.3 (390)
Height in (mm) 8.1 (206)
Length in (mm) 9.2 (234)
