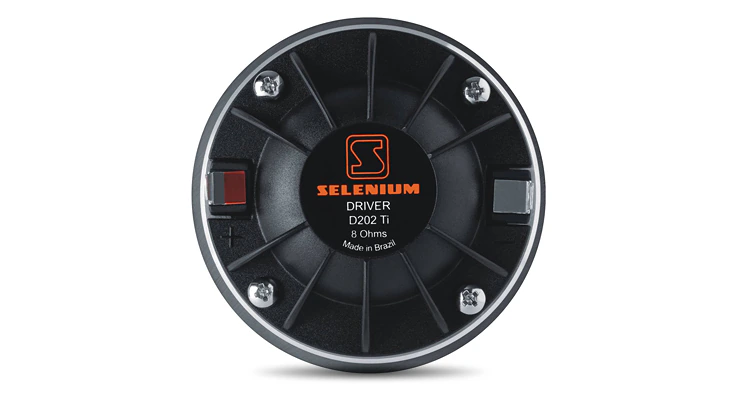

D202 Ti
Recommended for use in high performance compact, two-way, multi-way and line array systems.
Larger Images
Downloads
Data Sheets
| Size | |
|
|
765 KB |
Brochures
| Size | |
|
|
1.32 MB |
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Throat diameter | 1" |
| Impedance (ohms) | 8 and 16 |
| RMS (W) | 60 |
| Musical Program (W) | 120 |
| SPL 1W @ 1m (dB) | 106 |
| Frequency Range (-10dB) | 1,000 to 20,000 |
| Rec. X-over, 12dB/oct min. (Hz) | 1.500 |
| Voice coil diameter in (mm) | 1.7 (44) |
| Voice coil | Kapton®/CCAW |
| Magnet Weight oz.(g) | 8 (210) |
| Housing material | Plastic |
| Horn connection | Screw on |
