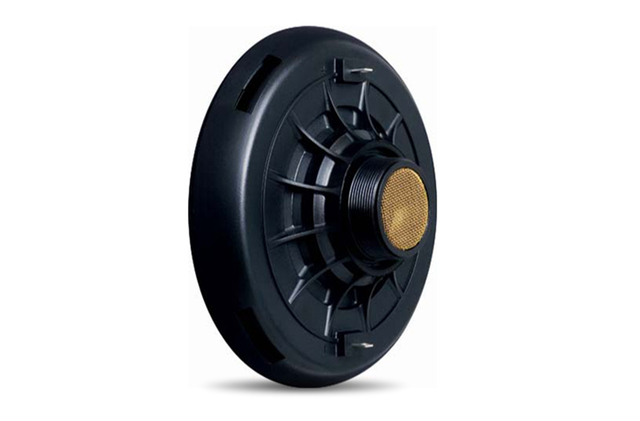

D200
Recommended for midrange applications in multi-way PA’s, stage monitors,side fills and high SPL car audio systems. High sensitivity, low distortion and smooth response.
Larger Images
Downloads
Data Sheets
| Size | |
|
|
727 KB |
Brochures
| Size | |
|
|
1.32 MB |
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Throat diameter | 1” |
| Impedance (ohms) | 8 |
| RMS (W) | 50 |
| Musical Program (W) | 100 |
| SPL 1W @ 1m (dB) | 107 |
| Frequency Range (-10dB) | 500 to 7,000 |
| Rec. X-over, 12dB/oct min. (Hz) | 500 |
| Voice coil diameter in (mm) | 2 (51) |
| Magnet weight oz. (g) | 10 (290) |
| Housing material | Plastic |
| Horn connection | Screw on |
