JBL Commercial CST-2120 (discontinued)

70V/100V Transformer Kit

CST-2120
Larger Images

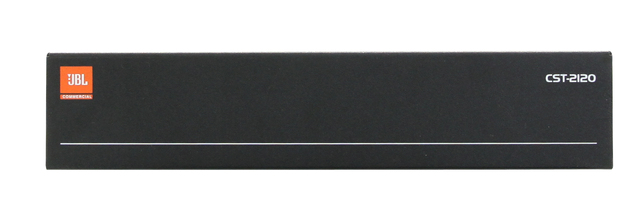

The rack-mountable JBL CST-2120 transformer module provides impedance and voltage matching for the CSA-2120 amplifier to drive 70V and 100V distributed speaker systems.

Features

  • Providing two channels for constant voltage operation
  • 70V/100V Outputs
  • Rack-mountable with CSA2120
  • Detachable block input and output connectors

Specifications

Max Input Power 120W/Ch
Max Input Voltage 32Vrms
Insertion Loss Less than 1dB
Frequency Response +/-1 dB @ 70Hz - 15kHz
Dimensions 8.2" x 1.7" x 7" (209 mm x 44 mm x 178 mm)
