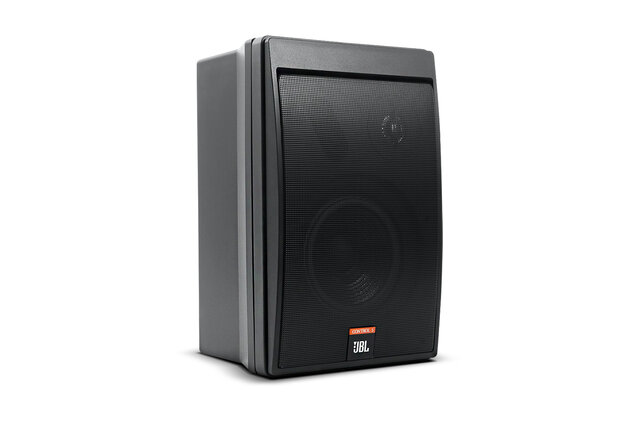

JBL Professional Control 5™

Larger Images

The Control 5™ is a high performance, wide range control monitor suitable for use as the primary sound source in a variety of applications.

Sensitivity: 89 dB SPL, 1 W, 1 m (3.3 ft)
High power handling (175 W pink noise) with integral protection circuit network.
Molded enclosure with shielded magnet structure.
Components: •165 mm (6.5 in) low frequency loudspeaker. •25 mm (1 in) pure titanium dome tweeter.

	Version	Language	Size	Uploaded
Specifications
Control 5™ Spec Sheet updated: Apr 29			245 KB	Apr 29
Brochures
Recording & Broadcast Full Line Catalog updated: Oct 22			1.81 MB	Oct 22
CAD Drawings
Control and Control Contractor Series updated: Oct 18			2.36 MB	Oct 18
Compliances
Control Contractor Series Declaration of Conformity updated: Oct 18			131 KB	Oct 18
JBL Control Series Passive Speakers DoC updated: Dec 17			179 KB	Dec 17
Tech Notes
Tech Note: Polarity Conventions updated: Oct 18			55 KB	Oct 18
Images
Control 5 Photo updated: Apr 29			567 KB	Apr 29
Install Guides
MTC-PC2 & MTC-PC3 Installation updated: Sep 30			42.5 KB	Sep 30
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line updated: Mar 15			21 MB	Mar 15

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Frequency Response (±3 dB)	75 Hz to 20 kHz
Power Capacity	175 W
Sensitivity	89 dB SPL, 1 W, 1 m (3.3 ft)
Directivity Factor (Q)	2.8
Directivity Index (DI)	4.5
Impedance	4 ohms
Crossover Frequency	3 kHz
Polarity	Positive Voltage to + terminal causes outward low frequency cone motion
Enclosure	Polypropylene structural foam
Colors	Black or white
Dimensions (H x W x D)	(H) 387 mm x (W) 251 mm x (D) 229 mm (15.25 in x 9.875 in x 9 in)
Net Weight (each)	4.5 kg (10 lbs.)
Shipping Weight (pair)	11 kg (24 lbs.)
Note	Molded of dense polypropylene Accessory attachment points on rear of the enclosure are 1⁄4 x 20 threaded brass bushings
Maximum SPL (1m)	111 dB continuous, 117 dB peak
Drivers	LF Driver: 165 mm (6.5 in) HF Driver: 25 mm (1 in)
Input Connectors	Spring-loaded terminals
Grille	Zinc-plated steel
Mounting Hardware	Mounting points -- no bracket included.
LF Driver	6.5in (165mm)
Amplifier Power Rating	175 W
