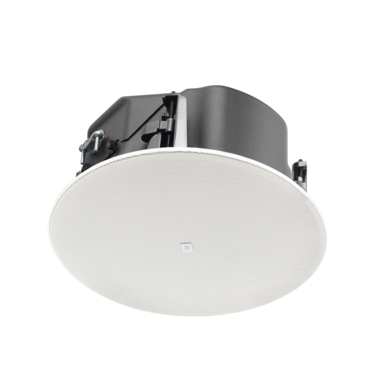

Control 447LP

6.5" RBI™-Equipped Two-Way Coaxial Ceiling Loudspeaker with Low-Profile Enclosure

Control 447LP
Larger Images

The JBL Control 447LP, part of the flagship Control 400 Premium Coverage Series, is a two-way coaxial ceiling loudspeaker featuring a 6.5” woofer, conical RBI™, and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted.

Featuring JBL’s proprietary conical Radiation Boundary Integrator® (RBI™) technology, the Control 447LP achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.

All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 447LP supports both 70V/100V and low impedance applications.

  • PREMIUM SONIC PERFORMANCE

    Featuring JBL’s proprietary Radiation Boundary Integrator® (RBI™) technology, the Premium Coverage Series achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

  • EFFICIENT, FLEXIBLE INSTALLATION

    Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  • REFINED, MODERN AESTHETICS

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

featured content

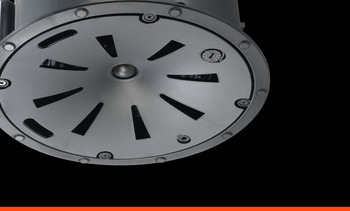

PREMIUM SONIC PERFORMANCE

Featuring JBL’s proprietary Radiation Boundary Integrator® (RBI™) technology, the Premium Coverage Series achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

featured content

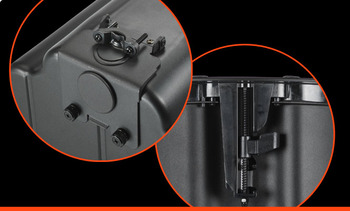

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

featured content

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Features

  • 165 mm (6.5 in) woofer and 25 mm (1 in) soft-dome tweeter
  • JBL’s exclusive conical Radiation Boundary Integrator® (RBI™) technology
  • Low-profile enclosure (142mm deep) for installing where ceiling plenum space is restricted
  • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
  • Full-face, easily paintable magnetic grilles
  • Top and side cable entry options
  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP33 rated

Downloads

Specifications
  Language Size Uploaded
file type icon Control 447LP Spec Sheet
en updated: Aug 2025
en  1.66 MB Aug 2025
Manuals
  Size Uploaded
19 MB Aug 2025
Brochures
  Size Uploaded
3.9 MB Aug 2025
CAD Drawings
  Size Uploaded
15.9 MB Aug 2025
Compliances
  Size Uploaded
466 KB Jan 2026
538 KB Jan 2026
Software
  Version Size Uploaded
Windows download icon Distributed System Design (DSD)
version 3.9, updated: Nov 2025
3.9   612 KB Nov 2025
Technical Papers
  Size Uploaded
768 KB Nov 2025
Ease Data
  Size Uploaded
file type icon Control 447LP – CLF File
updated: Oct 2025
326 KB Oct 2025
file type icon Control 447LP - EASE GLL
updated: Aug 2025
687 KB Aug 2025
Speaker Tunings
  Size Uploaded
441 KB Aug 2025

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10 dB) 65Hz - 20kHz
Power Capacity 112 W (448 W Peak), Cont. Pink Noise (2 hrs.)
75 W (300 W Peak) Cont. Pink Noise Power (100 hrs.)
Sensitivity (1m/1W) 91dB
Coverage Angle 120° conical
Maximum SPL (1m) 111.5 dB continuous pink noise (117.5 dB peak)
Nominal Impedance
Transformer Taps 70 V: 60 W, 30 W, 15 W & 7.5 W
100 V: 60 W, 30 W, 15 W"
Drivers LF: 165mm (6.5 in) with treated paper cone and high-performance magnet
HF: 25 mm (1 in) soft-dome with Neodymium magnet
Ceiling Cutout Size 282 mm (11.1 in)
Dimensions 154 mm (6.1 in) H x 316 mm (12.4 in) dia.
142 mm (5.6 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental IP rating: IP33 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.
Optional Accessories BL-MTC-447BG black (RAL9004) round grille
JBL-MTC-447SG white (RAL9003) square grille
JBL-MTC-447WG weather grille
JBL-MTC-447NC new construction bracket
JBL-MTC-447MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color Stock grille is White (RAL9003), paintable
Net Weight (ea) 5.1 kg (11.24 lbs)
Shipping Weight (pair) 15.82 kg (34.88 lbs)
SKU Numbers JBL-C447LP

Accessories

MTC-447WG | Weatherized Grille for Control 447C/T & 447LP
Larger Images
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require
  • Weatherized Grille provides protection for high humidity installations

MTC-447SG | Square Grille for Control 447C/T & 447LP
MTC-447SG  Main photo
Larger Images
MTC-447SG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require

MTC-447BG | Round Black Grille for Control 447C/T & 447LP
MTC-447BG  Main photo
Larger Images
MTC-447BG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require
