Control 19CS

In-Ceiling Subwoofer

Control 19CS
Larger Images

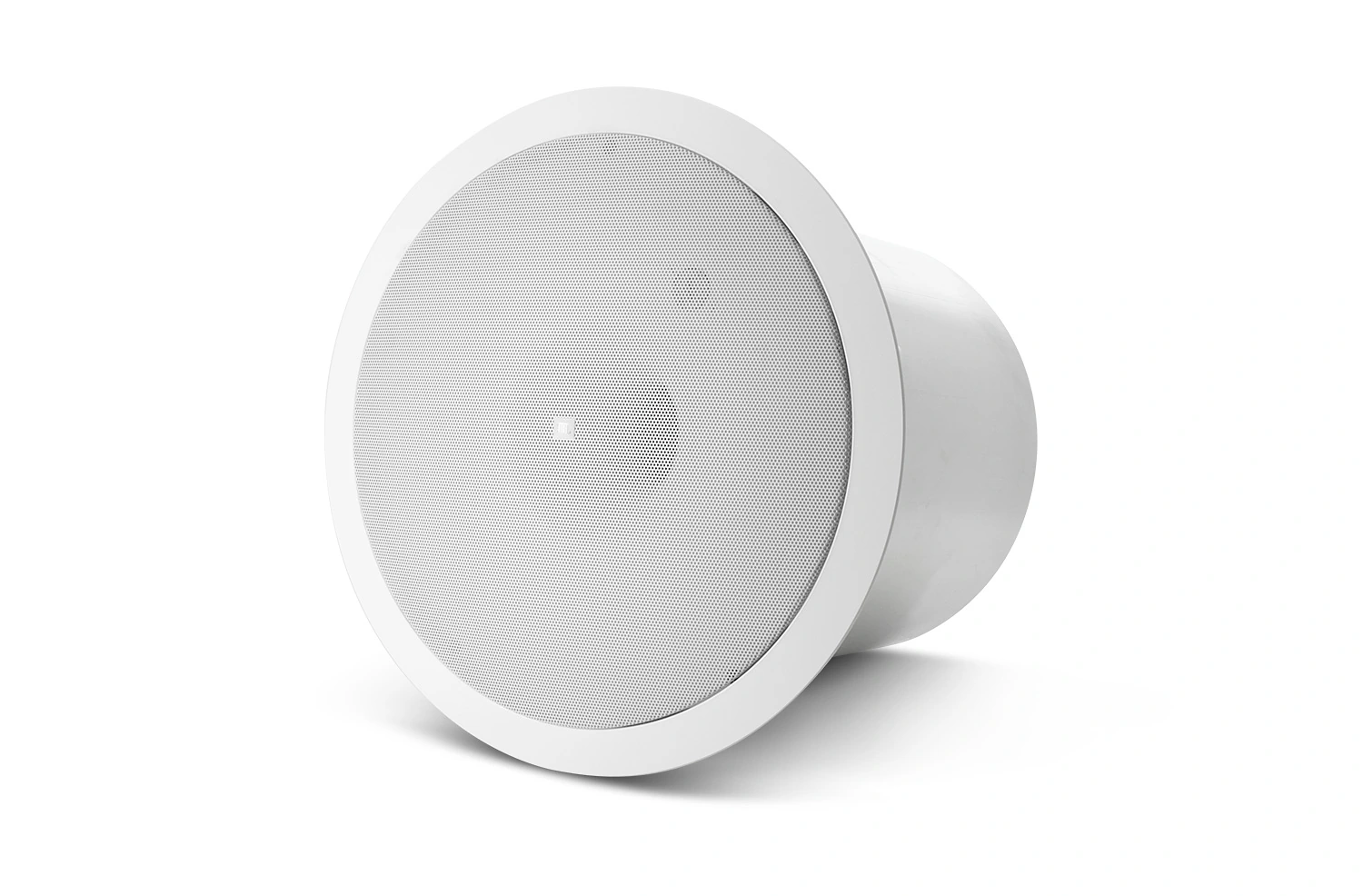

The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.

  • Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure.
  • JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
  • Component: Long excursion 200 mm (8 in) driver.
  • Packaged with grille, backcan and tile rails for fast installation and easy stocking.
  • Simple installation and wire connection method.

Downloads

  Version Language Size Uploaded
Data Sheets
file type icon Control 19CS/CST Spec Sheet
version B, updated: Oct 2020
  512 KB Oct 2020
Manuals
file type icon Ceiling Speaker Accessory Guide
version B, updated: Jan 2024
  231 KB Jan 2024
file type icon Ceiling Speaker Application Guide
updated: Oct 2019
    493 KB Oct 2019
file type icon Control 19CS Overview
updated: Oct 2019
    16.5 KB Oct 2019
file type icon MTC-TCD Thick-Ceiling Dogear
updated: Oct 2019
    41.7 KB Oct 2019
Brochures
file type icon JBL Commercial Brochure
updated: Apr 2020
    1.64 MB Apr 2020
file type icon Control Contractor Brochure (2024)
en version E, updated: Mar 2024
en  14.2 MB Mar 2024
Bim Objects
file type icon CONTROL 19CS BIM Object
updated: Aug 2019
    Aug 2019
Compliances
file type icon Control 19CS/CST Declaration of Conformity
updated: Oct 2019
    145 KB Oct 2019
file type icon JBL Control Series Passive Speakers DoC
updated: Dec 2019
    179 KB Dec 2019
Software
platform icon Ceiling Subwoofer Worksheet
updated: Nov 2020
    13.4 KB Nov 2020
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: May 2023
  557 KB May 2023
Accessories
file type icon MTC-CS-Teth1 Press-In Grille Safety Tether
updated: Sep 2021
    204 KB Sep 2021
Owner's Manuals
file type icon Control 19CS/CST Manual
updated: Oct 2020
    386 KB Oct 2020
Install Guides
file type icon CC Ceiling Speakers: Myth versus Reality
updated: Oct 2020
    23.9 KB Oct 2020
file type icon Guide to Business Music
updated: Oct 2020
    52.4 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 42 Hz - 200 Hz
Power Rating IEC System Long-Term Ratings (low-Z direct):
200 Watts Continuous Program Power
100 Watts Continuous Pink Noise (400W peak), 100 hrs
Sensitivity 95 dB SPL in ceiling near corner, 89 dB in center of ceiling
Coverage Angle 180° conical
Maximum SPL (1m) 109 dB (low-impedance, 115 dB peak, center of ceiling)
115 dB (low-impedance, 121 dB peak near corner)
Impedance 8 ohms
Input Connectors Removable locking connector with screw-down terminals.
Drivers 200 mm (8.0 in) subwoofer
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 305 mm (12.0 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
Plenum Usage Yes, backcan included
Enclosure Material Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Overload Protection Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST)
Outside Dimensions (H x Dia)

345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan

Net Weight (each)

5.5 kg (12 lb)

Shipping Weight (pair)

Control 19CS: T12.7 kg (28 lb)

Accessories

MTC-48TRx12 | Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 Main photo
Larger Images

Tile Rail for 4' x 4' Ceiling Tiles

MTC-48TRx12 is an accessory tile rail for installing many of JBL’s ceiling loudspeakers into 4 ft by 4 ft
(1200 x 1200 mm; 48 x 48 inch) ceiling tiles in suspended ceiling applications.

  • Can be used with any JBL ceiling speakers having the C-ring/tile-rail mounting system.
    Includes (at product release):
    • Control 24C/CT Micro & 24CT MicroPlus
    • Control 24C/CT, 26C/CT, 19CS/CST
    • Control 47C/T, 47LP, 47HC, 40CS/T, 42C
    • Control 226C/T
    • 8124/8128
    • Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list.
  • Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
  • 1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
  • Multiple C-ring mounting holes. Additional hole locations drillable by installer.
  • One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
