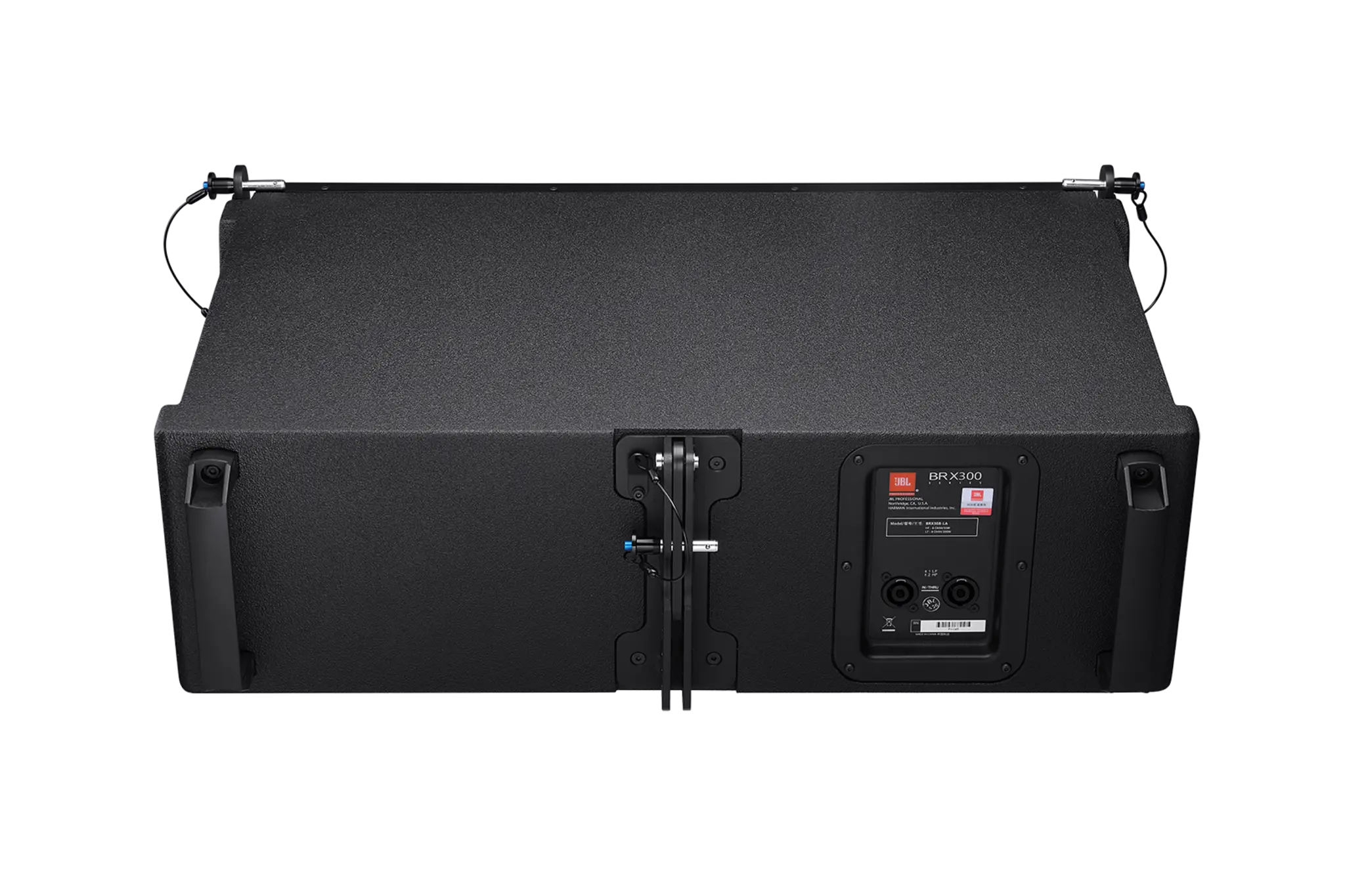

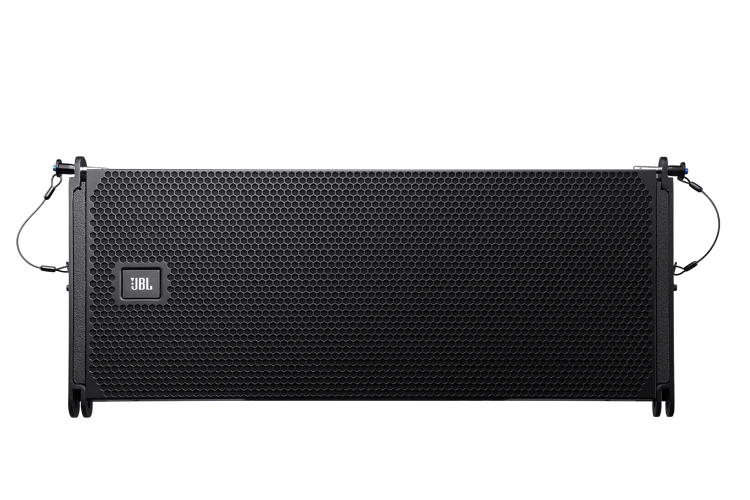

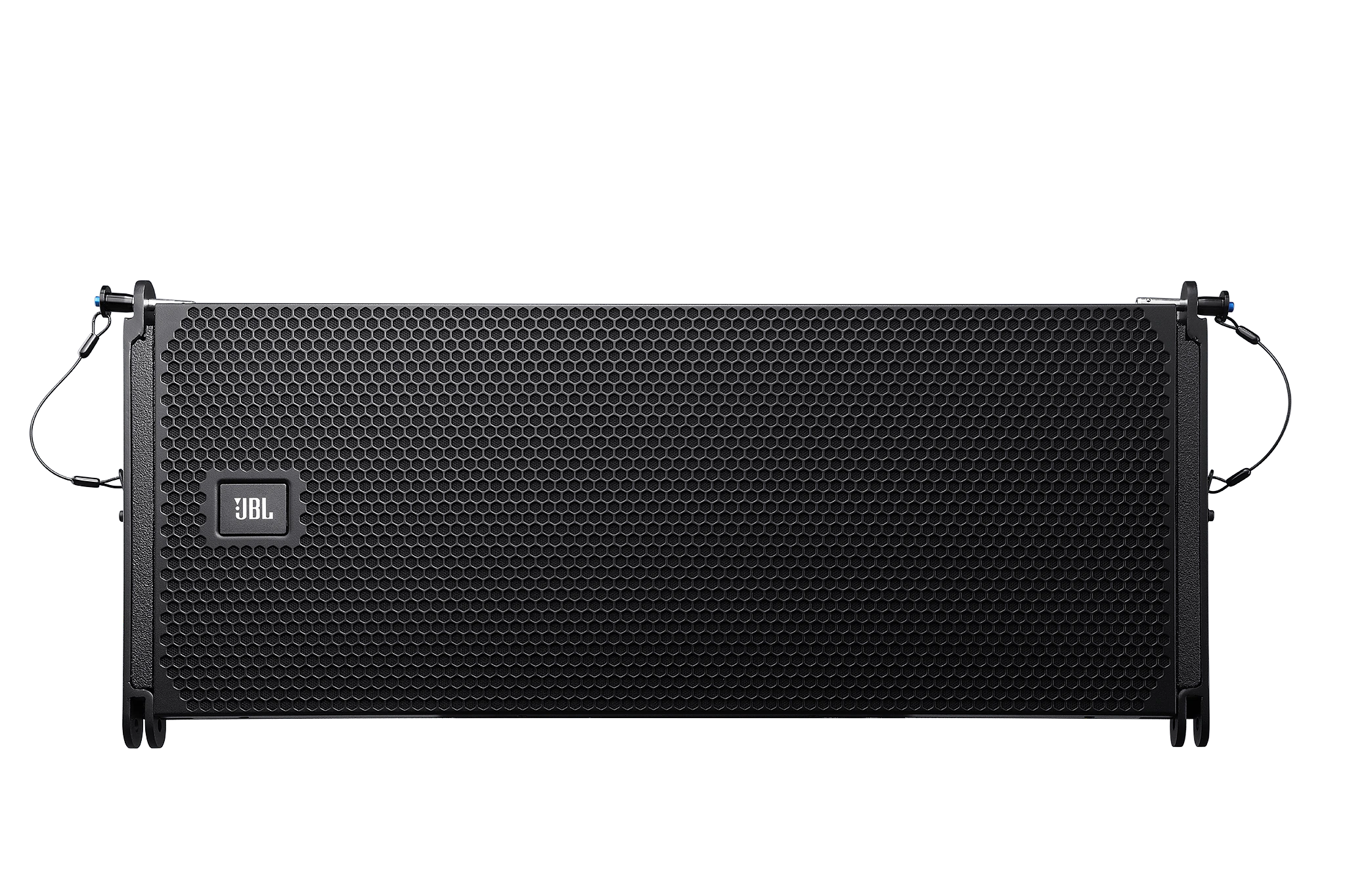

BRX308-LA

Line Array Element

Larger Images

Features

  • Dual 8-inch LF drivers and 3-inch titanium compression driver
  • Frequency range: 80 Hz–20 kHz (-10 dB)
  • 110° horizontal x 12° (variable) vertical dispersion
  • 136 dB maximum SPL
  • Variable interbox angles
  • I/O: two 4-pole NL4 connectors wired in parallel for IN/THRU use
  • Dimensions (W x H x D): 662 x 299 x 376 mm (26 x 11.8 x 14.8 inches)
  • Weight: 20.5 kg (45.2 pounds)

Downloads

  Version Language Size Uploaded
Spec Sheets (Pdf)s
BRX308-LA Spec Sheet
updated: Jun 10, 2020
    153 KB Jun 10, 2020
