ASH6118 (discontinued)

Horn-Loaded Subwoofer 1 x 18" 2242H SVG™ Driver

ASH6118
Larger Images

Horn-Loaded Subwoofer 1 x 18" 2242H SVG™ Driver

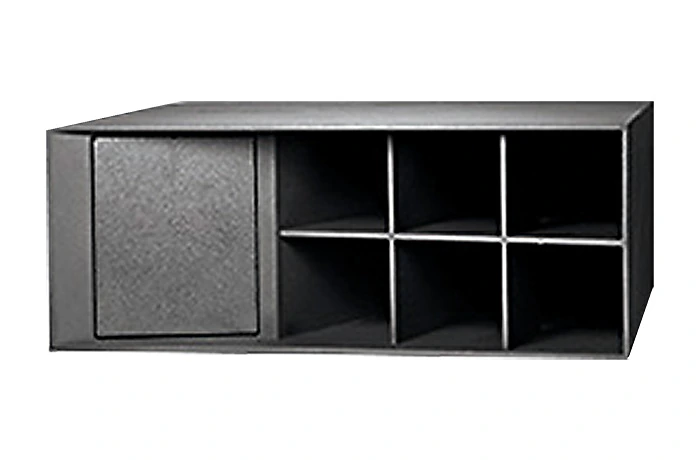

ASH6118 is a high power hornloaded subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver.



Features

  • Designed to be used in multiples (2 minimum, 4 optimum) with proximity placement or with proper boundary surface loading.
  • Maximum low frequency output & sensitivity.
  • Excellent "punch."
  • For fixed installation applications requiring maximum low frequency output, such as dance-clubs/discotheques, live clubs, performing arts facilities, theatrical sound design, auditoriums, houses of worship, sports facilities and themed entertainment venues.


Downloads

  Version Language Size Uploaded
file type icon AE Brochure
en updated: Mar 2024
  en  4.05 MB Mar 2024
file type icon ASH6118 Spec Sheet
en updated: Mar 2024
  en  97.2 KB Mar 2024
Specifications
file type icon ASH6118 Spec Sheet
updated: Apr 2019
    368 KB Apr 2019
Manuals
file type icon JBL Installed Sound Configuration Guide
updated: Oct 2020
    160 KB Oct 2020
file type icon AE Application Data Sheets
updated: Oct 2020
    13.7 MB Oct 2020
file type icon AE/PD Connector Pinout Guide
updated: Oct 2019
    8.25 KB Oct 2019
Brochures
file type icon AE Series Brochure
updated: Oct 2020
    4.05 MB Oct 2020
CAD Drawings
file type icon AE Series 3D DXF file
updated: Oct 2019
    381 KB Oct 2019
file type icon AE Series 3D DXF
updated: Oct 2020
    381 KB Oct 2020
file type icon AE Series 2D PDF
updated: Apr 2019
    1020 KB Apr 2019
file type icon AE Series 2D DXF
updated: Apr 2019
    1.24 MB Apr 2019
Speaker Tunings
file type icon AE DSP Tunings For All Models
updated: Oct 2020
    18.9 MB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 1 cabinet: 25 Hz – 250 Hz, 2 cabinets: 24 Hz – 250 Hz, 4 cabinets: 22 Hz – 250 Hz
Frequency Response (±3 dB) 1 cabinet: 30 Hz – 200 Hz, 2 cabinets: 28 Hz – 200 Hz, 4 cabinets: 26 Hz – 200 Hz
Transducer Power Rating (AES) 1 cabinet:1200 W (4800 W peak), 2 hrs, 800 W (3200 W peak), 100 hrs2 cabinets: 2400 W (9600 W peak), 2 hrs1600 W (6400 W peak), 100 hrs4 cabinets: 4800 W (19200 W peak), 2 hrs3200 W (12800 W peak), 100 hrs
System Power Rating 1 cabinet: 800 W (3200 W peak), 100 hrs2 cabinets: 1600 W (6400 W, peak), 100 hrs4 cabinets: 3200 W (12800 W peak), 100 hrs
Maximum SPL (1m) 30 Hz – 140 Hz:1 cabinet: 133 dB-SPL, cont avg (139 dB peak)2 cabinets: 138 dB-SPL cont avg (144 dB peak)4 cabinets: 144 dB-SPL cont avg (150 dB peak)
System Sensitivity (1w @ 1m) 30 Hz – 150 Hz:1 cabinet: 102 dB2 cabinets: 104 dB4 cabinets: 107 dB|
Nominal Impedance 8 ohms per cabinet
