ASB6128V (discontinued)

High Output Extended Response Dual 18" Subwoofer

Larger Images

High Output Extended Response Dual 18" Subwoofer

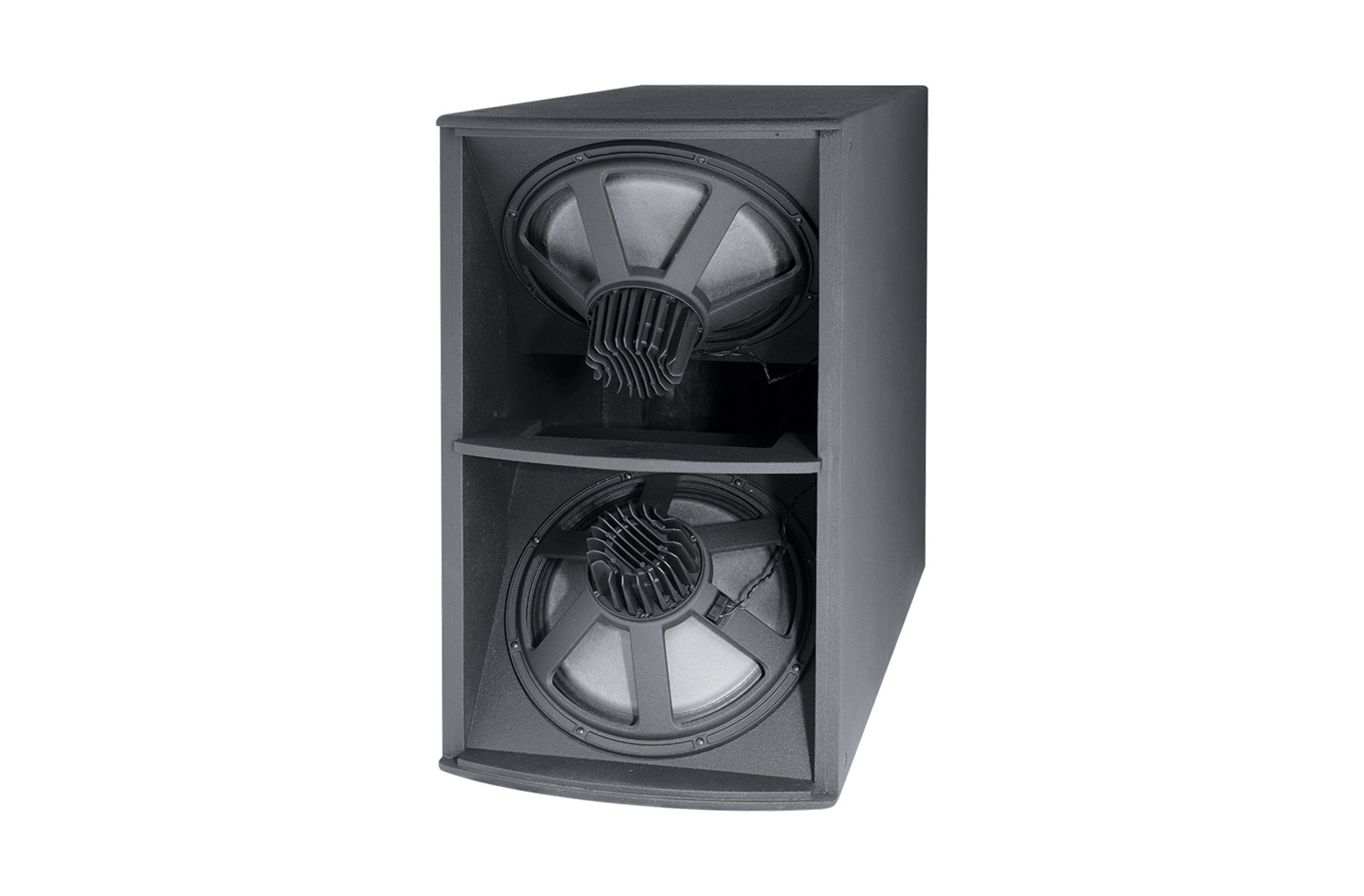

ASB6128V is a high power subwoofer system comprised of two 460 mm (18 in) NDD Neodymium Differential Drive low frequency drivers in “V”-loaded configuration.



Features

  • Driver magnets outward for maximum cooling.
  • Large vent area for high output.
  • Parallel / Discrete Switchable.
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.


Downloads

  Version Language Size Uploaded
AE Brochure
en updated: Jun 17, 2015
  en  4.05 MB Jun 17, 2015
ASB6128V Spec Sheet
en updated: Jun 17, 2015
  en  166 KB Jun 17, 2015
Specifications
ASB6128V Spec Sheet
updated: Apr 29, 2019
    384 KB Apr 29, 2019
Manuals
JBL Installed Sound Configuration Guide
updated: Oct 18, 2019
    160 KB Oct 18, 2019
AE Application Data Sheets
updated: Oct 18, 2019
    13.7 MB Oct 18, 2019
AE/PD Connector Pinout Guide
updated: Oct 31, 2019
    8.25 KB Oct 31, 2019
Brochures
AE Series Brochure
updated: Apr 29, 2019
    4.05 MB Apr 29, 2019
Installed Sound Full Line 2015 Catalog
updated: Oct 22, 2019
    2.59 MB Oct 22, 2019
Full Line 2015 Catalog
updated: Jan 11, 2020
    11.7 MB Jan 11, 2020
CAD Drawings
AE Series 3D DXF file
updated: Oct 30, 2019
    381 KB Oct 30, 2019
AE Series 3D DXF
updated: Apr 29, 2019
    381 KB Apr 29, 2019
AE Series 2D PDF
updated: Apr 29, 2019
    1020 KB Apr 29, 2019
AE Series 2D DXF
updated: Apr 29, 2019
    1.24 MB Apr 29, 2019
Information Documents
JBL Dance Club Systems Booklet
updated: Oct 18, 2019
    4.97 MB Oct 18, 2019
Speaker Tunings
AE DSP Tunings For All Models
updated: Apr 29, 2019
    18.9 MB Apr 29, 2019
Images
ASB6128V Hi Res Image
updated: Apr 29, 2019
    4 MB Apr 29, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range 22 Hz – 300 Hz (-10 dB)
Frequency Response 25 Hz – 300 Hz ( ± 3 dB)
Input Modes Drivers Parallel / Drivers Discrete
Transducer Power Rating (AES) 2400 W (9600 W peak), 2 hrs
Long-Term System Power Rating (IEC) 1600 W (6400 W peak), 100 hrs
Maximum SPL 30 Hz – 100 Hz: 132 dB-SPL cont avg (138 dB peak) 100 Hz – 300 Hz: 136 dB-SPL cont avg (142 peak)
System Sensitivity (dB-SPL, 1W @ 1m) 25 Hz - 80 Hz 98 dB80 Hz - 200 Hz: 102 dB
Nominal Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
