ASB6118

High Power Subwoofer 1 x 18" 2242H SVG™ Driver

ASB6118
Larger Images

High Power Subwoofer 1 x 18" 2242H SVG™ Driver

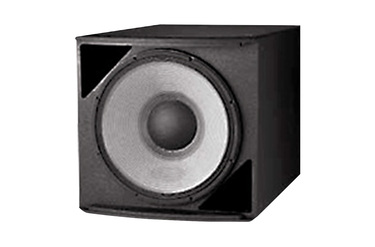

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.



Features

  • Large vent area for high output.
  • FIR Tuning Set Matches Phase Profile to Full-Range Models
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.)



Downloads

  Version Language Size Uploaded
Specifications
file type icon Weather Resistant Configurations
en version A, updated: Apr 22
en  86.1 KB Apr 22
file type icon ASB6118 Spec Sheet
updated: Dec 01
    435 KB Dec 01
Manuals
file type icon AE/PD Connector Pinout Guide
updated: Oct 31
    8.25 KB Oct 31
file type icon ASB6118p QSG
updated: Apr 22
    168 KB Apr 22
file type icon AE Application Data Sheets
updated: Oct 22
    13.7 MB Oct 22
Brochures
file type icon AE Series Brochure
updated: Oct 23
    4.05 MB Oct 23
CAD Drawings
file type icon AE Series 3D DXF file
updated: Oct 30
    381 KB Oct 30
file type icon AE-Powered-pdf-DWG.zip
updated: Oct 22
    315 KB Oct 22
file type icon AE-Powered-3D-DXF.zip
updated: Oct 22
    317 KB Oct 22
file type icon AE-Powered-2D-DXF.zip
updated: Oct 22
    4.25 MB Oct 22
file type icon AE Series WRC WRX Drawings
updated: Oct 22
    2.18 MB Oct 22
file type icon AE Series 3D DXF
updated: Oct 23
    381 KB Oct 23
file type icon AE Series 2D PDF
updated: Apr 29
    1020 KB Apr 29
file type icon AE Series 2D DXF
updated: Apr 29
    1.24 MB Apr 29
Compliances
file type icon AE Series - ASB & Low Frequency Declaration of Conformity
updated: Oct 22
    93.5 KB Oct 22
Software
file type icon CSC Ceiling Speaker Configurator Operating Instruction
updated: Oct 18
    134 KB Oct 18
Speaker Tunings
file type icon AE Series FIR Tunings for DCi Amplifiers
updated: Apr 07
    463 KB Apr 07
file type icon AE DSP Tunings For All Models
updated: Oct 23
    18.9 MB Oct 23
Application Guides
file type icon Directional Bass Using 3-Element Arrays
en updated: Aug 30
  en  570 KB Aug 30

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 28 Hz – 1 kHz
Frequency Response (±3 dB) 35 Hz – 1 kHz
Transducer Power Rating (AES) 1200 W (4800 W peak), 2 hrs
System Power Rating 800 W (3200 W peak), 100 hrs
Maximum SPL (1m) 30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak)100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity (1w @ 1m) 30 Hz – 100 Hz: 98 dB100 Hz – 500 Hz: 98 dB
Nominal Impedance 8 ohms
LF Driver 1 x JBL 2242H 460 mm (18 in) SVG™ driver with 100 mm (4 in) voice coil
Nominal LF Driver Impedance 8 ohms
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
Environmental Mil-Std 810; IP-x3 per IEC529.
Net Weight (each) 98 lbs. (44.5 kgs)
