JBL Professional AM5212/64

Larger Images

12-inch 2-Way Loudspeaker with 60° x 40° Rotatable Horn

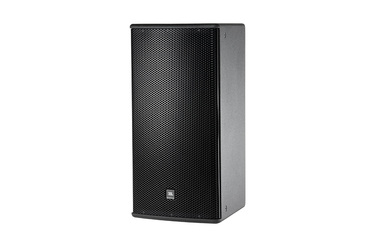

The AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features

60° x 40° Coverage
262H-1 Differential Drive® Low-Frequency Driver
2408H-1 High-Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
Available in Black, White and WRC/WRX weather resistant finishes

Applications

Performing Arts Facilities
Theatrical Sound Design
Auditoriums
Worship Facilities
Live Clubs
Dance Clubs
Sports Facilities
Themed Entertainment Venues

To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.)

Downloads

Specifications

	Size	Uploaded
AM5212/64 Spec Sheet updated: Oct 2020	543 KB	Oct 2020

Manuals

	Version	Language	Size	Uploaded
AE Series Array Guide updated: Jul 2024			1.12 MB	Jul 2024
Weather Resistant Configurations version A, updated: May 2023	A		86.1 KB	May 2023
AE Series U-Bracket Handbook updated: Jul 2024			597 KB	Jul 2024
AE/PD Connector Pinout Guide updated: Oct 2019			8.25 KB	Oct 2019
Painting AE Loudspeaker Cabinets updated: Mar 2025			115 KB	Mar 2025

Brochures

	Language	Size	Uploaded
AE Series Brochure updated: Oct 2020		4.05 MB	Oct 2020
AM Brochure updated: Oct 2020		1.54 MB	Oct 2020
Loudspeakers for Sports Facilities updated: Jul 2024		5.71 MB	Jul 2024

CAD Drawings

	Version	Size	Uploaded
AE Series - Customer Drawings version 2.0, updated: May 2024	2.0	2.69 MB	May 2024
AE Series - WR Models Customer Drawings version 3.0, updated: Apr 2026	3.0	3.8 MB	Apr 2026
AE Series - Revit/BIM Files version 11.0, updated: Jul 2024	11.0	730 KB	Jul 2024

Compliances

	Size	Uploaded
AE Series - AM5000 Declaration of Conformity updated: Oct 2020	91.6 KB	Oct 2020

Simulation Data

	Version	Size	Uploaded
Ease SPK/DLL Files - Full JBL Pro Line updated: May 2024		21 MB	May 2024
JBL Pro ALL CLF Files version 12-10-21, updated: May 2023	12-10-21	24 MB	May 2023

Preset Libraries

	Size	Uploaded
AE Series DCi Series Preset Library updated: May 2024	471 KB	May 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB)	37 Hz – 20 kHz
Frequency Response (±3 dB)	43 Hz – 18 kHz
Coverage Pattern	/64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60°
Crossover Modes	Bi-amp/Passive switchable
Passive Crossover Frequency	1.5 kHz
Transducer Power Rating (AES)	LF: 400 W (1600 W peak), 2 hrs300 W (1200 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs
System Power Rating	Passive mode: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m)	Bi-amp mode: LF: 122 dB HF: 131 dB
System Sensitivity (1w @ 1m)	Passive mode: 96 dB SPL
LF Driver	1 x JBL 262H-1 300 mm (12 in ) driver with 50.8 mm (2 in) dual voice coil
Nominal Impedance	8 ohms
Sensitivity (1W @ 1m, within operational band)	97 dB SPL
HF Driver	JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Sensitivity	113 dB SPL
Waveguide	PT-H126HF-1
Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental	Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D in vertical orientation)	713 x 371 x 458 mm(28.06 x 14.6 x 18.1 in)
Net Weight (each)	20.2 kg (45 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
System Power Rating	Passive mode: 300 W (1200 W peak), 100 hrs (IEC rated)
Nominal LF Driver Impedance	8 ohms
Nominal HF Driver Impedance	8 ohms
