AC2215/64 /95 /00 (discontinued)

Compact 2-Way Loudspeaker with 1 x 15" LF

AC2215/64 /95 /00
Larger Images

Compact 2-Way Loudspeaker with 1 x 15" LF

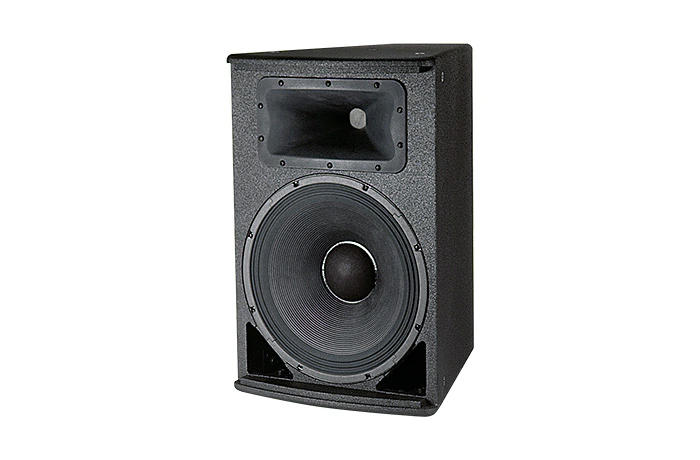

AC2215 speakers are compact 2-way full-range loudspeaker systems comprised of one 380 mm (15 in) low frequency driver and one voice-coil compression driver.



Features

  • PT™ Progressive Transition™ Waveguide for good pattern control with low distortion.
  • Bi-Amp/Passive Switchable.
  • Optional U-Bracket Model MTU-2.
  • For fixed installation applications requiring a compact cabinet, such as small performing arts facilities,
    theatrical sound design, auditoriums, sports facilities, themed entertainment venues and in delay/fill locations of larger systems.


Downloads

  Version Language Size Uploaded
file type icon AE Brochure
en updated: Jan 12
  en  4.05 MB Jan 12
file type icon AC2215_00 Spec Sheet
en updated: Jan 12
  en  408 KB Jan 12
file type icon AC2215_64 Spec Sheet
en updated: Jan 12
  en  408 KB Jan 12
file type icon AC2215_95 Spec Sheet
en updated: Jan 12
  en  409 KB Jan 12
Specifications
file type icon AC2215/64 Spec Sheet
updated: Apr 29
    584 KB Apr 29
file type icon AC2215/95 Spec Sheet
updated: Apr 29
    409 KB Apr 29
file type icon AC2215/00 Spec Sheet
updated: Apr 29
    568 KB Apr 29
Manuals
file type icon AE Series U-Bracket Handbook
updated: Oct 22
    597 KB Oct 22
file type icon JBL Installed Sound Configuration Guide
updated: Oct 22
    160 KB Oct 22
file type icon AE/PD Connector Pinout Guide
updated: Oct 31
    8.25 KB Oct 31
file type icon AE Application Data Sheets
updated: Oct 22
    13.7 MB Oct 22
Brochures
file type icon AE Series Brochure
updated: Oct 23
    4.05 MB Oct 23
CAD Drawings
file type icon AE Series WRC WRX Drawings
updated: Oct 22
    2.18 MB Oct 22
file type icon AE Series 3D DXF file
updated: Oct 30
    381 KB Oct 30
file type icon AE Series 2D DXF
updated: Apr 29
    1.24 MB Apr 29
file type icon AE Series 2D PDF
updated: Apr 29
    1020 KB Apr 29
file type icon AE Series 3D DXF
updated: Oct 23
    381 KB Oct 23
Compliances
file type icon AE Series - AC2000 Series Declaration of Conformity
updated: Oct 22
    91.7 KB Oct 22
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: Mar 15
    21 MB Mar 15
Application Guides
file type icon Loudspeakers for Sports Facilities
en updated: May 04
  en  5.71 MB May 04
Images
file type icon AC2215-95 Hi Res Image
updated: Oct 22
    2.07 MB Oct 22
file type icon AC2215-64 Hi Res Image
updated: Oct 22
    2.34 MB Oct 22
Speaker Tunings
file type icon AE DSP Tunings For All Models
updated: Oct 23
    18.9 MB Oct 23
CLF Files
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: Dec 13
12-10-21    24 MB Dec 13

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 42 Hz - 19 kHz (-10 dB)
Frequency Response 50 Hz - 17 kHz ( ± 3 dB)
Coverage Pattern /64: 60°x 40° /95: 90°x 50° /00: 100°x 100°
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Slopes 4th order (24 dB/oct) Linkwitz-Riley HP & LP, 2.2 kHz
Transducer Power Rating (AES) LF: 275 W (1100 W peak), 2 hrs 250 W (1000 W peak), 100 hrs HF: 30 W (120 W peak), 2 hrs
System Power Rating Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPL (1m) Bi-amp mode: LF: 121 dB-SPL cont avg (127 dB peak) HF: 129 dB-SPL cont avg (135 dB peak) Passive mode: 121 dB-SPL cont avg (127 dB peak)
System Sensitivity Passive mode: 97 dB SPL (1W @ 1m)
