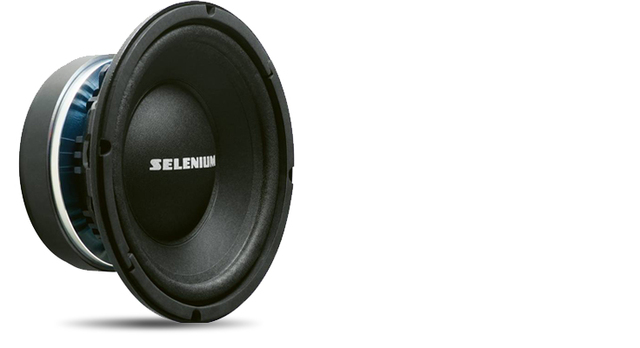

8MB4P

8” Woofer for MidBass

Larger Images

8MB4P

For midbass boxes that require high power handling, efficiency, high fidelity, and low distortion. Extremely versatile these speakers can be used in two-way, three-way and line array systems.

Downloads

  Version Language Size Uploaded
Data Sheets
8MB4P Spec Sheet
updated: Oct 03, 2019
    1.1 MB Oct 03, 2019
Brochures
Components Full Line 2015 Catalog
updated: Aug 20, 2020
    1.32 MB Aug 20, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Diameter 8”
Impedance (ohms) 8
RMS (W) 250
Musical Program (W) 500
SPL 1W @ 1m (dB) 97
Frequency Response (-10dB) 80 to 5.000
Resonance (Hz) 105
Voice Coil Diameter in.(mm) 1.8 (47)
Voice coil Kapton®/Alumínio
Magnet Weight oz.(g) 45 (1,280)
Frame Material Die cast aluminum
