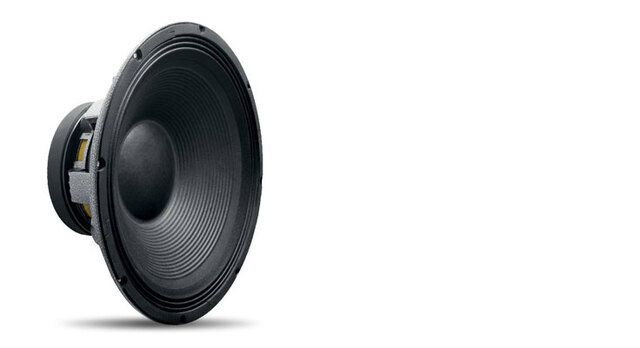

18SWS1100

18" Subwoofer

Larger Images

18SWS1100

Recommended for use as a subwoofer in a bass reflex or horn loaded cabinets. Capabilities: High power handling, Large linear excursion. Bandpass extension into the very low frequency zone. High power output with low distortion.

Downloads

  Version Language Size Uploaded
Data Sheets
18SWS1100 Spec Sheet
updated: Oct 03, 2019
    290 KB Oct 03, 2019
Brochures
Components Full Line 2015 Catalog
updated: Oct 21, 2019
    1.32 MB Oct 21, 2019
Full Line 2015 Catalog
updated: Jan 11, 2020
    11.7 MB Jan 11, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Diameter 18”
Impedance (ohms) 8
RMS (W) 1,100
Musical Program (W) 2,200
SPL 1W @ 1m (dB) 97
Frequency Resp. @ -10dB (Hz) 30 to 3,000
Resonance (Hz) 34
Voice coil diameter in. (mm) 4 (100)
Voice coil Edge wound Al
Magnet weight oz. (g) 120 (3,400)
Basket Die cast aluminum with epoxy finish
