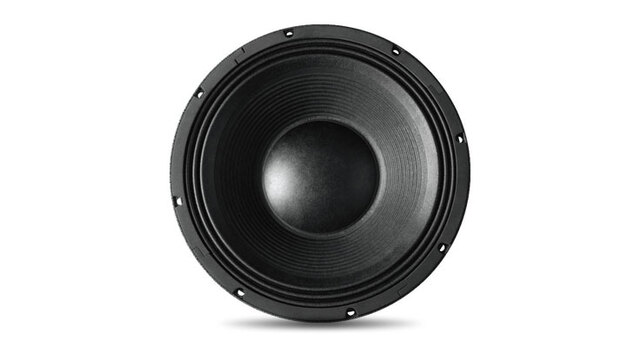

15SWS1000 (discontinued)

15" Subwoofer

Larger Images


Recommended for use as a subwoofer in a bass reflex or horn loaded cabinets. Capabilities: High power handling, Large linear excursion. Bandpass extension into the very low frequency zone. High power output with low distortion.


  Version Language Size Uploaded
Data Sheets
file type icon 15SWS1000 Spec Sheet
updated: Oct 2019
    194 KB Oct 2019
file type icon Components Full Line 2015 Catalog
updated: Aug 2020
    1.32 MB Aug 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Diameter 15"
Impedance (ohms) 8
RMS (W) 1,000
Musical Program (W) 2,000
SPL 1W @ 1m (dB) 95
Frequency Range (-10dB) 38 to 2,000
Resonance (Hz) 36
Voice coil diameter in. (mm) 4 (100)
Voice coil 4 Layer Al
Magnet weight oz. (g) 120 (3,400)
Basket Die cast aluminum with epoxy finish
