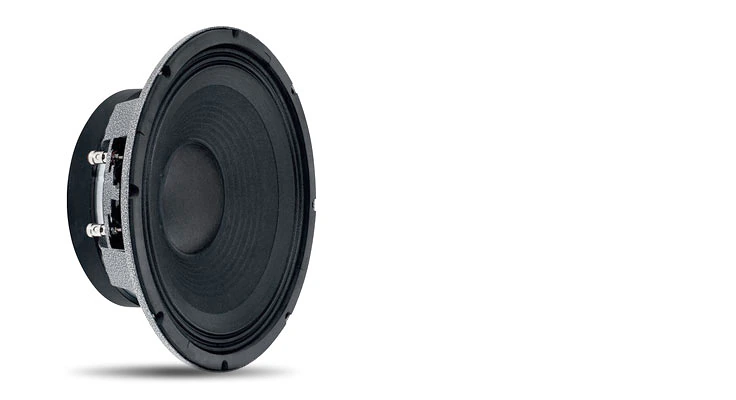

12" Woofer

Larger Images


12” Woofer for low and mid bass professional sound reinforcement, offering high power capacity, outstanding low end response and exceptionally smooth transition into the vocal range.


  Version Language Size Uploaded
Data Sheets
12WS600 Spec Sheet
updated: Oct 03, 2019
    316 KB Oct 03, 2019
Components Full Line 2015 Catalog
updated: Aug 20, 2020
    1.32 MB Aug 20, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


Nominal diameter mm (in) 305 (12)
Nominal Impedance 8 W
Minimum impedance @ 212 Hz 7.4 W
Sensitivity (2.83V@1m) averaged from 100 to 500 Hz 95 dB SPL
Frequency Response (-10dB) 45 to 3,000 Hz
Magnet material Barium ferrite
Magnet weight 2,640 (94) g (oz)
Frame Material Aluminum
Voice coil material Copper
