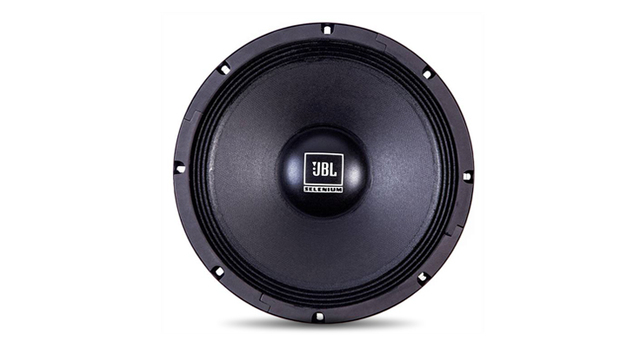

10PW7

Larger Images

Recommended for use in small and medium-size venues where high performance reproduction of the critical midrange frequencies are desired.

	Version	Language	Size	Uploaded
Data Sheets
10PW7 Spec Sheet updated: Oct 15			680 KB	Oct 15
Brochures
Components Full Line 2015 Catalog updated: Aug 20			1.32 MB	Aug 20

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Diameter	10”
Impedance (ohms)	8
RMS (W)	150
Musical Program (W)	300
Frequency Range (-10dB)	60 to 4,000
Resonance (Hz)	67
Voice Coil Diameter in.(mm)	1.8 (46)
Magnet weight oz. (g)	32 (920)
Frame Material	Stamped steel with epoxy finish
