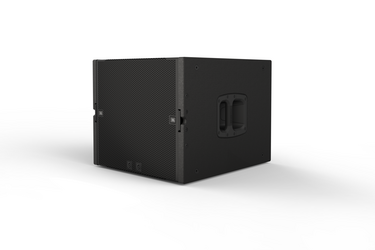

VTX B15G

Compact 15-inch Subwoofer

VTX B15G
Μεγαλύτερες εικόνες

Compact 15-inch Subwoofer
The VTX B15G Compact 15-inch Subwoofer extends the low-end performance of VTX full-range sound-reinforcement systems, includ¬ing the VTX A6 Subcompact Dual 6.5-inch Line Array Element. The B15G is a versatile solution for production companies, touring acts, rental houses, theaters, houses of worship, or anyone who demands superior sound reinforcement when space is at a premium.

The B15G joins the VTX B Series subwoofer family in harnessing VTX acoustic innovations such as SlipStream™ double-flared exponential ports and Differential Drive® dual-voice coil woofer design. The B15G is acoustically identical to the B15 but designed without rigging hardware, reducing weight and cost for situations where rigging is not required. A6 arrays can be stacked on top of B15G using the A6 Base Plate accessory, and eyebolts are available for suspending single subwoofers in fixed installation applications.

Together with the A6, the B15G brings flagship VTX sound quality and performance to a compact footprint, whether supporting small and midsize applications or supplementing large VTX systems. It’s never been easier to deliver impactful, VTX-quality sound at any scale.

Χαρακτηριστικά

  • JBL 2285H 15-inch woofer offers low distortion and improved linearity
  • SlipStream double-flared ports reduce noise and air turbulence
  • Differential Drive dual-voicecoil, dual-gap woofer design delivers superior low-frequency performance in a compact footprint
  • Two B15 models are available – the B15G and the B15. The B15G is acoustically identical to the B15 but designed without rigging hardware, reducing weight and cost for situations where rigging is not required
  • Integrates seamlessly with JBL LAC-3, Array Link and Performance Manager software applications
  • Support for omnidirectional and cardioid array configurations
  • Available accessories include ground stack accessory and transportation accessories
  • Neutrik STX speakON NL4 connectors
  • Rugged, exterior-grade birch plywood enclosure with black Duraflex™ finish and recessed handholds
  • Powder-coated, hex-perforated stainless steel grille with acoustically transparent cloth backing

Λήψεις

Specifications
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon VTX B15G Spec Sheet
en έκδοση A, ενημέρωση: Ιουλ 2022
en  400 KB Ιουλ 2022
Manuals
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon VTX B15 User Manual
en έκδοση A, ενημέρωση: Ιουλ 2023
en  10 MB Ιουλ 2023
file type icon VTX B15 Rigging Manual
en έκδοση B, ενημέρωση: Ιουλ 2023
en  20 MB Ιουλ 2023
CAD Drawings
  Έκδοση Μέγεθος Ανέβηκε
file type icon VTX B15G Customer Drawings
έκδοση A, ενημέρωση: Ιουλ 2022
3 MB Ιουλ 2022
file type icon VTX A6/B15 Revit/BIM Files
έκδοση 1.0, ενημέρωση: Ιουλ 2024
1.0  30 MB Ιουλ 2024
file type icon VTX A6/B15 Sketchup Files
έκδοση 1.0, ενημέρωση: Ιουλ 2022
1.0  2 MB Ιουλ 2022
Software
  Μέγεθος Ανέβηκε
download icon for Venue Synthesis Venue Synthesis
κυκλοφορία: Ιαν 2025
Ιαν 2025
download icon for Performance Manager 3 Performance Manager 3
κυκλοφορία: Ιουλ 2024
Ιουλ 2024
Declaration of Conformity
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon VTX A6/B15 EU Declaration of Conformity
en έκδοση A, ενημέρωση: Οκτ 2022
en  100 KB Οκτ 2022
file type icon VTX A6/B15 UK Declaration of Conformity
en έκδοση A, ενημέρωση: Οκτ 2022
en  100 KB Οκτ 2022
Ease Data
  Έκδοση Μέγεθος Ανέβηκε
file type icon VTX A6/B15 EASE GLL
έκδοση 1.1, ενημέρωση: Δεκ 2022
1.1  10 MB Δεκ 2022
Preset Libraries
  Έκδοση Μέγεθος Ανέβηκε
file type icon VTX B15 iTech HD Preset Library
έκδοση 1.2.0, ενημέρωση: Αυγ 2022
1.2.0  2 MB Αυγ 2022
Service Notes
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon VTX B15 Spare Parts
en έκδοση A, ενημέρωση: Απρ 2026
en  70 KB Απρ 2026

Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.

Ανταλλακτικά και σέρβις

Προδιαγραφές

Frequency Range (-10dB) 35 Hz-95 Hz (Preset: 80 Hz)
Coverage Pattern Omnidirectional or Cardioid
Maximum SPL (1m) 132 dB (Preset: 80 Hz)
System Processing Crown iTech 9000HD, Crown iTech 12000HD
Crown iTech 4x3500HD
Nominal Impedance 8 ohms
LF Driver (1) JBL 2285H, 15 in diameter, dual 4 in diameter voice coil, neodymium Differential Drive®
Enclosure 15 mm, 18 mm and 24 mm exterior grade birch plywood, black DuraFlexTM finish, two integral recessed handles
Dimensions (H x W x D) 446 mm x 536 mm x 586 mm
18.3 in x 21.1 in x 23.1 in
Net Weight (each) 41.5 kg (91.5 lbs)

Αξεσουάρ

VTX B15 ACC | Accessory Cover & Caster Board
VTX B15 ACC Main photo
Μεγαλύτερες εικόνες
VTX B15 ACC detail thumbnail #1 VTX B15 ACC detail thumbnail #2 VTX B15 ACC detail thumbnail #3 VTX B15 ACC detail thumbnail #4

Highlights:

  • Front-face dolly and cover for VTX B15
  • Cover includes handle cutouts and rear panel access flap
  • Tour grade casters
  • Stackable for convenient storage
  • Spring-loaded release mechanisms for secure attachment to B15 enclosures
  • Compatible with B15 and B15G

Included:

  • (1) Caster board
    (1) VTX B15 CVR

Τεκμηρίωση
229-00009-01 | M10 Eyebolt Kit
229-00009-01 Main photo
Μεγαλύτερες εικόνες
229-00009-01 detail thumbnail #1 229-00009-01 detail thumbnail #2 229-00009-01 detail thumbnail #3 229-00009-01 detail thumbnail #4

Highlights:

  • M10 x 35 mm Eyebolts
  • Forged Shoulder Steel Construction
  • Includes washers and spacers

Included:

  • (3) M10 x 35 mm Eyebolts
  • (3) 38 mm Washers
  • (3) 13 mm Spacers for EON and 300 Series
