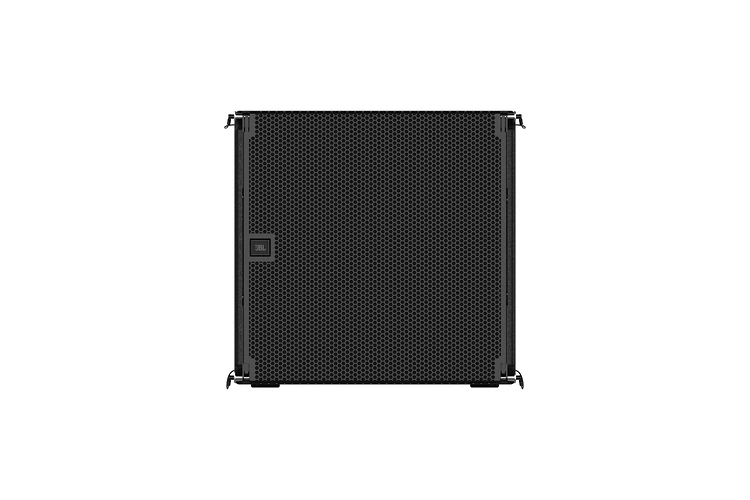

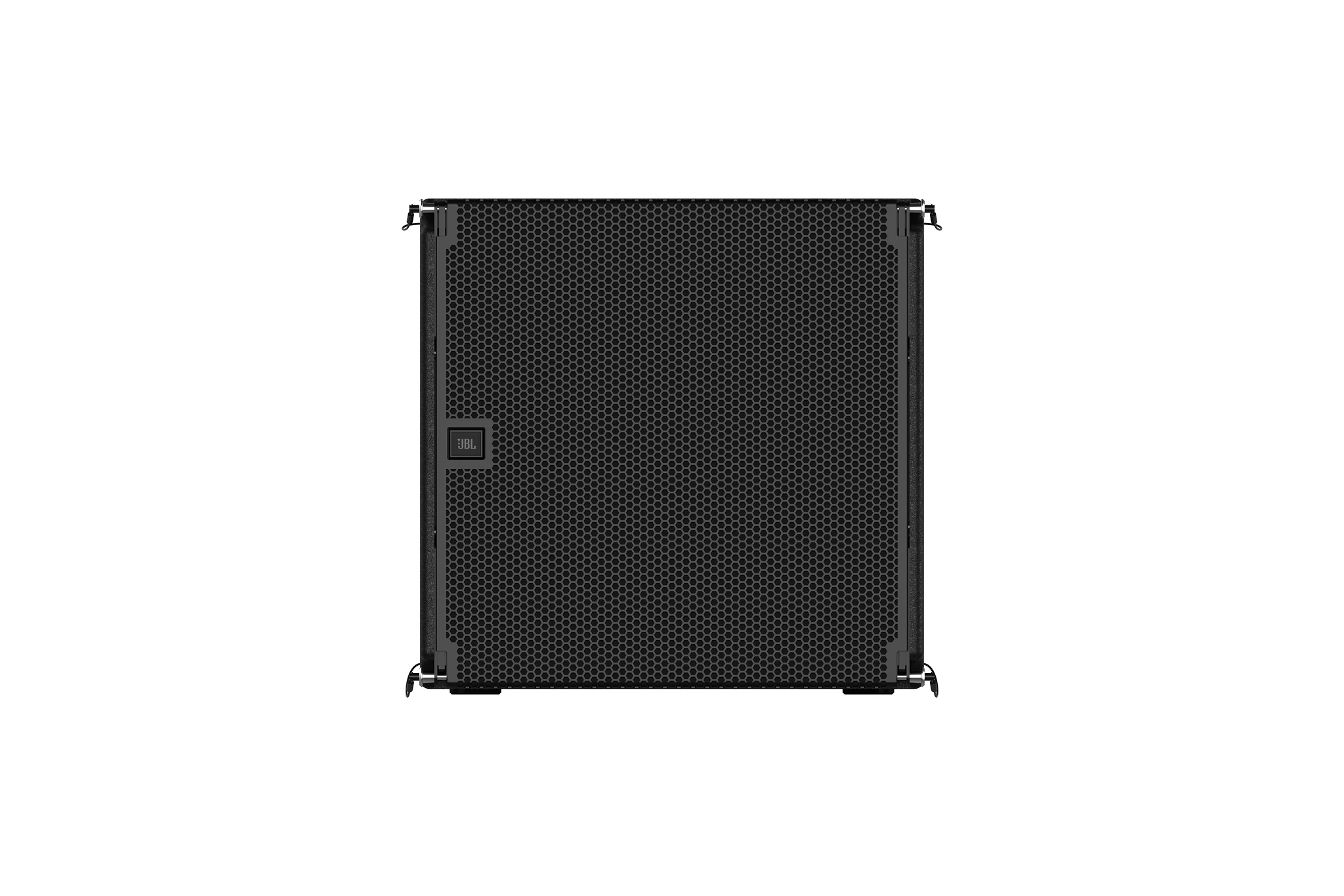

SRX915SF

15-inch Powered Flyable Subwoofer

SRX915SF
Μεγαλύτερες εικόνες

The SRX915SF is a powered, flyable, single 15-inch subwoofer designed to be deployed in suspended or ground-stacked configurations to complement SRX900 Series full-range systems. The integrated three-point rigging system in the SRX915SF allows units to be suspended in standalone arrays or in combination with SRX906LA cabinets in mixed-array configurations.

The subwoofer houses a JBL 2276H 15-inch woofer featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs. Built-in DSP and amplification offer a plug-and-play experience while providing consistency and optimum performance anywhere in the world.

The SRX915SF incorporates a large low-frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A reinforced 18 mm birch plywood cabinet ensures enhanced strength and durability. A full-featured software package gives users complete control of the system on various platforms, including Windows, macOS, and iPad OS. Learn more about JBL Performance here.

Χαρακτηριστικά

  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion and class-leading output
  • Built-in, passively-cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Complete control and configuration with JBL Performance software over HARMAN's HControl protocol
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD provides access to control features
  • Reinforced birch plywood enclosures
  • M20 threaded mount for pole mounting or ground stacking full range components
  • Integrated three-point rigging system

Λήψεις

Specifications
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon SRX915SF Spec Sheet
en έκδοση A, ενημέρωση: Ιαν 2025
en  400 KB Ιαν 2025
Manuals
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon SRX900 Series User Manual
en έκδοση D, ενημέρωση: Ιαν 2026
en  10 MB Ιαν 2026
file type icon SRX900LA Rigging Manual
en έκδοση F, ενημέρωση: Φεβ 2026
en  50 MB Φεβ 2026
file type icon SRX900PS Rigging Manual
en έκδοση A, ενημέρωση: Ιαν 2026
en  8 MB Ιαν 2026
file type icon Assembly Instructions - powerCON TRUE1
en έκδοση 4.0, ενημέρωση: Ιαν 2025
4.0  en  9 MB Ιαν 2025
CAD Drawings
  Έκδοση Μέγεθος Ανέβηκε
file type icon SRX915SF Customer Drawings
έκδοση A, ενημέρωση: Ιαν 2025
2 MB Ιαν 2025
file type icon SRX900 Series Revit/BIM Files
έκδοση 3.0, ενημέρωση: Φεβ 2026
3.0  70 MB Φεβ 2026
file type icon SRX900 Series Sketchup Files
έκδοση 3.0, ενημέρωση: Φεβ 2026
3.0  10 MB Φεβ 2026
Software
  Έκδοση Μέγεθος Ανέβηκε
download icon for Venue Synthesis Venue Synthesis
κυκλοφορία: Ιαν 2025
  Ιαν 2025
download icon for ArrayLink ArrayLink
κυκλοφορία: Ιαν 2025
  Ιαν 2025
download icon for Performance Software Performance Software
κυκλοφορία: Ιαν 2025
  Ιαν 2025
download icon for SRX900 Module for AMX SRX900 Module for AMX
κυκλοφορία: Ιαν 2025
  Ιαν 2025
download icon for SRX900 Plugin for Q-SYS SRX900 Plugin for Q-SYS
έκδοση 1.2.0.0, ενημέρωση: Μαρ 2026
1.2.0.0   4 MB Μαρ 2026
Firmware
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon SRX900 Series Firmware Changelog
en έκδοση 2.0.1, ενημέρωση: Μαρ 2026
2.0.1  en  100 KB Μαρ 2026
Simulation Data
  Έκδοση Μέγεθος Ανέβηκε
file type icon SRX900LA - EASE GLL
έκδοση 2.0, ενημέρωση: Ιαν 2026
2.0  20 MB Ιαν 2026
file type icon SRX900PS - EASE GLL
έκδοση 1.0, ενημέρωση: Ιαν 2026
1.0  10 MB Ιαν 2026
Declaration of Conformity
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon SRX900 Series - EU Declaration of Conformity
en έκδοση D, ενημέρωση: Μαρ 2026
en  500 KB Μαρ 2026
file type icon SRX900 Series - UKCA Declaration of Conformity
en έκδοση D, ενημέρωση: Μαρ 2026
en  400 KB Μαρ 2026
file type icon SRX900 Series - CB Certificate of Compliance
en έκδοση D, ενημέρωση: Φεβ 2026
en  700 KB Φεβ 2026
file type icon SRX900 Series - UL Certificate of Compliance
en έκδοση D, ενημέρωση: Φεβ 2026
en  2 MB Φεβ 2026
file type icon SRX900 Series - CQC Certificate of Compliance
zh έκδοση C, ενημέρωση: Φεβ 2026
zh  2 MB Φεβ 2026
file type icon SRX900 Series - KC Certificate of Compliance
ko έκδοση C, ενημέρωση: Μαρ 2026
ko  3 MB Μαρ 2026
file type icon SRX900 Series - Taiwan RoHS Documentation
zh έκδοση B, ενημέρωση: Ιουν 2025
zh  100 KB Ιουν 2025
Service Notes
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon SRX915SF Spare Parts
en έκδοση A, ενημέρωση: Φεβ 2026
en  100 KB Φεβ 2026

Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.

Ανταλλακτικά και σέρβις

Προδιαγραφές

Frequency Range (-10dB) 36 Hz-100 Hz (Preset: 80 Hz)
Coverage Pattern Omnidirectional or Cardioid
Maximum SPL 130 dB
System Type Active Subwoofer
Amplifier Design Class-D
Continuous Power Rating 1,100 Watts
LF Driver (1) JBL 2276H, 15 in diameter, 8 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
Enclosure Exterior grade birch plywood, Black DuraFlexTM finish
Dimensions (H x W x D) 493 mm x 507 mm x 610 mm
(19.4 in x 20.0 in x 24.0 in)
Net Weight (each) 39 kg (86 lbs)

Αξεσουάρ

SRX906LA AF | Array Frame for SRX906LA and SRX915SF
SRX906LA AF Main photo
Μεγαλύτερες εικόνες
SRX906LA AF detail thumbnail #1 SRX906LA AF detail thumbnail #2 SRX906LA AF detail thumbnail #3 SRX906LA AF detail thumbnail #4

Highlights:

  • Compact and lightweight design
  • Compatible with SRX906LA and SRX915SF
  • Precision pick-point resolution
  • Two-part collapsible design
  • Support for third-party laser inclinometers
  • Compatible shackle size: 1/2 in

Included:

  • (1) Spreader Bar
  • (1) Extension Bar
  • (1) 1/2-inch Shackle
  • (1) Laser Bracket and hardware

Τεκμηρίωση
ACK1 | Accessory Caster Kit
ACK1 Main photo
Μεγαλύτερες εικόνες
ACK1 detail thumbnail #1 ACK1 detail thumbnail #2 ACK1 detail thumbnail #3 ACK1 detail thumbnail #4

Highlights:

  • Universal caster kit for JBL products
  • Compatible with all SRX900 Series subwoofers
  • Black housing for discreet look
  • Black polyurethane wheel
  • Anti-rattle features for vibration-free operation

Included:

  • (4) Casters + Installation Hardware

Τεκμηρίωση
SRX915SF CVR | Cover for SRX915S
SRX915SF CVR Main photo
Μεγαλύτερες εικόνες
SRX915SF CVR detail thumbnail #1 SRX915SF CVR detail thumbnail #2 SRX915SF CVR detail thumbnail #3 SRX915SF CVR detail thumbnail #4

Highlights:

  • Heavy duty soft cover for SRX915S subwoofer
  • Handle cutouts for easy transportation
  • Includes folding feature for storage
  • Internally reinforced for grille protection

Included:

  • (1) Cover

Τεκμηρίωση

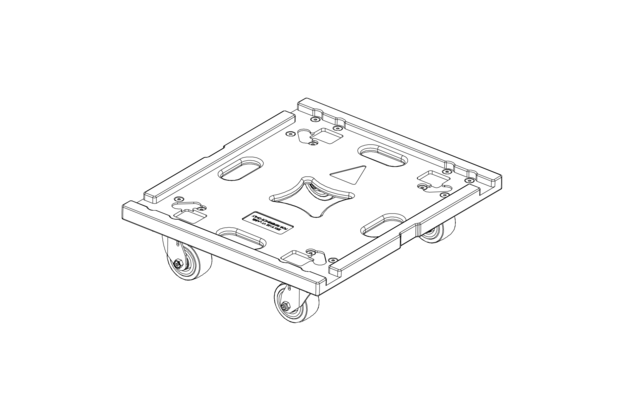

SRX915S VT | Vertical Transporter for SRX915S
SRX915S VT Main photo
Μεγαλύτερες εικόνες
SRX915S VT detail thumbnail #1 SRX915S VT detail thumbnail #2 SRX915S VT detail thumbnail #3 SRX915S VT detail thumbnail #4

Highlights:

  • Vertical transport cart for SRX915S
  • Support for up to three cabinets
  • Truck-friendly dimensions
  • Built-in stacking features for easy storage
  • Heavy duty casters
  • One black ratchet strap included

Included:

  • (1) SRX915S VT
  • (1) Black Ratchet Strap

Τεκμηρίωση

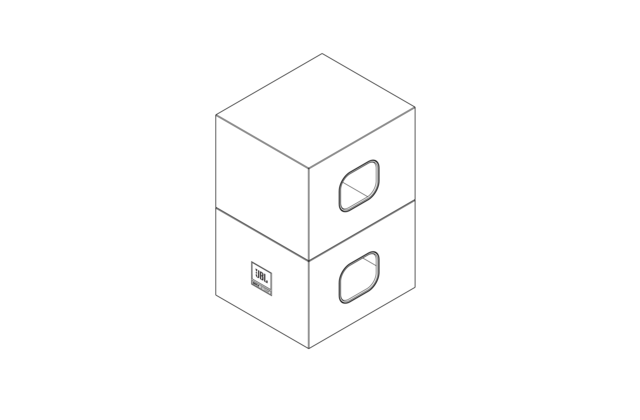

SRX915S VT CVR | Vertical Transporter Cover for SRX915S
SRX915S VT CVR Main photo
Μεγαλύτερες εικόνες
SRX915S VT CVR detail thumbnail #1 SRX915S VT CVR detail thumbnail #2 SRX915S VT CVR detail thumbnail #3 SRX915S VT CVR detail thumbnail #4

Highlights:

  • Heavy duty soft cover for SRX915S stacks
  • Covers two or three SRX915S enclosures
  • Includes amplifier flaps for testing purposes
  • Handle cutouts for easy transportation
  • Heavy duty industrial-grade zippers
  • Foldable design for storage

Included:

  • (1) Cover

Τεκμηρίωση
SRX900 RC1 | Rain Cover, compatible with all SRX900 models
SRX900 RC1 Main photo
Μεγαλύτερες εικόνες
SRX900 RC1 detail thumbnail #1 SRX900 RC1 detail thumbnail #2 SRX900 RC1 detail thumbnail #3 SRX900 RC1 detail thumbnail #4

Highlights:

  • Universal rain cover for SRX900 products
  • Flexible material for conforming to cables
  • Covers LCD, audio, and data connections
  • Unfolds for easy cable and LCD access
  • Designed to remain attached

Compatibility:

  • SRX906LA
  • SRX910LA
  • SRX915SF
  • SRX918SF
  • SRX918S
  • SRX928S

Included:

  • (1) Rain Cover
  • (5) T15 M3.5 Screws

Τεκμηρίωση
