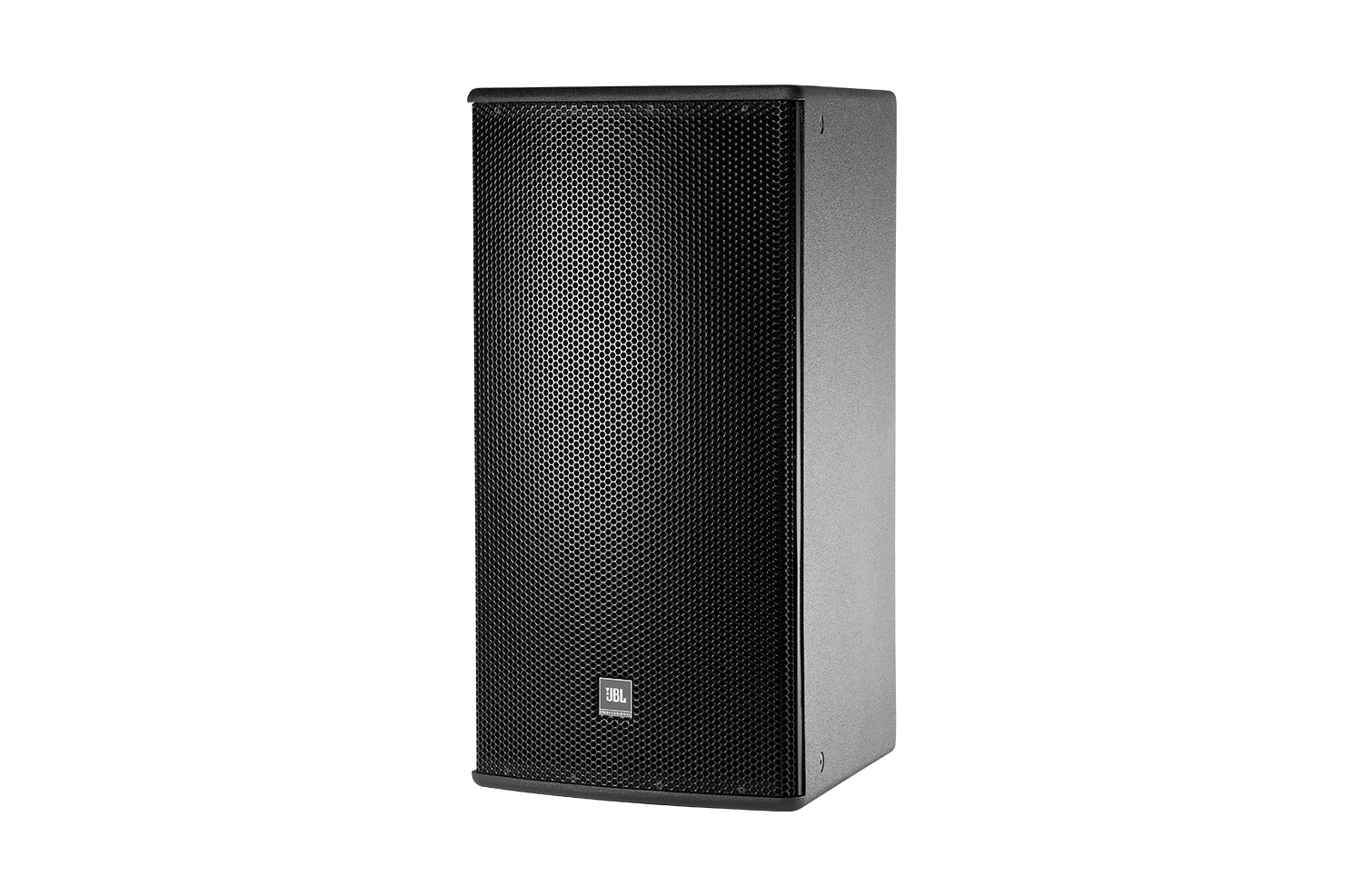

AM7215/95

Ηχείο 2-Όδων 15 ιντσών με Κόρνα 90° x 50°

AM7215/95
Μεγαλύτερες εικόνες

Ηχείο 2 Δρόμων 15 Ιντσών Υψηλής Ισχύος με Περιστρεφόμενο Κόρνο 90° x 50°

Τα ηχεία AM7215 είναι συστήματα ηχείων υψηλής ισχύος, ελαφριά, 2 δρόμων, πλήρους εύρους που αποτελούνται από τον JBL Differential Drive δευτερεύοντα πηνίο φωνής διπλής αραιότητας και διπλό μαγνητικό κενό οδηγό χαμηλής συχνότητας 2265H 380 χιλιοστών (15 ιντσών) και οδηγό συμπίεσης υψηλής συχνότητας 2432H με έξοδο 38 χιλιοστών (1,5 ιντσών) και πηνίο φωνής 75 χιλιοστών (3 ιντσών). Ο οδηγός κυμάτων Progressive Transition μεγάλης μορφής παρέχει εξαιρετική κάλυψη. Ο οδηγός κυμάτων είναι περιστρεφόμενος, επomένως το σύστημα ηχείου μπορεί να χρησιμοποιηθεί είτε σε κάθετο είτε σε οριζόντιο προσανατολισμό. Τα παθητικά δίκτυα υψηλής κλίσης ελαχιστοποιούν την επικάλυψη ζώνης. Η καλά ελεγχόμενη απόκριση εκτός άξονα βελτιώνει τη δυνατότητα δημιουργίας συστοιχίας.



Χαρακτηριστικά

  • Κάλυψη 90° x 50°
  • 2265H Differential Drive® Low-Frequency Driver
  • 2432H High-Frequency Compression Driver
  • Μεγάλος κυματοδηγός PT™ Progressive Transition για εξαιρετικό έλεγχο διαγράμματος και χαμηλή παραμόρφωση
  • Περιστρεφόμενος κυματοδηγός για κατακόρυφο ή οριζόντιο προσανατολισμό
  • Bi-Amp/Passive Switchable
  • Διαθέσιμη σε Black, White και WRC/WRX φινιρίσματα

Εφαρμογές

  • Παραστατικές Τέχνες
  • Θεατρικός Ήχος
  • Αίθουσες
  • Χώροι Λατρείας
  • Live Clubs
  • Dance Clubs
  • Αθλητικές Εγκαταστάσεις
  • Χώροι Θεματικής Ψυχαγωγίας


Για να βελτιώσουμε την αξιοπιστία σε καιρικές συνθήκες και να μειώσουμε τη διείσδυση νερού, οι διαστάσεις του ντουλαπιού των μοντέλων WRC & WRX μπορεί να διαφέρουν από τις διαστάσεις του τυπικού μοντέλου. Επικοινωνήστε με το CustomAudio@harman.com για σχέδια και/ή πληροφορίες διαστάσεων των μοντέλων WRC & WRX.)

Λήψεις

Specifications
  Μέγεθος Ανέβηκε
file type icon AM7215/95 Spec Sheet
ενημέρωση: Οκτ 2020
500 KB Οκτ 2020
Manuals
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon AE Series Array Guide
en ενημέρωση: Ιουλ 2024
  en  1 MB Ιουλ 2024
file type icon AE Series U-Bracket Handbook
en ενημέρωση: Ιουλ 2024
  en  600 KB Ιουλ 2024
file type icon Weather Resistant Configurations
en έκδοση A, ενημέρωση: Μαϊ 2023
en  90 KB Μαϊ 2023
file type icon AE/PD Connector Pinout Guide
ενημέρωση: Οκτ 2019
    8 KB Οκτ 2019
file type icon Painting AE Loudspeaker Cabinets
en ενημέρωση: Μαρ 2025
  en  100 KB Μαρ 2025
Brochures
  Γλώσσα Μέγεθος Ανέβηκε
file type icon AE Series Brochure
ενημέρωση: Οκτ 2020
  4 MB Οκτ 2020
file type icon AM Brochure
ενημέρωση: Οκτ 2020
  2 MB Οκτ 2020
file type icon Loudspeakers for Sports Facilities
en ενημέρωση: Ιουλ 2024
en  6 MB Ιουλ 2024
CAD Drawings
  Έκδοση Μέγεθος Ανέβηκε
file type icon AE Series - Customer Drawings
έκδοση 2.0, ενημέρωση: Μαϊ 2024
2.0  3 MB Μαϊ 2024
file type icon AE Series - WR Models Customer Drawings
έκδοση 3.0, ενημέρωση: Απρ 2026
3.0  4 MB Απρ 2026
file type icon AE Series - Revit/BIM Files
έκδοση 11.0, ενημέρωση: Ιουλ 2024
11.0  700 KB Ιουλ 2024
Compliances
  Μέγεθος Ανέβηκε
file type icon AE Series - AM7000 Declaration of Conformity
ενημέρωση: Οκτ 2020
100 KB Οκτ 2020
Simulation Data
  Έκδοση Μέγεθος Ανέβηκε
file type icon Ease SPK/DLL Files - Full JBL Pro Line
ενημέρωση: Μαϊ 2024
  20 MB Μαϊ 2024
file type icon JBL Pro ALL CLF Files
έκδοση 12-10-21, ενημέρωση: Μαϊ 2023
12-10-21  20 MB Μαϊ 2023
Preset Libraries
  Μέγεθος Ανέβηκε
file type icon AE Series DCi Series Preset Library
ενημέρωση: Μαϊ 2024
500 KB Μαϊ 2024

Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.

Ανταλλακτικά και σέρβις

Προδιαγραφές

Frequency Range (-10dB) 34 Hz - 20 kHz
Frequency Response (±3 dB) 40 Hz - 20 kHz
Coverage /64: 60° x 40°/66: 60° x 60° /95: 90° x 50° /26: 120° x 60°
LF Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
HF Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
System Type 15" Two - Way, High Power, Full - Range
Dimensions (H x W x D) 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
Net Weight (each) 27.2 kg (60 lb)
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.8 kHz
Transducer Power Rating (AES) LF: 1000 W (4000 W peak), 2 hr750 W (3000 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs
System Power Rating Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (1m) Bi-amp mode:LF: 128 dB-SPL cont avg (134 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:124 dB-SPL cont avg (130 dB peak)
System Sensitivity (1w @ 1m) Passive mode: 96 dB SPL
Nominal Impedance 8 ohms
System Power Rating Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated)
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Environmental Mil-Std 810; IP-x3 per IEC529.
