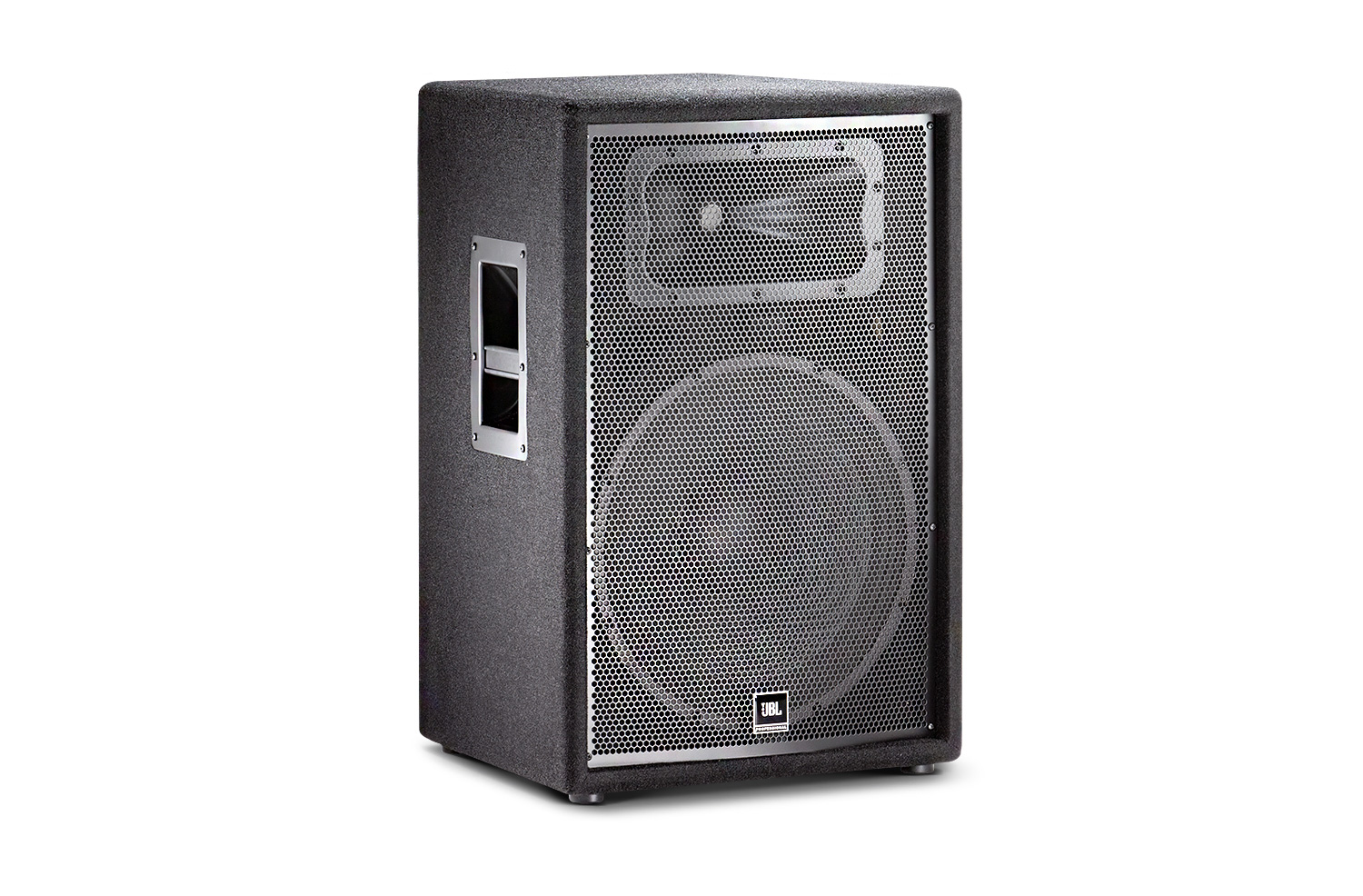

Two-Way Sound Reinforcement Loudspeaker System
This trapezoidal, 15" speaker system is at home in live sound, dance music and speech reinforcement.
Hình ảnh lớn hơn
Tính năng
- JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- JBL 2414H-C 25 mm (1 in ) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
- Non-resonant, all-steel handles are used.
- Attractive 18-gauge perforated, steel grille protects components from damage.
- Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.
Tải xuống
Specifications
| Kích thước | |
|
|
1 MB |
Brochures
| Kích thước | |
|
|
3 MB |
|
|
8 MB |
phiên bản B,
cập nhật: Thg 8 2025
Compliances
| Kích thước | |
|
|
100 KB |
Images
| Kích thước | |
|
|
400 KB |
|
|
300 KB |
Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.
Phụ tùng & Dịch vụ
Thông số kỹ thuật
| Power Rating | 250 W / 1000W |
| Frequency Range (-10dB) | 41 Hz - 18 kHz |
| Frequency Response (±3 dB) | 59 Hz - 13 kHz |
| Sensitivity (@1m) | 99 dB SPL (1w/1m) |
| Nominal Impedance | 8 ohms |
| Recommended Amplifier Power | 250 W to 500 W into 8 ohms |
| Maximum SPL (1m) | 129 dB |
| Nominal Dispersion | 90º x 50º |
| Crossover Frequency | 2.2 kHz |
| Dimensions (H x W x D) | 699 mm x 460 mm x 432 mm (27.5 in x 18.1 in x 17 in) |
| Weight | 27.4 kg (60.5 lb) |
| HF Driver | JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide |
| LF Driver | JBL M115-8A |

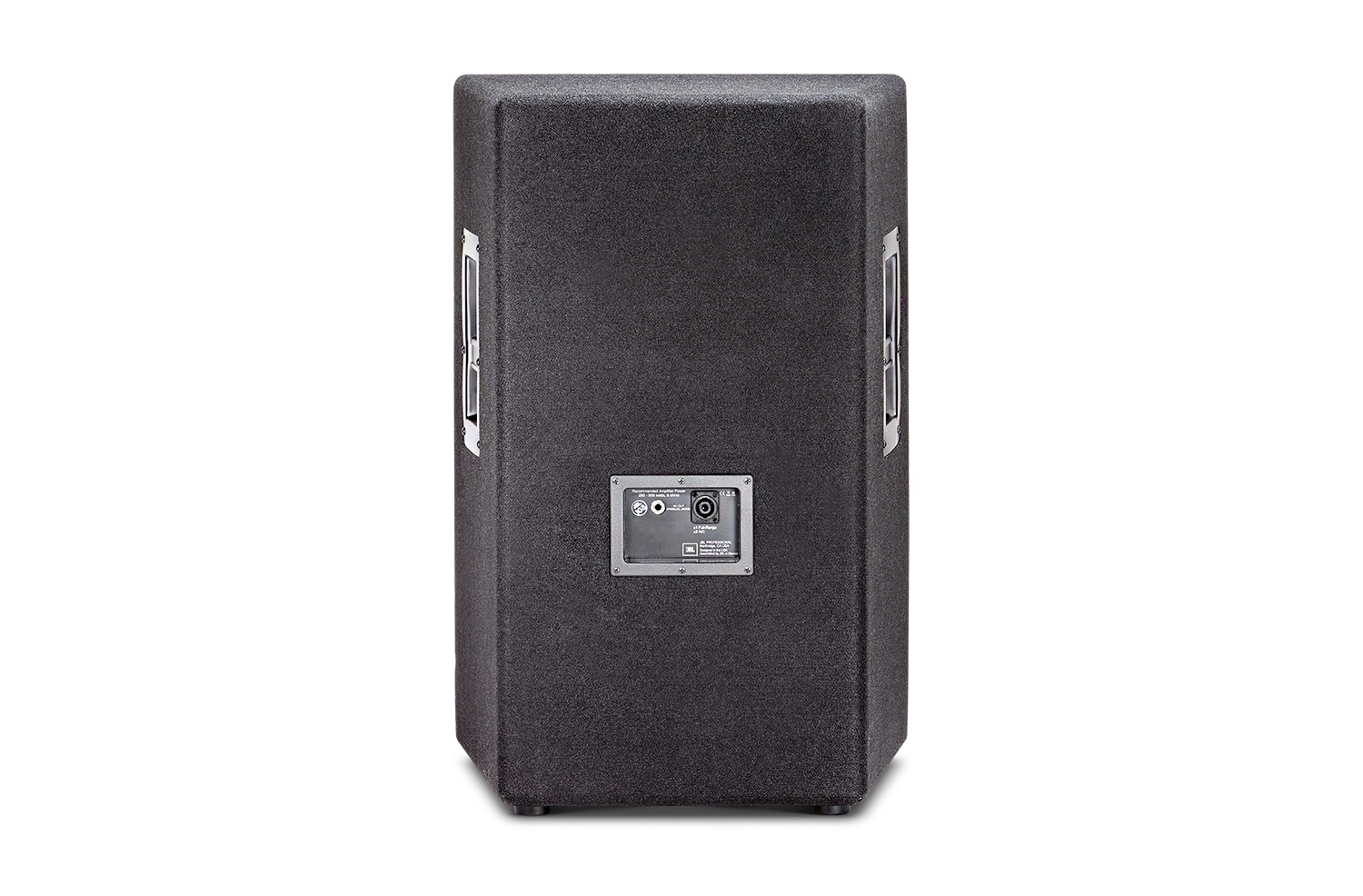

| Inputs | Neutrik® Speakon® NL-4 (x1); .25in TS phone jack (x1); parallel |
| Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
Phụ kiện
JRX215-CVR-CX | Convertible Cover for JRX215
Hình ảnh lớn hơn
Convertible Cover for JRX215. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.
JBLPOLE-GA | JBL Gas Assist Speaker Pole
Hình ảnh lớn hơn
Cột loa hỗ trợ khí với đầu dưới có ren M20, cột 38mm & bộ chuyển đổi 35mm. JBLPOLE-GA là giá đỡ loa dễ sử dụng nhất nhờ vào cơ chế giảm xóc khí nén bên trong có thể nâng loa cho bạn. Cơ chế giảm xóc bên trong của giá đỡ dễ dàng nâng các loa nặng từ 35 lbs trở xuống mà không cần gì từ người dùng.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Tài liệu
-
JBL pole Gas Assist
[40 KB]
-
JBL pole Gas Assist detail
[70 KB]
-
JBLPOLE-GA Data Sheet
[300 KB]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
Hình ảnh lớn hơn
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Tài liệu
-
JBLTRIPOD-MA Data Sheet
[200 KB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
Hình ảnh lớn hơn
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Tài liệu
-
JBLPOLE-MA Data Sheet
[300 KB]
-
JBL pole Manual Adjust
[40 KB]
-
JBL pole Manual Adjust Detail
[90 KB]
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
Hình ảnh lớn hơn
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Tài liệu
-
JBLTRIPOD-GA Data Sheet
[200 KB]
-
JBL Tripod Gas Assist Closed
[40 KB]
-
JBL Tripod Gas Assist Closed Extended
[30 KB]
-
JBL Tripod Gas Assist Open
[40 KB]
-
JBL Tripod Manual Adjust Open
[40 KB]
