JBL Professional SRX812P

صور أكبر

12-inch 2-Way Multipurpose Powered Speaker

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 12" two-way, SRX812P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.

الميزات

Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
JBL Premium Transducers
Drivecore Amplification By Crown
Full User Configurable DSP
Network Control
JBL Engineered Application Presets
LCD Screen and Glow in the Dark Ink on Back Panel
M10 Suspension Points
Standard 35mm Pole Cup
Feet for Monitor Angle

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

Live performance systems.
Mobile and fixed DJ systems.
Sound system rental and tour.
Permanent installations.

مزيد من التفاصيل

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

التنزيلات

Data Sheets

	الحجم	تاريخ التحميل
SRX812P Data Sheet تم التحديث: أبريل 2019	1.88 MB	أبريل 2019

Specifications

	الحجم	تاريخ التحميل
SRX812P Spec Sheet تم التحديث: ديسمبر 2019	746 KB	ديسمبر 2019

Manuals

	الحجم	تاريخ التحميل
SRX Connect Delay HelpGuide تم التحديث: أكتوبر 2020	188 KB	أكتوبر 2020
SRX Connect EQ HelpGuide تم التحديث: أكتوبر 2020	373 KB	أكتوبر 2020
SRX Connect Limiter HelpGuide تم التحديث: أكتوبر 2020	263 KB	أكتوبر 2020
SRX Connect NormalView HelpGuide تم التحديث: أكتوبر 2020	427 KB	أكتوبر 2020
SRX Connect Presets HelpGuide تم التحديث: أكتوبر 2020	286 KB	أكتوبر 2020
SRX Connect Error Reporting HelpGuide تم التحديث: أكتوبر 2020	261 KB	أكتوبر 2020

Brochures

	الإصدار	اللغة	الحجم	تاريخ التحميل
JBL 2025 PPA Brochure الإصدار B, تم التحديث: أغسطس 2025	B		8.45 MB	أغسطس 2025

Compliances

	الحجم	تاريخ التحميل
SRX800 Series Declaration of Conformity تم التحديث: أكتوبر 2020	154 KB	أكتوبر 2020

Software

	الحجم	تاريخ التحميل
Software Support تم التحديث: أبريل 2019	114 KB	أبريل 2019
SRX Connect تاريخ الإصدار: أغسطس 2023		أغسطس 2023
HiQnet Audio Architect تاريخ الإصدار: نوفمبر 2020		نوفمبر 2020
SRX Connect تاريخ الإصدار: أغسطس 2023		أغسطس 2023

User Guides

	الحجم	تاريخ التحميل
SRX 812P/815P/835P QuickStart Guide تم التحديث: نوفمبر 2020	1.75 MB	نوفمبر 2020
SRX800 User Guide تم التحديث: أبريل 2019	7.41 MB	أبريل 2019

Images

	الحجم	تاريخ التحميل

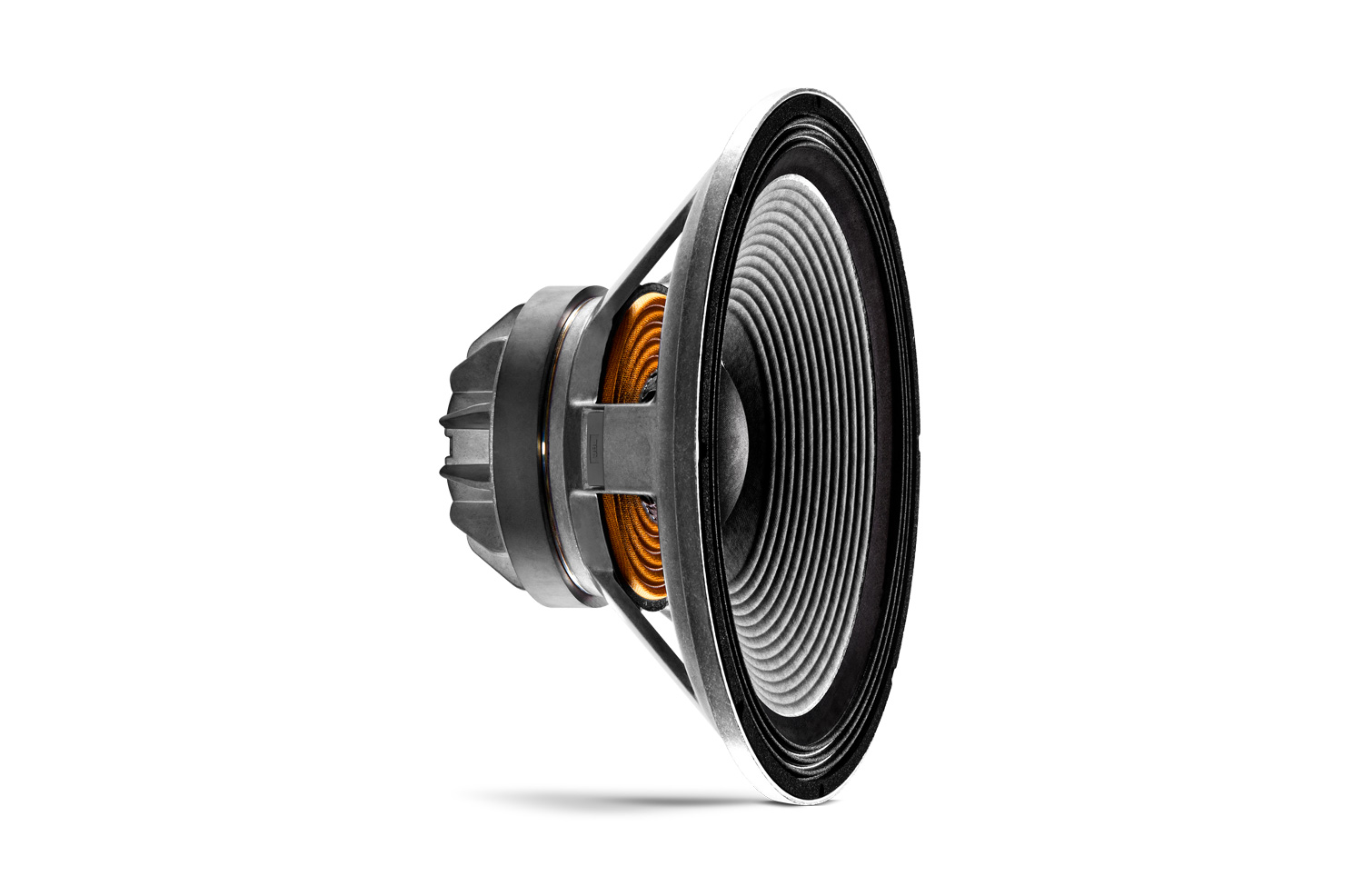

SRX800 Driver تم التحديث: أبريل 2019	158 KB	أبريل 2019

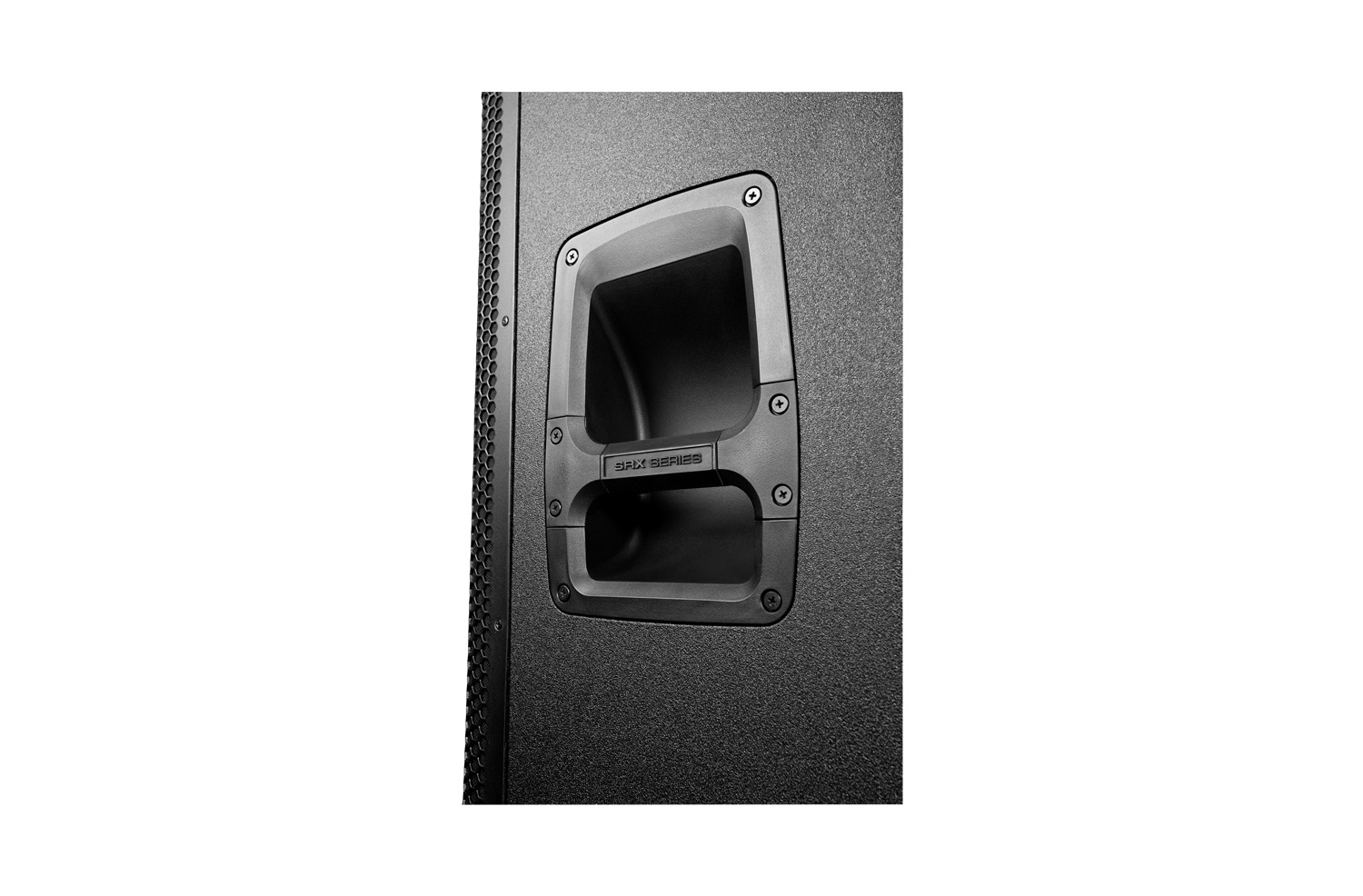

SRX800 Handle تم التحديث: أبريل 2019	208 KB	أبريل 2019

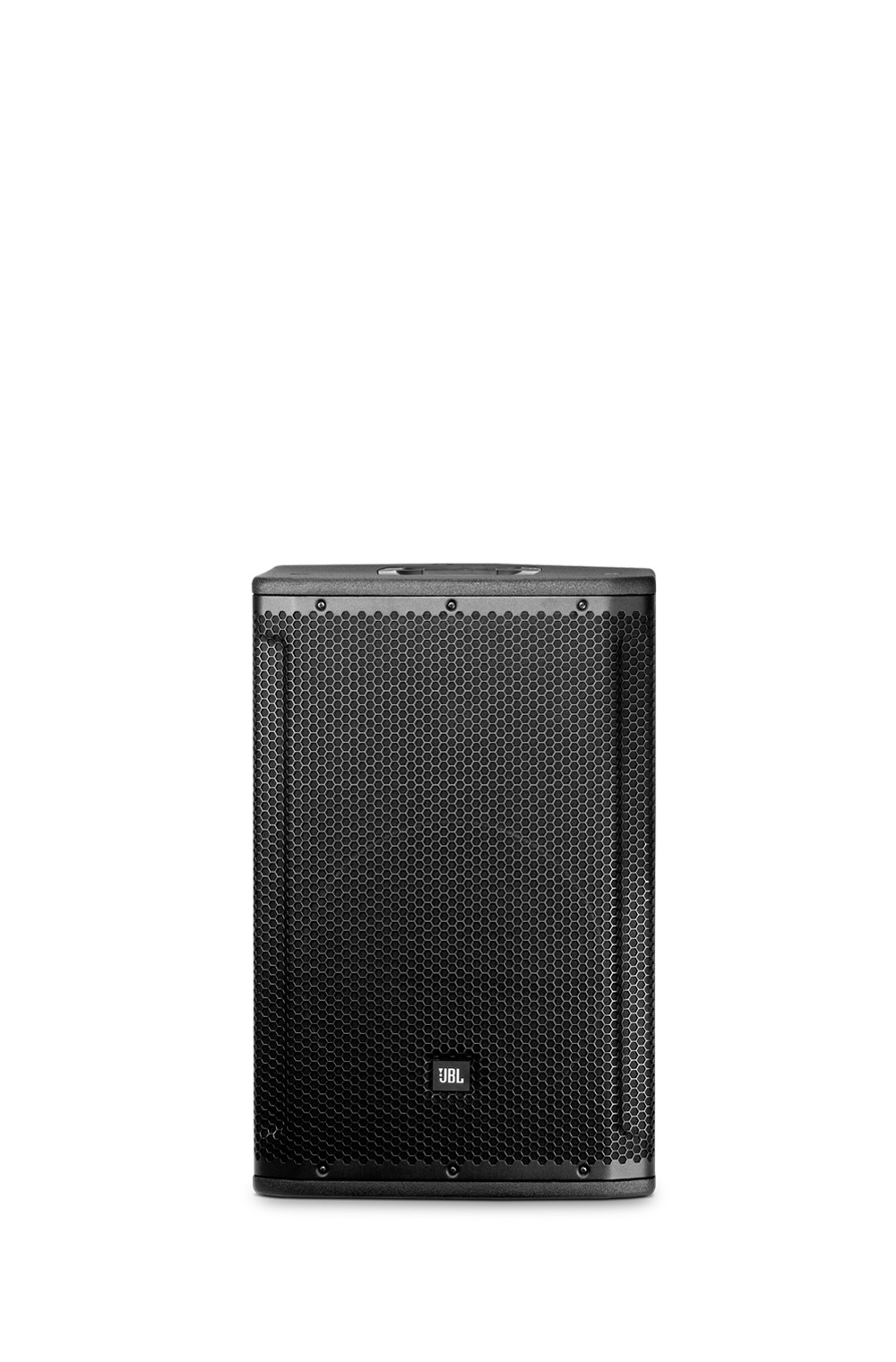

SRX812P Front تم التحديث: أبريل 2019	211 KB	أبريل 2019

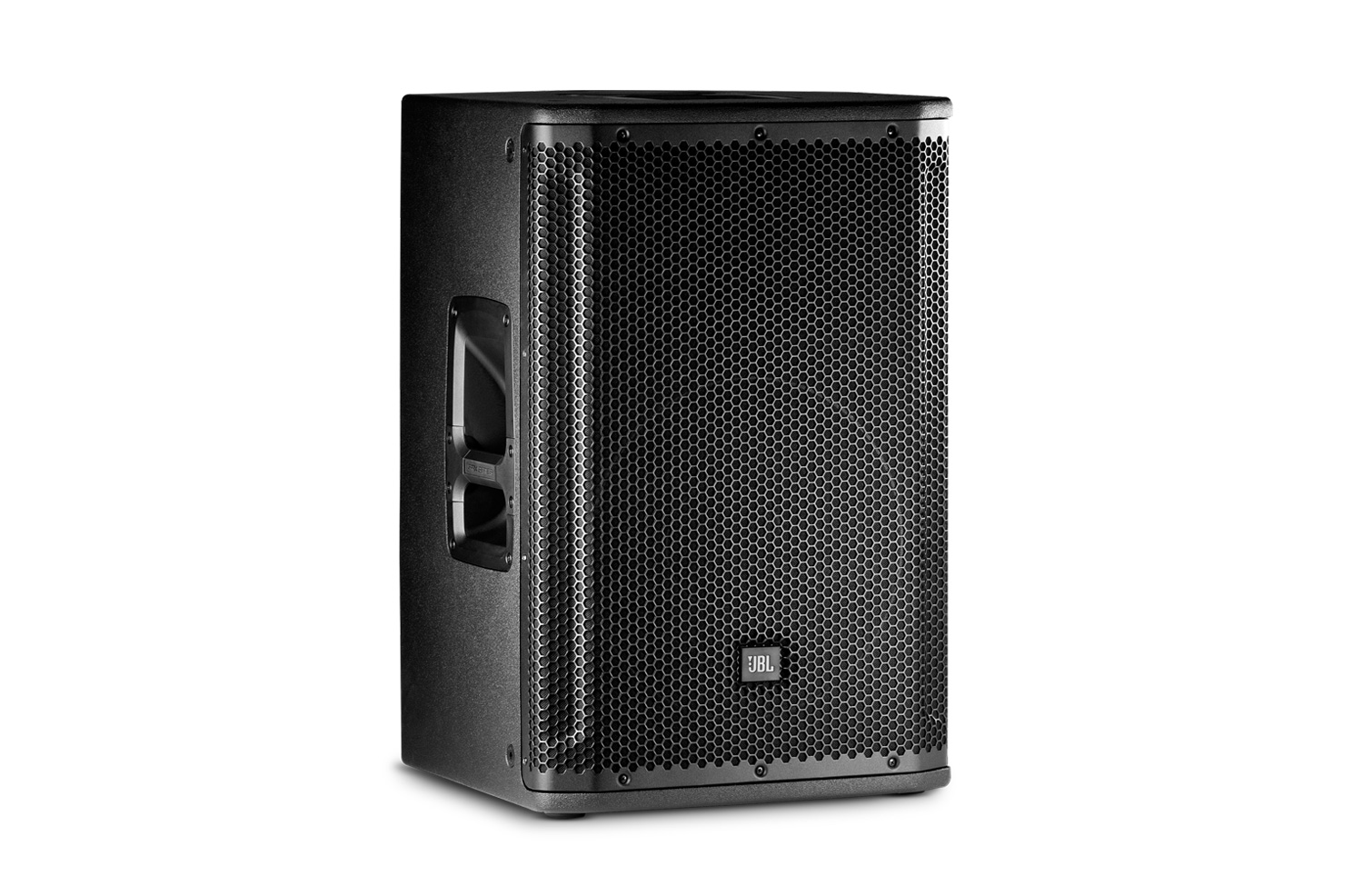

SRX812P Angle تم التحديث: أبريل 2019	291 KB	أبريل 2019

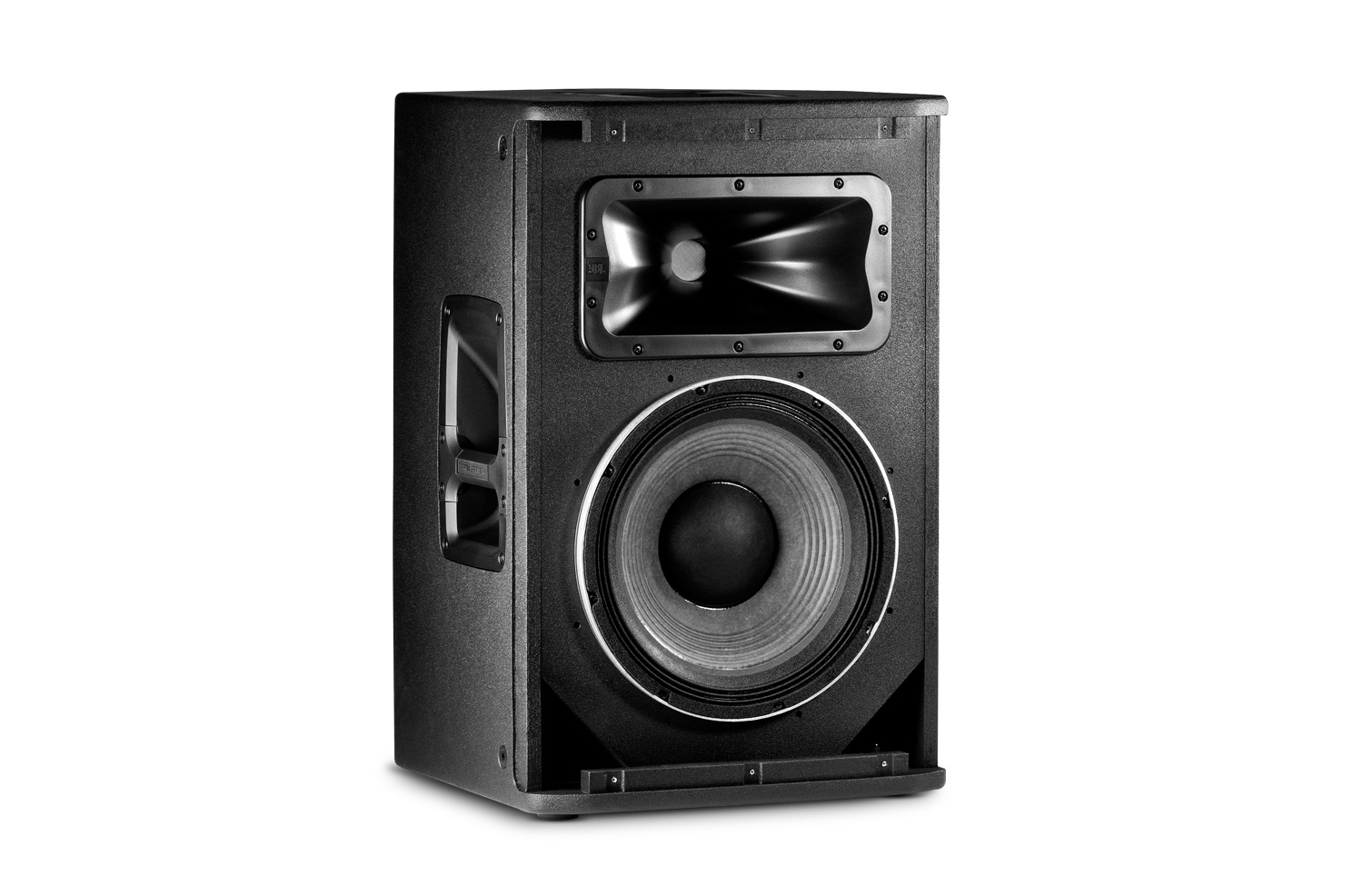

SRX812P Angle No-Grill تم التحديث: أبريل 2019	218 KB	أبريل 2019

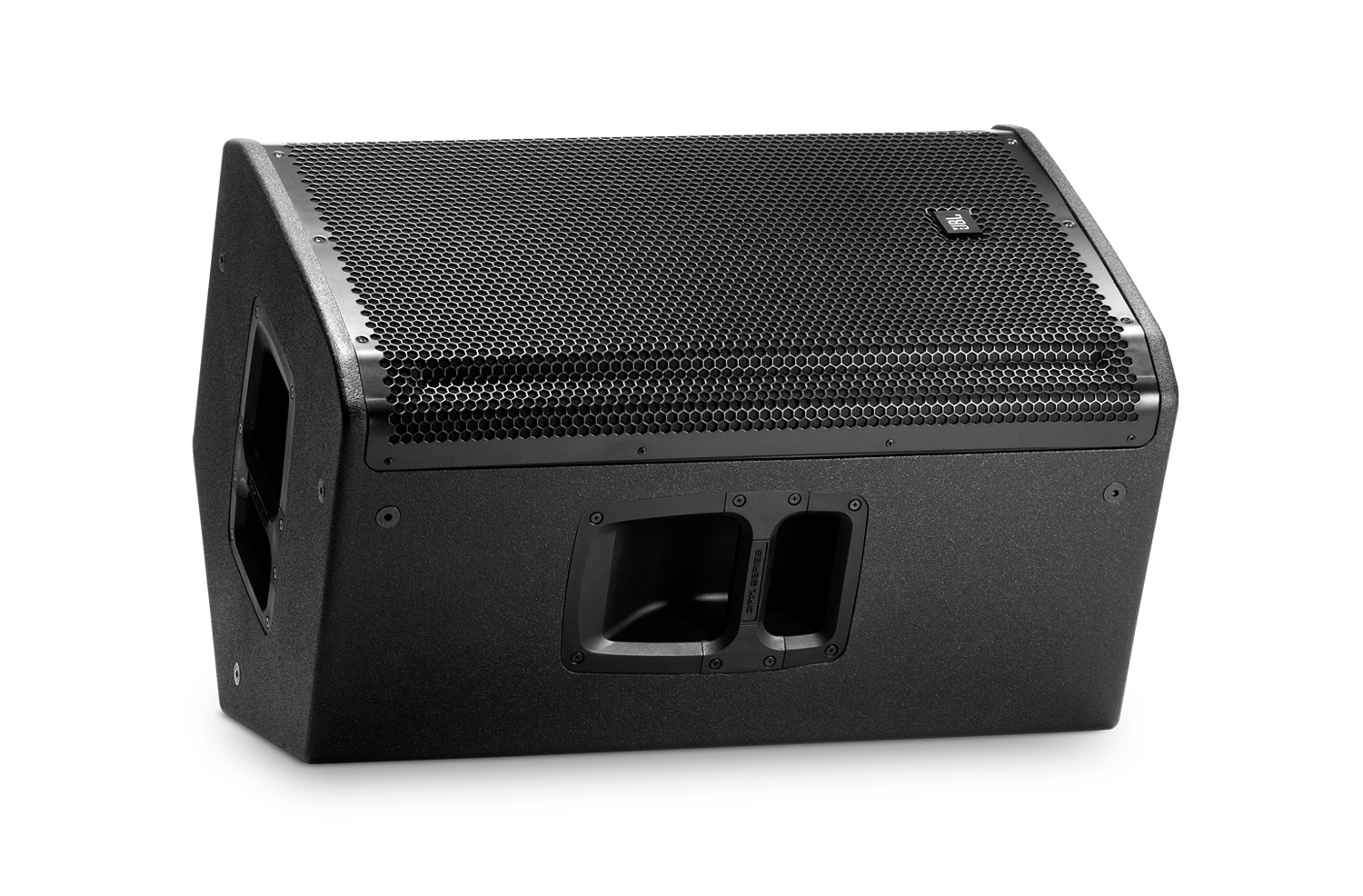

SRX812P Monitor تم التحديث: أبريل 2019	345 KB	أبريل 2019

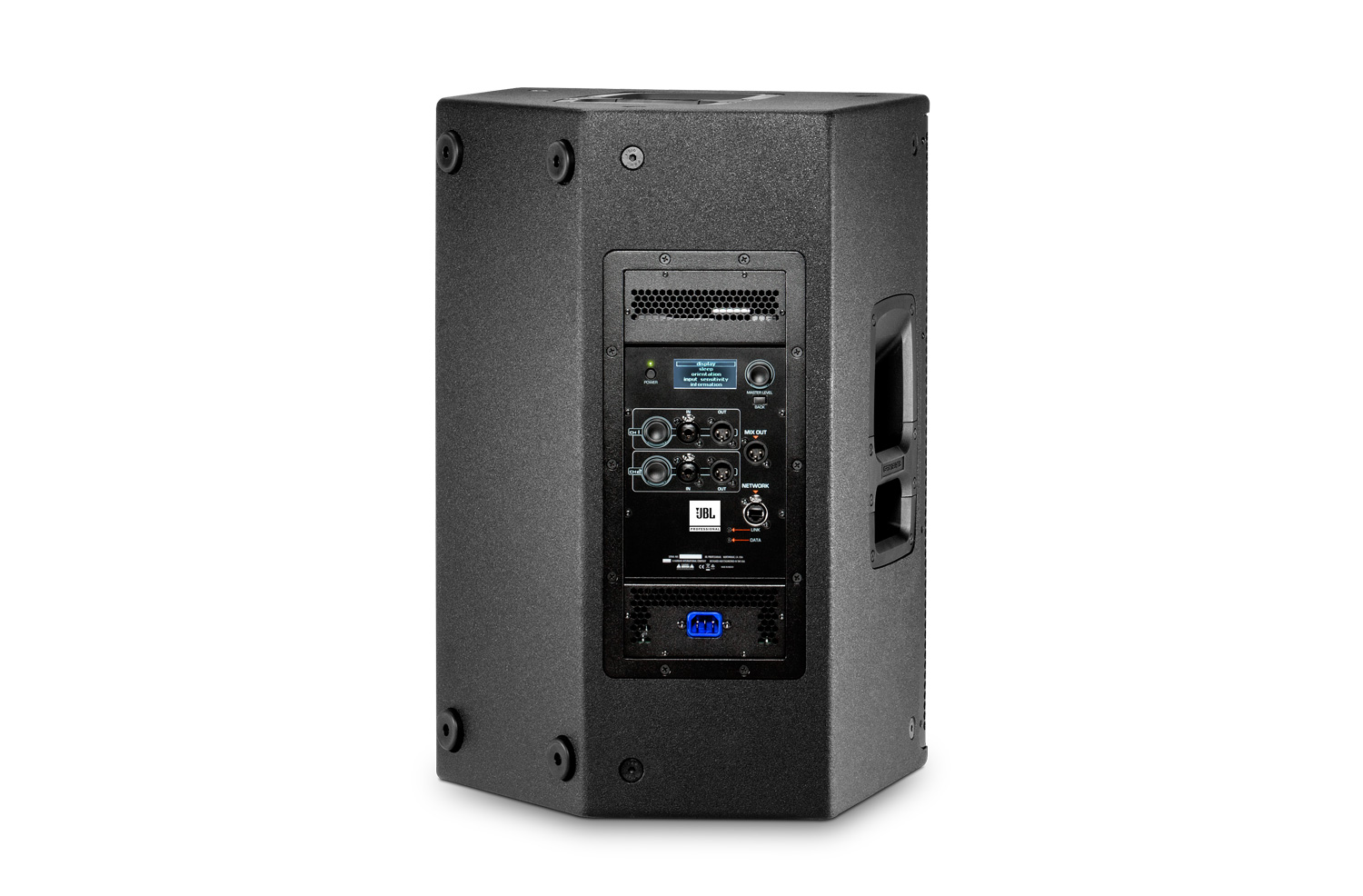

SRX812P Back تم التحديث: أبريل 2019	228 KB	أبريل 2019

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

System Type	Self powered 12”, two-way, bass-reflex
Maximum SPL (1m)	136 dB
Frequency Range (-10dB)	40 Hz - 21 kHz
Frequency Response (±3 dB)	48 Hz - 20 kHz
Coverage Pattern	90° x 50°
Amplifier Design	Class D
Power Rating	2000 W Peak
Dimensions (H x W x D)	429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
Net Weight (each)	26.4 kg (58 lb)
EQ	20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs	Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs	2 x XLR
Enclosure	18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Nominal Impedance	NA - amplification is integrated
LF Driver	1 x 2272F, Differential Drive®, 12" diameter
HF Driver	1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting	Dual 36 mm pole socket, 12 x M10 suspension points

الملحقات

SRX812P-CVR-DLX | Deluxe padded cover for SRX812P

صور أكبر

Deluxe padded cover for SRX812P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
