GSF6

Coax 6.5" Full-Range Landscape Loudspeaker

صور أكبر

Coaxial 6.5" Full-Range Landscape Loudspeaker

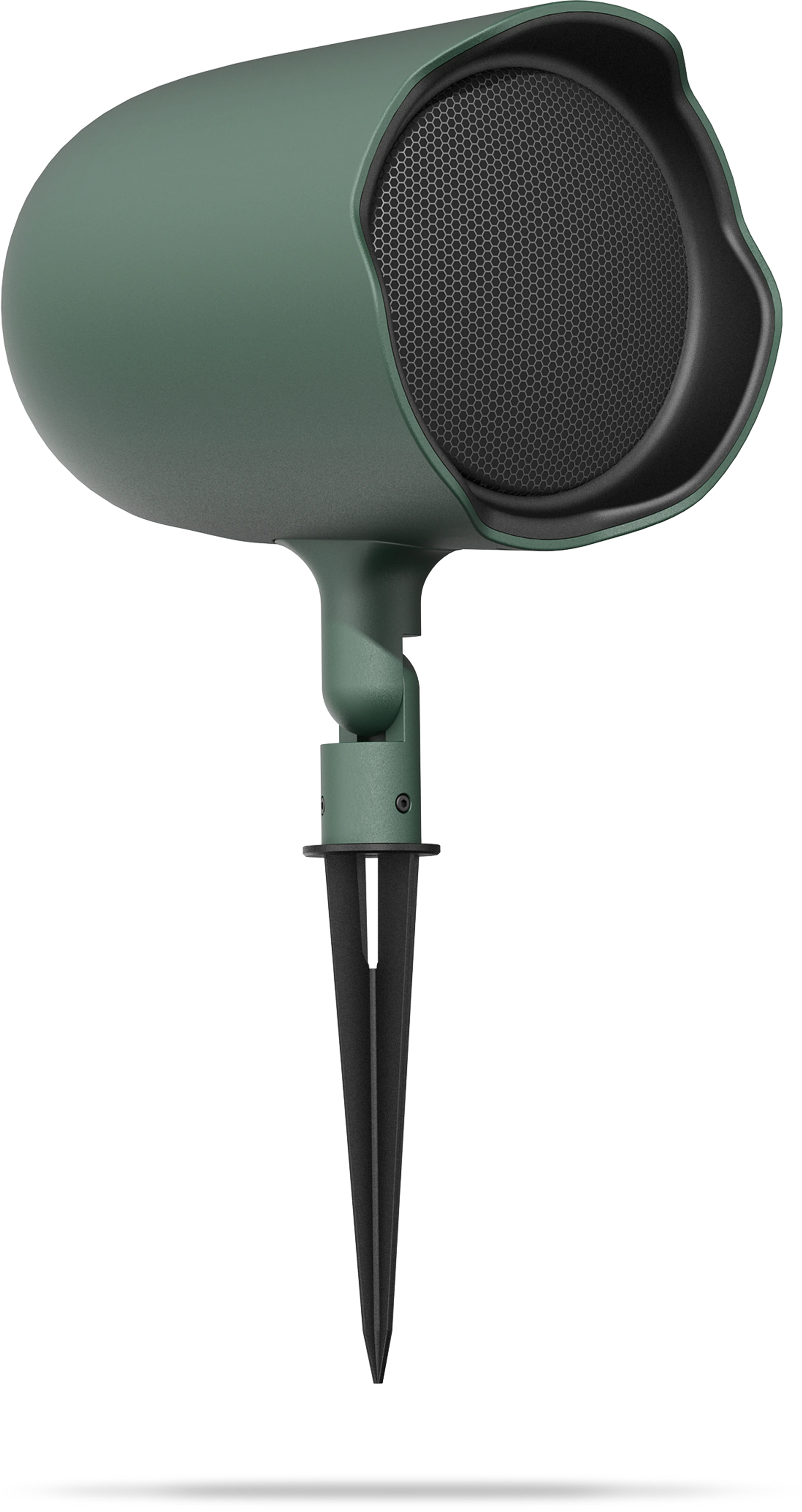

The mid-size, weather-resistant JBL GSF6 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 6.5-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 30-watt multi-tap transformer for use on 70V/100V distributed systems and is switchable for 8-ohm direct operation.

Versatile mounting options include a ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces (both are included). A low-profile, unobtrusive speaker, the GSF6 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

The elegant, discreet GSF6—winner of international design awards for industrial design excellence—is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.

الميزات

  • المحولات الصوتية: وحدة جهير (ووفر) بقطر 165 مم (6.5 بوصة) بمخروط من البولي بروبيلين وملف صوتي بقطر 25 مم (1 بوصة) على قالب ملف صوتي من الألومنيوم؛ وحدة ترددات عالية (تويتر) بقبة تيتانيوم بقطر 25 مم (1.0 بوصة) مع مجموعة مغناطيس نيوديميوم وقالب ملف صوتي من الكابتون
  • نطاق التردد: 65 Hz–20 kHz
  • تحمل القدرة (عند إعداد 8Ω): 50 W ضوضاء وردية متواصلة، 100 W برنامج متواصل
  • محول بقدرة 30 W متعدد المآخذ قابل للتبديل للتشغيل المباشر عند 8Ω أو للاستخدام في الأنظمة الموزعة بجهد 70 V/100 V
  • مصنف IP66 ضد تسرب الماء والغبار
  • فتحة تصريف سفلية توفر تصريف المياه من وحدات الصوت
  • يتكامل بشكل ممتاز مع مكبرات صوت الجهير الأرضية JBL GSB8 وGSB12 المخصصة للمساحات الخارجية
  • قابل للتوجيه عبر مفصل قابل للتعديل
  • يتضمن وتدًا أرضيًا وحاملًا على شكل حرف L للتركيب على الأسطح
  • يتضمن مُنتقي المآخذ الموجود في أسفل مكبر الصوت، بعيدًا عن تسرب الماء
  • متوفر بتشطيب أخضر داكن أو بيج فاتح

التنزيلات

Specifications
  الإصدار اللغة الحجم تاريخ التحميل
file type icon GSF6 Spec Sheet
en الإصدار C, تم التحديث: مارس 2025
en  792 KB مارس 2025
Brochures
  الإصدار اللغة الحجم تاريخ التحميل
file type icon Control Contractor Brochure (2024)
en الإصدار D, تم التحديث: فبراير 2024
en  14 MB فبراير 2024
CAD Drawings
  الإصدار الحجم تاريخ التحميل
file type icon GSF6 2D and 3D Drawings
الإصدار A, تم التحديث: يوليو 2023
3.4 MB يوليو 2023
BIM Objects
  الحجم تاريخ التحميل
file type icon GSF6 BIM Object
تم التحديث: أبريل 2024
أبريل 2024
Declaration of Conformity
  اللغة الحجم تاريخ التحميل
file type icon GSF Series Declaration of Conformity
en تم التحديث: يوليو 2023
en  124 KB يوليو 2023
Install Guides
  الحجم تاريخ التحميل
file type icon GSF6 - Install Guide
تم التحديث: يناير 2023
455 KB يناير 2023
Speaker Tunings
  الإصدار الحجم تاريخ التحميل
  95.3 KB أكتوبر 2025
file type icon Commercial, CBT, and AWC Tunings 220616
الإصدار A, تم التحديث: مايو 2023
557 KB مايو 2023
CLF Files
  الحجم تاريخ التحميل
file type icon GSF6 - CLF File
تم التحديث: مايو 2023
326 KB مايو 2023
EASE Files
  الإصدار الحجم تاريخ التحميل
file type icon GSF6 - EASE File
الإصدار B, تم التحديث: فبراير 2026
196 KB فبراير 2026

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

Frequency Range (-10dB) 65 Hz – 20 kHz
Frequency Response (+/-3 dB) 90 Hz - 18 kHz
Power Rating 100 W Continuous Program (2 hrs)
50 W (200 W Peak), Continuous Pink Noise (2 hrs)
30 W (120 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity 87 dB (ave. 300 kHz – 12 kHz)
Maximum SPL 110 dB peak (104 dB continuous, 2 hr) @ 1m
Coverage Pattern 70° conical
Nominal Impedance 8 Ω (at 8Ω tap)
Transformer Taps 70V: 30 W, 15 W, 7.5 W
100V: 30W, 15 W
Drivers
  • 165 mm (6.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on aluminum voice coil former
  • 25 mm (1.0 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former
Terminals Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
Enclosure Material Polycarbonate + ABS, UL94V-0 flammability rated
Color Pine Green RAL 6028, or Beige Grey RAL 7006
Dimensions

Cabinet 218 mm diameter x 293 mm deep (8.6 x 11.6 in).

Assembly height 444 mm (17.5 in) with L-bracket base (at 90°) and 544 (21.5 in) with ground stake base.

Net Weight 3.5 kg (7.7 lbs)
Included Accessories (1) Ground Stake Bracket; (1) L-Bracket
