JBL Professional GSF6

较大的图像

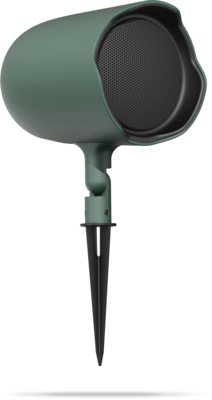

Ground-Stake Landscape Loudspeaker
The mid-size, weather-resistant JBL GSF6 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 6-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 30-watt multi-tap transformer for use on 70V/100V distributed systems and is switchable for 8-ohm direct operation.

Versatile mounting options include a ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces (both are included). A low-profile, unobtrusive speaker, the GSF6 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

The elegant, discreet GSF6—winner of international design awards for industrial design excellence—is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.

特点

Transducers: 165 mm (6.5”) woofer with polypropylene cone and 25 mm (1”) voice coil on aluminum voice coil former; 25 mm (1.0”) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former
Frequency range: 65 Hz–20 kHz
Power handling (at 8Ω setting): 50W continuous pink noise, 100W continuous program
Multi-tap 30W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
IP66 rated against water and dust ingress
Bottom drip hole provides drainage for drivers
Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
Aimable via adjustable hinge
Includes ground stake and L-bracket for surface mounting
Includes tap selector located on bottom of speaker, away from water incursion
Available in hunter green or tan finish

下载

	Version	Language	Size	Uploaded
Specifications
GSF6 Spec Sheet version B, updated: 7月 2023	B		537.4 KB	7月 2023
Brochures
Control Contractor Brochure (2023) version B, updated: 6月 2023	B		8.2 MB	6月 2023
CAD Drawings
GSF6 2D and 3D Drawings version A, updated: 7月 2023	A		3.4 MB	7月 2023
Install Guides
GSF6 - Install Guide updated: 1月 2023			454.6 KB	1月 2023
Speaker Tunings
CCE2 Series FIR Tunings for DCI Amps updated: 9月 2023			939.9 KB	9月 2023
Commercial, CBT, and AWC Tunings 220616 version A, updated: 5月 2023	A		557.0 KB	5月 2023
Instructions for Control Contractor Expansion FIR Tunings (DCI) updated: 9月 2023			984.3 KB	9月 2023
Declaration of Conformity
GSF Series Declaration of Conformity updated: 7月 2023			124.2 KB	7月 2023
CLF Files
GSF6 - CLF File updated: 5月 2023			326.2 KB	5月 2023
EASE Files
GSF6 - EASE File version A, updated: 9月 2023	A		90.1 KB	9月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB)	65 Hz – 20 kHz
频率响应(±3 dB)	90 Hz - 18 kHz
额定功率	100 W Continuous Program (2 hrs) 50 W (200 W Peak), Continuous Pink Noise (2 hrs) 30 W (120 W Peak), Continuous Pink Noise (100 hrs)
灵敏度	87 dB (ave. 300 kHz – 12 kHz)
Maximum SPL	110 dB peak (104 dB continuous, 2 hr) @ 1m
覆盖范围	70° conical
标称阻抗	8 Ω (at 8Ω tap)
变压器抽头	70V: 30 W, 15 W, 7.5 W 100V: 30W, 15 W
Drivers	165 mm (6.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on aluminum voice coil former 25 mm (1.0 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former
Terminals	Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
音箱材料	Polycarbonate + ABS, UL94V-0 flammability rated
颜色	Pine Green RAL 6028, or Beige Grey RAL 7006
尺寸	Cabinet 218 mm diameter x 293 mm deep (8.6 x 11.6 in). Assembly height 444 mm (17.5 in) with L-bracket base (at 90°) and 544 (21.5 in) with ground stake base.
净重量	3.5 kg (7.7 lbs)
随附配件	(1) Ground Stake Bracket; (1) L-Bracket
