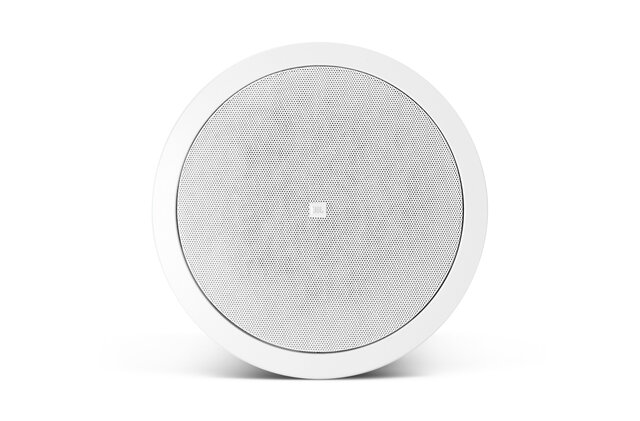

The Control 26CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system.
| الحجم | |
|
|
549 KB |
| الحجم | |
|
|
41.7 KB |
|
|
160 KB |
|
|
127 KB |
|
|
493 KB |
| الحجم | |
|
|
21 MB |
|
|
23 MB |
| الحجم | |
|
|
3.42 MB |
| الحجم | |
|
|
| الحجم | |
|
|
179 KB |
|
|
131 KB |
| الحجم | |
|
|
11.3 KB |
|
|
13.4 KB |
|
|
612 KB |
| الحجم | |
|
|
21 MB |
|
|
24 MB |
| الحجم | |
|
|
374 KB |
|
|
1.17 MB |
|
|
11.5 MB |
| الحجم | |
|
|
23.9 KB |
|
|
52.4 KB |
|
|
13.7 KB |
|
|
71.2 KB |
| الحجم | |
|
|
113 KB |
| الحجم | |
|
|
557 KB |
| الحجم | |
|
|
204 KB |
|
|
762 KB |
| الحجم | |
|
|
386 KB |
| الحجم | |
|
|
954 KB |
إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.
| Frequency Range | 75 Hz - 20 kHz |
| Power Rating | See transformer taps |
| Transformer Taps | 60W, 30W, 15W (& 7.5W @ 70V) |
| Coverage Angle | 110° conical |
| Directivity Index (DI) | 4.6 dB |
| Maximum SPL (1m) | 107 dB (top 70V/100V tap) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in) |
| Input Connectors | Removable 4-pin locking connector with screw-down terminals. |
| Dimensions (H x Dia) | 210 mm x 252 mm (8.3 in x 9.9 in) |
| Net Weight (each) | 4.2 kg (10 lbs) |
| Shipping Weight (pair) | 9.7 kg (21 lbs) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size | 220 mm (8.75 in) diameter (cardboard cutout template included) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
| Plenum Usage | Yes, backcan included |
MTC-48TRx12 هو قضيب تثبيت إكسسوار لتثبيت العديد من مكبرات الصوت السقفية من JBL في بلاط السقف 4 قدم × 4 قدم
(1200 × 1200 مم؛ 48 × 48 بوصة) في تطبيقات الأسقف المعلقة.
MTC-48TRx12 Spec Sheet (revB)
[77.2 KB]
