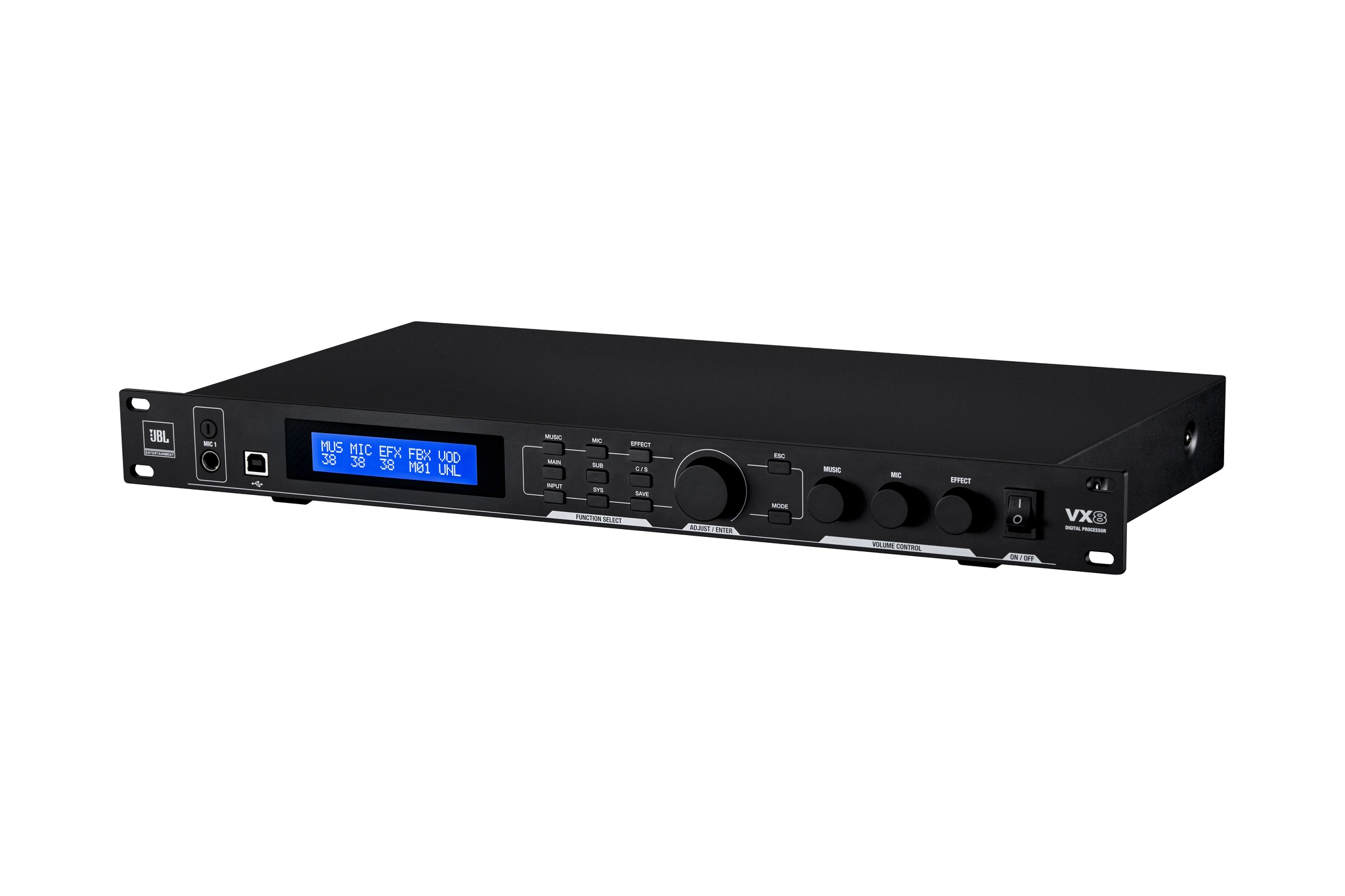

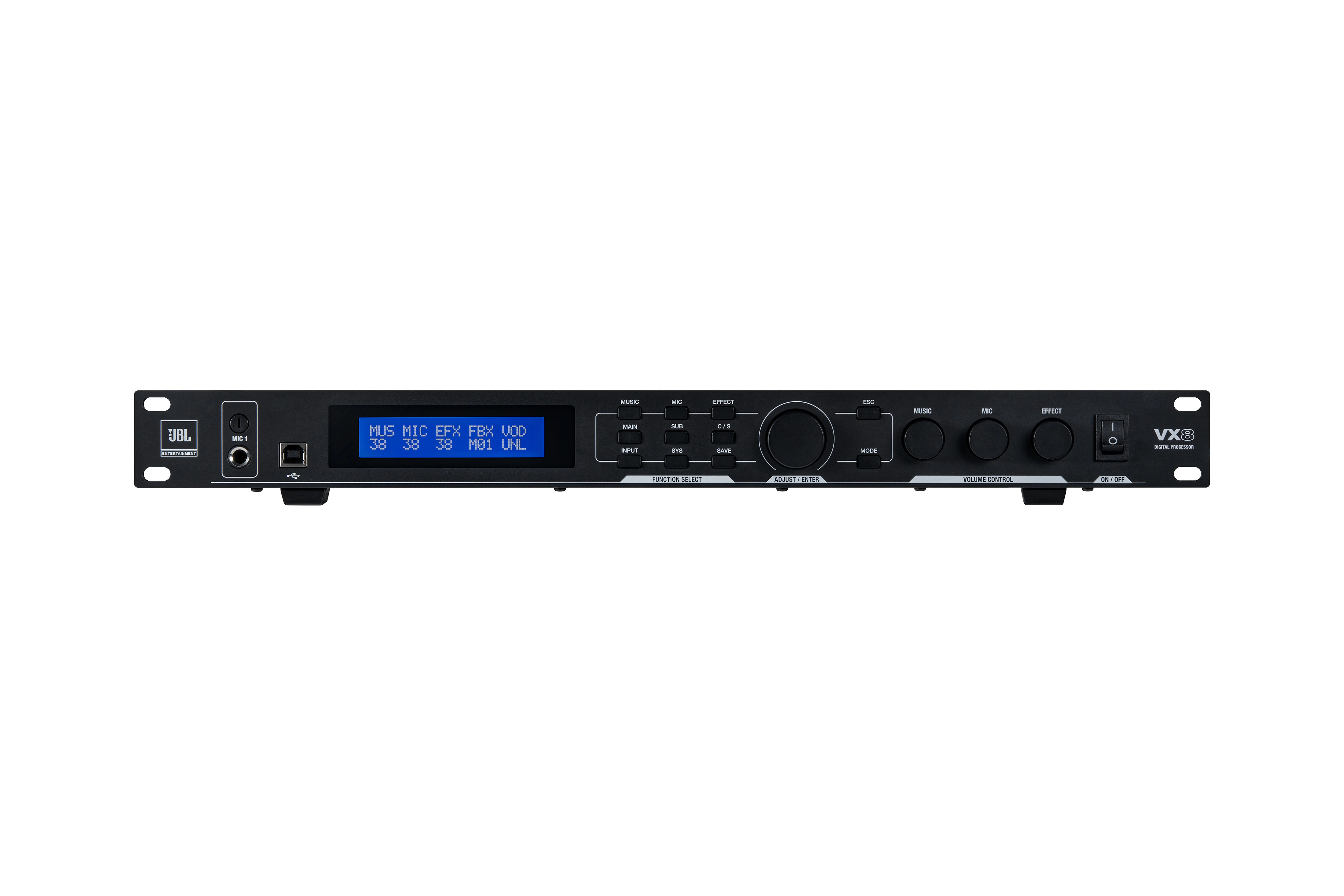

VX8 (Available in China and APAC Only)

Digital Processor

VX8 (Available in China and APAC Only)
较大的图像

VX8 is a powerful voice processor designed for the KTV market. VX8 not only provides multiple audio connection options, but also integrates JBL speaker and microphone factory presets. The processing power of VX8 provides the best KTV experience with years of experience from JBL Professional.

Bringing more than 10 years of KTV system and 75 years of speaker design, VX8 integrates all the system components of the JBL Professional total solution, including JBL KTV speakers, Crown amplifiers and JBL wireless microphones. VX8 provides 16 tuning presets dedicated for JBL Professional KTV speakers and JBL Professional microphones, 15-band parametric EQ for music input and 20-band parametric EQ for each of the four individual microphone inputs. Echo engine and reverberation effect are processed separately by independent DSP. RS232 is provided for central automation system and smart home.

JBL products have been the choices in professional production facilties, including recording studios, cinema, concert halls and stadium , theaters and television broadcast centers worldwide. JBL VX8 brings KTV experience to the professional level.

特点

High Performance
Highly integrated, redundant voice processing resources, from JBL acoustic technology, crystal sound, solid bass present, best value performance.

Reliability
Following the strictly controlled manufacturing standards to ensure high quality production.

Minimalist
Short learning curve for experienced KTV engineers and operators as the operation and user interface design is similar to the KTV industry.

Compatibility
Meeting the demands of all sizes of KTV facilities by providing various input and output formats.

下载

  Version Language Size Uploaded
Manuals
file type icon VX8 Manual (Chinese and English)
updated: 10月18日
    8.8 MB 10月18日
file type icon VX8-PC-GUI Manual
updated: 10月18日
    11.7 MB 10月18日
Software
platform icon VX8 Digital Signal Processor
version 1.1.0, updated: 10月18日
1.1.0     923.4 KB 10月18日
Spec Sheets
file type icon VX8 Spec Sheet
en updated: 10月18日
  en  2.4 MB 10月18日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

数字输入

接头

Optical / Co-axial
Formats S/PDIF (24-bit), EIAJ CP-340, IEC 958
System Delay 1.7 ms
模拟输入
Mic Input 4 x 1/4" TS
Music Input 2 x stereo pairs RCA
Mic Input Impedance 8 kΩ
Music Input Impedance 10 kΩ
最大输入电平 > 18 dBu

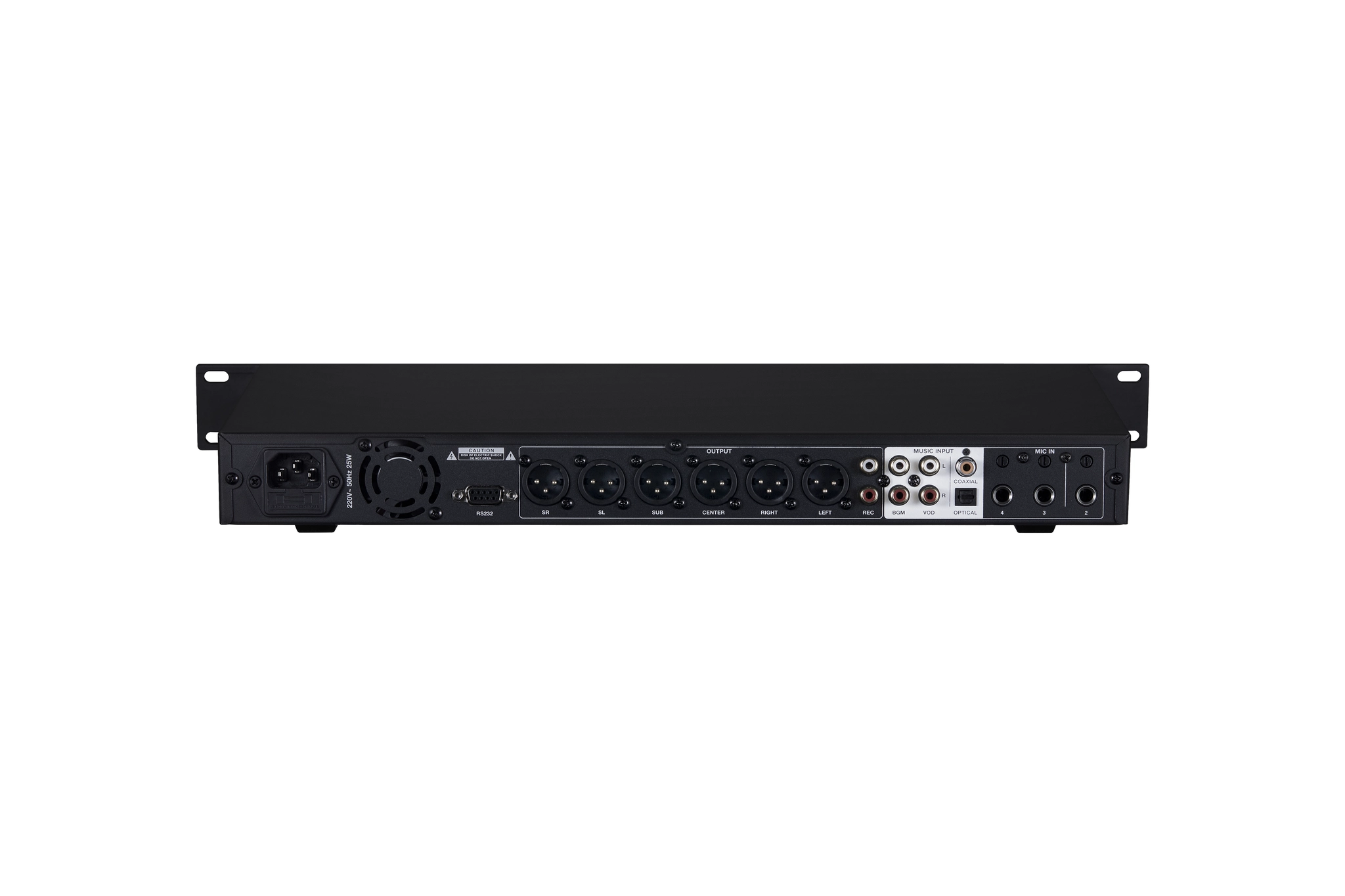

Analog Output
Output Connector 6 x XLR unbalanced
REC Connector 1 x stereo pairs RCA
阻抗 100 Ω
最大输出电平 > 18 dBu
THD + N ≤ 0.5% @ 20 Hz - 20 kHz
串音 ≤ -90 dB
S/N Ratio > 10 dB @ A-weighted
噪声层 < 10 uV @ A-weighted, gain to max
Environment
工作温度 0 °C to 45 °C
存储温度 -20 °C to 60 °C
湿度 Max 90% non-condensing
控制接口
USB USB 2.0 Type-B
RS-232 DB9
General

显示

Dot matrix LCD

尺寸

482 x 204 x 44 mm
净重量 3.6 Kg
Mains Voltage AC 220 V / 50 Hz

功耗

≤ 25 W
