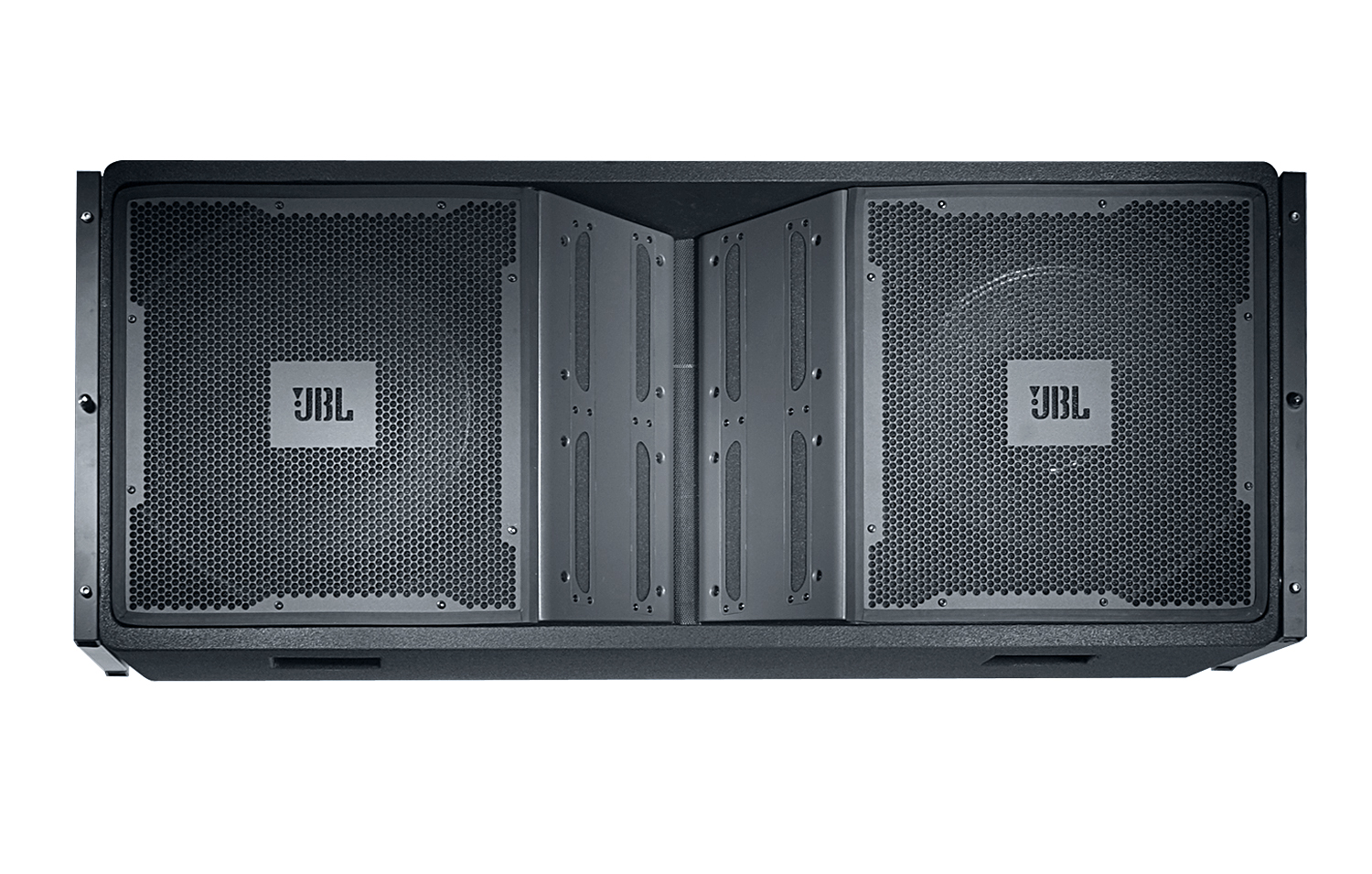

VT4889-1 (停产)

Fullsize 3-Way High Directivity Line Array Element, PlyMax® Enclosure

VT4889-1
较大的图像

Fullsize 3-Way High Directivity Line Array Element, PlyMax® Enclosure

The VT4889-1 is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types.



特点

  • PlyMax® enclosure
  • Advanced technology components: Dual voice coil, Differential Drive®, neodymium magnet, Direct Cooled™ cone transducers for low weight and high output.
  • Industry's smallest, lightest, most powerful 1.5 in exit, 3 in diaphragm high frequency compression driver.
  • HF Waveguide units couple to create precision vertical slot aperture.
  • Radiation Boundary Integrator® (R.B.I.): Patent-pending technology integrates output of individual
    bandpass elements.
  • Advanced construction techniques and hybrid materials provide exceptionally rigid, lightweight enclosure construction.
  • Rugged DuraFlex™ exterior finish; weatherized components.
  • Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.


下载

  Version Language Size Uploaded
Specifications
file type icon VT4889-1 Spec Sheet
updated: 10月 2020
    995.3 KB 10月 2020
Brochures
file type icon VerTec Line Brochure
updated: 10月 2020
    2.1 MB 10月 2020
CAD Drawings
file type icon VT4889-1 3D DXF
updated: 10月 2020
    1.1 MB 10月 2020
file type icon VT4889-1 2D DXF
updated: 10月 2020
    390.2 KB 10月 2020
file type icon VT4889-1 2D PDF
updated: 10月 2020
    88.9 KB 10月 2020
Compliances
file type icon VerTec Series Declaration of Conformity
updated: 10月 2019
    144.2 KB 10月 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: 8月 2023
1.3.1     18.0 MB 8月 2023
platform icon PerformanceManager
version 2.9.1.5, updated: 8月 2023
2.9.1.5     117.2 MB 8月 2023
Accessories
file type icon VT Fullsize Array Frame and Adapter CAD
updated: 10月 2020
    6.2 MB 10月 2020
Speaker Tunings
file type icon Vertec All DSP Platforms
updated: 10月 2020
    96.3 MB 10月 2020
Helpful Links
file type icon Considerations for Deployment of Line Arrays
updated: 10月 2020
    518.3 KB 10月 2020
file type icon AES Paper: J and Spiral Arrays
updated: 10月 2020
    324.0 KB 10月 2020
file type icon Directional Radiation Characteristics - Line Array
updated: 10月 2020
    1.1 MB 10月 2020
file type icon AES Paper: Pressure Response of Line Source
updated: 10月 2020
    387.8 KB 10月 2020
file type icon High Frequency Components for High Output Line Arrays
updated: 10月 2020
    2.9 MB 10月 2020
file type icon AES Journal Article: Analysis of Line Arrays
updated: 10月 2020
    856.0 KB 10月 2020
Ease Data
file type icon VerTec EASE DLL
version 3.0, updated: 12月 2020
3.0    1.2 MB 12月 2020
Images
file type icon VT4889 photo
updated: 10月 2020
    696.5 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 40 Hz - 18 kHz (-10dB)

频率响应

45 Hz - 16 kHz (± 3 dB)
Continous Power Rating 2000W LF, 1400W MF, 225W HF

灵敏度

99 dB LF, 102 dB MF, 116 dB HF (1W/1m)
Nominal Impedances 2 x 8 ohms LF, 8 ohms MF, 16 ohms HF
Horizontal Coverage 90 degrees nominal, 250 Hz - 16 kHz (-6dB)
尺寸(W × H × D) 1213 mm x 489 mm x 546 mm(47.8" x 19.3" x 21")
重量 79.8 kg (176 lb)
