VRX915S

15 in. Bass Reflex Subwoofer (Available in White)

较大的图像

15 in. Bass Reflex Subwoofer

The VRX915S is a compact, high power suspendable subwoofer system containing a 2265G-1 neodymium magnet, patented Differential Drive®, 15" woofer in a front-loaded, vented enclosure.



特点

  • Integral rigging hardware for simple connection of VRX915S line-arrays and optional array frame.
  • 15 inch, 2265G-1 Differential Drive® woofer for extended low-frequency output.
  • Light and compact for versatility and easy handleability.
  • 20 mm threaded pole socket for solid, secure satellite speaker mounting.

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


下载

  Version Language Size Uploaded
Specifications
VRX915S-WH Spec Sheet
updated: 4月29日
    385.6 KB 4月29日
VRX915S Spec Sheet
updated: 4月29日
    291.4 KB 4月29日
Brochures
VRX Brochure
updated: 4月29日
    2.0 MB 4月29日
CAD Drawings
VRX915S 2D PDF
updated: 10月18日
    63.7 KB 10月18日
VRX915S 2D DXF
updated: 10月18日
    4.1 MB 10月18日
VRX 2D PDF Drawings
updated: 4月29日
    355.6 KB 4月29日
VRX 2D & 3D Drawings
updated: 4月29日
    6.3 MB 4月29日
Bim Objects
VRX915S BIM Object
updated: 8月27日
    8月27日
Compliances
VRX900 Series Declaration of Conformity
updated: 10月18日
    91.2 KB 10月18日
Software
VRX Array Calculator
version 1.0, updated: 2月24日
1.0     11.2 MB 2月24日
User Guides
VRX900 User Guide
updated: 4月29日
    2.5 MB 4月29日
VRX Application Guide
updated: 4月29日
    1.6 MB 4月29日
Hi Res Images
VRX-915S-WH Hi Res Image
updated: 10月02日
    9.2 MB 10月02日
VRX915S Front Angle
updated: 1月11日
    369.6 KB 1月11日
Speaker Tunings
VRX900 Crown XTi2 V4 Tuning
updated: 3月05日
    117.9 KB 3月05日
VRX900 Series Tunings
updated: 2月24日
    4.8 MB 2月24日
V5 DSP Crown I-TECH HD VRX900 Passive
updated: 11月01日
    1018.3 KB 11月01日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

额定功率 800 W / 1600 W / 3200 W
Frequency Response (-10dB) 35 Hz - 250 Hz
尺寸(高 x 宽 x 厚) 496 mm x 420 mm x 597 mm (19.5 in x 16.5 in x 23.5 in)
Frequency Response (±3 dB) 40 Hz - 250 Hz
System Maximum SPL 126 dB SPL
System Sensitivity (1w @ 1m) 91 dB SPL
低频驱动单元 1 x JBL 2265G-1, 250 mm (15 in) Differential Drive® woofer
标称阻抗 4 Ohms
Active Tunings Tunings available at www.jblpro.com
Enclosure 15 mm - 18 mm, multi ply birch plywood
Suspension / Mounting Top mounted M20 threaded socket for optional pole SS4-BK. Integrated flying hardware for use with array frame VRX-SMAF. 8 M10 fittings. Optional M10 eyebolt kit.
外观颜色 Black DuraFlex™ finish
网罩 Power coated, black, 16-gauge perforated steel with with acoustically transparent black foam backing.
输入连接器 Switchable, +1/-1 or +2/-2
Net Weight (each) 26.3 kg (58 lb)
输入通道 XLR with loop through
输出 1 x XLR

Accessories

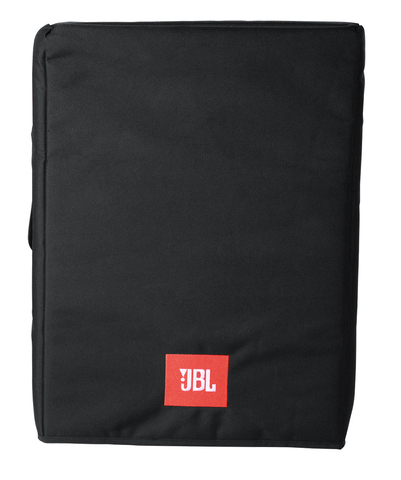

VRX915S-CVR | Deluxe Padded Cover with Handle Access to Fit VRX915S
VRX915S-CVR Main photo
较大的图像

Padded Nylon cover with water resistant backing, handle cut-outs with hook and loop flaps, and embroidered JBL logo, designed for the VRX915S JBL Loudspeaker

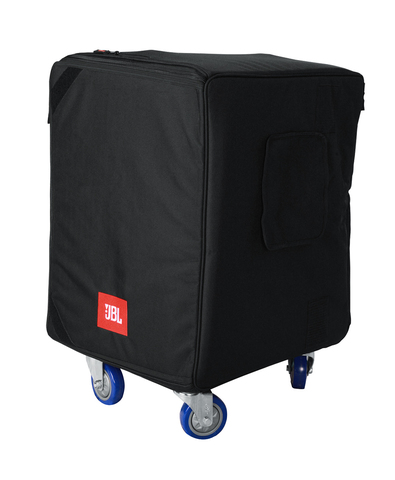

VRX915S-STR | Padded Rolling Transporter with Integrated Caster Board to Fit VRX915S
VRX915S-STR Main photo
较大的图像

Padded, rolling transporter system with integrated caster board, pole stand storage holster, handle cut-outs, and embroidered JBL logo designed for the VRX915S Loudspeaker

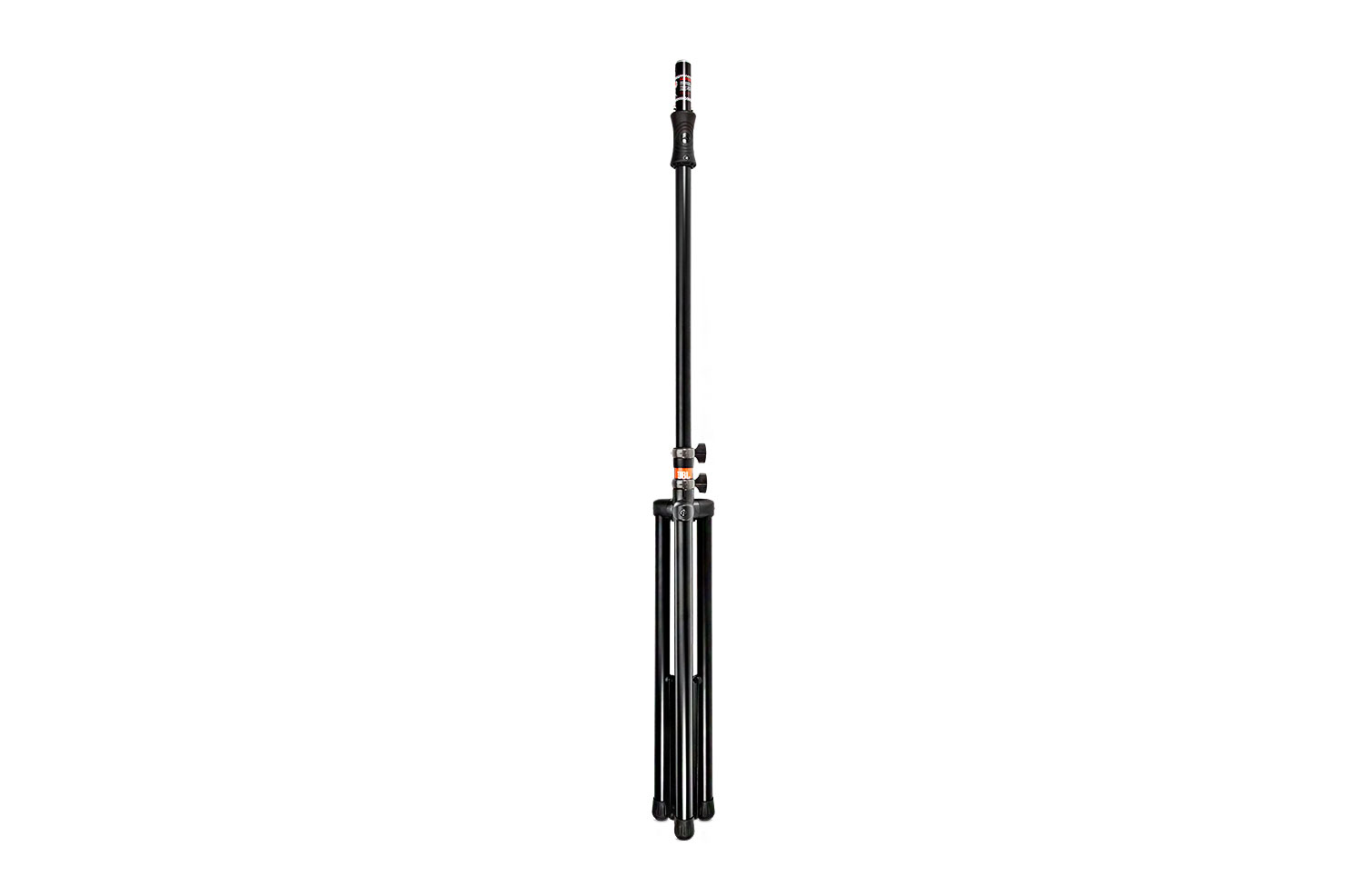

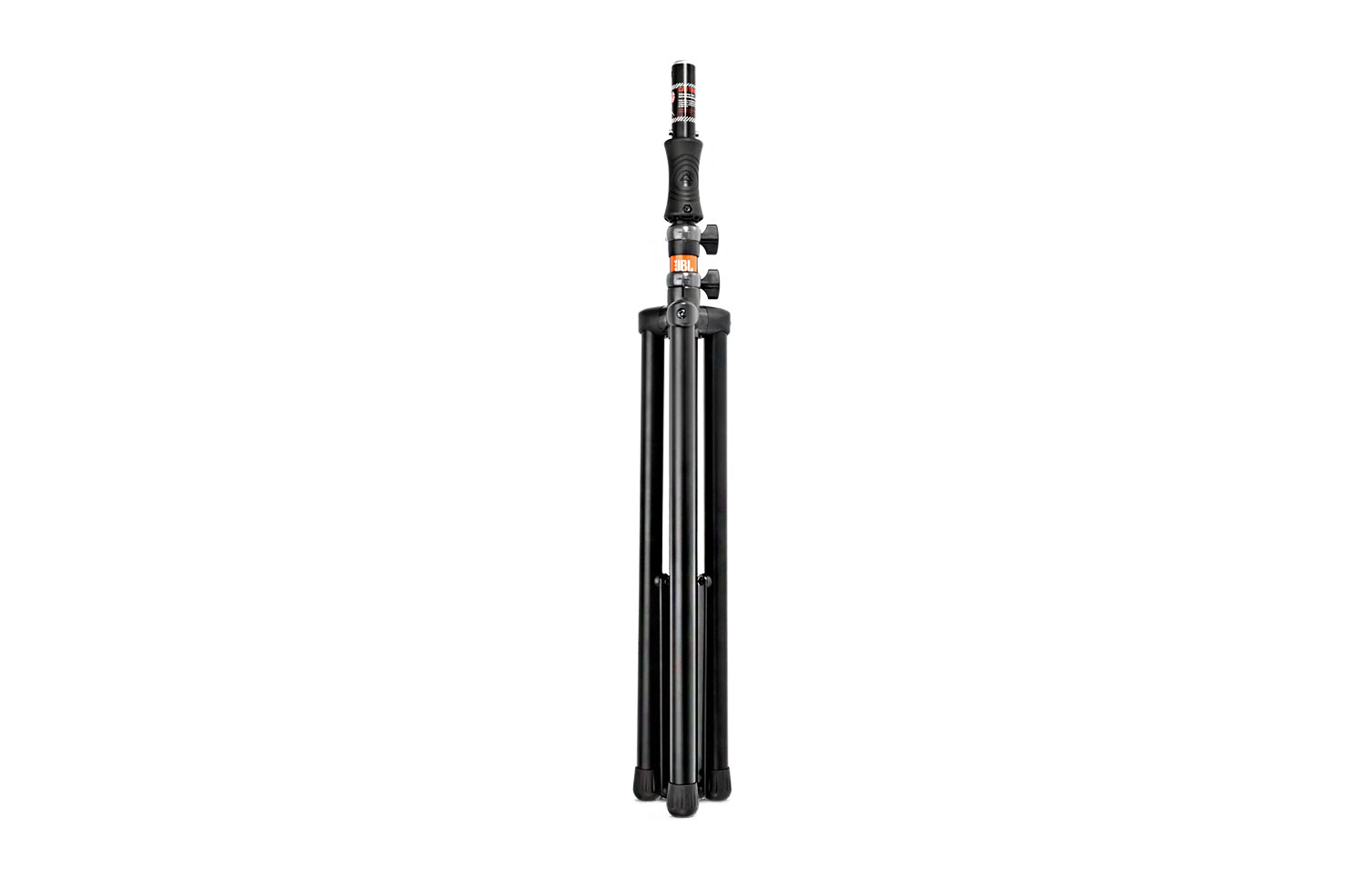

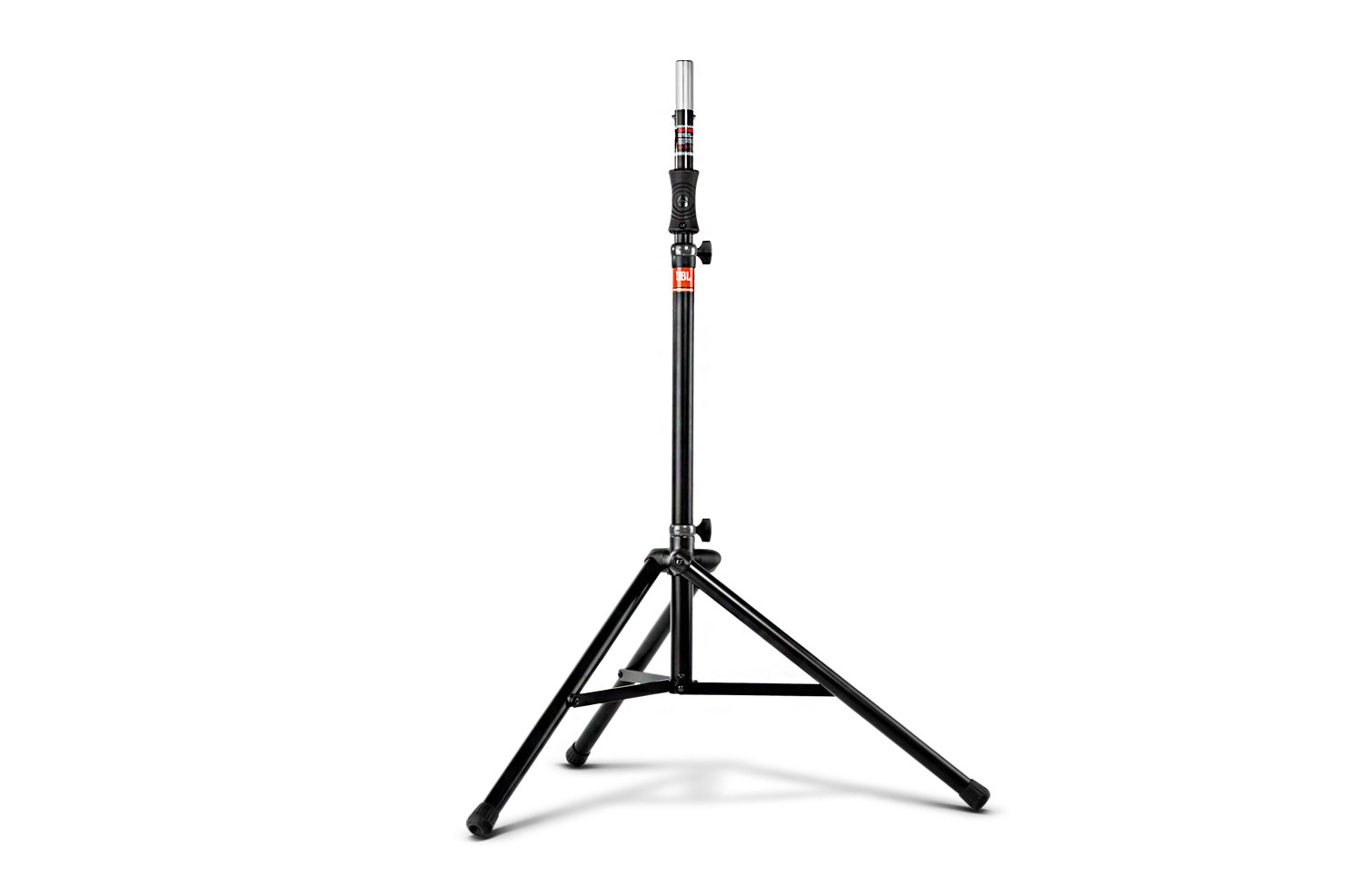

JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
较大的图像
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation

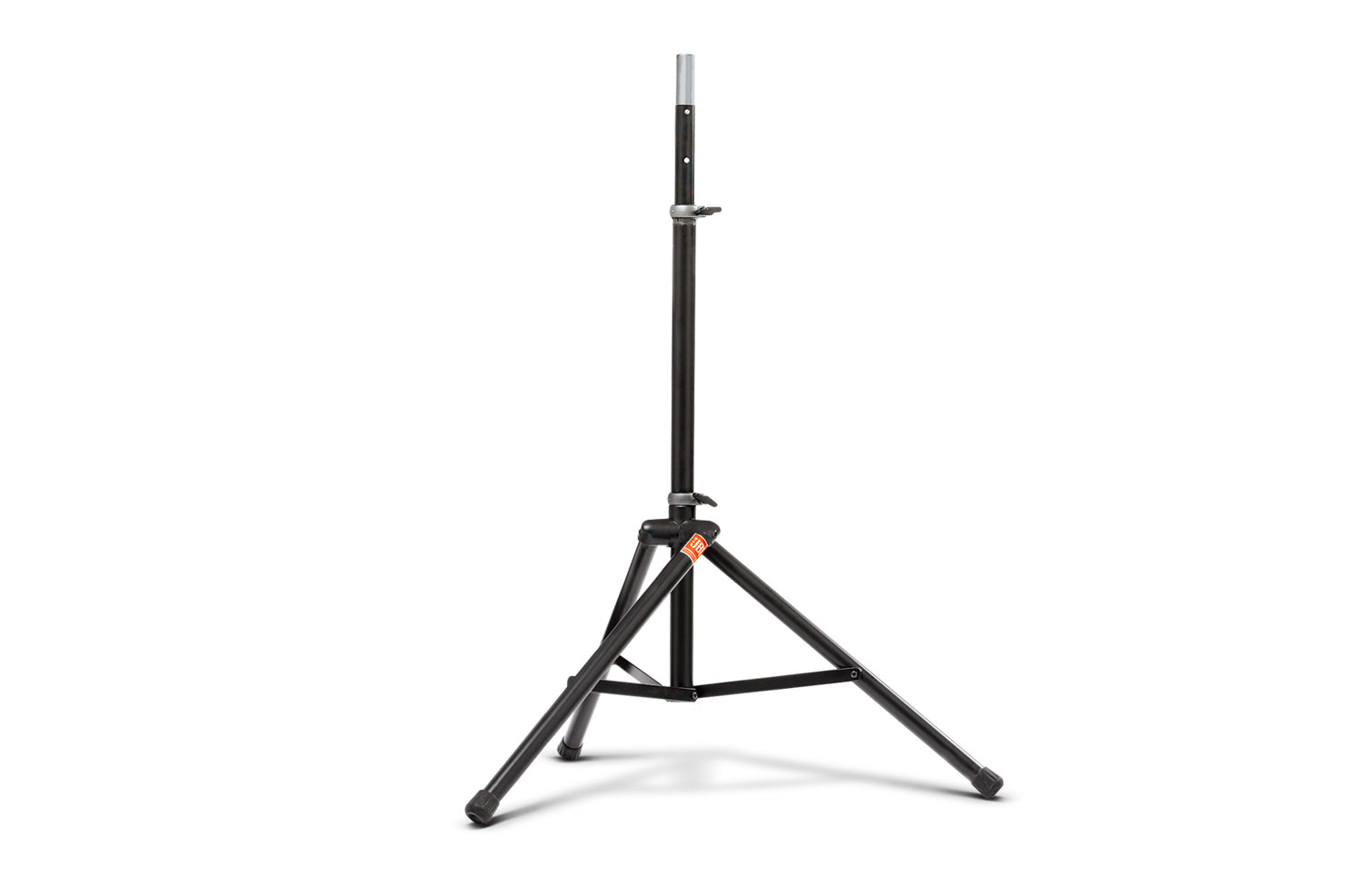

JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
较大的图像

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation

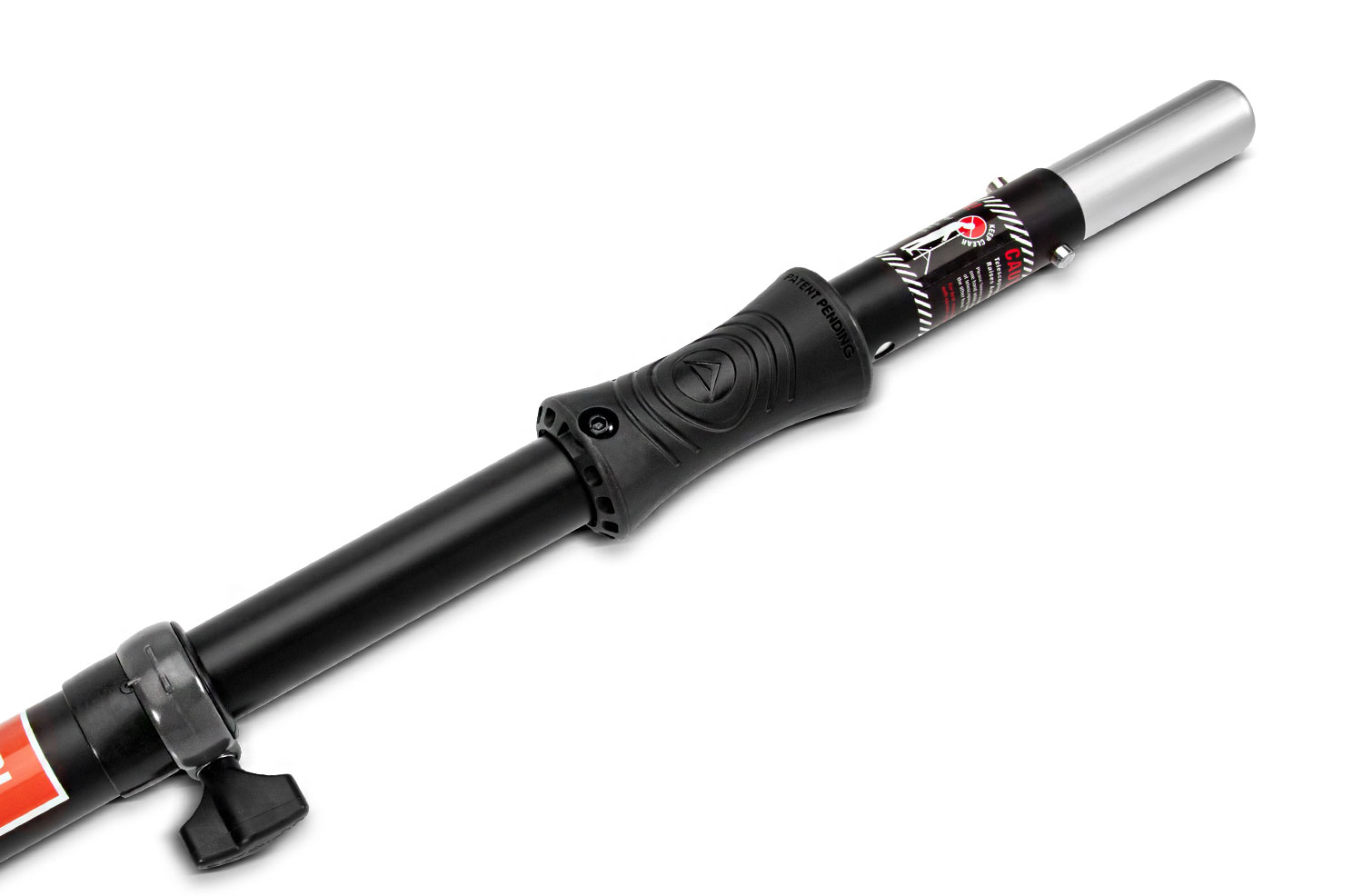

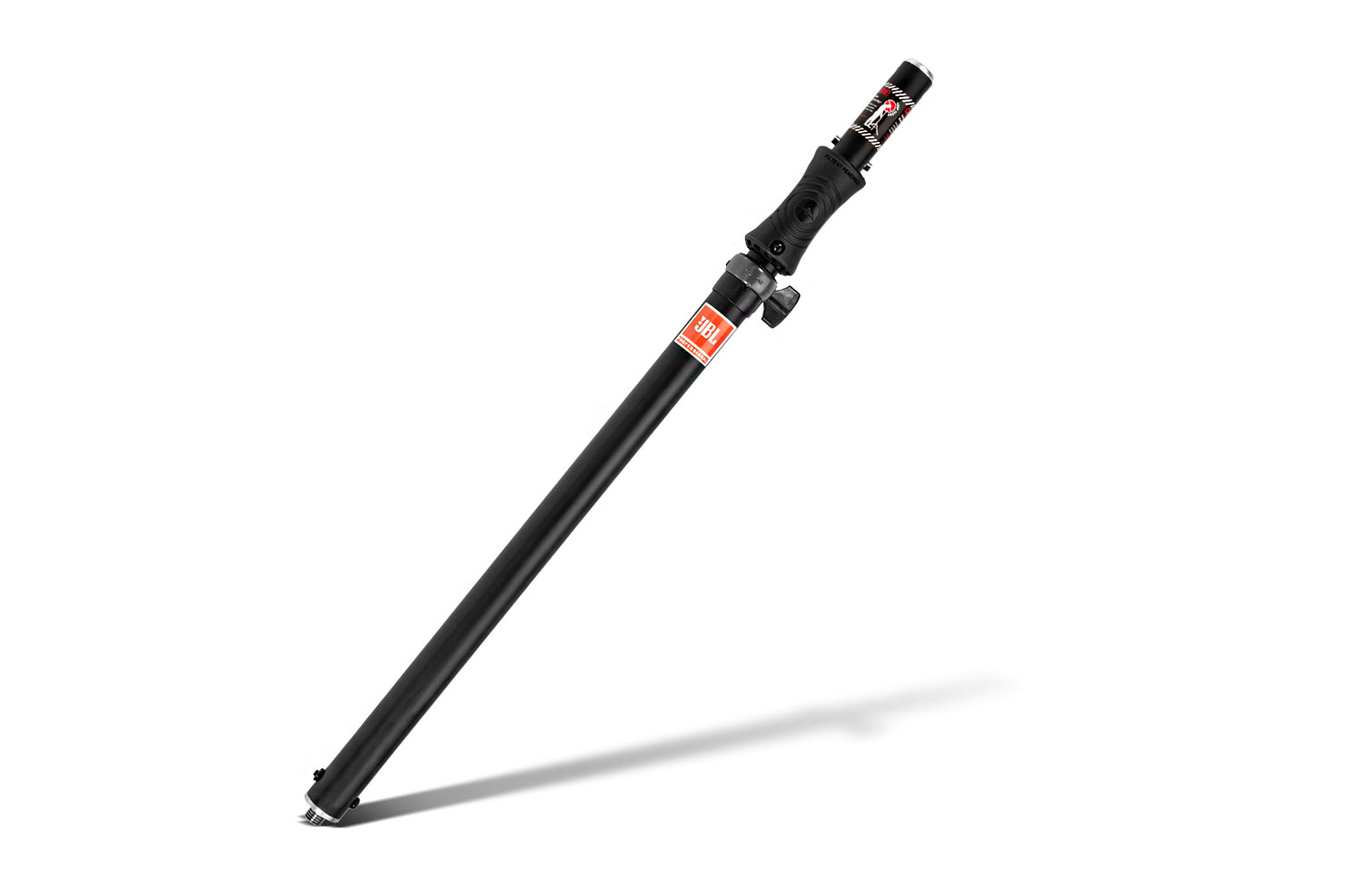

JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
较大的图像

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation

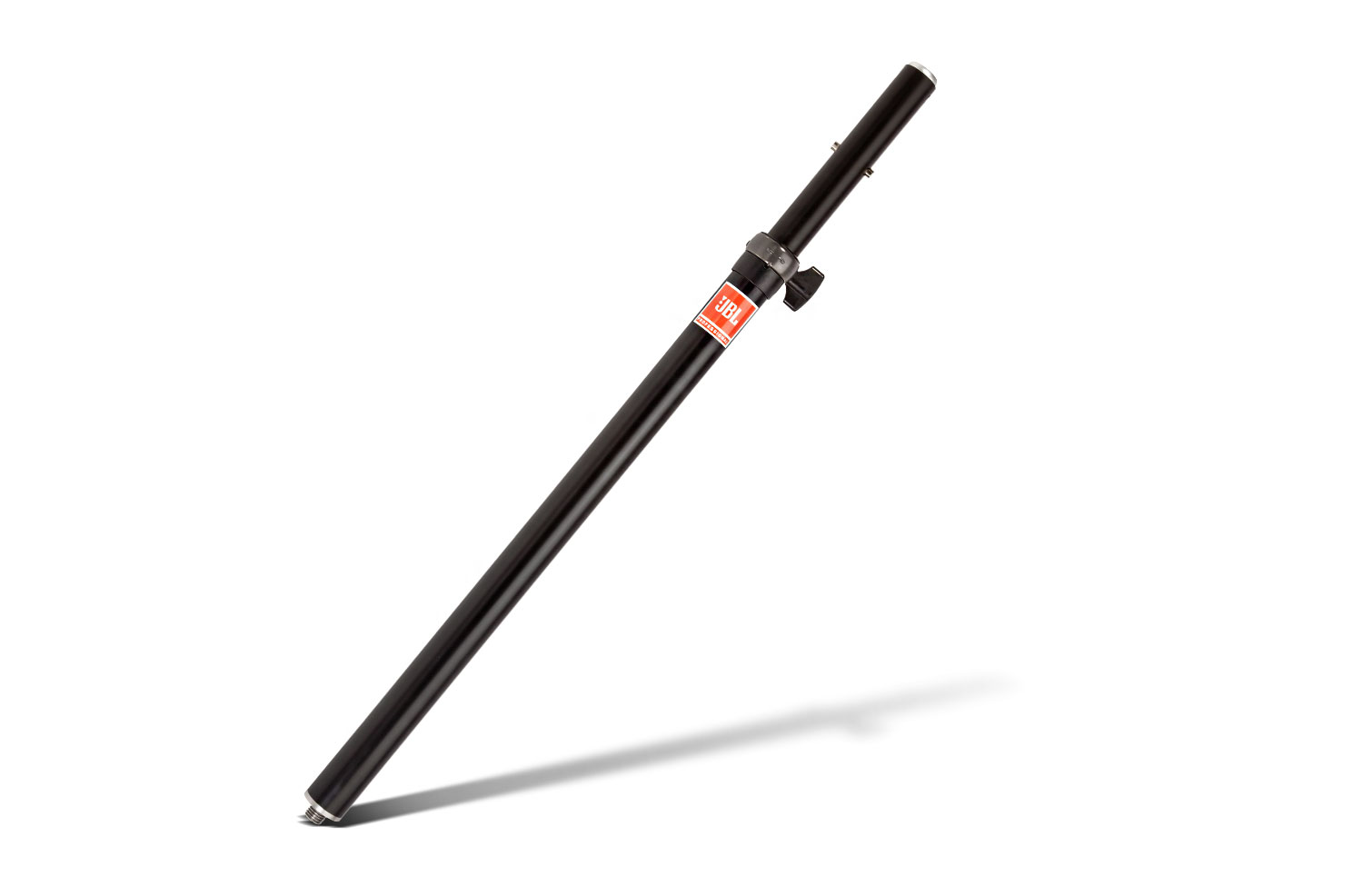

JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
较大的图像

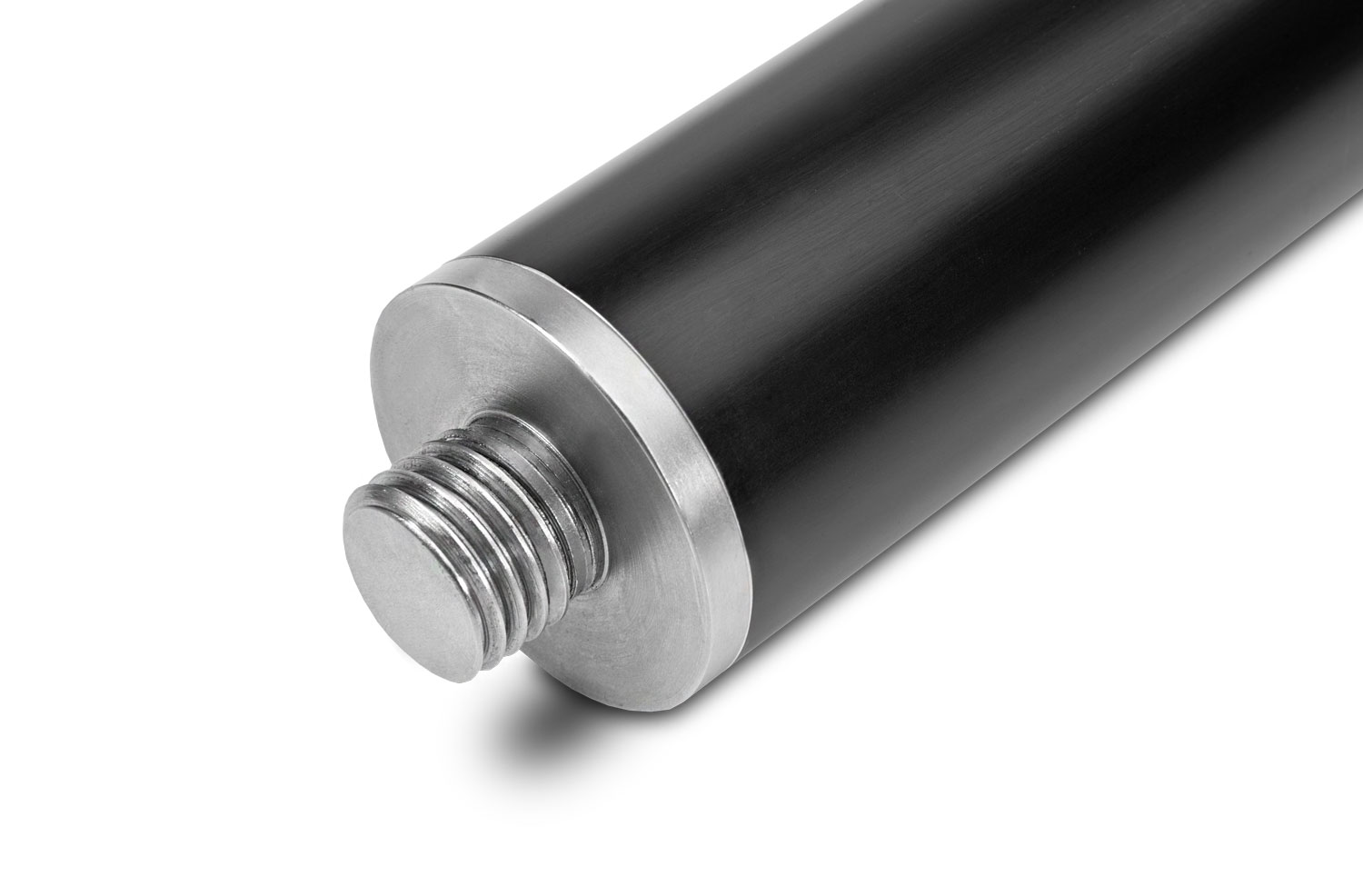

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
