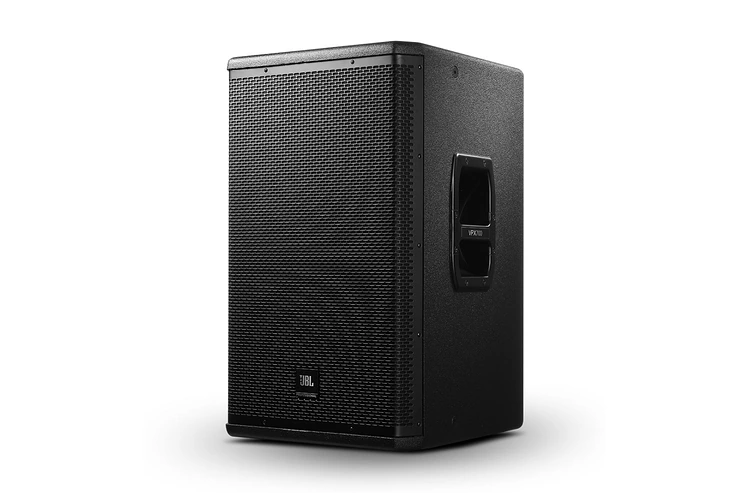

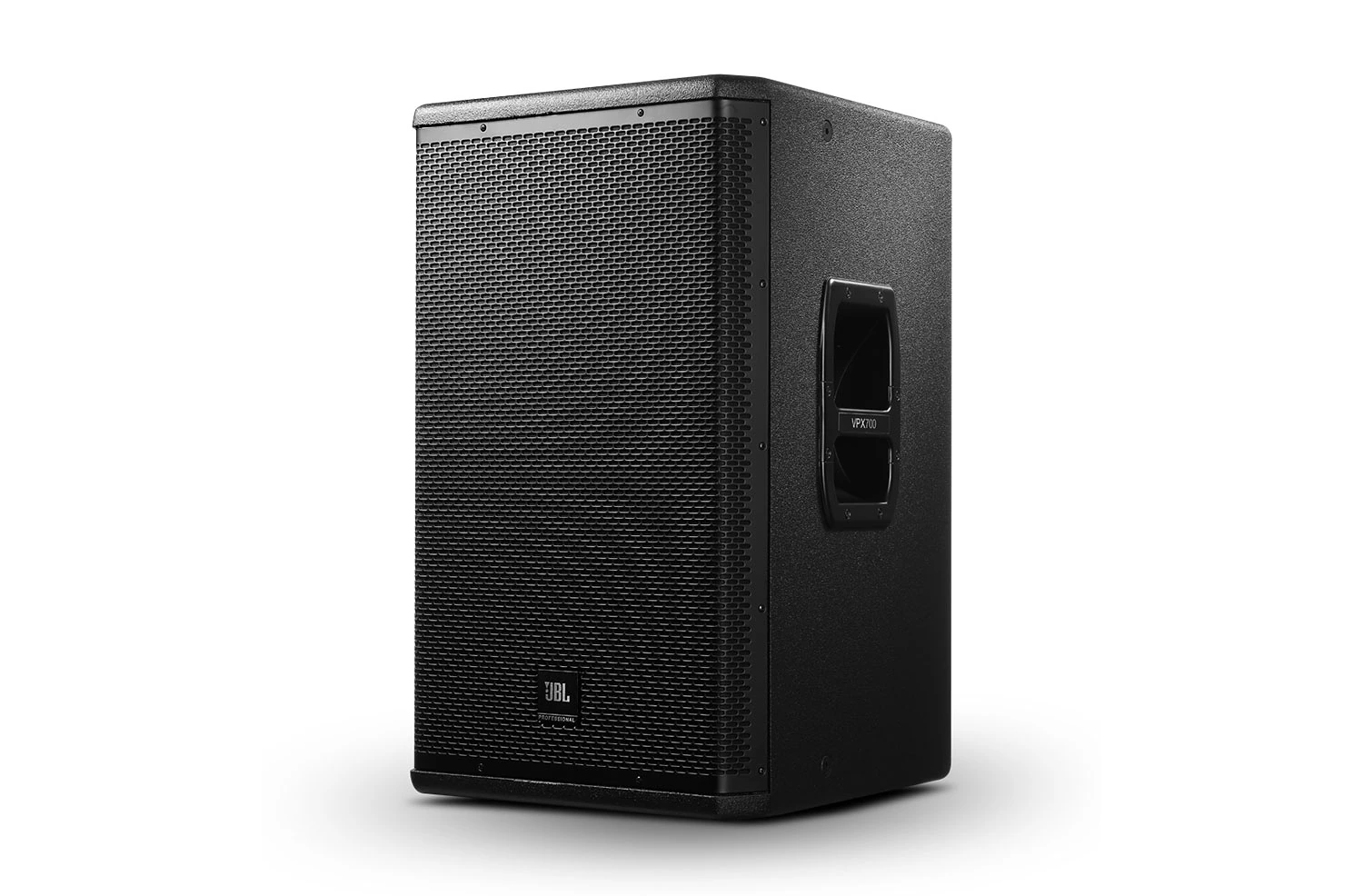

VPX715

15” High-Power Two-way Speaker

较大的图像

15” High-Power Two-way Speaker

VPX715 is a 15” two-way speaker system designed for live music, speech or pre-recorded applications.

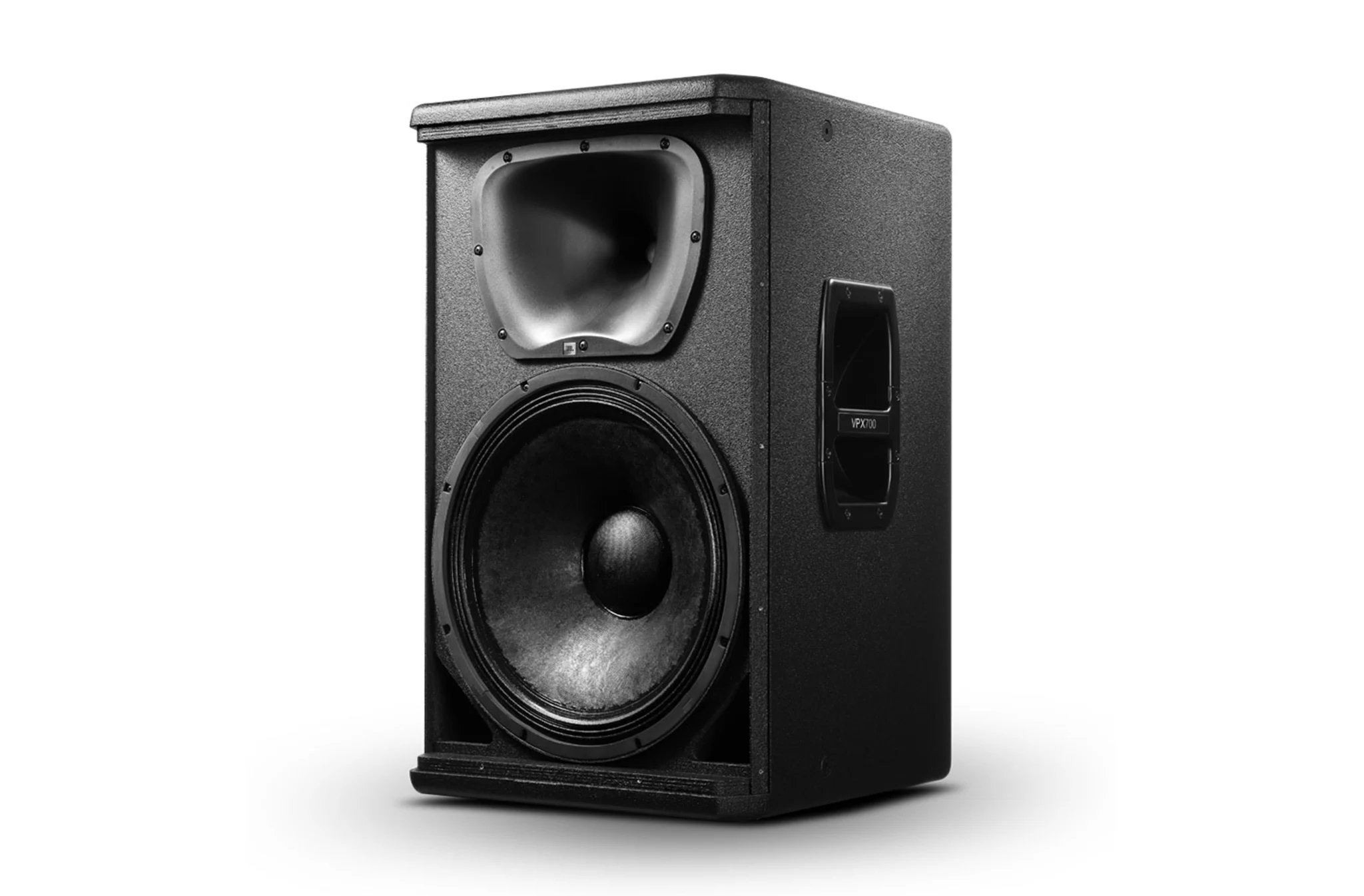

VPX715 uses a 1.5” JBL 2408H-2 annular polymer diaphragm neodymium compression driver to collaborate with a 15” high efficiency woofer for acoustic reproduction of high power, low distortion and low power compression. The 15” woofer embeds an optimal demodulating cooling aluminum ring, hence, stable performance is guaranteed even after long working hours. The speaker system creates a 70° × 60° (H × V) coverage pattern to ensure even and smooth response no matter on or off axis.

VPX715 is designed for versatile installation. Thirteen (13) suspension points and a dual-angle (0° straight vertical, 10° backward tilting) 35 mm socket are available for either flying or pole mounting and convenient orientation adjust. Two (2) integral handles make it easier to transport and install.

The entire system presents itself in a professional and low profile manner and aims to provide prolonged reliability and durability to its users. The trapezoidal enclosure is constructed of quality plywood and finished in rugged DuraFlex™ coating to sustain frequent transit and set-up. The front grille is made from 16-gauge steel and backed with acoustically transparent fabrics to provide adequate protection to drivers and circuits inside.

特点

  • 15” high efficiency woofer
  • 1.5” annular polymer diaphragm compression driver
  • Enclosure constructed of premium plywood and finished in black DuraFlex™ coating
  • 70° × 60° (H × V) coverage pattern for even and smooth response on and off axis
  • Heavy-duty 16-gauge protective screen backed steel grille
  • Dual-angle socket for pole mounting
  • 13 rigging points for suspension installation
  • Sound reinforcement for live music and speech or pre-recorded applications
  • As satellite speaker for use with subwoofers

下载

  Version Language Size Uploaded
Spec Sheets (Pdf)s
VPX715 Spec Sheet - Eng
updated: 12月02日
    622.1 KB 12月02日
VPX715 Spec Sheet - Cn
updated: 12月02日
    777.3 KB 12月02日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Frequency Response (-10dB) 47 Hz - 20 kHz
Frequency Response (±3 dB) 80 Hz - 20 kHz
覆盖范围 70° × 60° (H × V)
Crossover Mode Passive
分频频率 2.0 kHz
额定功率 450 W/900 W/1800 W (Continuous/Program/Peak)
Sensitivity (1W, 1m) 98 dB
标称阻抗 8 Ohms
Maximum SPL (1m) 125 dB (131 dB peak)
低频驱动单元 1 × 15” (381.00 mm) woofer
HF 驱动程序 1 × JBL 2408H-2 tweeter
Enclosure Trapezoidal, 15/18 mm, plywood
Suspension / Mounting 13 points (3@top, 3@bottom, 2@each side, 3@rear), M10 thread hardware; Dual-angle 35 mm pole socket
Transport 2 × die-cast handles with backing cup
外观颜色 Black DuraFlexTM finish
网罩 Powder coated, black, 16-gauge perforated steel with acoustically transparent black screen backing

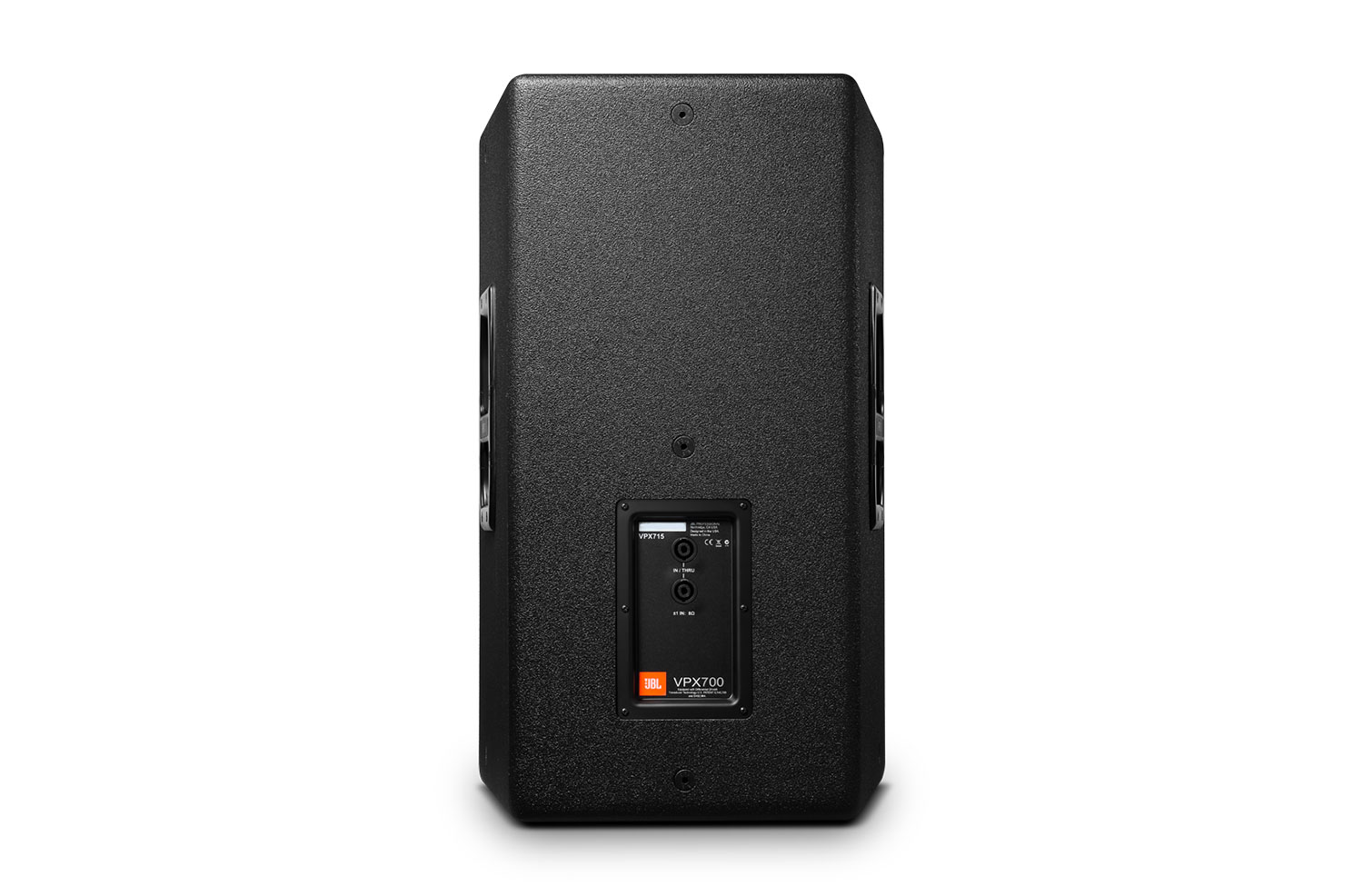

输入连接器 2 × Neutrik® Speakon® NL-4
尺寸(高 x 宽 x 厚) 701 mm × 432 mm × 470 mm (27.6 in × 17.0 in × 18.5 in)
净重量 25.34 Kg (55.87 lbs)
Optional Accessories SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole
