VM300 (Available in China and APAC Only)

Wireless Microphone System

VM300 (Available in China and APAC Only)
较大的图像

Wireless Microphone System

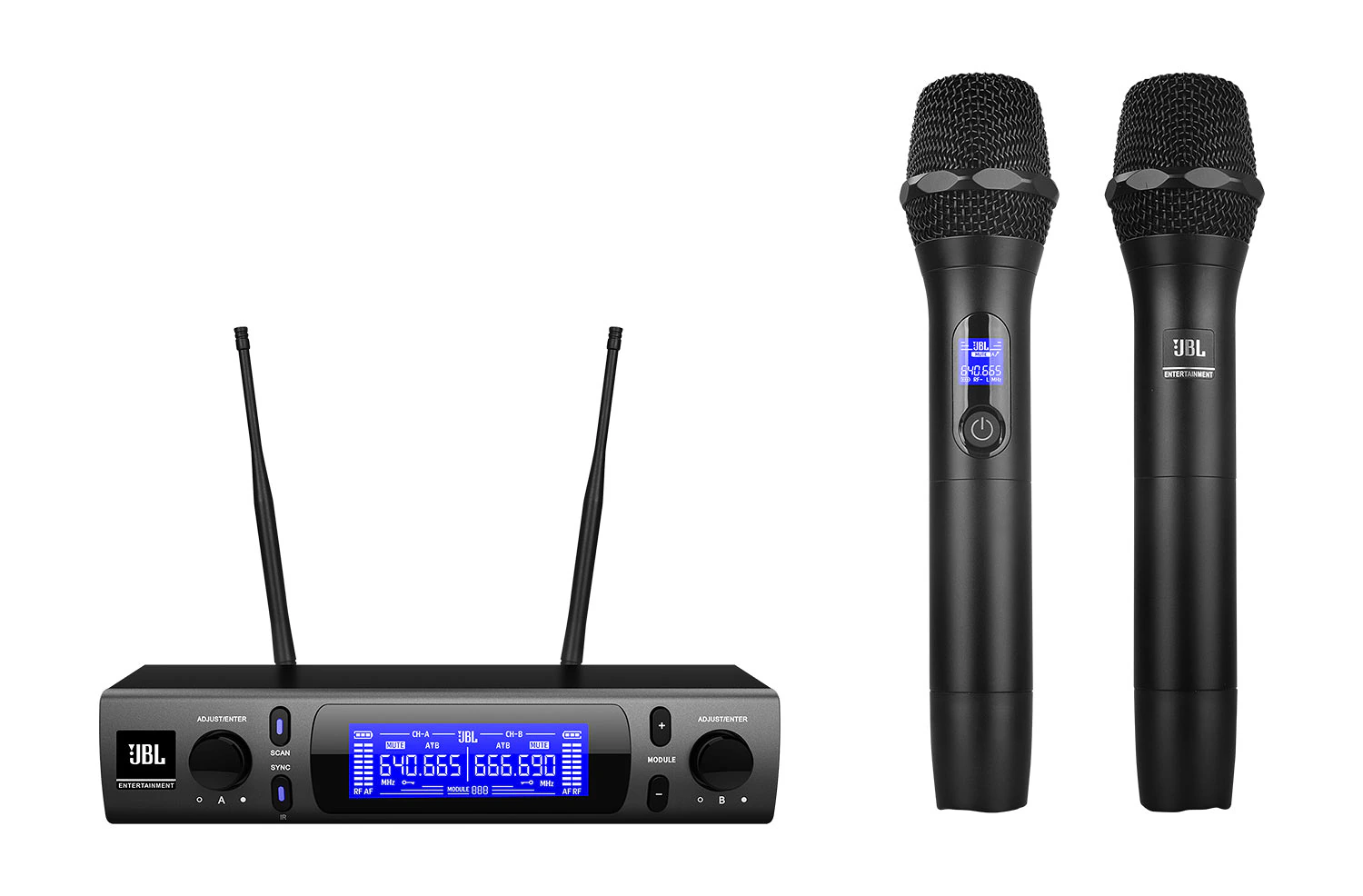

VM300 is the first dual channel UHF wireless microphone system designed to complement the acclaimed JBL karaoke sound. The system includes one SR300 receiver and two HT300 hand-held transmitters and provides the ultra-clarity, rich vocal and interference-free transmission needed in karaoke entertainment or professional sound applications.

Specially-tuned JBL KTV sound
Acoustically, the VM300 system is specially tuned to complement the proven JBL KTV sound, in particular the JBL Entertainment karaoke loudspeakers. When collaborating with these acclaimed speakers, VM300 is able to deliver easy and smooth singing experience and unexpected sound performance - rich vocal, transparent mid-range and subtle high notes – whether you croon or belt out.

Reliable Performance
Trouble-free performance is one of the aspects any karaoke operator may look into when selecting a wireless microphone system for their multi karaoke rooms. The VM300 system transmits signal in UHF band of 640 MHz – 690 MHz and offers 200 channel/frequency selection, as a result, interference is not a concern while multiple VM300 systems are operating simultaneously in different rooms.

Simplicity Beyond Expectation
The VM300 system offers a wide range of features and aims to make the setup and use quick and easy. Preset module selects a pair of frequencies or channels for both Ch-A and Ch-B. Auto Scan examines for unused frequencies/channels automatically without the need of manual search. Shake to Sync works in the brand of 2400 MHz – 2483.5 MHz and allows concurrent frequency synchronization of two HT300s. Auto Mute, Auto Wakeup, Auto Sleep ensure energy saving and reduce the noise impact to the system.



特点

  • Preset module selects a pair of frequencies or channels for both Ch-A and Ch-
  • Auto Scan searches for clean frequencies/channels automatically
  • Shake to Sync allows frequency synchronization of two HT300s simultaneously
  • Auto Mute mutes the HT300 automatically when it stays static for about 3 seconds.
  • Auto Wakeup awakes the HT300 automatically when it is in motion.
  • Auto Sleep powers off the HT300 automatically when it stays static for about 8 minutes.


下载

  Version Language Size Uploaded
User Guides
file type icon VM300 Quick Start Guide - English
updated: 10月 2020
    405.3 KB 10月 2020
file type icon VM300 Quick Start Guide - Chinese
updated: 10月 2020
    608.2 KB 10月 2020
Spec Sheets
file type icon VM300 Spec Sheet
updated: 12月 2019
    213.2 KB 12月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

Frequency Band 640 MHz - 690 MHz
通道 200
Operating Range ≈ 50 meters
Frequency Increment 250 kHz
Frequency Bandwidth 50 MHz
S/N Ratio ≥ 50 dB (including pickup, according to China GB standard)

运输重量

2.5 kg
Dimensions (L×W×D) 480 × 340 × 70 mm
Frequency Deviation ±10 kHz
Frequency Preparation PLL synthesized control
Receiving Mode CPU controlled selection + Pilot tone detection
Mute Mode Mute & Lock Loop Circuit

显示

LCD
Power Requirement 12 VDC, 1.25 A
Audio Output Connector 2 × balanced XLR1 × 6.35mm unbalanced TS
Transmission Power ≤ 30 mW
Transmission CPU controlled selection + Pilot tone detection
Pickup Cartridge Dynamic
RF Output power High, Low
