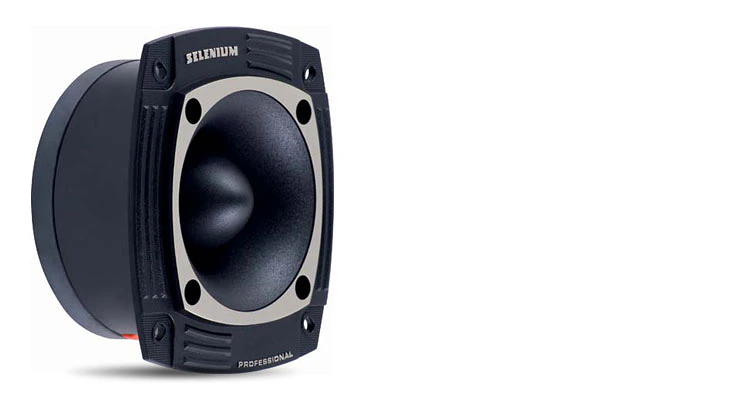

ST304

Super Tweeter

较大的图像

ST304

JUST FOR USA. Ideal super tweeter when the reproduction of high frequencies must define the instruments. Recommended for PA systems, stage monitors and most sound reinforcement systems in general. Extremely high sensitivity and lower distortion.

下载

  Version Language Size Uploaded
Data Sheets
ST304 Spec Sheet
updated: 10月03日
    312.5 KB 10月03日
Brochures
Components Full Line 2015 Catalog
updated: 10月21日
    1.3 MB 10月21日
Full Line 2015 Catalog
updated: 1月11日
    11.7 MB 1月11日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Impedance (ohms) 8
RMS (W) 40
Musical Program (W) 80
SPL 1W @ 1m (dB) 106
Resp. Frequência @ -10dB (Hz) 3.500 to 18.000
Voice Coil Diameter 1.8 (46)
Sound Dispersion HxV 40° x 40°
Magnet weight 11 (320)
Diaphragm Phenolic
Housing material Plastic
