SRX835

15英寸3路点声源被动扬声器

SRX835
较大的图像

15英寸三分频点声源被动扬声器

SRX835是一款配备15英寸低音单元的三分频全频扬声器,适用于中等功率主PA系统、后场或侧场补音。具备M10悬挂点、标准35毫米杆杯和脚架,可用于地面安装和低音炮堆叠,SRX835是音乐人、乐队、DJ、演唱会、公开演讲或表演场所、企业空间、教育设施和宗教场所等安装应用的理想选择。提供Crown ITech HD的调音和预设。



特点

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 32Hz-20kHz
  • Frequency Response: 43Hz-20kHz
  • Max SPL: 130dB (Peak)
  • Coverage Pattern: 60x40
  • Amplification options: Passive/Bi-Amp

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


更多详情

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

下载

Specifications
  版本 大小 上传日期
file type icon SRX835 Spec Sheet
版本 11_11_19, 更新: 12月 2019
11_11_19  660.7 KB 12月 2019
Brochures
  版本 语言 大小 上传日期
file type icon JBL 2025 PPA Brochure
en 版本 B, 更新: 8月 2025
en  8.5 MB 8月 2025
Compliances
  大小 上传日期
139.3 KB 10月 2020
Software
  大小 上传日期
Android download icon SRX Connect
发布: 8月 2023
8月 2023
Windows download icon HiQnet Audio Architect
发布: 11月 2020
11月 2020
iOS download icon SRX Connect
发布: 8月 2023
8月 2023
Images
  大小 上传日期

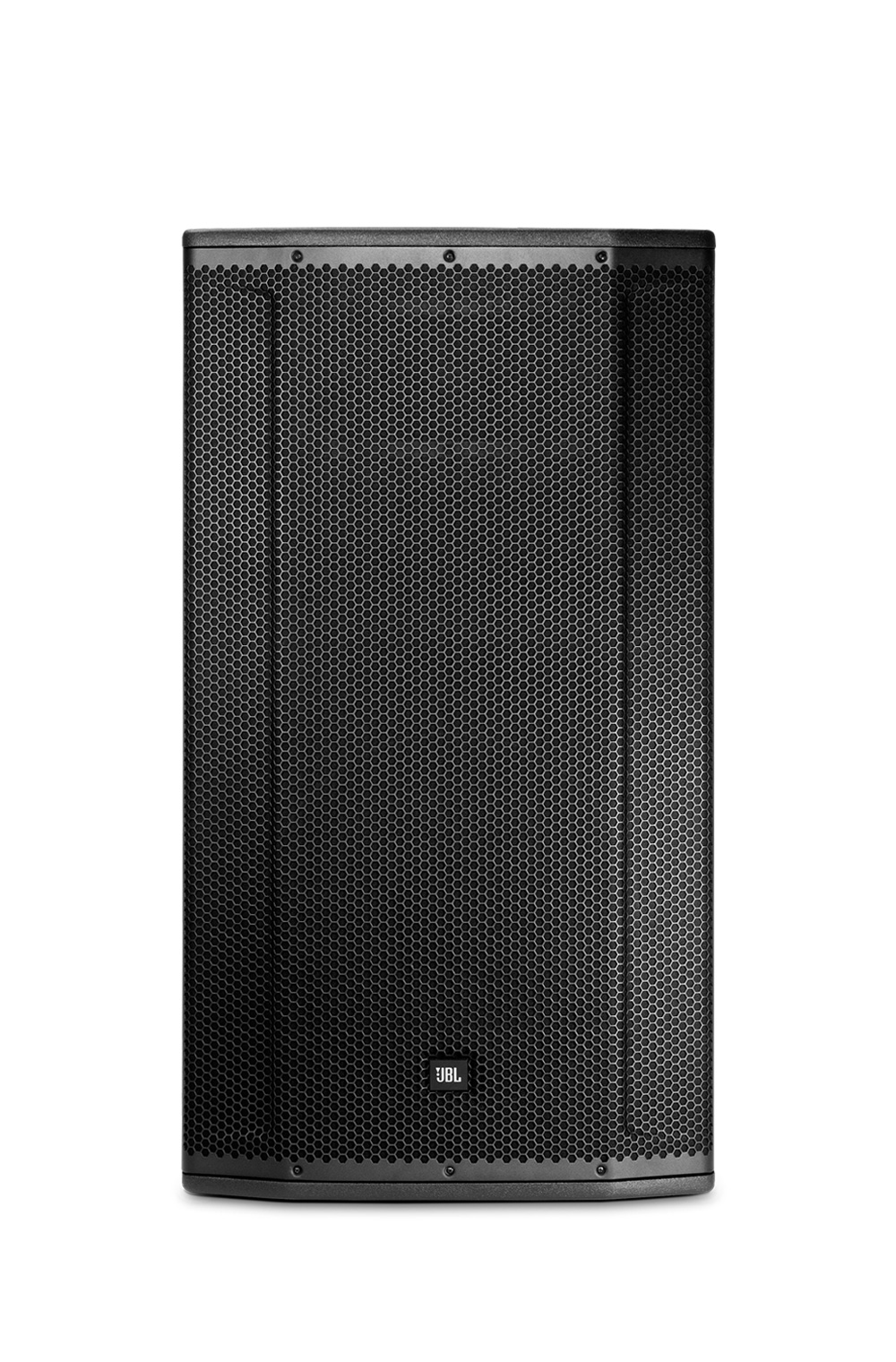

file type icon SRX835 Front
更新: 7月 2019
401.5 KB 7月 2019
file type icon SRX800 Driver
更新: 4月 2019
157.9 KB 4月 2019
file type icon SRX800 Handle
更新: 4月 2019
208.1 KB 4月 2019

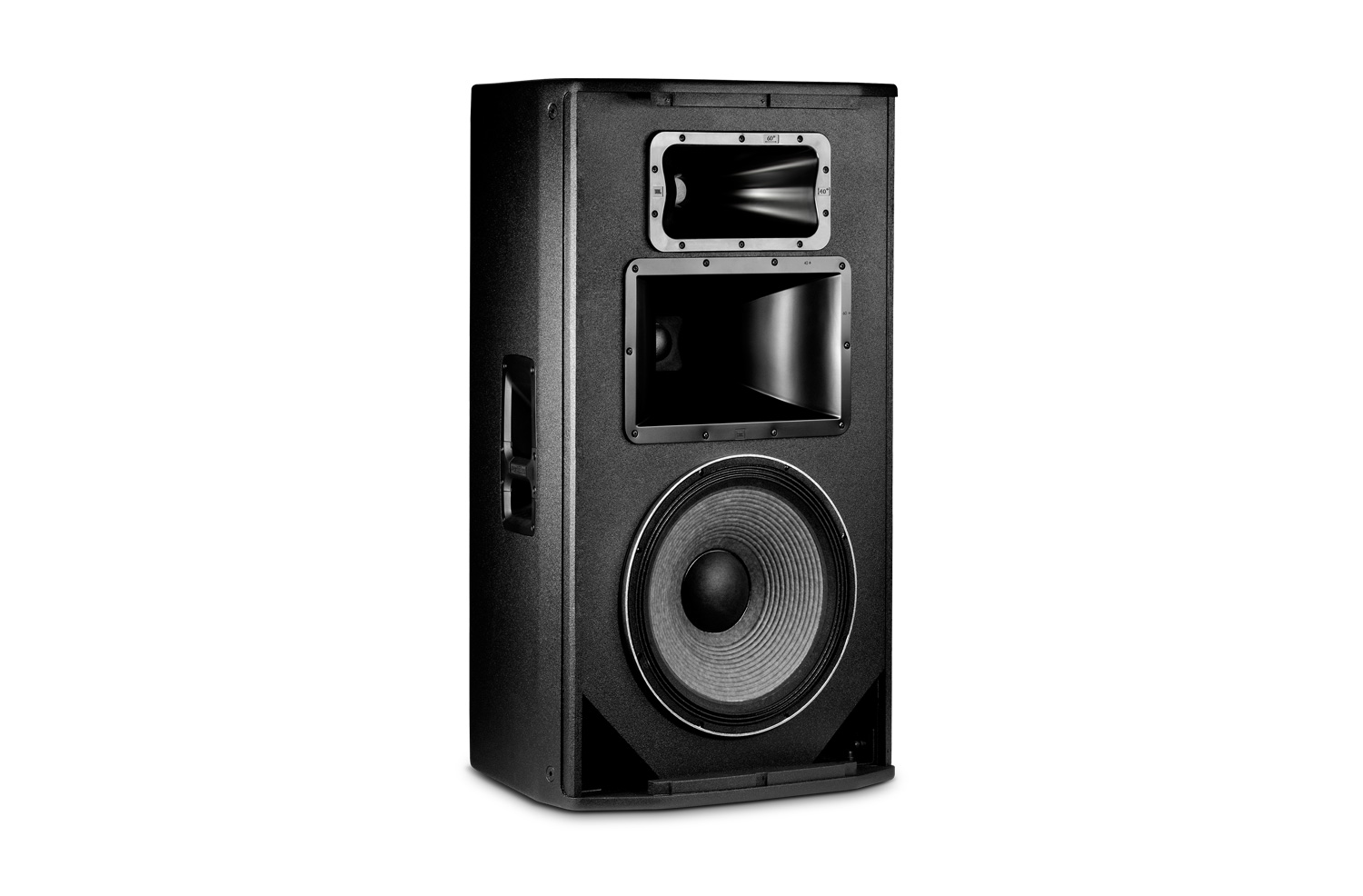

file type icon SRX835 Angle No-Grill
更新: 7月 2019
164.2 KB 7月 2019

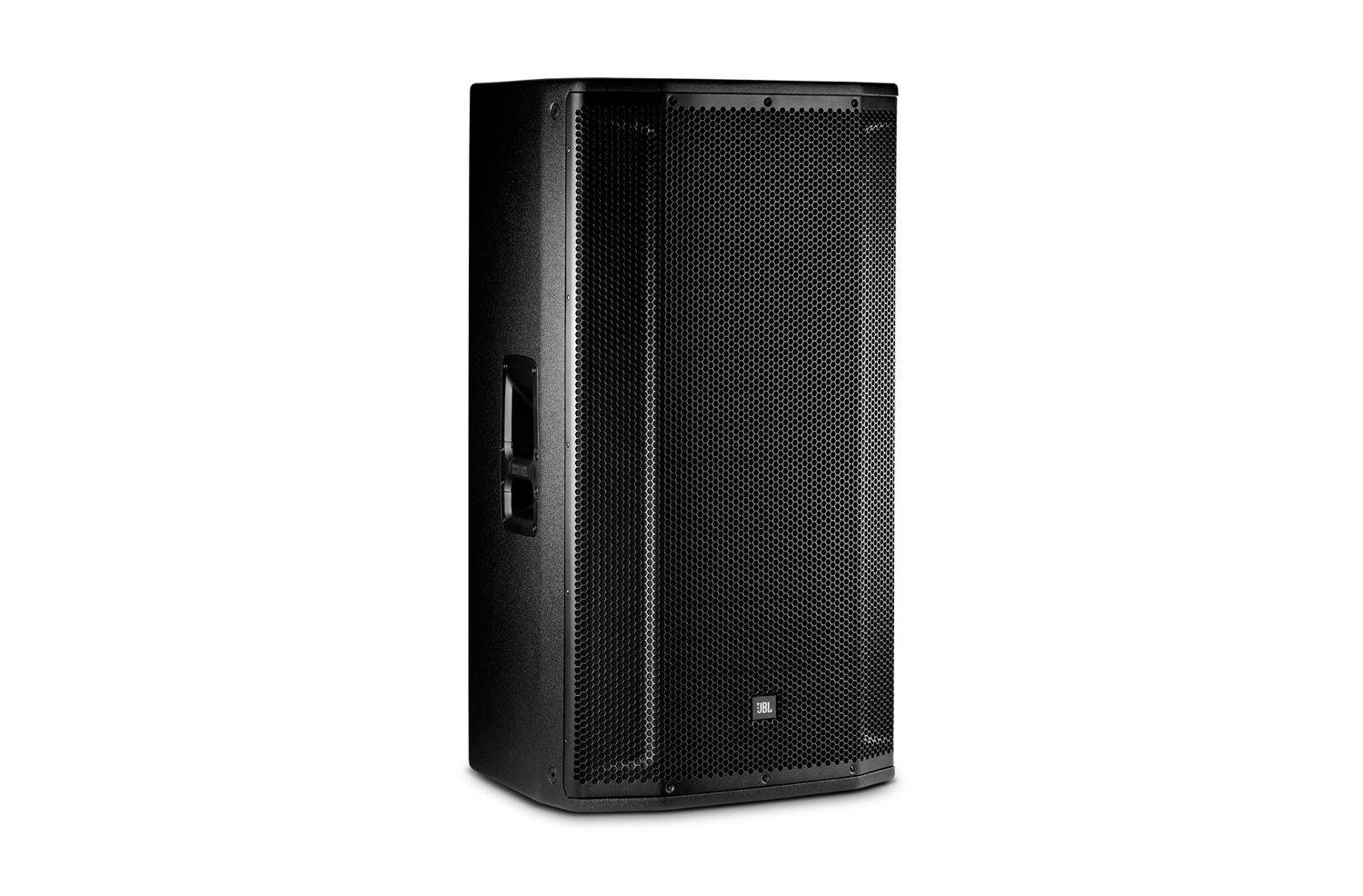

file type icon SRX835 Angle
更新: 7月 2019
234.1 KB 7月 2019
Speaker Tunings
  大小 上传日期
23.7 KB 10月 2020
41.3 KB 10月 2020
7.8 KB 10月 2020
7.7 KB 10月 2020
file type icon SRX835 Biamp.XTi2
更新: 10月 2020
1.0 KB 10月 2020
file type icon SRX835 Biamp Tunings.DCi Series
更新: 10月 2020
14.1 KB 10月 2020
2.7 MB 10月 2020

如果上述任何链接在您的浏览器中显示为奇怪的字符,请右键点击文件以将其保存到您的计算机。

零件与服务

性能

系统类型 Passive 15”, three-way, bass-reflex
Maximum SPL Output 124dB (Continuous), 130dB (Peak)
频率范围 (-10dB) 32hz - 20khz
Frequency Response (-3 dB) 43Hz - 20Hz

灵敏度

95dB
系统额定功率 3200W Peak, 1600W Program, 800W Continuous
标称阻抗 8 Ohm
输入通道 NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
低频驱动单元 2275F
MF Driver 2107H
HF 驱动程序 2432H
覆盖范围 60 x 40
分频点 330hz & 2.4khz
Enclosure 18mm Duraflex coated plywood
Suspension/Mounting Single 36mm pole socket, 12 x M10 Suspension points
Handles 2
外观颜色 Obsidian Duraflex™ finish
网罩 Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
尺寸(高 x 宽 x 厚) 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
重量 95.0 lbs (43.1kg)

配件

SRX835P-CVR-DLX | Deluxe padded cover for SRX835P
SRX835P-CVR-DLX Main photo
较大的图像
SRX835P-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX835P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo


JBLPOLE-GA | JBL 气动升降扬声器立杆
JBLPOLE-GA Main photo
较大的图像
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

带M20螺纹下端的气压辅助扬声器支杆,38mm杆身和35mm适配器。JBLPOLE-GA是最易使用的扬声器支架,其内置气动减震装置可为您自动升起扬声器。该支架的内置减震装置可轻松升起重量35磅或以下的扬声器,无需用户费力。

  • 轻松升降扬声器!
  • 强劲易用的"Z"型旋钮
  • 超坚固的杆体
  • M20螺纹杆安装座
  • 适配大多数具有标准M20杆螺纹的低音炮(JBL PRX、VRX、STX和SRX818)- 请参阅相应产品说明

说明书
JBLPOLE-MA | JBL 手动调节扬声器立杆
JBLPOLE-MA Main photo
较大的图像
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

带M20螺纹下端的手动调节扬声器极杆,38mm极杆和35mm。JBLPOLE-MA采用出色的高度调节卡箍,配有符合人体工学的"Z"形旋钮,可实现舒适的调节。作为最坚固的配件设计,高度调节卡箍可防止全塑料设计中常见的过度拧紧和断裂问题。

  • 轻量级
  • 金属压铸领圈
  • M20 螺纹插座
  • 适配所有标准 M20 极柱螺纹的低音炮(JBL PRX、VRX、STX 和 SRX818)- 请参考各个产品以确认

说明书
JBLTRIPOD-GA | JBL 气动助力音箱三脚架
JBLTRIPOD-GA Main photo
较大的图像
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
具有集成扬声器适配器的升降助力铝合金三脚架扬声器支架。JBLTRIPOD-GA 是一款非常易于使用的扬声器支架,得益于内部气压减震装置可为您自动抬升扬声器。该支架的内部减震装置可轻松抬升重量不超过 35 磅的扬声器,用户无需费力。
  • 气动辅助可从 3'8"(1118MM) 调节至 6'7"(2007MM)
  • 气动辅助三脚架,利用内部充气式减震装置为您抬升扬声器
  • 设计用于以下 JBL 型号:JRX200、PRX400、STX800、EON、PRX700、VRX900

说明书
JBLTRIPOD-MA | JBL 手动调节扬声器三脚架
JBLTRIPOD-MA Main photo
较大的图像
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

铝制三脚架扬声器支架,配备安全锁定销和150磅承重能力。为了帮助您抬起扬声器,我们在伸缩管上添加了耐用的提升环,为您的上手臂提供推力支点,轻松将扬声器升至所需高度。

  • 可调节范围从4'2"(1270毫米)到6'5"(1956毫米)
  • 手动调节扬声器三脚架
  • 设计用于以下JBL型号;JRX200、PRX400、STX800、EON、PRX700、VRX900

说明书
