JBL Professional SRX828SP

较大的图像

18" Dual Self-Powered Subwoofer System

特点

Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
JBL Premium Transducers
Drivecore Amplification By Crown
Full User Configurable DSP
Network Control
JBL Engineered Application Presets
LCD Screen and Glow in the Dark Ink on Back Panel
Accepts JBL WK-4S Caster Kit
145 lb/65.9 kg

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

Live performance systems.
Mobile and fixed DJ systems.
Sound system rental and tour.
Permanent installations.

更多详情

PURPOSEFUL DESIGN

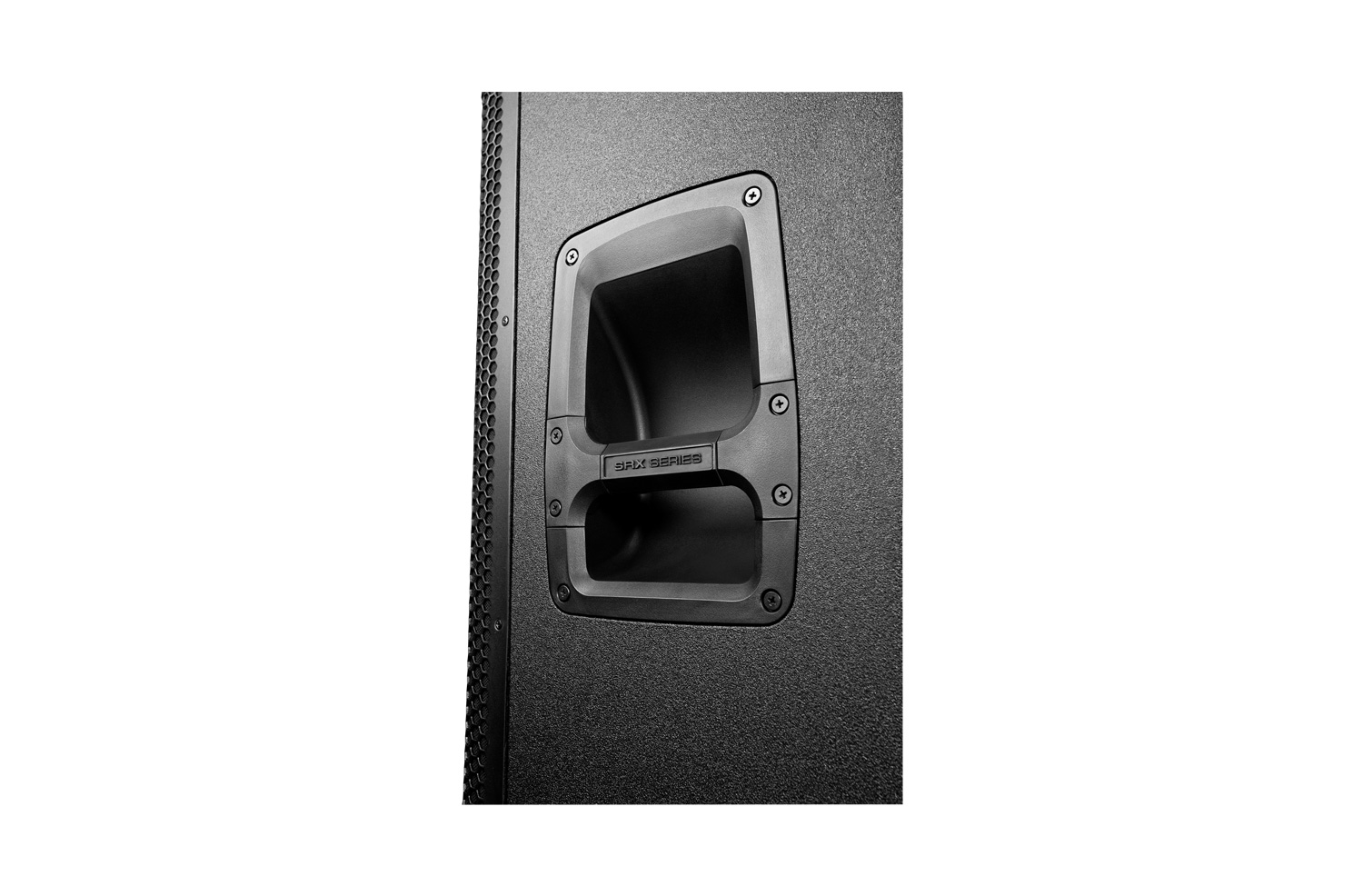

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

下载

	Version	Language	Size	Uploaded
Data Sheets
SRX828SP Data Sheet updated: 4月29日			2.4 MB	4月29日
Specifications
SRX828SP Spec Sheet updated: 4月29日			804.8 KB	4月29日
Manuals
SRX Connect Presets HelpGuide updated: 10月22日			285.5 KB	10月22日
SRX Connect NormalView HelpGuide updated: 10月22日			427.4 KB	10月22日
Compliances
SRX800 Series Declaration of Conformity updated: 10月22日			154.4 KB	10月22日
Software
Software Support updated: 4月29日			114.5 KB	4月29日
SRX Connect updated: 10月09日				10月09日
HiQnet Audio Architect updated: 11月10日				11月10日
SRX Connect updated: 10月09日				10月09日
User Guides
SRX818SP/828SP QuickStart Guide updated: 4月29日			1.5 MB	4月29日
SRX800 User Guide updated: 4月29日			7.4 MB	4月29日
Images
SRX800 Driver updated: 4月29日			157.9 KB	4月29日
SRX800 Handle updated: 4月29日			208.1 KB	4月29日

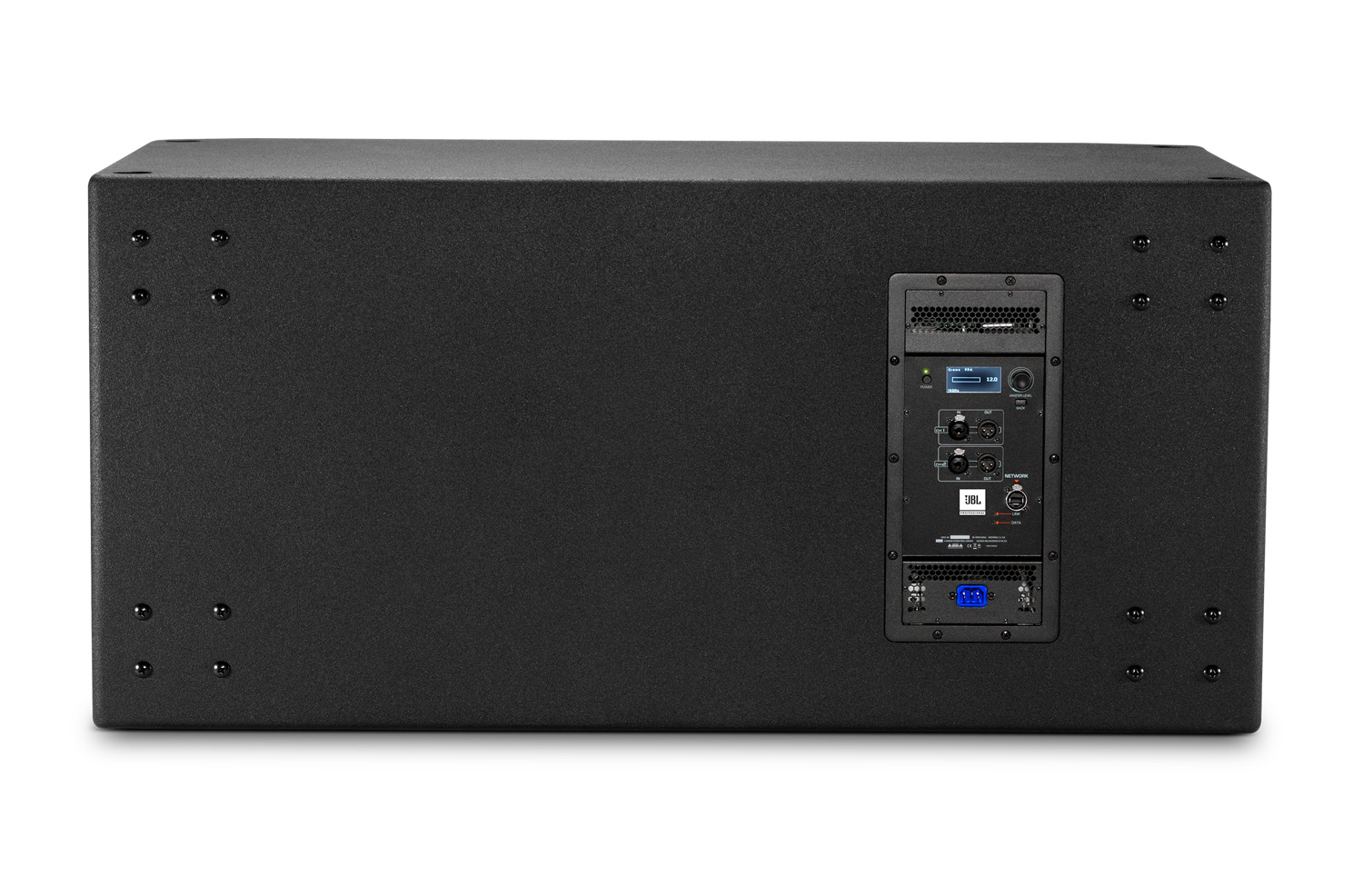

SRX828SP Back updated: 4月29日			339.2 KB	4月29日

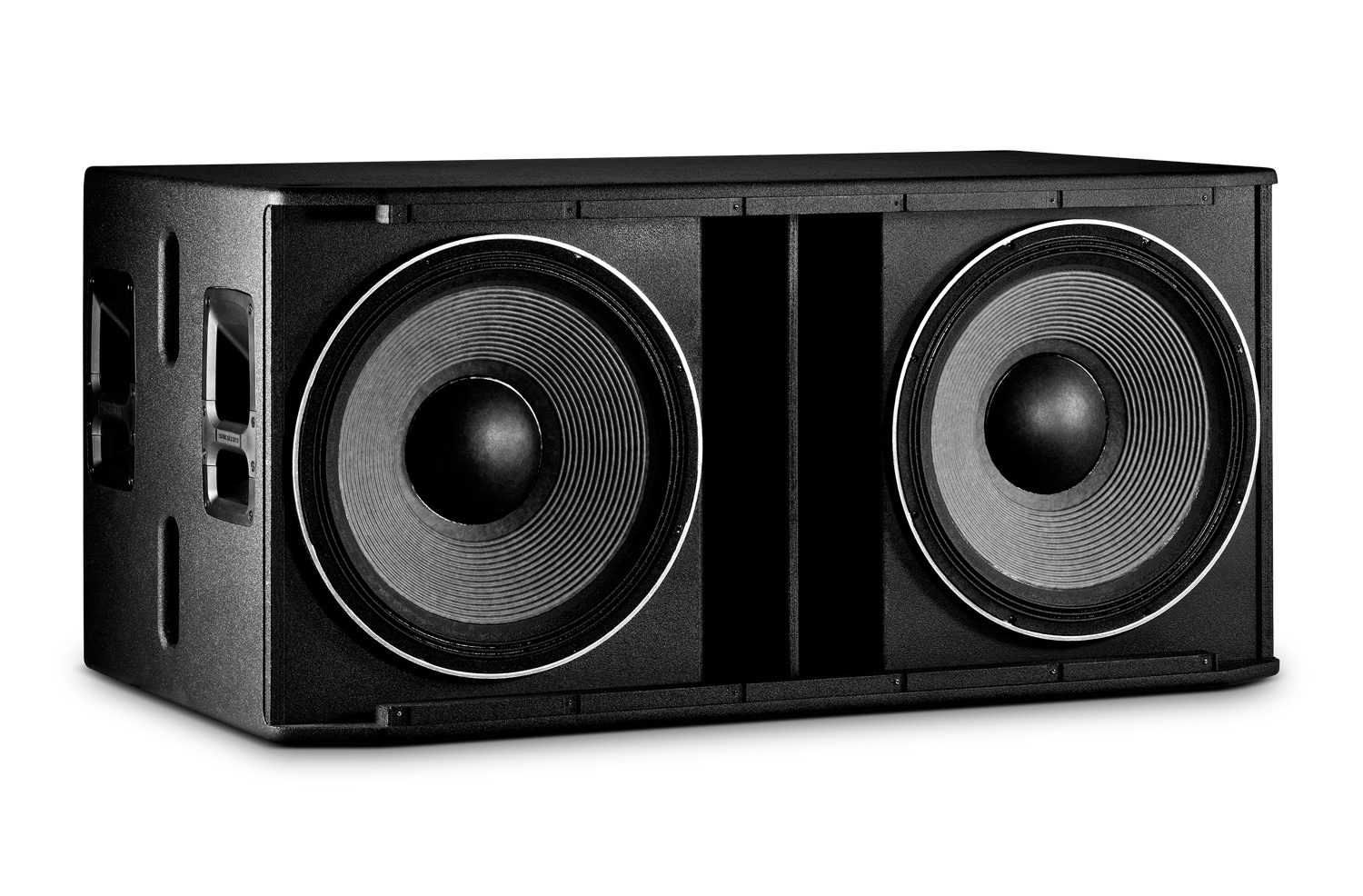

SRX828SP Angle No-Grill updated: 4月29日			366.3 KB	4月29日

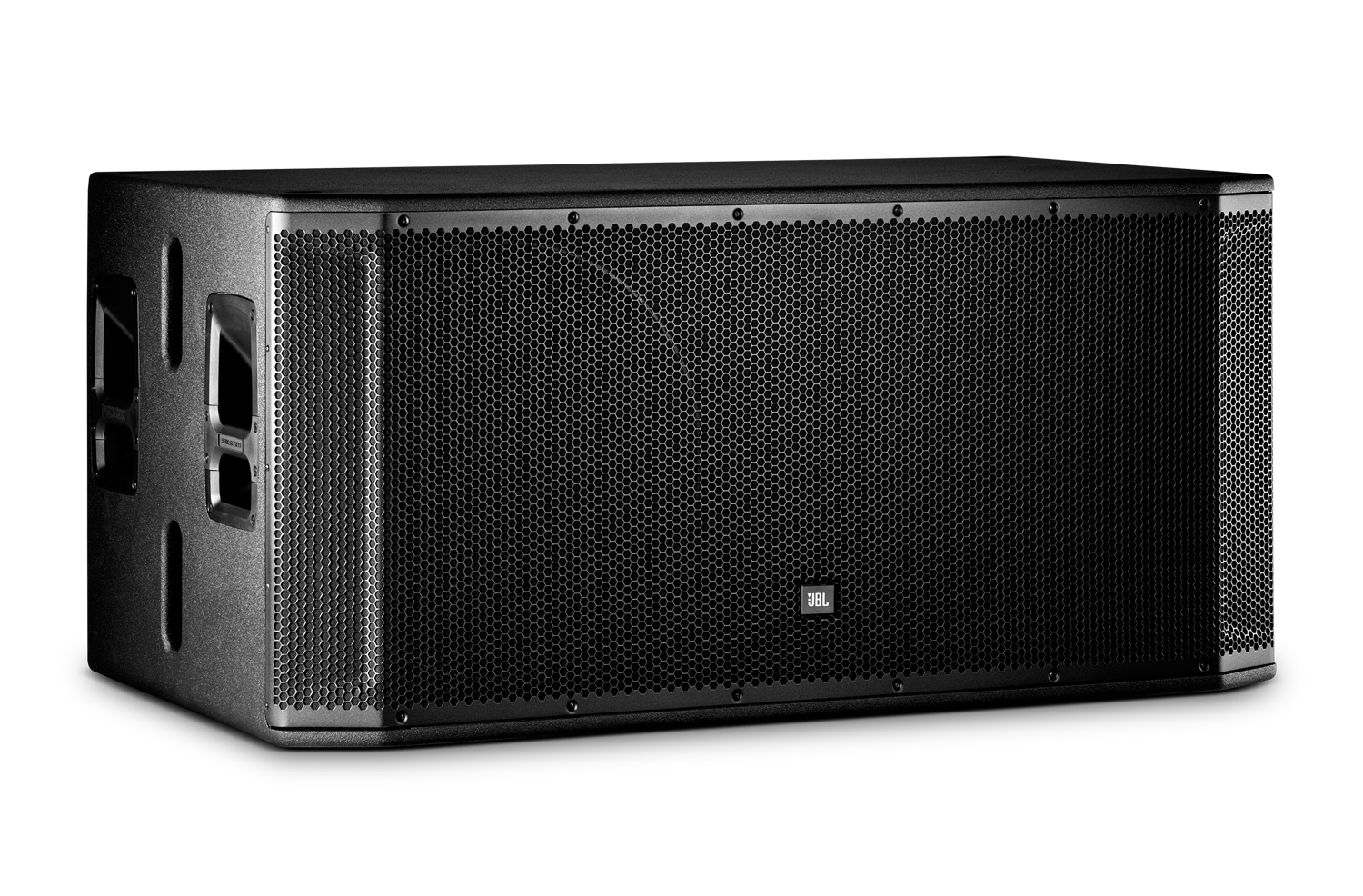

SRX828SP Angle updated: 4月29日			482.2 KB	4月29日

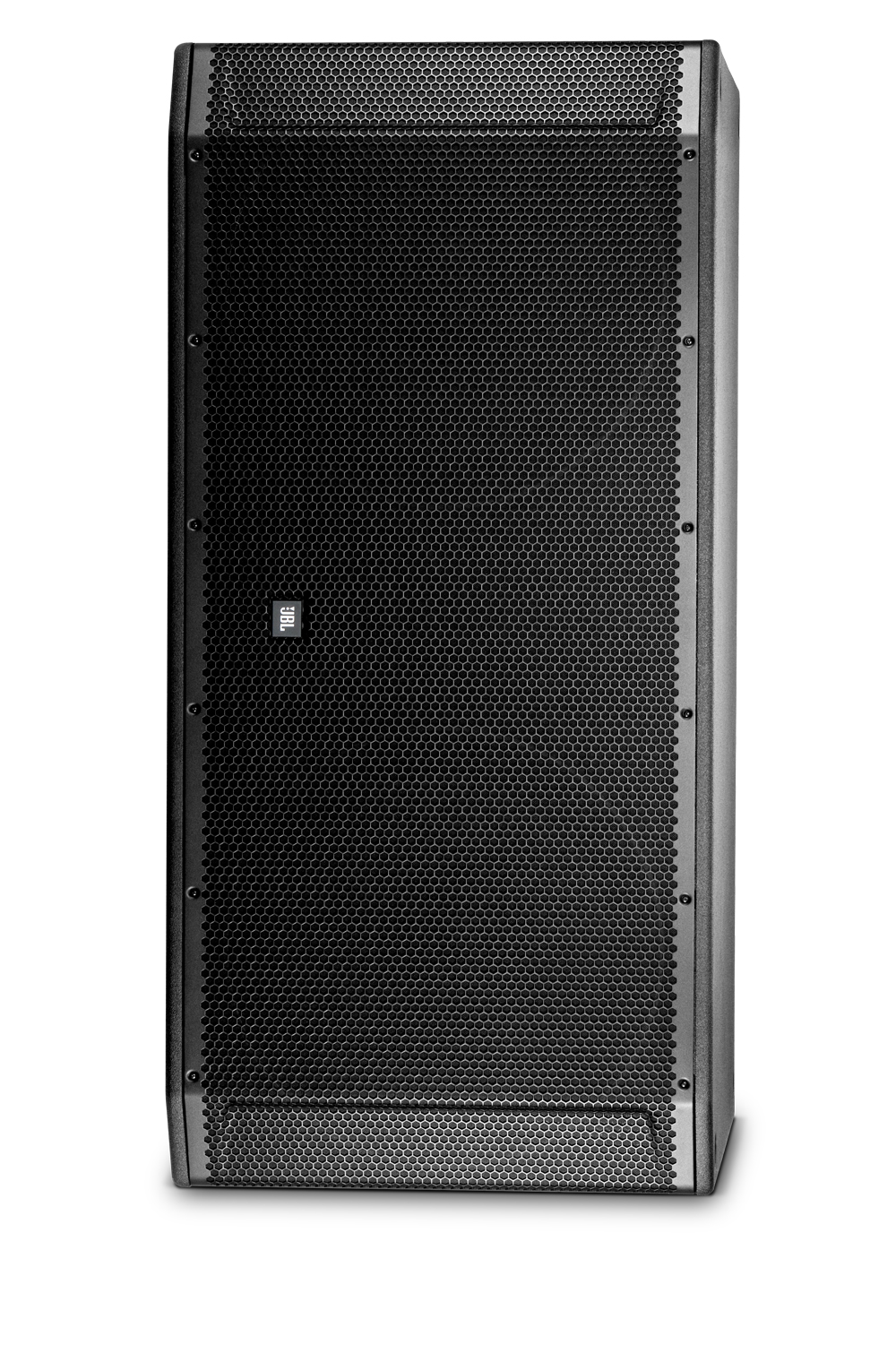

SRX828SP Front updated: 4月29日			720.2 KB	4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统类型	Self powered dual 18”, subwoofer system
Maximum SPL (1m)	141 dB
频率范围 (-10dB)	29 Hz - 150 Hz
Frequency Response (-3 dB)	35 Hz - 120 Hz
Amplifier Design	Class D
额定功率	2000 W Peak
尺寸（高 x 宽 x 厚）	681mm x 1205mm x 574mm (26.79in x 47.42in x 22.57in)
Net Weight (each)	65.9 kg (145 lb)
EQ	20 parametric EQ's, speaker delay, and 50 available slots for presets
输入通道	Neutrik ¼ - XLR input; Neutrik XLR Output
输出	2 x XLR
Enclosure	18 mm Duraflex coated plywood
低频驱动单元	2 x 18 in Differential Drive®
System Processing	DSP based, resident in Input Module

accessories

SRX828SP-CVR-DLX | Deluxe padded cover for SRX828SP

较大的图像

Deluxe padded cover for SRX828SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo.

SRX828SP-CVR-DLX-WK4 | Deluxe padded cover for SRX828SP w/ Casters

较大的图像

Deluxe padded cover for SRX828SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo. Designed to accommodate WK-4S rear-mounted caster kit (sold separately).
