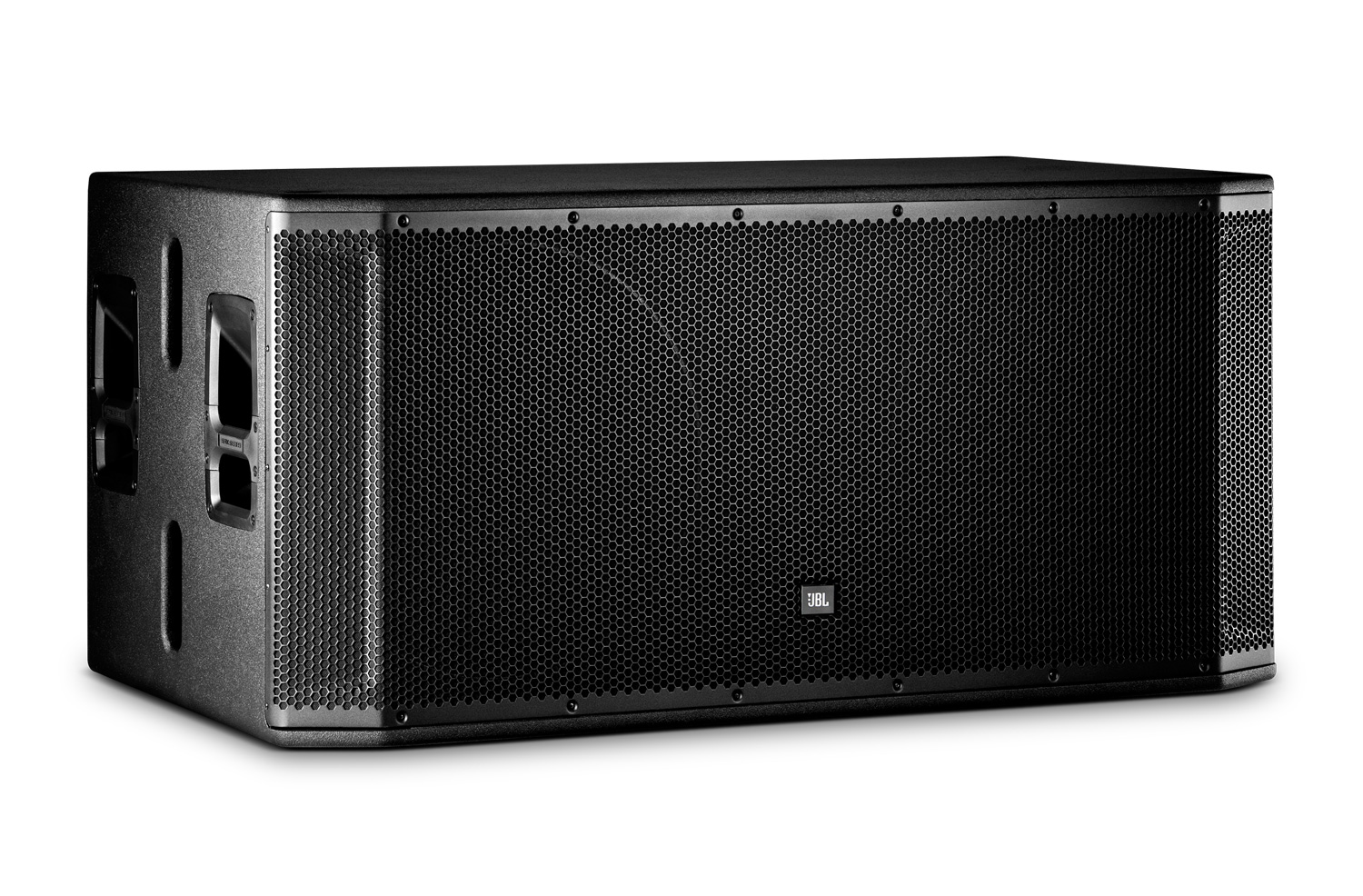

Dual 18-inch Powered Subwoofer
Gambar Lebih Besar
Fitur
- Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
- JBL Premium Transducers
- Drivecore Amplification By Crown
- Full User Configurable DSP
- Network Control
- JBL Engineered Application Presets
- LCD Screen and Glow in the Dark Ink on Back Panel
- Accepts JBL WK-4S Caster Kit
- 145 lb/65.9 kg
Unprecedented Control
A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.
Applications
- Live performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent installations.
Keterangan Lebih Lanjut
PURPOSEFUL DESIGN
Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

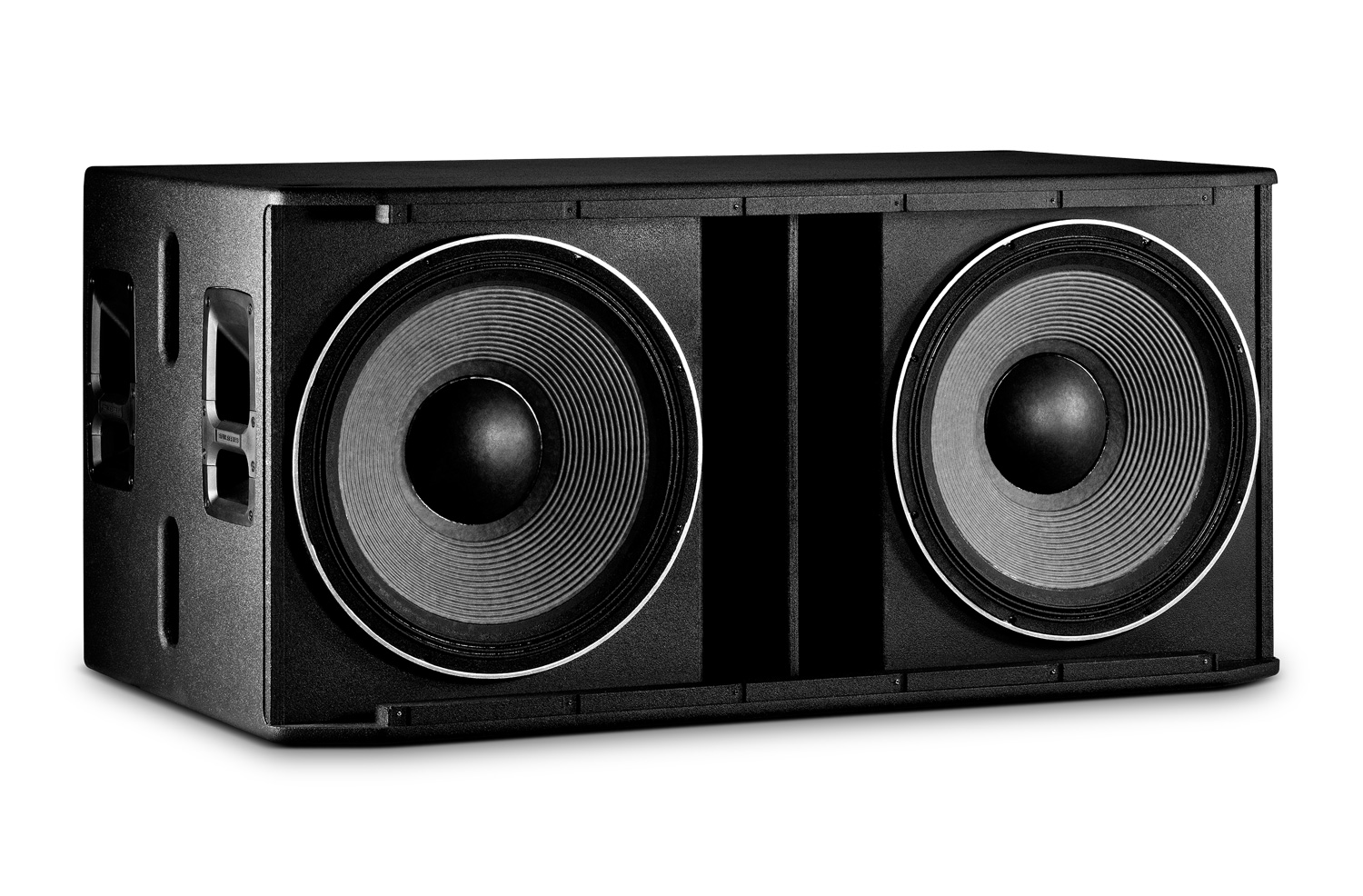

TRANSDUCER TECHNOLOGY
JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.
DRIVECORE BY CROWN
Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.
HIQNET NETWORK CONTROL
With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.
Unduhan
Data Sheets
| Ukuran | |
|
|
2,37 MB |
Specifications
| Ukuran | |
|
|
805 KB |
Manuals
| Ukuran | |
|
|
286 KB |
|
|
427 KB |
Brochures
| Ukuran | |
|
|
8,45 MB |
versi B,
diperbarui: Agu 2025
Compliances
| Ukuran | |
|
|
154 KB |
Software
| Ukuran | |
|
|
114 KB |
|
|
|
|
|
|
|
|
User Guides
| Ukuran | |
|
|
1,55 MB |
|
|
7,41 MB |
Images
| Ukuran | |
|
|
158 KB |
|
|
208 KB |
|
|
339 KB |
|
|
366 KB |
|
|
482 KB |
|
|
720 KB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
Suku Cadang & Servis
Spesifikasi
| System Type | Self powered dual 18”, subwoofer system |
| Maximum SPL (1m) | 141 dB |
| Frequency Range (-10dB) | 29 Hz - 150 Hz |
| Frequency Response (-3 dB) | 35 Hz - 120 Hz |
| Amplifier Design | Class D |
| Power Rating | 2000 W Peak |
| Dimensions (H x W x D) | 681mm x 1205mm x 574mm (26.79in x 47.42in x 22.57in) |
| Net Weight (each) | 65.9 kg (145 lb) |
| EQ | 20 parametric EQ's, speaker delay, and 50 available slots for presets |
| Inputs | Neutrik ¼ - XLR input; Neutrik XLR Output |
| Outputs | 2 x XLR |
| Enclosure | 18 mm Duraflex coated plywood |
| LF Driver | 2 x 18 in Differential Drive® |
| System Processing | DSP based, resident in Input Module |
Aksesori
SRX828SP-CVR-DLX | Deluxe padded cover for SRX828SP
Gambar Lebih Besar
Deluxe padded cover for SRX828SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo.
SRX828SP-CVR-DLX-WK4 | Deluxe padded cover for SRX828SP w/ Casters
Gambar Lebih Besar
Deluxe padded cover for SRX828SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo. Designed to accommodate WK-4S rear-mounted caster kit (sold separately).
