PRX318SD

18" Compact Subwoofer System

较大的图像

18" Compact Subwoofer System

PRX318SD is a compact direct-radiation 18-inch subwoofer system designed for bass effect in live performance or music playback applications.

PRX318SD installs the JBL 2043-G 18-inch woofer with 3-inch voice coil in a direct radiation format to reproduce loud and powerful low frequencies. According to JBL Professional’s toughest 100-hour extended life test, the sub system is capable of handling 350 watt continuous power and 1400 watt peak. A 36-mm pole mount receptacle on the top receives the SS3BK pole to facilitate use with a full range speaker. Two all-steel handles are integrated to the sides for transport and setup convenience. For extreme durability and optimum low frequency response, PRX318SD constructs its enclosure from 18mm MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology. For the front of the system, a dent-resistant grille made from 18-gauge perforated steel protects the components inside from damage on the move or during the show.

特点

  • JBL 2043-G 18-inch woofer with 3-inch voice coil for extended and powerful bass reproduction
  • 350 watt (continuous), 1400 watt (peak) power capacity
  • Rugged enclosure made from 18mm MDF (Medium Density Fiberboard)

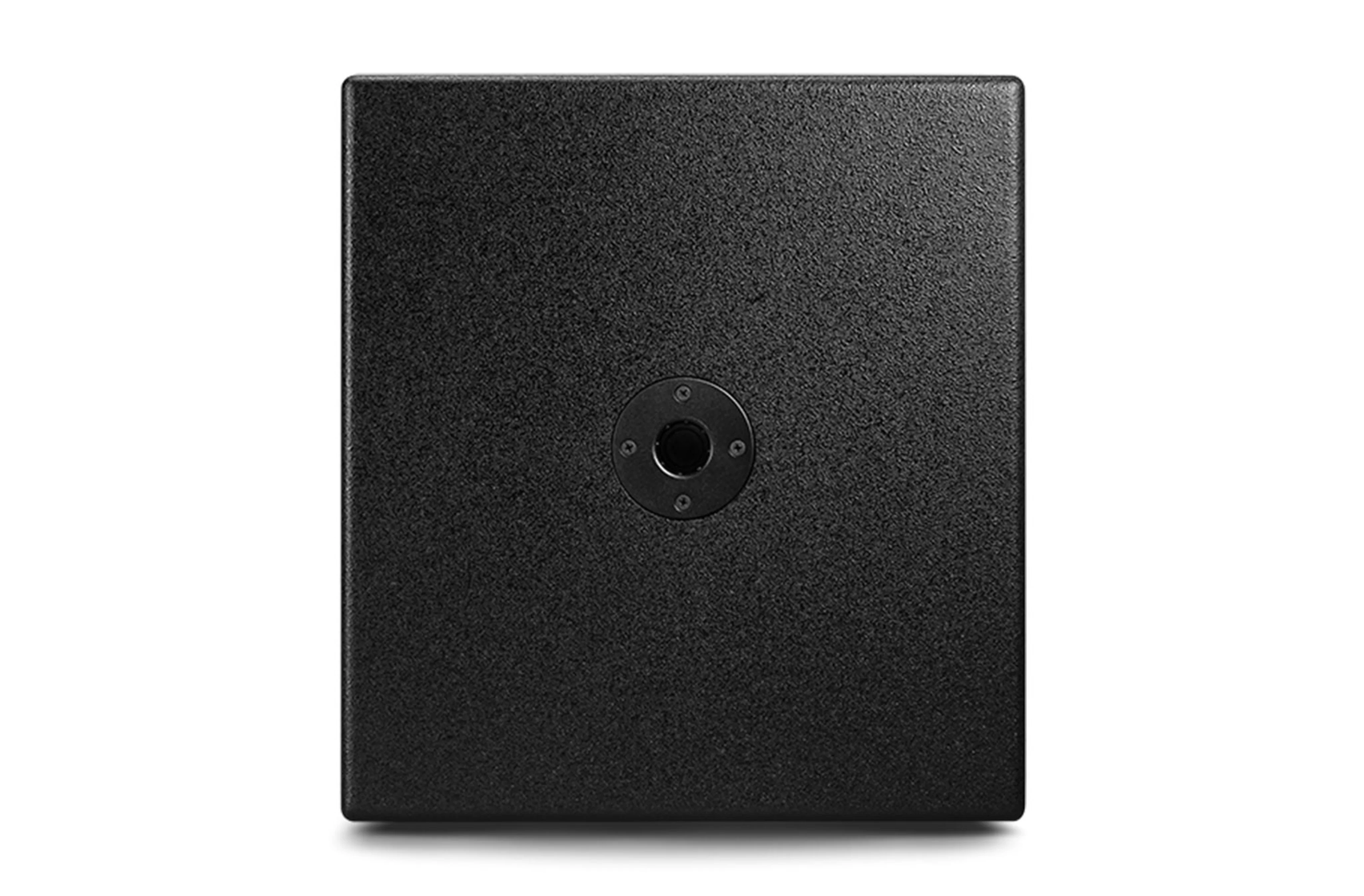

  • Top-mounted cast aluminum 36-mm pole mount receptacle facilitates use with a full-range speaker
  • All-steel handles are integrated to the sides for transport and setup convenience

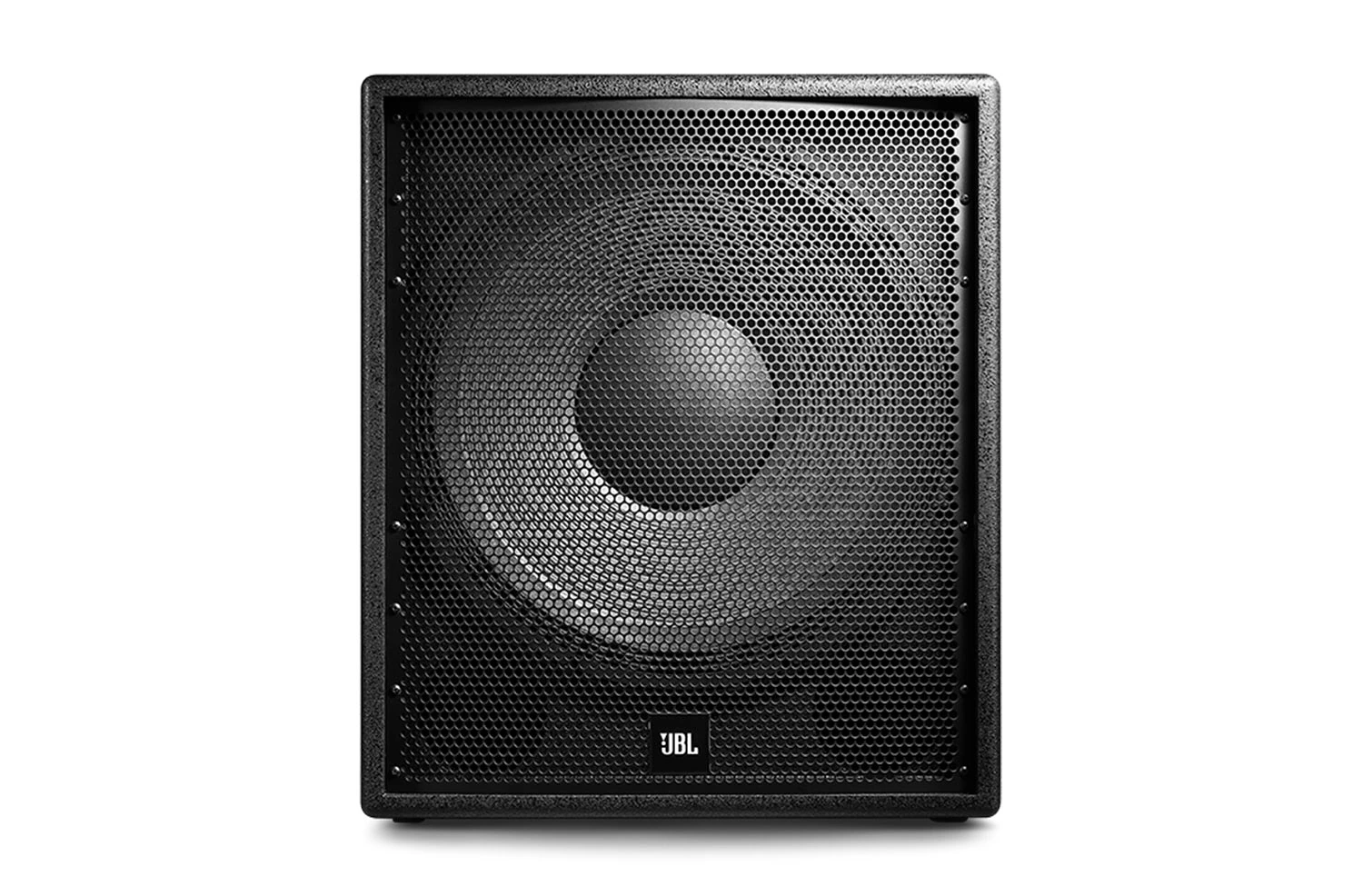

  • Dent-resistant grille protects the internal from damage on the move or during the show
  • For extra bass effect in live performance or music playback

下载

  Version Language Size Uploaded
Spec Sheets (Pdf)s
PRX318SD Spec Sheet Eng
updated: 12月02日
    630.4 KB 12月02日
PRX818SD Spec Sheet Cn
updated: 12月02日
    824.1 KB 12月02日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 18” compact subwoofer
Frequency Response (-10dB) 38 Hz – 300 Hz
Frequency Response (±3 dB) 47 Hz – 300 Hz
Sensitivity (1W, 1m) 96 dB SPL
标称阻抗 4 Ω
Maximum SPL (1m) 133 dB peak, @1m (3.3 ft)
功率容量 350 watts
Peak Power Capacity 1400 watts
Recommended Amplifier Power 350 - 700 watts @ 4Ω
尺寸(高 x 宽 x 厚) 593 mm × 503 mm × 551 mm (23.4 in × 19.8 in × 21.7 in)
净重量 29.8 kg (65.7 lbs)

运输重量

36.5 kg (80.5 lbs)
低频驱动单元 1 × 2043-G

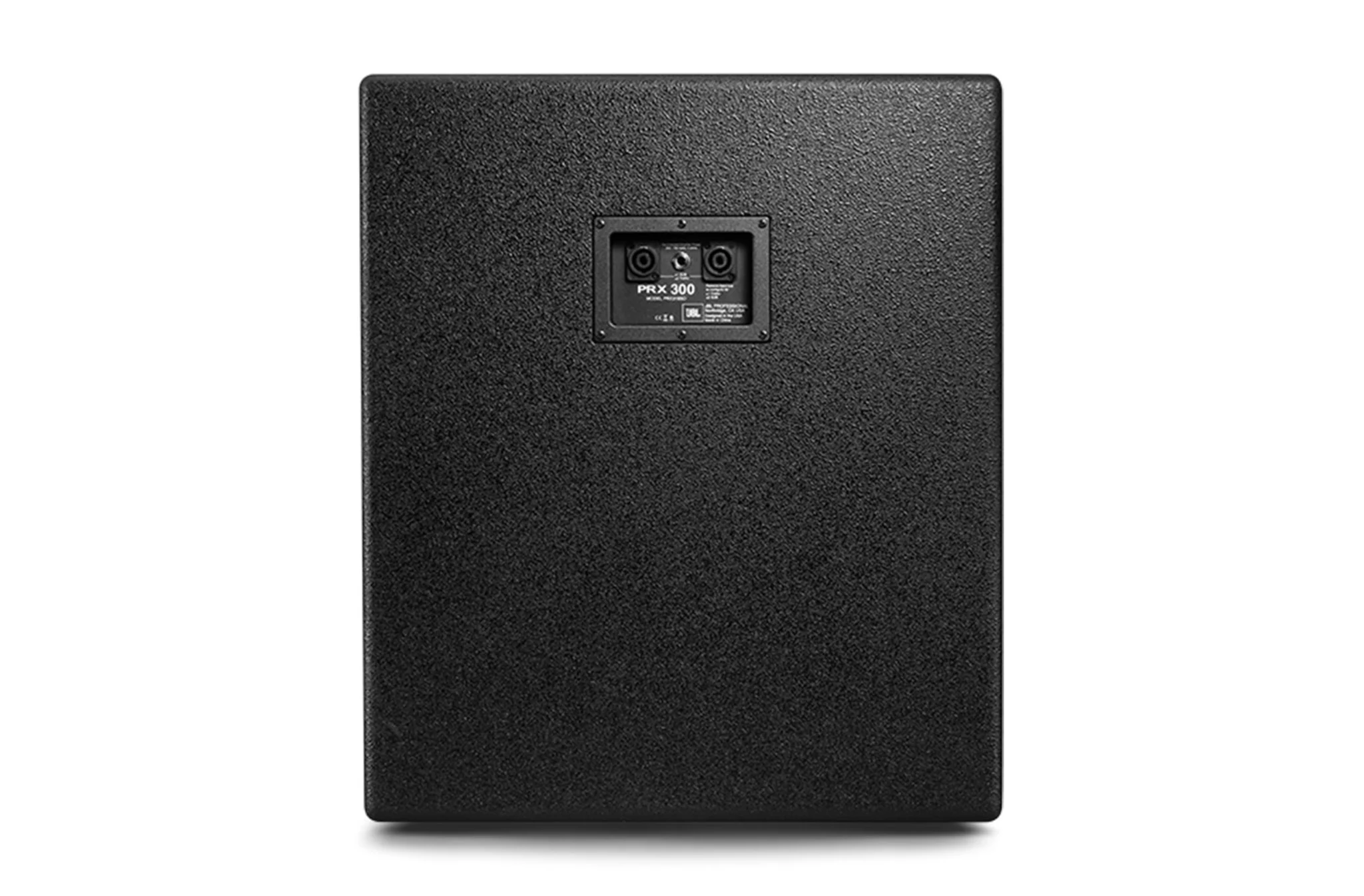

Input Connector Neutrik Speakon® NL-4 (×2);1/4” TS phone jack (×1) parallel
ENCLOSURE CONSTRUCTION 18 mm (0.7 in) MDF (Medium Density Fiberboard) with glued and mechanically fastened joint detail; black painting.
网罩 18-gauge, powder-coated steel
Optional Accessory SS3-BK
