PRX315D

15" 2-Way Speaker System

较大的图像

15" 2-Way Speaker System

PRX315D is a 15-inch portable two-way speaker system designed for live performance, music playback or reinforcement of speech.

For the low ends, PRX315D uses a premium 15-inch low frequency driver with a edge-wound ribbon voice coil of 2 ½ inch (64mm) in diameter to bring the system solid bass, high efficiency and large power handling capabilities. A JBL 2412 1-inch ferro-fluid cooled compression driver with titanium diaphragm provides the system with clean and warm high notes and uncompromised reliability. JBL SonicGuard™ technology improves system stability by protecting the high frequency driver from excessive power without interrupting the show. Apart from the drivers, fault-free performance of the system also relies on the precision-crafted crossover network, which feeds the two drivers with clear cut frequencies with minimum overlap and is capable of handling high power with its high-voltage capacitors and inductors. The patented Progressive Transition™ waveguide mounts on top of the tweeter and provides the system with superior coverage control, reduced distortion and smoother frequency response.

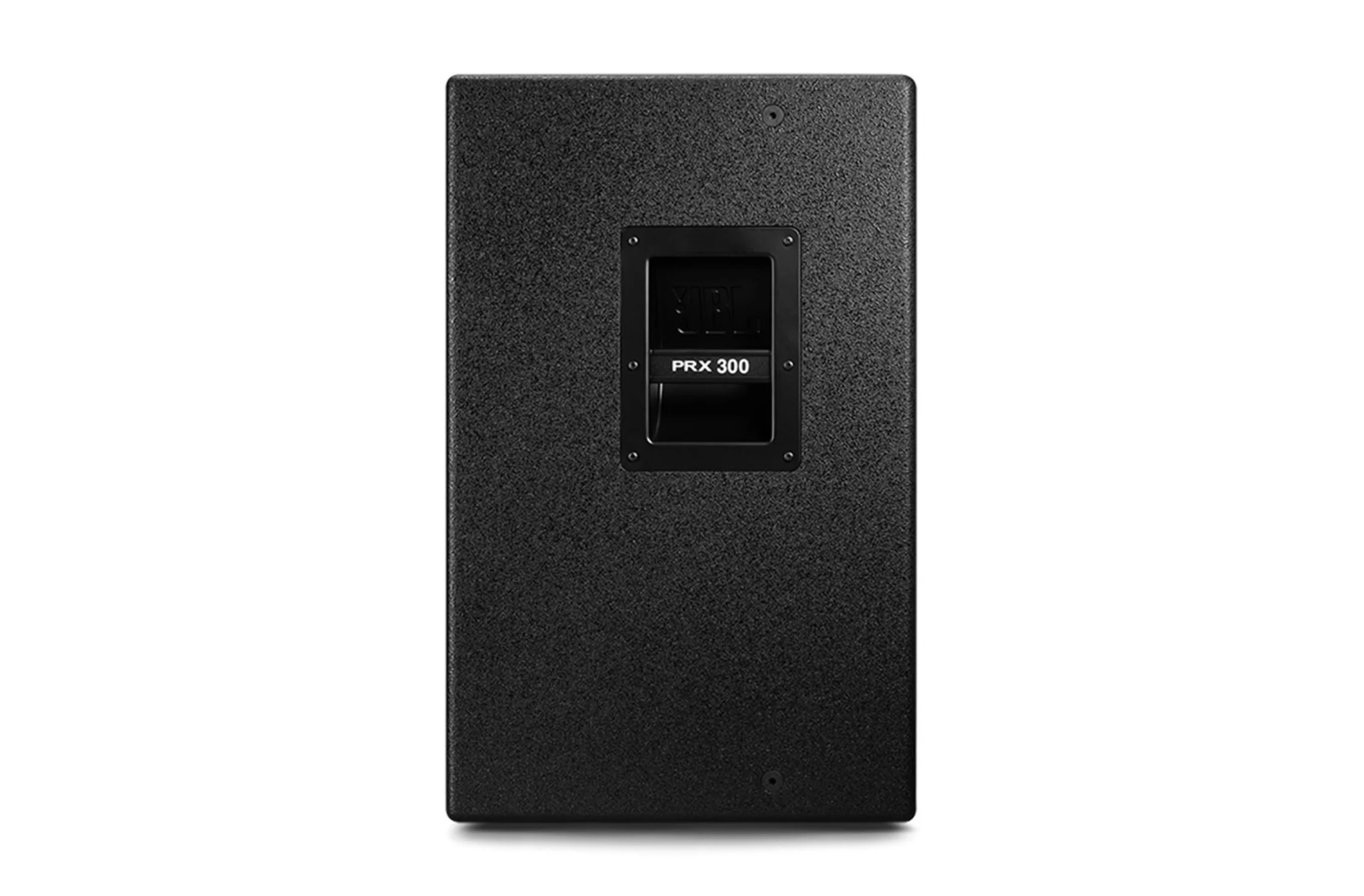

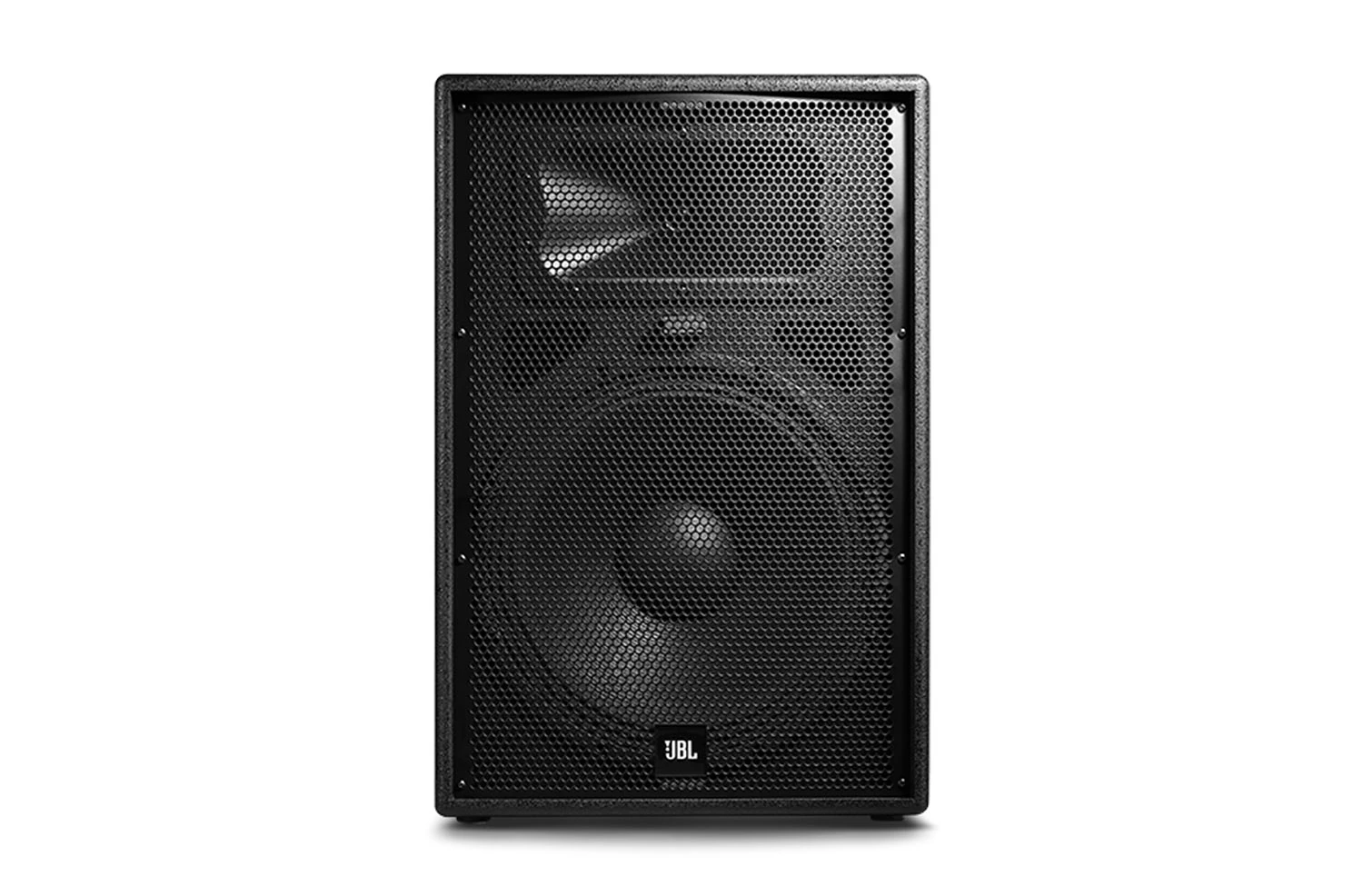

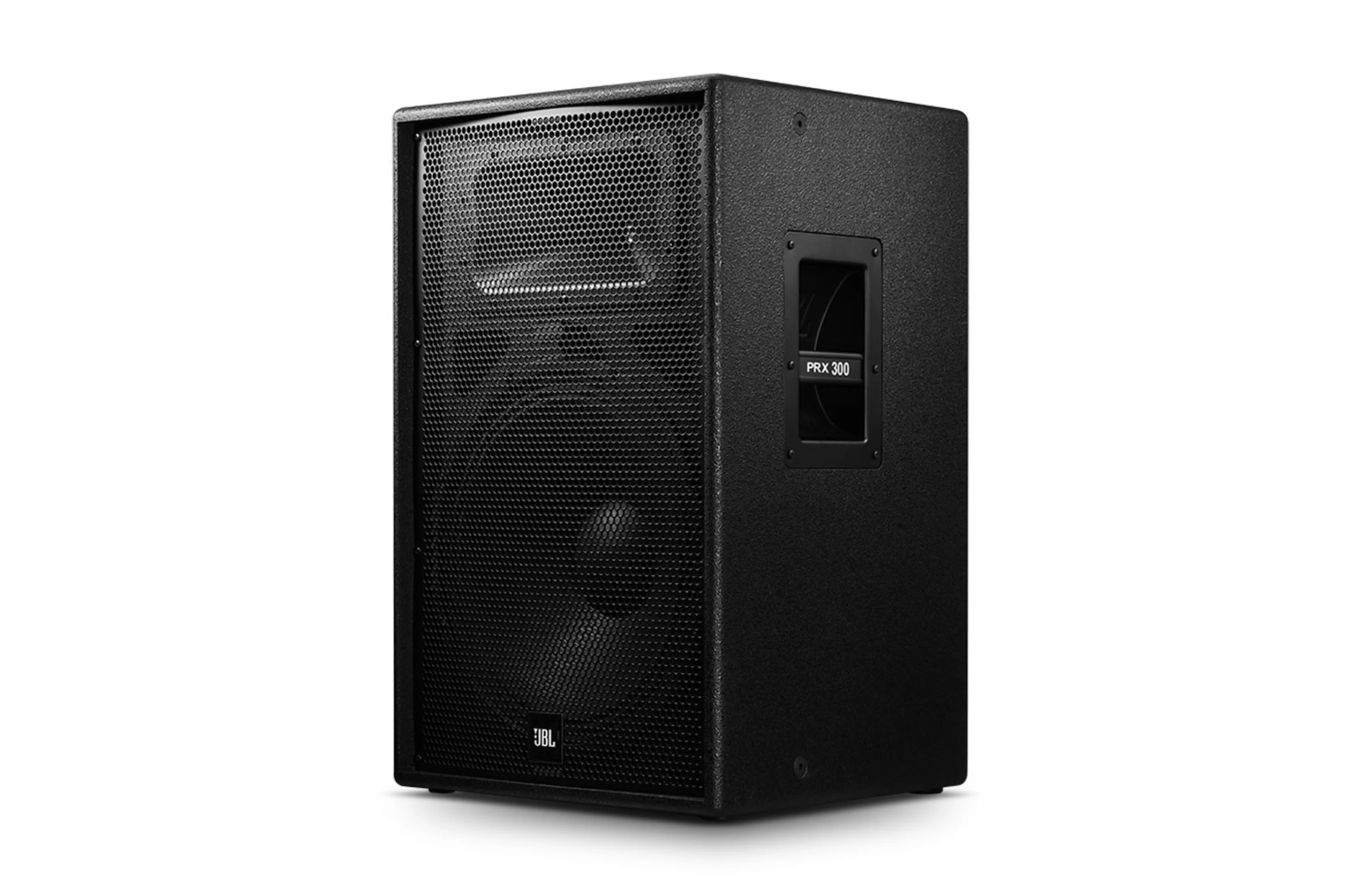

PRX315D encloses all the acoustic components in a rugged cabinet constructed from 15mm MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low frequency response. Two all-steel handles are integrated to sides of the case to make transport and setup easier. A 36-mm socket allows PRX315D to be mounted on a speaker pole and to work as a main or fill. The socket supports either up-straight standing or 10° tilting, helpful when the audience coverage needs to be uniformed. For the front of the speaker, a dent-resistant grille made from 18-gauge perforated steel protects the components inside from damage on the move or during the show.

特点

  • Premium 15-inch low frequency driver with a 2 ½ inch diameter edge-wound ribbon voice coil for solid and extended bass, high efficiency and power handling
  • JBL 2412 1-inch ferro-fluid cooled compression driver with titanium diaphragm delivers clean and warm high notes and uncompromised reliability
  • JBL SonicGuard™ technology constantly protects the high frequency driver from excessive power
  • Precision-crafted crossover feeds drivers with clear-cut frequencies and delivers coherent summation in the crossover region
  • Progressive Transition™ waveguide provides superior coverage control, reduced distortion and smoother frequency response
  • Rugged enclosure made from 15mm MDF (Medium Density Fiberboard)
  • 36-mm dual angle pole-mounting socket
  • Dent-resistant grille protects the internal from damage on the move or during the show
  • For live performance, music playback or reinforcement of speech

下载

  Version Language Size Uploaded
Spec Sheets (Pdf)s
PRX315D Spec Sheet Eng
updated: 12月02日
    559.5 KB 12月02日
PRX315D Spec Sheet Cn
updated: 12月02日
    757.7 KB 12月02日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 15” 2-way speaker
Frequency Response (-10dB) 38 Hz – 16 kHz
Frequency Response (±3 dB) 50 Hz – 12.5 kHz

灵敏度

98 dB SPL
标称阻抗 8 Ω
功率容量 250 watts
Peak Power Capacity 1000 watts
Recommended Amplifier Power 250 - 500 watts @ 8Ω
Maximum SPL (1m) 128 dB
Nominal Dispersion 90° × 50°
分频频率 1.6 kHz
尺寸(高 x 宽 x 厚) 681 mm × 455 mm × 422 mm(26.8 in × 17.9 in × 16.6 in)
净重量 23.9 kg (52.7 lbs)

运输重量

29.1 kg (64.2 lbs)
HF 驱动程序 JBL 2412 1” exit compression driver mounted on Progressive TransitionTM Waveguide
低频驱动单元 JBL M115-8A
Input Connector Parallel Neutrik Speakon® NL-4 (×1);1/4” TS phone jack (×1);
ENCLOSURE CONSTRUCTION 15 mm (0.6 in) MDF (Medium Density Fiberboard) with glued and mechanically fastened joint detail; black painting.
网罩 18-gauge, powder-coated steel
Mounting & Suspension 36 mm, dual-angle pole-mount socket; 12×M10 suspension points
